Concrete composite LinearOpWithSolveBase subclass that creates single upper or lower block triangular LOWSB object out of a set of LOWSB objects along the diagonal with LOB objects off diagonal. More...

#include <Thyra_DefaultBlockedTriangularLinearOpWithSolve_decl.hpp>

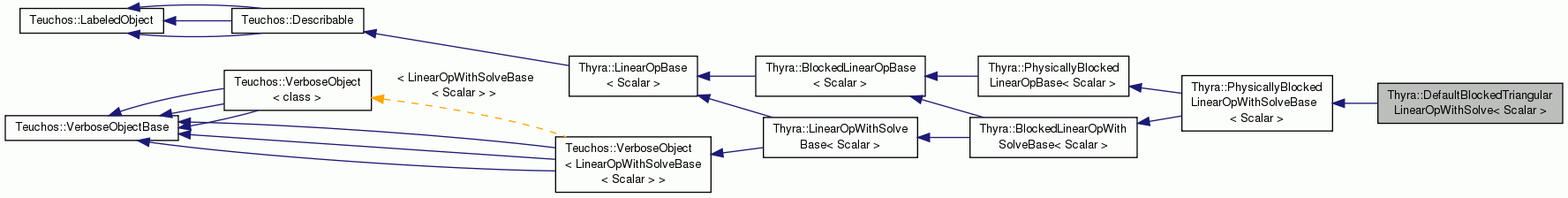

Inheritance diagram for Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >:

[legend]

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP < DefaultBlockedTriangularLinearOpWithSolve < Scalar > >	defaultBlockedTriangularLinearOpWithSolve ()
	Nonmember constructor. More...

Related Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp)
	Call `solveSupports()` as a non-member function. More...

template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria)
	Call `solveSupports()` as a non-member function. More...

template<class Scalar >
bool	solveSupportsSolveMeasureType (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const SolveMeasureType &solveMeasureType)
	Call `solveSupportsSolveMeasureType()` as a non-member function. More...

template<class Scalar >
SolveStatus< Scalar >	solve (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Call `solve()` as a non-member function. More...

template<class Scalar >
void	assertSolveSupports (const LinearOpWithSolveBase< Scalar > &lows, const EOpTransp M_trans, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Assert that a LOWSB object supports a particular solve type. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Constructors/Initializers/Accessors
	DefaultBlockedTriangularLinearOpWithSolve ()

void	setNonconstBlocks (const RCP< PhysicallyBlockedLinearOpBase< Scalar > > &blocks)

void	setBlocks (const RCP< const PhysicallyBlockedLinearOpBase< Scalar > > &blocks)

RCP < PhysicallyBlockedLinearOpBase < Scalar > >	getNonconstBlocks ()

RCP< const PhysicallyBlockedLinearOpBase < Scalar > >	getBlocks ()

Overridden from PhysicallyBlockedLinearOpWithSolveBase
bool	acceptsLOWSBlock (const int i, const int j) const

void	setNonconstLOWSBlock (const int i, const int j, const RCP< LinearOpWithSolveBase< Scalar > > &block)

void	setLOWSBlock (const int i, const int j, const RCP< const LinearOpWithSolveBase< Scalar > > &block)

Overridden from PhysicallyBlockedLinearOpBase
void	beginBlockFill ()

void	beginBlockFill (const int numRowBlocks, const int numColBlocks)

void	beginBlockFill (const RCP< const ProductVectorSpaceBase< Scalar > > &productRange, const RCP< const ProductVectorSpaceBase< Scalar > > &productDomain)

bool	blockFillIsActive () const

bool	acceptsBlock (const int i, const int j) const

void	setNonconstBlock (const int i, const int j, const RCP< LinearOpBase< Scalar > > &block)

void	setBlock (const int i, const int j, const RCP< const LinearOpBase< Scalar > > &block)

void	endBlockFill ()

void	uninitialize ()

Overridden from BlockedLinearOpWithSolveBase
RCP< LinearOpWithSolveBase < Scalar > >	getNonconstLOWSBlock (const int i, const int j)

RCP< const LinearOpWithSolveBase< Scalar > >	getLOWSBlock (const int i, const int j) const

Overridden from BlockedLinearOpBase
RCP< const ProductVectorSpaceBase< Scalar > >	productRange () const

RCP< const ProductVectorSpaceBase< Scalar > >	productDomain () const

bool	blockExists (const int i, const int j) const

bool	blockIsConst (const int i, const int j) const

RCP< LinearOpBase< Scalar > >	getNonconstBlock (const int i, const int j)

RCP< const LinearOpBase< Scalar > >	getBlock (const int i, const int j) const

Overridden from LinearOpBase
RCP< const VectorSpaceBase < Scalar > >	range () const

RCP< const VectorSpaceBase < Scalar > >	domain () const

RCP< const LinearOpBase< Scalar > >	clone () const

bool	opSupportedImpl (EOpTransp M_trans) const

void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const

Overridden from Teuchos::Describable
std::string	description () const
	Prints just the name `DefaultBlockedTriangularLinearOpWithSolve` along with the overall dimensions and the number of constituent operators. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
	Prints the details about the constituent linear operators. More...

Overridden from LinearOpWithSolveBase
bool	solveSupportsImpl (EOpTransp M_trans) const

bool	solveSupportsSolveMeasureTypeImpl (EOpTransp M_trans, const SolveMeasureType &solveMeasureType) const

SolveStatus< Scalar >	solveImpl (const EOpTransp transp, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const

Additional Inherited Members
Public Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
bool	solveSupports (EOpTransp transp) const
	Return if `solve()` supports the argument `transp`. More...

bool	solveSupports (EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const
	Return if `solve()` supports a given transpose and solve criteria specification. More...

bool	solveSupportsSolveMeasureType (EOpTransp transp, const SolveMeasureType &solveMeasureType) const
	Return if `solve()` supports the given the solve measure type. More...

SolveStatus< Scalar >	solve (const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null) const
	Request the solution of a block linear system. More...

Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not. More...

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`. More...

Protected Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
virtual bool	solveSupportsNewImpl (EOpTransp, const Ptr< const SolveCriteria< Scalar > >) const
	Virtual implementation of `solveSupports()`. More...

Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >

Detailed Description

template<class Scalar>
class Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >

Concrete composite LinearOpWithSolveBase subclass that creates single upper or lower block triangular LOWSB object out of a set of LOWSB objects along the diagonal with LOB objects off diagonal.

This subclass implements a strictly block upper or lower triangular LOWSB object. With LOWSB objects on the diagonal, the block system can be solved by solving for each of the diagonal blocks and moving lower (or upper) blocks to the RHS on each successive solve.

For example, consider the lower block triangular linear operator:

      [ M(0,0)                   ]
  M = [ M(1,0)   M(1,1)          ]
      [ M(2,0)   M(2,1)   M(2,2) ]

A linear system of the form:

  M * x = b

  =>

  [ M(0,0)                   ]   [ x(0) ]   [ b(0) ]
  [ M(1,0)   M(1,1)          ] * [ x(1) ] = [ b(1) ]
  [ M(2,0)   M(2,1)   M(2,2) ]   [ x(2) ]   [ b(2) ]

is solved as:

 x(0) = inv(M(0,0)) * b(0)
 x(1) = inv(M(1,1)) * ( b(1) - M(1,0)*x(0) )
 x(2) = inv(M(2,2)) * ( b(2) - M(2,0)*x(0) - M(2,1)*x(1) )

The same approach can be used for block upper triangular linear operators as well of course.

See the class DefaultBlockedTriangularLinearOpWithSolveFactory for an example of how one of these objects can be created from any PhysicallyBlockedLinearOpBase object and compatible LinearWithSolveBase objects.

ToDo: Finish Documentation!

Definition at line 112 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::DefaultBlockedTriangularLinearOpWithSolve ( )

Definition at line 62 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

Member Function Documentation

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::setNonconstBlocks ( const RCP< PhysicallyBlockedLinearOpBase< Scalar > > & blocks )

Definition at line 68 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::setBlocks ( const RCP< const PhysicallyBlockedLinearOpBase< Scalar > > & blocks )

Definition at line 78 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

RCP< PhysicallyBlockedLinearOpBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::getNonconstBlocks ( )

Definition at line 89 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

RCP< const PhysicallyBlockedLinearOpBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::getBlocks ( )

Definition at line 97 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::acceptsLOWSBlock	(	const int	i,
		const int	j
	)		const

virtual

Implements Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >.

Definition at line 107 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::setNonconstLOWSBlock	(	const int	i,
		const int	j,
		const RCP< LinearOpWithSolveBase< Scalar > > &	block
	)

virtual

Implements Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >.

Definition at line 117 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::setLOWSBlock	(	const int	i,
		const int	j,
		const RCP< const LinearOpWithSolveBase< Scalar > > &	block
	)

virtual

Implements Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >.

Definition at line 127 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::beginBlockFill ( )

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 140 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::beginBlockFill	(	const int	numRowBlocks,
		const int	numColBlocks
	)

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 148 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::beginBlockFill	(	const RCP< const ProductVectorSpaceBase< Scalar > > &	productRange,
		const RCP< const ProductVectorSpaceBase< Scalar > > &	productDomain
	)

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 168 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::blockFillIsActive ( ) const

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 188 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::acceptsBlock	(	const int	i,
		const int	j
	)		const

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 195 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::setNonconstBlock	(	const int	i,
		const int	j,
		const RCP< LinearOpBase< Scalar > > &	block
	)

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 206 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::setBlock	(	const int	i,
		const int	j,
		const RCP< const LinearOpBase< Scalar > > &	block
	)

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 217 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::endBlockFill ( )

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 228 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::uninitialize ( )

virtual

Implements Thyra::PhysicallyBlockedLinearOpBase< Scalar >.

Definition at line 253 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< LinearOpWithSolveBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::getNonconstLOWSBlock	(	const int	i,
		const int	j
	)

virtual

Implements Thyra::BlockedLinearOpWithSolveBase< Scalar >.

Definition at line 268 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const LinearOpWithSolveBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::getLOWSBlock	(	const int	i,
		const int	j
	)		const

virtual

Implements Thyra::BlockedLinearOpWithSolveBase< Scalar >.

Definition at line 282 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const ProductVectorSpaceBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::productRange ( ) const

virtual

Implements Thyra::BlockedLinearOpBase< Scalar >.

Definition at line 299 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const ProductVectorSpaceBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::productDomain ( ) const

virtual

Implements Thyra::BlockedLinearOpBase< Scalar >.

Definition at line 307 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::blockExists	(	const int	i,
		const int	j
	)		const

virtual

Implements Thyra::BlockedLinearOpBase< Scalar >.

Definition at line 314 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::blockIsConst	(	const int	i,
		const int	j
	)		const

virtual

Implements Thyra::BlockedLinearOpBase< Scalar >.

Definition at line 327 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< LinearOpBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::getNonconstBlock	(	const int	i,
		const int	j
	)

virtual

Implements Thyra::BlockedLinearOpBase< Scalar >.

Definition at line 339 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const LinearOpBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::getBlock	(	const int	i,
		const int	j
	)		const

virtual

Implements Thyra::BlockedLinearOpBase< Scalar >.

Definition at line 353 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::range ( ) const

virtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 370 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::domain ( ) const

virtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 378 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

Teuchos::RCP< const LinearOpBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::clone ( ) const

virtual

Reimplemented from Thyra::LinearOpBase< Scalar >.

Definition at line 386 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

std::string Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::description ( ) const

virtual

Prints just the name DefaultBlockedTriangularLinearOpWithSolve along with the overall dimensions and the number of constituent operators.

Reimplemented from Teuchos::Describable.

Definition at line 397 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

virtual

Prints the details about the constituent linear operators.

This function outputs different levels of detail based on the value passed in for verbLevel:

ToDo: Finish documentation!

Reimplemented from Teuchos::Describable.

Definition at line 410 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::opSupportedImpl ( EOpTransp M_trans ) const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 428 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::applyImpl	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 446 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::solveSupportsImpl ( EOpTransp M_trans ) const

protectedvirtual

Reimplemented from Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 496 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::solveSupportsSolveMeasureTypeImpl	(	EOpTransp	M_trans,
		const SolveMeasureType &	solveMeasureType
	)		const

protectedvirtual

Reimplemented from Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 514 of file Thyra_DefaultBlockedTriangularLinearOpWithSolve_def.hpp.

template<class Scalar >

SolveStatus< Scalar > Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >::solveImpl	(	const EOpTransp	transp,
		const MultiVectorBase< Scalar > &	B,
		const Ptr< MultiVectorBase< Scalar > > &	X,
		const Ptr< const SolveCriteria< Scalar > >	solveCriteria
	)		const
