Base interface for linear operators with a solve that are composed out of individual LOB and LOWSB objects. More...

#include <Thyra_PhysicallyBlockedLinearOpWithSolveBase.hpp>

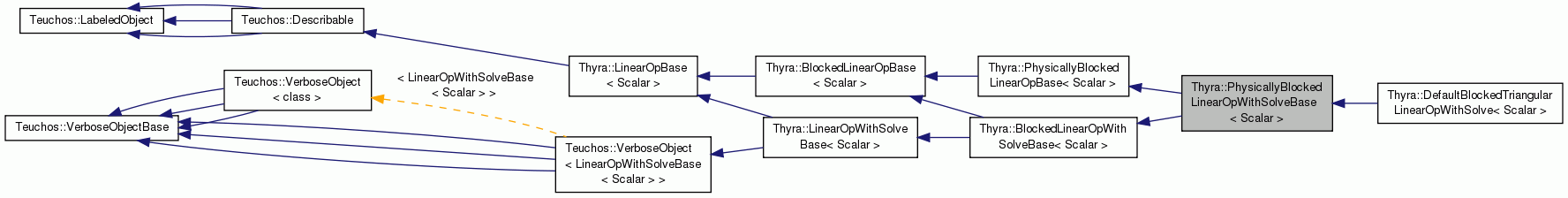

Inheritance diagram for Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >:

Public Member Functions
virtual bool	acceptsLOWSBlock (const int i, const int j) const =0
	Determines if the block `(i,j)` can be filled with a LOWDB object or not. More...

virtual void	setNonconstLOWSBlock (const int i, const int j, const Teuchos::RCP< LinearOpWithSolveBase< Scalar > > &block)=0

virtual void	setLOWSBlock (const int i, const int j, const Teuchos::RCP< const LinearOpWithSolveBase< Scalar > > &block)=0

Public Member Functions inherited from Thyra::BlockedLinearOpWithSolveBase< Scalar >
virtual Teuchos::RCP < LinearOpWithSolveBase < Scalar > >	getNonconstLOWSBlock (const int i, const int j)=0

virtual Teuchos::RCP< const LinearOpWithSolveBase< Scalar > >	getLOWSBlock (const int i, const int j) const =0

Public Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
bool	solveSupports (EOpTransp transp) const
	Return if `solve()` supports the argument `transp`. More...

bool	solveSupports (EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const
	Return if `solve()` supports a given transpose and solve criteria specification. More...

bool	solveSupportsSolveMeasureType (EOpTransp transp, const SolveMeasureType &solveMeasureType) const
	Return if `solve()` supports the given the solve measure type. More...

SolveStatus< Scalar >	solve (const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null) const
	Request the solution of a block linear system. More...

Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual RCP< const VectorSpaceBase< Scalar > >	range () const =0
	Return a smart pointer for the range space for `this` operator. More...

virtual RCP< const VectorSpaceBase< Scalar > >	domain () const =0
	Return a smart pointer for the domain space for `this` operator. More...

bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not. More...

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`. More...

virtual RCP< const LinearOpBase< Scalar > >	clone () const
	Clone the linear operator object (if supported). More...

Public Member Functions inherited from Thyra::BlockedLinearOpBase< Scalar >
virtual Teuchos::RCP< const ProductVectorSpaceBase< Scalar > >	productRange () const =0
	Return the product space for the range. More...

virtual Teuchos::RCP< const ProductVectorSpaceBase< Scalar > >	productDomain () const =0
	Return the product space for the domain. More...

virtual bool	blockExists (const int i, const int j) const =0
	Return if the block `(i,j)` exists or not. More...

virtual bool	blockIsConst (const int i, const int j) const =0
	Return if the block `(i,j)` is const only or not. More...

virtual Teuchos::RCP < LinearOpBase< Scalar > >	getNonconstBlock (const int i, const int j)=0
	Return a non-const view of the block `(i,j)` if it exists. More...

virtual Teuchos::RCP< const LinearOpBase< Scalar > >	getBlock (const int i, const int j) const =0
	Return a const view of the block `(i,j)` if it exists. More...

Public Member Functions inherited from Thyra::PhysicallyBlockedLinearOpBase< Scalar >
virtual void	beginBlockFill ()=0
	Begin a block fill where the product range and domain spaces will be created on the fly and the number of block rows and columns is not known in advance. More...

virtual void	beginBlockFill (const int numRowBlocks, const int numColBlocks)=0
	Begin a block fill where the product range and domain spaces will be created on the fly but the total number of block rows and block columns is known in advance. More...

virtual void	beginBlockFill (const Teuchos::RCP< const ProductVectorSpaceBase< Scalar > > &productRange, const Teuchos::RCP< const ProductVectorSpaceBase< Scalar > > &productDomain)=0
	Begin a block fill where the product range and domain spaces are set a priori. More...

virtual bool	blockFillIsActive () const =0
	Determines if a block fill is active or not . More...

virtual bool	acceptsBlock (const int i, const int j) const =0
	Determines if the block `(i,j)` can be filled or not. More...

virtual void	setNonconstBlock (const int i, const int j, const Teuchos::RCP< LinearOpBase< Scalar > > &block)=0
	Set a non-const block linear operator. More...

virtual void	setBlock (const int i, const int j, const Teuchos::RCP< const LinearOpBase< Scalar > > &block)=0
	Set a const block linear operator. More...

virtual void	endBlockFill ()=0
	End a block fill after which `*this` object can be used. More...

virtual void	uninitialize ()=0
	Set to uninitlaized. More...

Additional Inherited Members
Protected Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
virtual bool	solveSupportsImpl (EOpTransp transp) const
	Virtual implementation for solveSupports(). More...

virtual bool	solveSupportsNewImpl (EOpTransp, const Ptr< const SolveCriteria< Scalar > >) const
	Virtual implementation of `solveSupports()`. More...

virtual bool	solveSupportsSolveMeasureTypeImpl (EOpTransp transp, const SolveMeasureType &solveMeasureType) const
	Virtual implementation for solveSupportsSolveMeasureType(). More...

virtual SolveStatus< Scalar >	solveImpl (const EOpTransp transp, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const =0
	Virtual implementation for solve(). More...

Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual bool	opSupportedImpl (EOpTransp M_trans) const =0
	Override in subclass. More...

virtual void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
	Override in subclass. More...

Related Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp)
	Call `solveSupports()` as a non-member function. More...

template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria)
	Call `solveSupports()` as a non-member function. More...

template<class Scalar >
bool	solveSupportsSolveMeasureType (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const SolveMeasureType &solveMeasureType)
	Call `solveSupportsSolveMeasureType()` as a non-member function. More...

template<class Scalar >
SolveStatus< Scalar >	solve (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Call `solve()` as a non-member function. More...

template<class Scalar >
void	assertSolveSupports (const LinearOpWithSolveBase< Scalar > &lows, const EOpTransp M_trans, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Assert that a LOWSB object supports a particular solve type. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Detailed Description

template<class Scalar>
class Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >

Base interface for linear operators with a solve that are composed out of individual LOB and LOWSB objects.

ToDo: Finish Documentation.

Definition at line 28 of file Thyra_PhysicallyBlockedLinearOpWithSolveBase.hpp.

Member Function Documentation

template<class Scalar>

virtual bool Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >::acceptsLOWSBlock	(	const int	i,
		const int	j
	)		const

pure virtual

Determines if the block (i,j) can be filled with a LOWDB object or not.

Parameters

i	[in] Zero-based index for the block row.
j	[in] Zero-based index for the block column.

Preconditions:

this->blockFillIsActive()==true
i >= 0 && j >= 0
[this->productRange().get()!=NULL] i < this->productRange()->numBlocks()
[this->productDomain().get()!=NULL] j < this->productDomain()->numBlocks()

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >.

template<class Scalar>

virtual void Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >::setNonconstLOWSBlock	(	const int	i,
		const int	j,
		const Teuchos::RCP< LinearOpWithSolveBase< Scalar > > &	block
	)

pure virtual

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >.

template<class Scalar>

virtual void Thyra::PhysicallyBlockedLinearOpWithSolveBase< Scalar >::setLOWSBlock	(	const int	i,
		const int	j,
		const Teuchos::RCP< const LinearOpWithSolveBase< Scalar > > &	block
	)

pure virtual

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >.

The documentation for this class was generated from the following file:

Thyra_PhysicallyBlockedLinearOpWithSolveBase.hpp
