Implicit subclass that takes a blocked triangular LOWB object and turns it into a LOWSB object. More...

#include <Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_decl.hpp>

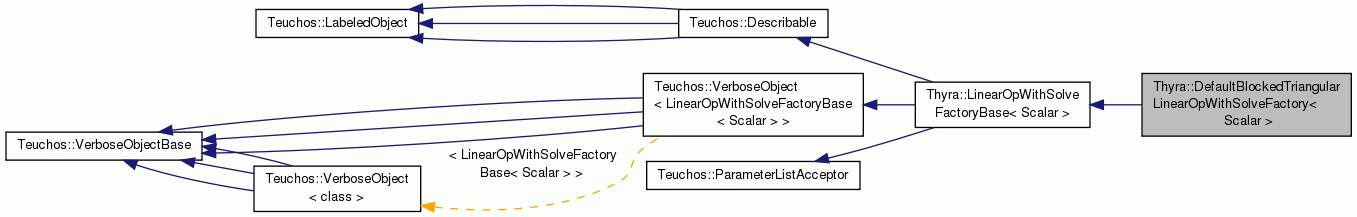

Inheritance diagram for Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >:

Overridden from Constructors/Initializers/Accessors
	DefaultBlockedTriangularLinearOpWithSolveFactory (const RCP< LinearOpWithSolveFactoryBase< Scalar > > &lowsf)
	Create given a single non-const LOWSFB object. More...

	DefaultBlockedTriangularLinearOpWithSolveFactory (const RCP< const LinearOpWithSolveFactoryBase< Scalar > > &lowsf)
	Create given a single const LOWSFB object. More...

RCP < LinearOpWithSolveFactoryBase < Scalar > >	getUnderlyingLOWSF ()

RCP< const LinearOpWithSolveFactoryBase < Scalar > >	getUnderlyingLOWSF () const

Overridden from Teuchos::Describable.
std::string	description () const

Overridden from ParameterListAcceptor (simple forwarding functions)
void	setParameterList (RCP< ParameterList > const &paramList)

RCP< ParameterList >	getNonconstParameterList ()

RCP< ParameterList >	unsetParameterList ()

RCP< const ParameterList >	getParameterList () const

RCP< const ParameterList >	getValidParameters () const

Overridden from LinearOpWithSolveFactoyBase
virtual bool	acceptsPreconditionerFactory () const
	returns false. More...

virtual void	setPreconditionerFactory (const RCP< PreconditionerFactoryBase< Scalar > > &precFactory, const std::string &precFactoryName)
	Throws exception. More...

virtual RCP < PreconditionerFactoryBase < Scalar > >	getPreconditionerFactory () const
	Returns null . More...

virtual void	unsetPreconditionerFactory (RCP< PreconditionerFactoryBase< Scalar > > precFactory, std::string precFactoryName)
	Throws exception. More...

virtual bool	isCompatible (const LinearOpSourceBase< Scalar > &fwdOpSrc) const

virtual RCP < LinearOpWithSolveBase < Scalar > >	createOp () const

virtual void	initializeOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse) const

virtual void	initializeAndReuseOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, LinearOpWithSolveBase< Scalar > *Op) const

virtual void	uninitializeOp (LinearOpWithSolveBase< Scalar > Op, RCP< const LinearOpSourceBase< Scalar > > fwdOpSrc, RCP< const PreconditionerBase< Scalar > > prec, RCP< const LinearOpSourceBase< Scalar > > approxFwdOpSrc, ESupportSolveUse *supportSolveUse) const

virtual bool	supportsPreconditionerInputType (const EPreconditionerInputType precOpType) const

virtual void	initializePreconditionedOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, const RCP< const PreconditionerBase< Scalar > > &prec, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse) const

virtual void	initializeApproxPreconditionedOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, const RCP< const LinearOpSourceBase< Scalar > > &approxFwdOpSrc, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse) const

void	informUpdatedVerbosityState () const
	Overridden from Teuchos::VerboseObjectBase. More...

Additional Inherited Members
Public Member Functions inherited from Thyra::LinearOpWithSolveFactoryBase< Scalar >
Related Functions inherited from Thyra::LinearOpWithSolveFactoryBase< Scalar >
template<class Scalar >
bool	isCompatible (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const LinearOpBase< Scalar > &fwdOp)
	Return if the forward operator is a compatible source for a LOWSFB object. More...

template<class Scalar >
void	setDefaultObjectLabel (const LinearOpBase< Scalar > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op)
	Set default label on a LOWSB object. More...

template<class Scalar >
void	initializeOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Initialize a pre-created LOWSB object given a forward operator. More...

template<class Scalar >
void	initializeAndReuseOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op)
	Reinitialize a pre-created LOWSB object given a forward operator, reusing a much as possible from the prior LOWSB object. More...

template<class Scalar >
void	initializePreconditionedOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const RCP< const PreconditionerBase< Scalar > > &prec, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Initialize a preconditioned LOWSB object given an external preconditioner. More...

template<class Scalar >
void	initializeApproxPreconditionedOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const RCP< const LinearOpBase< Scalar > > &approxFwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Initialize a preconditioned LOWSB object given an external operator to be used to generate the preconditioner internally. More...

template<class Scalar >
RCP< LinearOpWithSolveBase < Scalar > >	linearOpWithSolve (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Create and initialize a `LinearOpWithSolveBase` object from a `LinearOpBase` object using a `LinearOpWithSolveFactoryBase` strategy object. More...

template<class Scalar >
RCP< LinearOpBase< Scalar > >	inverse (const LinearOpWithSolveFactoryBase< Scalar > &LOWSF, const RCP< const LinearOpBase< Scalar > > &fwdOp, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED, const Ptr< const SolveCriteria< Scalar > > &fwdSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const Ptr< const SolveCriteria< Scalar > > &adjSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)
	Form a const implicit inverse operator `M = inv(A)` given a factory. More...

template<class Scalar >
void	uninitializeOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const Ptr< RCP< const LinearOpBase< Scalar > > > &fwdOp=Teuchos::null, const Ptr< RCP< const PreconditionerBase< Scalar > > > &prec=Teuchos::null, const Ptr< RCP< const LinearOpBase< Scalar > > > &approxFwdOp=Teuchos::null, const Ptr< ESupportSolveUse > &supportSolveUse=Teuchos::null)
	Uninitialized a pre-created LOWSB object, returning input objects used to initialize it. More...

Detailed Description

template<class Scalar>
class Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >

Implicit subclass that takes a blocked triangular LOWB object and turns it into a LOWSB object.

This class takes any upper or lower triangular PhysicallyBlockedLinearOpBase object and compatible LinearOpWithSolveFactoryBase object(s) and creates a LOWSB version by creating LOWSB objects along the diagonal.

For example, consider the lower block triangular linear operator:

      [ M(0,0)                   ]
  M = [ M(1,0)   M(1,1)          ]
      [ M(2,0)   M(2,1)   M(2,2) ]

This class object will then create a new LOWSB object (of type DefaultBlockedTriangularLinearOpWithSolve) that looks like:

         [ invM(0,0)                       ]
  invM = [ M(1,0)     invM(1,1)            ]
         [ M(2,0)     M(2,1)     invM(2,2) ]

where invM(k,k) are LOWSB objects created from the LOB objects M(k,k) given a LOWSFB object.

This class is not very compliciated, see the function initializeOp() see what this class actually does!

ToDo: Finish Documentation!

Definition at line 61 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::DefaultBlockedTriangularLinearOpWithSolveFactory ( const RCP< LinearOpWithSolveFactoryBase< Scalar > > & lowsf )

Create given a single non-const LOWSFB object.

Parameters

lowsf [in,persisting] The LOWSFB object that will be used to create the LOWSB object for the diagonal blocks.

Preconditions:

!is_null(lowsf)

Definition at line 30 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::DefaultBlockedTriangularLinearOpWithSolveFactory ( const RCP< const LinearOpWithSolveFactoryBase< Scalar > > & lowsf )

Create given a single const LOWSFB object.

Parameters

lowsf [in,persisting] The LOWSFB object that will be used to create the LOWSB object for the diagonal blocks.

Preconditions:

!is_null(lowsf)

Definition at line 42 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

Member Function Documentation

template<class Scalar >

RCP< LinearOpWithSolveFactoryBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::getUnderlyingLOWSF ( )

Definition at line 55 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< const LinearOpWithSolveFactoryBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::getUnderlyingLOWSF ( ) const

Definition at line 63 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

std::string Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::description ( ) const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 74 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::setParameterList ( RCP< ParameterList > const & paramList )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 94 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< ParameterList > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::getNonconstParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 104 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< ParameterList > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::unsetParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 112 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< const ParameterList > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::getParameterList ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 120 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< const ParameterList > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::getValidParameters ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 128 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::acceptsPreconditionerFactory ( ) const

virtual

returns false.

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 139 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::setPreconditionerFactory	(	const RCP< PreconditionerFactoryBase< Scalar > > &	precFactory,
		const std::string &	precFactoryName
	)

virtual

Throws exception.

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 147 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< PreconditionerFactoryBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::getPreconditionerFactory ( ) const

virtual

Returns null .

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 159 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::unsetPreconditionerFactory	(	RCP< PreconditionerFactoryBase< Scalar > > *	precFactory,
		std::string *	precFactoryName
	)

virtual

Throws exception.

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 166 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::isCompatible ( const LinearOpSourceBase< Scalar > & fwdOpSrc ) const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 178 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

RCP< LinearOpWithSolveBase< Scalar > > Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::createOp ( ) const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 189 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::initializeOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse
	)		const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 197 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::initializeAndReuseOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op
	)		const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 276 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::uninitializeOp	(	LinearOpWithSolveBase< Scalar > *	Op,
		RCP< const LinearOpSourceBase< Scalar > > *	fwdOpSrc,
		RCP< const PreconditionerBase< Scalar > > *	prec,
		RCP< const LinearOpSourceBase< Scalar > > *	approxFwdOpSrc,
		ESupportSolveUse *	supportSolveUse
	)		const

virtual

Implements Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 287 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

bool Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::supportsPreconditionerInputType ( const EPreconditionerInputType precOpType ) const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 315 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::initializePreconditionedOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		const RCP< const PreconditionerBase< Scalar > > &	prec,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse
	)		const

virtual

Reimplemented from Thyra::LinearOpWithSolveFactoryBase< Scalar >.

Definition at line 330 of file Thyra_DefaultBlockedTriangularLinearOpWithSolveFactory_def.hpp.

template<class Scalar >

void Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >::initializeApproxPreconditionedOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		const RCP< const LinearOpSourceBase< Scalar > > &	approxFwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse
	)		const
