Public Member Functions | List of all members
Thyra::BlockedLinearOpWithSolveBase< Scalar > Class Template Referenceabstract

Base interface for linear operators with a solve that can be accessed as sub-blocks. More...

#include <Thyra_BlockedLinearOpWithSolveBase.hpp>

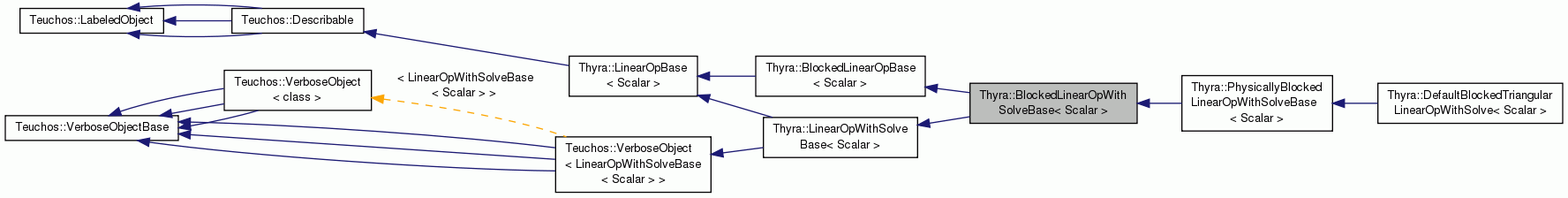

Inheritance diagram for Thyra::BlockedLinearOpWithSolveBase< Scalar >:
Inheritance graph
[legend]

Public Member Functions

virtual Teuchos::RCP
< LinearOpWithSolveBase
< Scalar > >
getNonconstLOWSBlock (const int i, const int j)=0

virtual Teuchos::RCP< const
LinearOpWithSolveBase< Scalar > >
getLOWSBlock (const int i, const int j) const =0

- Public Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
bool solveSupports (EOpTransp transp) const
 Return if solve() supports the argument transp. More...

bool solveSupports (EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const
 Return if solve() supports a given transpose and solve criteria specification. More...

bool solveSupportsSolveMeasureType (EOpTransp transp, const SolveMeasureType &solveMeasureType) const
 Return if solve() supports the given the solve measure type. More...

SolveStatus< Scalar > solve (const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null) const
 Request the solution of a block linear system. More...

- Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual RCP< const
VectorSpaceBase< Scalar > >
range () const =0
 Return a smart pointer for the range space for this operator. More...

virtual RCP< const
VectorSpaceBase< Scalar > >
domain () const =0
 Return a smart pointer for the domain space for this operator. More...

bool opSupported (EOpTransp M_trans) const
 Return if the M_trans operation of apply() is supported or not. More...

void apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
 Apply the linear operator to a multi-vector : Y = alpha*op(M)*X + beta*Y. More...

virtual RCP< const
LinearOpBase< Scalar > >
clone () const
 Clone the linear operator object (if supported). More...

- Public Member Functions inherited from Thyra::BlockedLinearOpBase< Scalar >
virtual Teuchos::RCP< const
ProductVectorSpaceBase< Scalar > >
productRange () const =0
 Return the product space for the range. More...

virtual Teuchos::RCP< const
ProductVectorSpaceBase< Scalar > >
productDomain () const =0
 Return the product space for the domain. More...

virtual bool blockExists (const int i, const int j) const =0
 Return if the block (i,j) exists or not. More...

virtual bool blockIsConst (const int i, const int j) const =0
 Return if the block (i,j) is const only or not. More...

virtual Teuchos::RCP
< LinearOpBase< Scalar > >
getNonconstBlock (const int i, const int j)=0
 Return a non-const view of the block (i,j) if it exists. More...

virtual Teuchos::RCP< const
LinearOpBase< Scalar > >
getBlock (const int i, const int j) const =0
 Return a const view of the block (i,j) if it exists. More...


Additional Inherited Members

- Protected Member Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
virtual bool solveSupportsImpl (EOpTransp transp) const
 Virtual implementation for solveSupports(). More...

virtual bool solveSupportsNewImpl (EOpTransp, const Ptr< const SolveCriteria< Scalar > >) const
 Virtual implementation of solveSupports(). More...

virtual bool solveSupportsSolveMeasureTypeImpl (EOpTransp transp, const SolveMeasureType &solveMeasureType) const
 Virtual implementation for solveSupportsSolveMeasureType(). More...

virtual SolveStatus< Scalar > solveImpl (const EOpTransp transp, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const =0
 Virtual implementation for solve(). More...

- Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual bool opSupportedImpl (EOpTransp M_trans) const =0
 Override in subclass. More...

virtual void applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
 Override in subclass. More...


Detailed Description

template<class Scalar>
class Thyra::BlockedLinearOpWithSolveBase< Scalar >

Base interface for linear operators with a solve that can be accessed as sub-blocks.

ToDo: Finish Documentation.

Definition at line 60 of file Thyra_BlockedLinearOpWithSolveBase.hpp.

Member Function Documentation

template<class Scalar>
virtual Teuchos::RCP<LinearOpWithSolveBase<Scalar> > Thyra::BlockedLinearOpWithSolveBase< Scalar >::getNonconstLOWSBlock ( const int  i,
const int  j
)
pure virtual
template<class Scalar>
virtual Teuchos::RCP<const LinearOpWithSolveBase<Scalar> > Thyra::BlockedLinearOpWithSolveBase< Scalar >::getLOWSBlock ( const int  i,
const int  j
) const
pure virtual

The documentation for this class was generated from the following file:
