#include <Thyra_BlockedLinearOpBase.hpp>

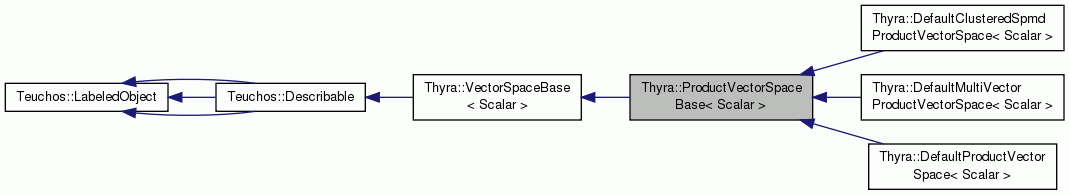

Inheritance diagram for Thyra::ProductVectorSpaceBase< Scalar >:

Public Member Functions
virtual int	numBlocks () const =0
	Returns the number of blocks that make up this product space. More...

virtual Teuchos::RCP< const VectorSpaceBase< Scalar > >	getBlock (const int k) const =0
	Returns a vector space for the `kth` (zero-based) block. More...

Public Member Functions inherited from Thyra::VectorSpaceBase< Scalar >
virtual Ordinal	dim () const =0
	Return the dimension of the vector space. More...

virtual bool	isCompatible (const VectorSpaceBase< Scalar > &vecSpc) const =0
	Compare the compatibility of two vector spaces. More...

virtual RCP< const VectorSpaceFactoryBase< Scalar > >	smallVecSpcFcty () const =0
	Return a `VectorSpaceFactoryBase` object for the creation of (usually serial) vector spaces with a small dimension. More...

virtual Scalar	scalarProd (const VectorBase< Scalar > &x, const VectorBase< Scalar > &y) const =0
	Return the scalar product of two vectors in the vector space. More...

void	scalarProds (const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y, const ArrayView< Scalar > &scalarProds_out) const
	Return the scalar product of each column in two multi-vectors in the vector space. More...

virtual bool	isEuclidean () const
	Return if this vector space has a Euclidean (identity) basis in which case the scalar product is the same as the dot product. More...

virtual bool	hasInCoreView (const Range1D &rng=Range1D(), const EViewType viewType=VIEW_TYPE_DETACHED, const EStrideType strideType=STRIDE_TYPE_NONUNIT) const
	Returns `true` if `this->acquireDetachedView(rng,...)` returns a direct view of the range of data requested. More...

virtual RCP< const VectorSpaceBase< Scalar > >	clone () const
	Clone this object (if supported). More...

virtual RCP< MultiVectorBase < Scalar > >	createCachedMembersView (const RTOpPack::SubMultiVectorView< Scalar > &raw_mv, bool initialize=true) const
	Create a (possibly) cached multi-vector member that is a non-`const` view of raw multi-vector data. The caching mechanism must be implemented by child classes, by default this just calls the regular `createMembersView`. More...

virtual RCP< const MultiVectorBase< Scalar > >	createCachedMembersView (const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv) const
	Create a (possibly) cached multi-vector member that is a `const` view of raw multi-vector data. The caching mechanism must be implemented by child classes, by default this just calls the regular `createMembersView`. More...

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP< ProductVectorSpaceBase < Scalar > >	nonconstProductVectorSpaceBase (const RCP< VectorSpaceBase< Scalar > > &v, const bool forceSuccess=true)
	Dynamic cast from a `VectorSpaceBase` to a `ProductVectorSpaceBase` object and thow exception if this fails. More...

template<class Scalar >
RCP< const ProductVectorSpaceBase< Scalar > >	productVectorSpaceBase (const RCP< const VectorSpaceBase< Scalar > > &v, const bool forceSuccess=true)
	Dynamic cast from a `const VectorSpaceBase` to a `const ProductVectorSpaceBase` object and thow exception if this fails. More...

RCP< ProductVectorSpaceBase < double > >	nonconstProductVectorSpaceBase (const RCP< VectorSpaceBase< double > > &vs, const bool forceSuccess=true)
	Inline overload of nonconstProductVectorSpaceBase<Scalar>(..) for double. More...

RCP< const ProductVectorSpaceBase< double > >	productVectorSpaceBase (const RCP< const VectorSpaceBase< double > > &vs, const bool forceSuccess=true)
	Inline overload of productVectorSpaceBase<Scalar>(..) for double. More...

Related Functions inherited from Thyra::VectorSpaceBase< Scalar >
template<class Scalar >
RCP< const VectorSpaceBase < Scalar > >	makeHaveOwnership (const RCP< const VectorSpaceBase< Scalar > > &vs)
	Helper function that clones a `VectorSpaceBase` object if the `RCP` does not have ownership. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMember (const RCP< const VectorSpaceBase< Scalar > > &vs, const std::string &label="")
	Create a vector member from the vector space. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMember (const VectorSpaceBase< Scalar > &vs, const std::string &label="")
	Calls `createMember(Teuchos::rcp(&vs,false))`. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembers (const RCP< const VectorSpaceBase< Scalar > > &vs, int numMembers, const std::string &label="")
	Create a set of vector members (a `MultiVectorBase`) from the vector space. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembers (const RCP< const VectorSpaceBase< Scalar > > &vs, const RCP< const VectorSpaceBase< Scalar > > &domain, const std::string &label="")
	Create a set of vector members (a `MultiVectorBase`) from the vector space. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembers (const VectorSpaceBase< Scalar > &vs, int numMembers, const std::string &label="")
	Calls `createMembers(Teuchos::rcp(&vs,false),numMembers)`. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMemberView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::SubVectorView< Scalar > &raw_v, const std::string &label="")
	Create a vector member that is a non-`const` view of raw data. More...

template<class Scalar >
RCP< VectorBase< Scalar > >	createMemberView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::SubVectorView< Scalar > &raw_v, const std::string &label="")
	Calls `createMemberView(Teuchos::rcp(&vs,false),raw_v)`. More...

template<class Scalar >
RCP< const VectorBase< Scalar > >	createMemberView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::ConstSubVectorView< Scalar > &raw_v, const std::string &label="")
	Create a vector member that is a `const` view of raw data. More...

template<class Scalar >
RCP< const VectorBase< Scalar > >	createMemberView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::ConstSubVectorView< Scalar > &raw_v, const std::string &label="")
	Calls `createMemberView(Teuchos::rcp(&vs,false),raw_v)`. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembersView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::SubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Create a multi-vector member that is a non-`const` view of raw data. More...

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	createMembersView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::SubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Calls `createMembersView(Teuchos::rcp(&vs,false),raw_mv)`. More...

template<class Scalar >
RCP< const MultiVectorBase < Scalar > >	createMembersView (const RCP< const VectorSpaceBase< Scalar > > &vs, const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Create a multi-vector member that is a `const` view of raw data. More...

template<class Scalar >
RCP< const MultiVectorBase < Scalar > >	createMembersView (const VectorSpaceBase< Scalar > &vs, const RTOpPack::ConstSubMultiVectorView< Scalar > &raw_mv, const std::string &label="")
	Calls `createMembersView(Teuchos::rcp(&vs,false),raw_mv)`. More...

Detailed Description

template<class Scalar>
class Thyra::ProductVectorSpaceBase< Scalar >

Base interface for product vector spaces.

This class defines an abstract interface for a vector space that is built out of the one or more other vector spaces to form what mathematicians like to call a "product space".

For example, one can think of a product space as the concatenation of one or more vector spaces V[k] where k=0,...,numBlocks-1. A product space Z would then be represented as:

    [ V[0]           ]
Z = [ V[1]           ]
    [ .              ]
    [ V[numBlocks-1] ]

The total number of constituent vector spaces is returned by the numBlocks() function. Smart pointers to the constituent vector space blocks themselves are returned using the getBlock() function.

The vectors created by this->createMember() (which is inherited from the VectorSpaceBase interface) must support the ProductVectorBase interface (i.e. dynamic_cast<ProductVectorBase<Scalar>*>(&*this->createMember()) != NULL). Likewise, the multi-vectors created by this->createMembers() must support the ProductMultiVectorBase interface (i.e. dynamic_cast<ProductMultiVectorBase<Scalar>*>(&*this->createMember()) != NULL)

This class is only an interface. A standard implementation of this interface that should be sufficient for 99% or so of use cases is provided in the concrete subclass DefaultProductVectorSpace.

Definition at line 21 of file Thyra_BlockedLinearOpBase.hpp.

Member Function Documentation

template<class Scalar >

virtual int Thyra::ProductVectorSpaceBase< Scalar >::numBlocks ( ) const

pure virtual

Returns the number of blocks that make up this product space.

Preconditions:

this->dim() > 0.

Implemented in Thyra::DefaultProductVectorSpace< Scalar >, Thyra::DefaultClusteredSpmdProductVectorSpace< Scalar >, and Thyra::DefaultMultiVectorProductVectorSpace< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const VectorSpaceBase<Scalar> > Thyra::ProductVectorSpaceBase< Scalar >::getBlock ( const int k ) const

pure virtual

Returns a vector space for the kth (zero-based) block.

Preconditions:

0 <= k <= numBlocks()-1

Implemented in Thyra::DefaultProductVectorSpace< Scalar >, Thyra::DefaultClusteredSpmdProductVectorSpace< Scalar >, and Thyra::DefaultMultiVectorProductVectorSpace< Scalar >.

Friends And Related Function Documentation

template<class Scalar >

RCP< ProductVectorSpaceBase< Scalar > > nonconstProductVectorSpaceBase	(	const RCP< VectorSpaceBase< Scalar > > &	v,
		const bool	forceSuccess = `true`
	)

Definition at line 104 of file Thyra_ProductVectorSpaceBase.hpp.

template<class Scalar >

RCP< const ProductVectorSpaceBase< Scalar > > productVectorSpaceBase	(	const RCP< const VectorSpaceBase< Scalar > > &	v,
		const bool	forceSuccess = `true`
	)

Definition at line 122 of file Thyra_ProductVectorSpaceBase.hpp.

template<class Scalar >

RCP< ProductVectorSpaceBase< double > > nonconstProductVectorSpaceBase	(	const RCP< VectorSpaceBase< double > > &	vs,
		const bool	forceSuccess = `true`
	)

Definition at line 139 of file Thyra_ProductVectorSpaceBase.hpp.

template<class Scalar >

RCP< const ProductVectorSpaceBase< double > > productVectorSpaceBase	(	const RCP< const VectorSpaceBase< double > > &	vs,
		const bool	forceSuccess = `true`
	)

Definition at line 154 of file Thyra_ProductVectorSpaceBase.hpp.
