Base interface for linear operators that can be accessed as sub-blocks. More...

#include <Thyra_BlockedLinearOpBase.hpp>

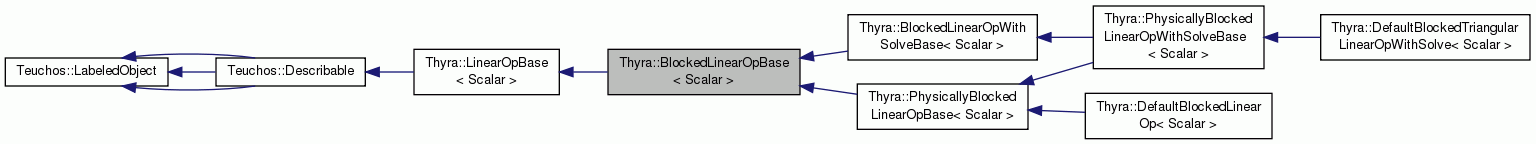

Inheritance diagram for Thyra::BlockedLinearOpBase< Scalar >:

Public Member Functions
virtual Teuchos::RCP< const ProductVectorSpaceBase< Scalar > >	productRange () const =0
	Return the product space for the range. More...

virtual Teuchos::RCP< const ProductVectorSpaceBase< Scalar > >	productDomain () const =0
	Return the product space for the domain. More...

virtual bool	blockExists (const int i, const int j) const =0
	Return if the block `(i,j)` exists or not. More...

virtual bool	blockIsConst (const int i, const int j) const =0
	Return if the block `(i,j)` is const only or not. More...

virtual Teuchos::RCP < LinearOpBase< Scalar > >	getNonconstBlock (const int i, const int j)=0
	Return a non-const view of the block `(i,j)` if it exists. More...

virtual Teuchos::RCP< const LinearOpBase< Scalar > >	getBlock (const int i, const int j) const =0
	Return a const view of the block `(i,j)` if it exists. More...

Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual RCP< const VectorSpaceBase< Scalar > >	range () const =0
	Return a smart pointer for the range space for `this` operator. More...

virtual RCP< const VectorSpaceBase< Scalar > >	domain () const =0
	Return a smart pointer for the domain space for `this` operator. More...

bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not. More...

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`. More...

virtual RCP< const LinearOpBase< Scalar > >	clone () const
	Clone the linear operator object (if supported). More...

Additional Inherited Members
Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual bool	opSupportedImpl (EOpTransp M_trans) const =0
	Override in subclass. More...

virtual void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
	Override in subclass. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Detailed Description

template<class Scalar>
class Thyra::BlockedLinearOpBase< Scalar >

Base interface for linear operators that can be accessed as sub-blocks.

ToDo: Finish Documentation.

Definition at line 31 of file Thyra_BlockedLinearOpBase.hpp.

Member Function Documentation

template<class Scalar >

virtual Teuchos::RCP<const ProductVectorSpaceBase<Scalar> > Thyra::BlockedLinearOpBase< Scalar >::productRange ( ) const

pure virtual

Return the product space for the range.

A return value of return.get()==NULL is an indication that *this is not fully initialized.

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >, and Thyra::DefaultBlockedLinearOp< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const ProductVectorSpaceBase<Scalar> > Thyra::BlockedLinearOpBase< Scalar >::productDomain ( ) const

pure virtual

Return the product space for the domain.

A return value of return.get()==NULL is an indication that *this is not fully initialized.

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >, and Thyra::DefaultBlockedLinearOp< Scalar >.

template<class Scalar >

virtual bool Thyra::BlockedLinearOpBase< Scalar >::blockExists	(	const int	i,
		const int	j
	)		const

pure virtual

Return if the block (i,j) exists or not.

Parameters

i	[in] Zero-based index for the block row.
j	[in] Zero-based index for the block column.

Preconditions:

0 <= i && i < this->productRange()->numBlocks()
0 <= j && j < this->productDomain()->numBlocks()

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >, and Thyra::DefaultBlockedLinearOp< Scalar >.

template<class Scalar >

virtual bool Thyra::BlockedLinearOpBase< Scalar >::blockIsConst	(	const int	i,
		const int	j
	)		const

pure virtual

Return if the block (i,j) is const only or not.

Parameters

i	[in] Zero-based index for the block row.
j	[in] Zero-based index for the block column.

Preconditions:

0 <= i && i < this->productRange()->numBlocks()
0 <= j && j < this->productDomain()->numBlocks()

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >, and Thyra::DefaultBlockedLinearOp< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<LinearOpBase<Scalar> > Thyra::BlockedLinearOpBase< Scalar >::getNonconstBlock	(	const int	i,
		const int	j
	)

pure virtual

Return a non-const view of the block (i,j) if it exists.

Parameters

i	[in] Zero-based index for the block row.
j	[in] Zero-based index for the block column.

Preconditions:

this->blockIsConst(i,j)==false
0 <= i && i < this->productRange()->numBlocks()
0 <= j && j < this->productDomain()->numBlocks()

Postconditions:

[this->blockExists(i,j)==true] return.get()!=NULL
[this->blockExists(i,j)==false] return.get()==NULL

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >, and Thyra::DefaultBlockedLinearOp< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const LinearOpBase<Scalar> > Thyra::BlockedLinearOpBase< Scalar >::getBlock	(	const int	i,
		const int	j
	)		const

pure virtual

Return a const view of the block (i,j) if it exists.

Parameters

i	[in] Zero-based index for the block row.
j	[in] Zero-based index for the block column.

Preconditions:

0 <= i && i < this->productRange()->numBlocks()
0 <= j && j < this->productDomain()->numBlocks()

Postconditions:

[this->blockExists(i,j)==true] return.get()!=NULL
[this->blockExists(i,j)==false] return.get()==NULL

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolve< Scalar >, and Thyra::DefaultBlockedLinearOp< Scalar >.

The documentation for this class was generated from the following file:

Thyra_BlockedLinearOpBase.hpp
