Thyra Base interface for time steppers. More...

#include <Tempus_Integrator.hpp>

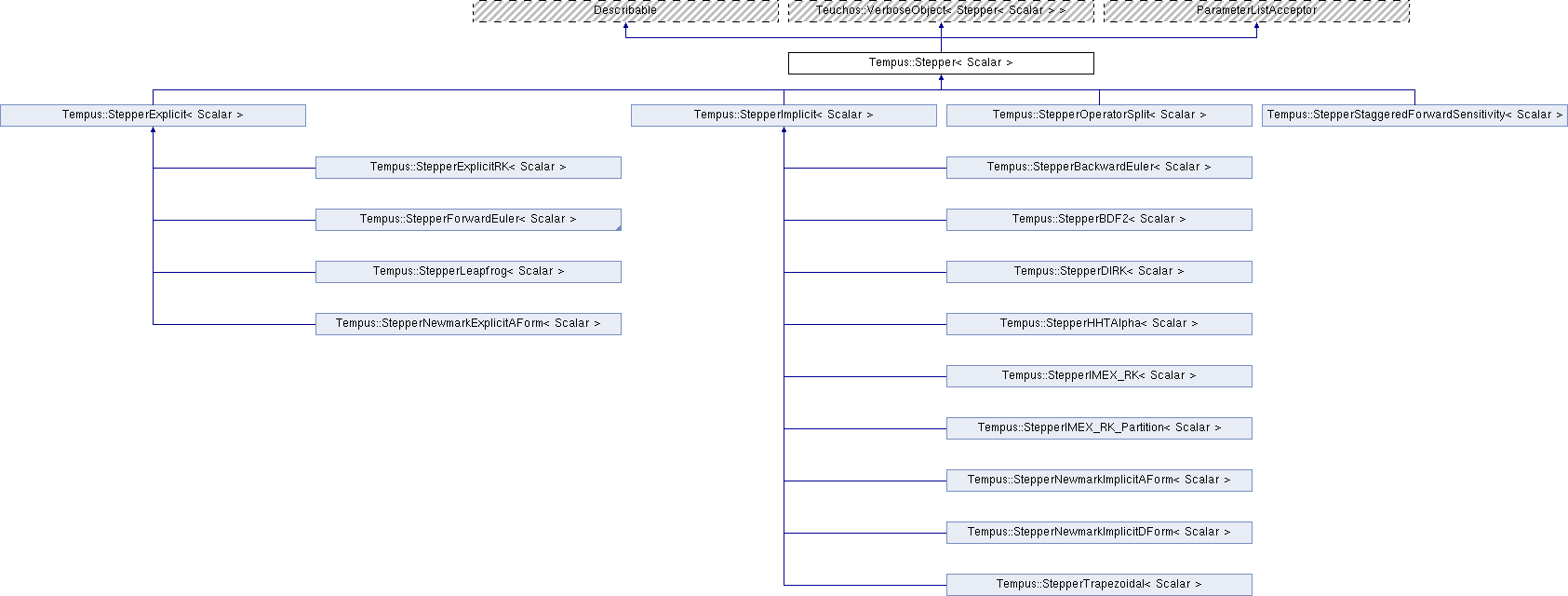

Inheritance diagram for Tempus::Stepper< Scalar >:

Public Member Functions
virtual void	modelWarning () const

Basic stepper methods
virtual void	setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)=0

virtual void	setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)=0

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getModel ()=0

virtual void	setSolver (std::string solverName)=0
	Set solver via ParameterList solver name. More...

virtual void	setSolver (Teuchos::RCP< Teuchos::ParameterList > solverPL=Teuchos::null)=0
	Set solver via solver ParameterList. More...

virtual void	setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)=0
	Set solver. More...

virtual Teuchos::RCP < Thyra::NonlinearSolverBase < Scalar > >	getSolver () const =0
	Get solver. More...

virtual void	setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)=0
	Set Observer. More...

virtual void	initialize ()=0
	Initialize during construction and after changing input parameters. More...

virtual void	setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Set initial conditions, make them consistent, and set stepper memory. More...

virtual void	takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)=0
	Take the specified timestep, dt, and return true if successful. More...

virtual void	setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess=Teuchos::null)=0
	Pass initial guess to Newton solver (for implicit schemes) More...

virtual std::string	getStepperType () const =0

virtual Teuchos::RCP < Tempus::StepperState< Scalar > >	getDefaultStepperState ()=0

virtual Scalar	getOrder () const =0

virtual Scalar	getOrderMin () const =0

virtual Scalar	getOrderMax () const =0

virtual Scalar	getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory) const =0

virtual Teuchos::RCP < Teuchos::ParameterList >	getDefaultParameters () const =0

virtual bool	isExplicit () const =0

virtual bool	isImplicit () const =0

virtual bool	isExplicitImplicit () const =0

virtual bool	isOneStepMethod () const =0

virtual bool	isMultiStepMethod () const =0

virtual OrderODE	getOrderODE () const =0

virtual void	setUseFSAL (bool a)=0

virtual bool	getUseFSAL () const =0

virtual void	setICConsistency (std::string s)=0

virtual std::string	getICConsistency () const =0

virtual void	setICConsistencyCheck (bool c)=0

virtual bool	getICConsistencyCheck () const =0

void	getValidParametersBasic (Teuchos::RCP< Teuchos::ParameterList > pl) const

Functions for Steppers with subSteppers (e.g., OperatorSplit)
virtual void	createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

Helper functions
void	validExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
	Validate that the model supports explicit ODE evaluation, f(x,t) [=xdot]. More...

void	validSecondOrderExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
	Validate that the model supports explicit second order ODE evaluation, f(x,xdot,t) [=xdotdot]. More...

void	validImplicitODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
	Validate ME supports implicit ODE/DAE evaluation, f(xdot,x,t) [= 0]. More...

void	validSecondOrderODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
	Validate ME supports 2nd order implicit ODE/DAE evaluation, f(xdotdot,xdot,x,t) [= 0]. More...

Teuchos::RCP < Teuchos::ParameterList >	defaultSolverParameters () const

Detailed Description

template<typename Scalar>
class Tempus::Stepper< Scalar >

Thyra Base interface for time steppers.

Design Considerations

Time steppers are designed to take a single time step.
- a single implicit solve for a time step
- a single solve for a IMEX time step
Multiple time steps should be managed by Integrators.
Steppers can be built from other Sub-Steppers.
- An operator-split Stepper is possible with interoperable Steppers.
For explicit steppers, only one ModelEvaluator and one solution vector are required.
For implicit steppers, only one ModelEvaluator, one solution vector, and one solver are required.
Steppers will PASS/FAIL the time step based on Solver, error and order requirements, and not adjust the time step size.
Steppers can provide a suggested time step size for the next time step.
For more complex steppers, multiple ModelEvaluators, solution vectors, and solvers are possible when a common single time-integration method is desired for all solutions. Examples:
- Solution A with ModelEvaluator A and Solution B with ModelEvaluator B using the same solver
- Solution A with ModelEvaluator A using Solver A and Solution B with ModelEvaluator B using Solver B
- Solution A with ModelEvaluator A using Solver A and Solutions A and B with ModelEvaluator C using Solver B
Steppers may maintain their own time history of the solution, e.g., BDF steppers.

CS Design Considerations

All input parameters (i.e., ParameterList) can be set by public methods.
The Stepper ParameterList must be consistent.
- The "set" methods which update parameters in the ParameterList must update the Stepper ParameterList.

Definition at line 24 of file Tempus_Integrator.hpp.

Member Function Documentation

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::createSubSteppers ( std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > > )

inlinevirtual

Reimplemented in Tempus::StepperOperatorSplit< Scalar >.

Definition at line 150 of file Tempus_Stepper_decl.hpp.

template<class Scalar >

Teuchos::RCP< Teuchos::ParameterList > Tempus::Stepper< Scalar >::defaultSolverParameters ( ) const

Definition at line 243 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

virtual Teuchos::RCP<Teuchos::ParameterList> Tempus::Stepper< Scalar >::getDefaultParameters ( ) const

pure virtual

template<typename Scalar>

virtual Teuchos::RCP<Tempus::StepperState<Scalar> > Tempus::Stepper< Scalar >::getDefaultStepperState ( )

pure virtual

template<typename Scalar>

virtual std::string Tempus::Stepper< Scalar >::getICConsistency ( ) const

pure virtual

Implemented in Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::getICConsistencyCheck ( ) const

pure virtual

Implemented in Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getInitTimeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory ) const

pure virtual

Implemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, Tempus::StepperOperatorSplit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::Stepper< Scalar >::getModel ( )

pure virtual

Implemented in Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrder ( ) const

pure virtual

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrderMax ( ) const

pure virtual

template<typename Scalar>

virtual Scalar Tempus::Stepper< Scalar >::getOrderMin ( ) const

pure virtual

template<typename Scalar>

virtual OrderODE Tempus::Stepper< Scalar >::getOrderODE ( ) const

pure virtual

template<typename Scalar>

virtual Teuchos::RCP<Thyra::NonlinearSolverBase<Scalar> > Tempus::Stepper< Scalar >::getSolver ( ) const

pure virtual

Get solver.

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual std::string Tempus::Stepper< Scalar >::getStepperType ( ) const

pure virtual

Implemented in Tempus::StepperExplicitRK< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperLeapfrog< Scalar >, Tempus::StepperNewmarkExplicitAForm< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::getUseFSAL ( ) const

pure virtual

Implemented in Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<class Scalar >

void Tempus::Stepper< Scalar >::getValidParametersBasic ( Teuchos::RCP< Teuchos::ParameterList > pl ) const

Definition at line 17 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::initialize ( )

pure virtual

Initialize during construction and after changing input parameters.

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isExplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isExplicitImplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isImplicit ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isMultiStepMethod ( ) const

pure virtual

template<typename Scalar>

virtual bool Tempus::Stepper< Scalar >::isOneStepMethod ( ) const

pure virtual

template<class Scalar >

void Tempus::Stepper< Scalar >::modelWarning ( ) const

virtual

Definition at line 77 of file Tempus_Stepper_impl.hpp.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setICConsistency ( std::string s )

pure virtual

Implemented in Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setICConsistencyCheck ( bool c )

pure virtual

Implemented in Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

pure virtual

Set initial conditions, make them consistent, and set stepper memory.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setInitialGuess ( Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess = Teuchos::null )

pure virtual

Pass initial guess to Newton solver (for implicit schemes)

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & appModel )

pure virtual

Implemented in Tempus::StepperIMEX_RK< Scalar >, Tempus::StepperIMEX_RK_Partition< Scalar >, Tempus::StepperNewmarkImplicitAForm< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperHHTAlpha< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setNonConstModel ( const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > & appModel )

pure virtual

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > > obs = Teuchos::null )

pure virtual

Set Observer.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setSolver ( std::string solverName )

pure virtual

Set solver via ParameterList solver name.

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setSolver ( Teuchos::RCP< Teuchos::ParameterList > solverPL = Teuchos::null )

pure virtual

Set solver via solver ParameterList.

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setSolver ( Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver )

pure virtual

Set solver.

Implemented in Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, Tempus::StepperOperatorSplit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::setUseFSAL ( bool a )

pure virtual

Implemented in Tempus::StepperOperatorSplit< Scalar >, Tempus::StepperStaggeredForwardSensitivity< Scalar >, Tempus::StepperImplicit< Scalar >, and Tempus::StepperExplicit< Scalar >.

template<typename Scalar>

virtual void Tempus::Stepper< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > & solutionHistory )

pure virtual

Take the specified timestep, dt, and return true if successful.

template<class Scalar >

void Tempus::Stepper< Scalar >::validExplicitODE ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & model ) const

Validate that the model supports explicit ODE evaluation, f(x,t) [=xdot].

Currently the convention to evaluate f(x,t) is to set xdot=null! There is no InArgs support to test if xdot is null, so we set xdot=null and hopefully the ModelEvaluator can handle it.

Definition at line 90 of file Tempus_Stepper_impl.hpp.

template<class Scalar >

void Tempus::Stepper< Scalar >::validImplicitODE_DAE ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & model ) const

Validate ME supports implicit ODE/DAE evaluation, f(xdot,x,t) [= 0].

Definition at line 148 of file Tempus_Stepper_impl.hpp.

template<class Scalar >

void Tempus::Stepper< Scalar >::validSecondOrderExplicitODE ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & model ) const

Validate that the model supports explicit second order ODE evaluation, f(x,xdot,t) [=xdotdot].

Currently the convention to evaluate f(x,xdot,t) is to set xdotdot=null! There is no InArgs support to test if xdotdot is null, so we set xdotdot=null and hopefully the ModelEvaluator can handle it.

Definition at line 117 of file Tempus_Stepper_impl.hpp.

template<class Scalar >

void Tempus::Stepper< Scalar >::validSecondOrderODE_DAE ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > & model ) const

Validate ME supports 2nd order implicit ODE/DAE evaluation, f(xdotdot,xdot,x,t) [= 0].

Definition at line 193 of file Tempus_Stepper_impl.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r12.16/packages/tempus/src/Tempus_Integrator.hpp
http://docs.trilinos.org/r12.16/packages/tempus/src/Tempus_Stepper_decl.hpp
http://docs.trilinos.org/r12.16/packages/tempus/src/Tempus_Stepper_impl.hpp

Public Member Functions

Detailed Description

template<typename Scalar> class Tempus::Stepper< Scalar >

Member Function Documentation

template<typename Scalar>
class Tempus::Stepper< Scalar >
