Tempus::StepperNewmarkImplicitAForm< Scalar > Class Template Reference

Newmark time stepper in acceleration form (a-form). More...

#include <Tempus_StepperNewmarkImplicitAForm_decl.hpp>

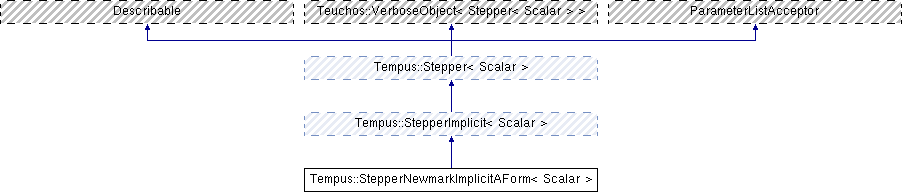

Inheritance diagram for Tempus::StepperNewmarkImplicitAForm< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperNewmarkImplicitAForm ()
 Default constructor. More...

 StepperNewmarkImplicitAForm (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, Teuchos::RCP< Teuchos::ParameterList > pList=Teuchos::null)
 Constructor. More...

virtual Scalar getW_xDotDot_coeff (const Scalar) const
 Return W_xDotxDot_coeff = d(xDotDot)/d(xDotDot). More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/d(xDotDot). More...

virtual Scalar getBeta (const Scalar dt) const
 Return beta = d(x)/d(xDotDot). More...

void predictVelocity (Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void predictDisplacement (Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctVelocity (Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctDisplacement (Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

Basic stepper methods
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > >=Teuchos::null)
 Set Observer. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > >
getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

ParameterList methods
void setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl)

Teuchos::RCP
< Teuchos::ParameterList >
getNonconstParameterList ()

Teuchos::RCP
< Teuchos::ParameterList >
unsetParameterList ()

Teuchos::RCP< const
Teuchos::ParameterList >
getValidParameters () const

Teuchos::RCP
< Teuchos::ParameterList >
getDefaultParameters () const

Overridden from Teuchos::Describable
virtual std::string description () const

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > >
getModel ()

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > >
getWrapperModel ()

virtual void setSolver (std::string solverName)
 Set solver via ParameterList solver name. More...

virtual void setSolver (Teuchos::RCP< Teuchos::ParameterList > solverPL=Teuchos::null)
 Set solver via solver ParameterList. More...

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
getSolver () const
 Get solver. More...

virtual std::string getStepperType () const

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE, f(x, xDot, t, p), residual. More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool getEmbedded () const

virtual void setUseFSAL (bool a)

virtual bool getUseFSAL () const

virtual void setICConsistency (std::string s)

virtual std::string getICConsistency () const

virtual void setICConsistencyCheck (bool c)

virtual bool getICConsistencyCheck () const

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > >
getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual void modelWarning () const

void getValidParametersBasic (Teuchos::RCP< Teuchos::ParameterList > pl) const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

void validExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate that the model supports explicit ODE evaluation, f(x,t) [=xdot]. More...

void validSecondOrderExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate that the model supports explicit second order ODE evaluation, f(x,xdot,t) [=xdotdot]. More...

void validImplicitODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate ME supports implicit ODE/DAE evaluation, f(xdot,x,t) [= 0]. More...

void validSecondOrderODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate ME supports 2nd order implicit ODE/DAE evaluation, f(xdotdot,xdot,x,t) [= 0]. More...

Teuchos::RCP
< Teuchos::ParameterList >
defaultSolverParameters () const


Private Attributes

Scalar beta_

Scalar gamma_

Teuchos::RCP
< Teuchos::FancyOStream >
out_


Additional Inherited Members

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< Teuchos::ParameterList >
stepperPL_

Teuchos::RCP
< WrapperModelEvaluator
< Scalar > >
wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > >
solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > >
initial_guess_

Teuchos::RCP< StepperObserver
< Scalar > >
stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > >
stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperNewmarkImplicitAForm< Scalar >

Newmark time stepper in acceleration form (a-form).

Here, we implement the Newmark scheme in predictor/corrector form; see equations (34)-(35) in: A. Mota, W. Klug, M. Ortiz, "Finite element simulation of firearm injury to the human cranium", Computational Mechanics 31(1) 115-121 (2003).

Newmark has two parameters: $\beta$ and $\gamma$, both of which need to be in the range $[0,1]$. Newmark can be an explicit or implicit method, depending on the value of the $\beta$ parameter. If $\beta = 0$, the method is explicit. Regardless of whether the method is implicit or explicit, a linear solve is required. This linear solve can be optimized, however, for the explicit case by lumping the mass matrix. This optimization can be invoked by running "Newmark Explicit d-Form" Stepper through the Piro::TempusSolver class.

Newmark is second order accurate if $\gamma = 0.5$; otherwise it is first order accurate. Some additional properties about the Newmark scheme can be found here.

The governing equation solved by this stepper is

\[ \mathbf{M}\, \ddot{\mathbf{x}} + \mathbf{C}\, \dot{\mathbf{x}} + \mathbf{K}\, \mathbf{x} + \mathbf{F}(t) = 0 \]

For the A-form (i.e., solving for the acceleration, $\mathbf{a} = \ddot{\mathbf{x}}$), we have the following implicit ODE

\[ \mathbf{M}\, \mathbf{a} + \mathbf{C}\, \mathbf{v} + \mathbf{K}\, \mathbf{d} + \mathbf{F}(t) = \mathbf{f}(\mathbf{d}, \mathbf{v}, \mathbf{a}, t) = 0 \]

where $\mathbf{v} = \dot{\mathbf{x}}$ and $\mathbf{d} = \mathbf{x}$.

Algorithm The algorithm for the Newmark implicit A-form with predictors and correctors is

  • $\mathbf{d}^{\ast} = \mathbf{d}^{n-1} + \Delta t \mathbf{v}^{n-1} + \Delta t^2 (1-2 \beta) \mathbf{a}^{n-1} / 2$
  • $\mathbf{v}^{\ast} = \mathbf{v}^{n-1} + \Delta t (1-\gamma) \mathbf{a}^{n-1}$
  • Solve $\mathbf{f}(\mathbf{d}^n, \mathbf{v}^n, \mathbf{a}^n, t^n) = 0$ for $\mathbf{a}^n$ where
    • $\mathbf{d}^n = \mathbf{d}^{\ast} + \beta \Delta t^2 \mathbf{a}^n$
    • $\mathbf{v}^n = \mathbf{v}^{\ast} + \gamma \Delta t \mathbf{a}^n$

The First-Step-As-Last (FSAL) principle is part of the Newmark implicit A-Form as the acceleration from the previous time step is used for the predictors. The default is to set useFSAL=true, and useFSAL=false will be ignored.

Definition at line 73 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperNewmarkImplicitAForm< Scalar >::StepperNewmarkImplicitAForm ( )

Default constructor.

Definition at line 90 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
Tempus::StepperNewmarkImplicitAForm< Scalar >::StepperNewmarkImplicitAForm ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
Teuchos::RCP< Teuchos::ParameterList >  pList = Teuchos::null
)

Constructor.

Definition at line 103 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::correctDisplacement ( Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 76 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::correctVelocity ( Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 62 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Definition at line 428 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
std::string Tempus::StepperNewmarkImplicitAForm< Scalar >::description ( ) const
virtual

Definition at line 417 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/d(xDotDot).

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 134 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::getBeta ( const Scalar  dt) const
inlinevirtual

Return beta = d(x)/d(xDotDot).

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 136 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperNewmarkImplicitAForm< Scalar >::getDefaultParameters ( ) const
virtual
template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperNewmarkImplicitAForm< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 405 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperNewmarkImplicitAForm< Scalar >::getNonconstParameterList ( )

Definition at line 573 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::getOrder ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::getOrderMax ( ) const
inlinevirtual
template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::getOrderMin ( ) const
inlinevirtual
template<class Scalar >
virtual OrderODE Tempus::StepperNewmarkImplicitAForm< Scalar >::getOrderODE ( ) const
inlinevirtual
template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperNewmarkImplicitAForm< Scalar >::getValidParameters ( ) const

Definition at line 532 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::getW_xDotDot_coeff ( const Scalar  ) const
inlinevirtual

Return W_xDotxDot_coeff = d(xDotDot)/d(xDotDot).

Definition at line 132 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Implements Tempus::Stepper< Scalar >.

Definition at line 140 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitAForm< Scalar >::isExplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitAForm< Scalar >::isExplicitImplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitAForm< Scalar >::isImplicit ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitAForm< Scalar >::isMultiStepMethod ( ) const
inlinevirtual
template<class Scalar >
virtual bool Tempus::StepperNewmarkImplicitAForm< Scalar >::isOneStepMethod ( ) const
inlinevirtual
template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::predictDisplacement ( Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 42 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::predictVelocity ( Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 28 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 156 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
virtual
template<class Scalar >
virtual void Tempus::StepperNewmarkImplicitAForm< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
inlinevirtual

Set Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 97 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > &  pl)

Definition at line 441 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
void Tempus::StepperNewmarkImplicitAForm< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 324 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperNewmarkImplicitAForm< Scalar >::unsetParameterList ( )

Definition at line 584 of file Tempus_StepperNewmarkImplicitAForm_impl.hpp.

Member Data Documentation

template<class Scalar >
Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::beta_
private

Definition at line 176 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperNewmarkImplicitAForm< Scalar >::gamma_
private

Definition at line 177 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.

template<class Scalar >
Teuchos::RCP<Teuchos::FancyOStream> Tempus::StepperNewmarkImplicitAForm< Scalar >::out_
private

Definition at line 179 of file Tempus_StepperNewmarkImplicitAForm_decl.hpp.


The documentation for this class was generated from the following files:
