Tempus::StepperBackwardEuler< Scalar > Class Template Reference

Backward Euler time stepper. More...

#include <Tempus_StepperBackwardEuler_decl.hpp>

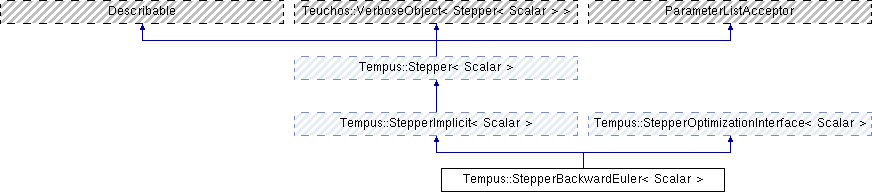

Inheritance diagram for Tempus::StepperBackwardEuler< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::StepperOptimizationInterface< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperBackwardEuler ()
 Default constructor. More...

 StepperBackwardEuler (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, Teuchos::RCP< Teuchos::ParameterList > pList=Teuchos::null)
 Constructor. More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/dx. More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/dx. More...

virtual void computePredictor (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Compute predictor given the supplied stepper. More...

Basic stepper methods
virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > > obs=Teuchos::null)
 Set Observer. More...

void setPredictor (std::string predictorName)
 Set the predictor. More...

void setPredictor (Teuchos::RCP< Teuchos::ParameterList >predPL=Teuchos::null)
 Set the predictor to the supplied Parameter sublist. This adds a new predictor Parameter sublist to the Stepper's ParameterList. If the predictor sublist is null, it tests if the predictor is set in the Stepper's ParameterList. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > > 		getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

ParameterList methods
void setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl)

Teuchos::RCP
< Teuchos::ParameterList > 		getNonconstParameterList ()

Teuchos::RCP
< Teuchos::ParameterList > 		unsetParameterList ()

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const

Teuchos::RCP
< Teuchos::ParameterList > 		getDefaultParameters () const

Overridden from Teuchos::Describable
virtual std::string description () const

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

Implementation of StepperOptimizationInterface
virtual int stencilLength () const
 Return the number of solution vectors in the time step stencil. More...

virtual void computeStepResidual (Thyra::VectorBase< Scalar > &residual, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index) const
 Compute time step residual. More...

virtual void computeStepJacobian (Thyra::LinearOpBase< Scalar > &jacobian, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index, const int deriv_index) const
 Compute time step Jacobian. More...

virtual void computeStepParamDeriv (Thyra::LinearOpBase< Scalar > &deriv, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index) const
 Compute time step derivative w.r.t. model parameters. More...

virtual void computeStepSolver (Thyra::LinearOpWithSolveBase< Scalar > &jacobian_solver, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index) const
 Compute time step Jacobian solver. More...

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		getModel ()

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > > 		getWrapperModel ()

virtual void setSolver (std::string solverName)
 Set solver via ParameterList solver name. More...

virtual void setSolver (Teuchos::RCP< Teuchos::ParameterList > solverPL=Teuchos::null)
 Set solver via solver ParameterList. More...

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		getSolver () const
 Get solver. More...

virtual std::string getStepperType () const

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE, f(x, xDot, t, p), residual. More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool getEmbedded () const

virtual void setUseFSAL (bool a)

virtual bool getUseFSAL () const

virtual void setICConsistency (std::string s)

virtual std::string getICConsistency () const

virtual void setICConsistencyCheck (bool c)

virtual bool getICConsistencyCheck () const

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual void modelWarning () const

void getValidParametersBasic (Teuchos::RCP< Teuchos::ParameterList > pl) const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

void validExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate that the model supports explicit ODE evaluation, f(x,t) [=xdot]. More...

void validSecondOrderExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate that the model supports explicit second order ODE evaluation, f(x,xdot,t) [=xdotdot]. More...

void validImplicitODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate ME supports implicit ODE/DAE evaluation, f(xdot,x,t) [= 0]. More...

void validSecondOrderODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate ME supports 2nd order implicit ODE/DAE evaluation, f(xdotdot,xdot,x,t) [= 0]. More...

Teuchos::RCP
< Teuchos::ParameterList > 		defaultSolverParameters () const

- Public Member Functions inherited from Tempus::StepperOptimizationInterface< Scalar >
 StepperOptimizationInterface ()

virtual ~StepperOptimizationInterface ()


Private Member Functions

void computeStepResidDerivImpl (const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &x, const Teuchos::Array< Scalar > &t, const Thyra::VectorBase< Scalar > &p, const int param_index, const int deriv_index=0) const
 Implementation of computeStep*() methods. More...


Private Attributes

Teuchos::RCP< Stepper< Scalar > > predictorStepper_

Teuchos::RCP
< StepperBackwardEulerObserver
< Scalar > > 		stepperBEObserver_


Additional Inherited Members

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< Teuchos::ParameterList > 		stepperPL_

Teuchos::RCP
< WrapperModelEvaluator
< Scalar > > 		wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > > 		initial_guess_

Teuchos::RCP< StepperObserver
< Scalar > > 		stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperBackwardEuler< Scalar >

Backward Euler time stepper.

For the implicit ODE system, $\mathcal{F}(\dot{x},x,t) = 0$, the solution, $\dot{x}$ and $x$, is determined using a solver (e.g., a non-linear solver, like NOX).

Algorithm The single-timestep algorithm for Backward Euler is simply,

  • Solve $f(\dot{x}=(x_n-x_{n-1})/\Delta t_n, x_n, t_n)=0$ for $x_n$
  • $\dot{x}_n \leftarrow (x_n-x_{n-1})/\Delta t_n$

The First-Step-As-Last (FSAL) principle is not needed with Backward Euler. The default is to set useFSAL=false, however useFSAL=true will also work but have no affect (i.e., no-op).

Definition at line 36 of file Tempus_StepperBackwardEuler_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperBackwardEuler< Scalar >::StepperBackwardEuler ( )

Default constructor.

Definition at line 26 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Tempus::StepperBackwardEuler< Scalar >::StepperBackwardEuler ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
Teuchos::RCP< Teuchos::ParameterList >  pList = Teuchos::null
)

Constructor.

Definition at line 34 of file Tempus_StepperBackwardEuler_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computePredictor ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Compute predictor given the supplied stepper.

Definition at line 234 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepJacobian ( Thyra::LinearOpBase< Scalar > &  jacobian,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index,
const int  deriv_index
) const
virtual

Compute time step Jacobian.

deriv_index determines which component of x the derivative should be computed with respect to.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 394 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepParamDeriv ( Thyra::LinearOpBase< Scalar > &  deriv,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index
) const
virtual

Compute time step derivative w.r.t. model parameters.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 411 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepResidDerivImpl ( const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &  outArgs,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index,
const int  deriv_index = 0
) const
private

Implementation of computeStep*() methods.

Definition at line 444 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepResidual ( Thyra::VectorBase< Scalar > &  residual,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index
) const
virtual

Compute time step residual.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 379 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::computeStepSolver ( Thyra::LinearOpWithSolveBase< Scalar > &  jacobian_solver,
const Teuchos::Array< Teuchos::RCP< const Thyra::VectorBase< Scalar > > > &  x,
const Teuchos::Array< Scalar > &  t,
const Thyra::VectorBase< Scalar > &  p,
const int  param_index
) const
virtual

Compute time step Jacobian solver.

Derivative is always w.r.t. the most current solution vector

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 428 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Definition at line 277 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
std::string Tempus::StepperBackwardEuler< Scalar >::description ( ) const
virtual

Definition at line 269 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 93 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/dx.

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 95 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperBackwardEuler< Scalar >::getDefaultParameters ( ) const
virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 334 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperBackwardEuler< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 260 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperBackwardEuler< Scalar >::getNonconstParameterList ( )

Definition at line 353 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 78 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 80 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperBackwardEuler< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 79 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperBackwardEuler< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 89 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperBackwardEuler< Scalar >::getValidParameters ( ) const

Definition at line 318 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Implements Tempus::Stepper< Scalar >.

Definition at line 132 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 82 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 84 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 83 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 87 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperBackwardEuler< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 86 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 147 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
virtual

Set Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 111 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > &  pl)

Definition at line 287 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setPredictor ( std::string  predictorName)

Set the predictor.

Set the predictor to a pre-defined predictor in the ParameterList. The predictor is set to predictorName sublist in the Stepper's ParameterList. The predictorName sublist should already be defined in the Stepper's ParameterList. Otherwise it will fail.

Definition at line 56 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::setPredictor ( Teuchos::RCP< Teuchos::ParameterList >  predPL = Teuchos::null)

Set the predictor to the supplied Parameter sublist. This adds a new predictor Parameter sublist to the Stepper's ParameterList. If the predictor sublist is null, it tests if the predictor is set in the Stepper's ParameterList.

Definition at line 75 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
int Tempus::StepperBackwardEuler< Scalar >::stencilLength ( ) const
virtual

Return the number of solution vectors in the time step stencil.

Implements Tempus::StepperOptimizationInterface< Scalar >.

Definition at line 371 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
void Tempus::StepperBackwardEuler< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 172 of file Tempus_StepperBackwardEuler_impl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperBackwardEuler< Scalar >::unsetParameterList ( )

Definition at line 361 of file Tempus_StepperBackwardEuler_impl.hpp.

Member Data Documentation

template<class Scalar >
Teuchos::RCP<Stepper<Scalar> > Tempus::StepperBackwardEuler< Scalar >::predictorStepper_
private

Definition at line 160 of file Tempus_StepperBackwardEuler_decl.hpp.

template<class Scalar >
Teuchos::RCP<StepperBackwardEulerObserver<Scalar> > Tempus::StepperBackwardEuler< Scalar >::stepperBEObserver_
private

Definition at line 161 of file Tempus_StepperBackwardEuler_decl.hpp.

The documentation for this class was generated from the following files:
