Tempus::StepperHHTAlpha< Scalar > Class Template Reference

HHT-Alpha time stepper. More...

#include <Tempus_StepperHHTAlpha_decl.hpp>

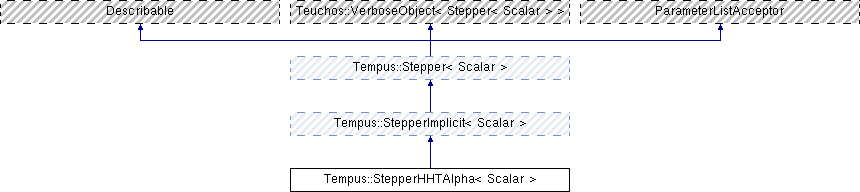

Inheritance diagram for Tempus::StepperHHTAlpha< Scalar >:
Tempus::StepperImplicit< Scalar > Tempus::Stepper< Scalar >

Public Member Functions

 StepperHHTAlpha ()
 Default constructor. More...

 StepperHHTAlpha (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel, Teuchos::RCP< Teuchos::ParameterList > pList=Teuchos::null)
 Constructor. More...

virtual Scalar getW_xDotDot_coeff (const Scalar dt) const
 Return W_xDotxDot_coeff = d(xDotDot)/d(x). More...

virtual Scalar getAlpha (const Scalar dt) const
 Return alpha = d(xDot)/d(x). More...

virtual Scalar getBeta (const Scalar) const
 Return beta = d(x)/d(x). More...

void predictVelocity (Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void predictDisplacement (Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void predictVelocity_alpha_f (Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &v) const

void predictDisplacement_alpha_f (Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &d) const

void correctAcceleration (Thyra::VectorBase< Scalar > &a_n_plus1, const Thyra::VectorBase< Scalar > &a_n) const

void correctVelocity (Thyra::VectorBase< Scalar > &v, const Thyra::VectorBase< Scalar > &vPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

void correctDisplacement (Thyra::VectorBase< Scalar > &d, const Thyra::VectorBase< Scalar > &dPred, const Thyra::VectorBase< Scalar > &a, const Scalar dt) const

Basic stepper methods
virtual void setModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &appModel)

virtual void setObserver (Teuchos::RCP< StepperObserver< Scalar > >=Teuchos::null)
 Set Observer. More...

virtual void initialize ()
 Initialize during construction and after changing input parameters. More...

virtual void setInitialConditions (const Teuchos::RCP< SolutionHistory< Scalar > > &)
 Set the initial conditions and make them consistent. More...

virtual void takeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &solutionHistory)
 Take the specified timestep, dt, and return true if successful. More...

virtual Teuchos::RCP
< Tempus::StepperState< Scalar > > 		getDefaultStepperState ()
 Get a default (initial) StepperState. More...

virtual Scalar getOrder () const

virtual Scalar getOrderMin () const

virtual Scalar getOrderMax () const

virtual bool isExplicit () const

virtual bool isImplicit () const

virtual bool isExplicitImplicit () const

virtual bool isOneStepMethod () const

virtual bool isMultiStepMethod () const

virtual OrderODE getOrderODE () const

ParameterList methods
void setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &pl)

Teuchos::RCP
< Teuchos::ParameterList > 		getNonconstParameterList ()

Teuchos::RCP
< Teuchos::ParameterList > 		unsetParameterList ()

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const

Teuchos::RCP
< Teuchos::ParameterList > 		getDefaultParameters () const

Overridden from Teuchos::Describable
virtual std::string description () const

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

- Public Member Functions inherited from Tempus::StepperImplicit< Scalar >
virtual void setNonConstModel (const Teuchos::RCP< Thyra::ModelEvaluator< Scalar > > &appModel)

virtual Teuchos::RCP< const
Thyra::ModelEvaluator< Scalar > > 		getModel ()

virtual Teuchos::RCP< const
WrapperModelEvaluator< Scalar > > 		getWrapperModel ()

virtual void setSolver (std::string solverName)
 Set solver via ParameterList solver name. More...

virtual void setSolver (Teuchos::RCP< Teuchos::ParameterList > solverPL=Teuchos::null)
 Set solver via solver ParameterList. More...

virtual void setSolver (Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > solver)
 Set solver. More...

virtual Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		getSolver () const
 Get solver. More...

virtual std::string getStepperType () const

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x)
 Solve problem using x in-place. (Needs to be deprecated!) More...

const Thyra::SolveStatus< Scalar > solveImplicitODE (const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Solve implicit ODE, f(x, xDot, t, p) = 0. More...

void evaluateImplicitODE (Teuchos::RCP< Thyra::VectorBase< Scalar > > &f, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &x, const Teuchos::RCP< Thyra::VectorBase< Scalar > > &xDot, const Scalar time, const Teuchos::RCP< ImplicitODEParameters< Scalar > > &p)
 Evaluate implicit ODE, f(x, xDot, t, p), residual. More...

virtual void setInitialGuess (Teuchos::RCP< const Thyra::VectorBase< Scalar > > initial_guess)
 Pass initial guess to Newton solver (only relevant for implicit solvers) More...

virtual void setZeroInitialGuess (bool zIG)
 Set parameter so that the initial guess is set to zero (=True) or use last timestep (=False). More...

virtual bool getZeroInitialGuess () const

virtual Scalar getInitTimeStep (const Teuchos::RCP< SolutionHistory< Scalar > > &) const

virtual bool getEmbedded () const

virtual void setUseFSAL (bool a)

virtual bool getUseFSAL () const

virtual void setICConsistency (std::string s)

virtual std::string getICConsistency () const

virtual void setICConsistencyCheck (bool c)

virtual bool getICConsistencyCheck () const

virtual void setStepperXDot (Teuchos::RCP< Thyra::VectorBase< Scalar > > xDot)
 Set xDot for Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDot from SolutionState or Stepper storage. More...

virtual Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		getStepperXDotDot (Teuchos::RCP< SolutionState< Scalar > > state)
 Get xDotDot from SolutionState or Stepper storage. More...

- Public Member Functions inherited from Tempus::Stepper< Scalar >
virtual void modelWarning () const

void getValidParametersBasic (Teuchos::RCP< Teuchos::ParameterList > pl) const

virtual void createSubSteppers (std::vector< Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > >)

void validExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate that the model supports explicit ODE evaluation, f(x,t) [=xdot]. More...

void validSecondOrderExplicitODE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate that the model supports explicit second order ODE evaluation, f(x,xdot,t) [=xdotdot]. More...

void validImplicitODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate ME supports implicit ODE/DAE evaluation, f(xdot,x,t) [= 0]. More...

void validSecondOrderODE_DAE (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model) const
 Validate ME supports 2nd order implicit ODE/DAE evaluation, f(xdotdot,xdot,x,t) [= 0]. More...

Teuchos::RCP
< Teuchos::ParameterList > 		defaultSolverParameters () const


Private Attributes

Scalar beta_

Scalar gamma_

Scalar alpha_f_

Scalar alpha_m_

Teuchos::RCP
< Teuchos::FancyOStream > 		out_


Additional Inherited Members

- Protected Attributes inherited from Tempus::StepperImplicit< Scalar >
Teuchos::RCP
< Teuchos::ParameterList > 		stepperPL_

Teuchos::RCP
< WrapperModelEvaluator
< Scalar > > 		wrapperModel_

Teuchos::RCP
< Thyra::NonlinearSolverBase
< Scalar > > 		solver_

Teuchos::RCP< const
Thyra::VectorBase< Scalar > > 		initial_guess_

Teuchos::RCP< StepperObserver
< Scalar > > 		stepperObserver_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDot_

Teuchos::RCP
< Thyra::VectorBase< Scalar > > 		stepperXDotDot_


Detailed Description

template<class Scalar>
class Tempus::StepperHHTAlpha< Scalar >

HHT-Alpha time stepper.

Here, we implement the HHT-Alpha scheme in predictor/corrector form; see equations (10) and (13)-(19) in: G.M. Hulbert, J. Chung, "Explicit time integration algorithms for structural dynamics with optimal numerical dissipation", Comput. Methods Appl. Mech. Engrg. 137 175-188 (1996).

There are four parameters in the scheme: $\alpha_m$, $\alpha_f$, $\beta$ and $\gamma$, all of which must be in the range $[0,1]$. When $\alpha_m=\alpha_f = 0$, the scheme reduces to the Newmark Beta scheme (see Tempus::StepperNewmark for details). Like the Newmark Beta scheme, the HHT-Alpha scheme can be either first or second order accurate, and either explicit or implicit.

Although the general form of the scheme has been implemented in Tempus, it has only been verified for the case when $\alpha_m=\alpha_f = 0$ (corresponding to the Newmark Beta) scheme, so other values for these parameters are not allowed at the present time. Also, note that, like the Newmark Beta stepper, the linear solve for the explicit version of this scheme has not been optimized (the mass matrix is not lumped).

The First-Step-As-Last (FSAL) principle is not used with the HHT-Alpha method.

Definition at line 44 of file Tempus_StepperHHTAlpha_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Tempus::StepperHHTAlpha< Scalar >::StepperHHTAlpha ( )

Default constructor.

Definition at line 131 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
Tempus::StepperHHTAlpha< Scalar >::StepperHHTAlpha ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel,
Teuchos::RCP< Teuchos::ParameterList >  pList = Teuchos::null
)

Constructor.

Definition at line 144 of file Tempus_StepperHHTAlpha_impl.hpp.

Member Function Documentation

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::correctAcceleration ( Thyra::VectorBase< Scalar > &  a_n_plus1,
const Thyra::VectorBase< Scalar > &  a_n
) const

Definition at line 88 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::correctDisplacement ( Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 117 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::correctVelocity ( Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 103 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
virtual

Definition at line 343 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
std::string Tempus::StepperHHTAlpha< Scalar >::description ( ) const
virtual

Definition at line 332 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperHHTAlpha< Scalar >::getAlpha ( const Scalar  dt) const
inlinevirtual

Return alpha = d(xDot)/d(x).

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 104 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperHHTAlpha< Scalar >::getBeta ( const Scalar  ) const
inlinevirtual

Return beta = d(x)/d(x).

Implements Tempus::StepperImplicit< Scalar >.

Definition at line 106 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperHHTAlpha< Scalar >::getDefaultParameters ( ) const
virtual

Implements Tempus::Stepper< Scalar >.

Definition at line 484 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
Teuchos::RCP< Tempus::StepperState< Scalar > > Tempus::StepperHHTAlpha< Scalar >::getDefaultStepperState ( )
virtual

Get a default (initial) StepperState.

Provide a StepperState to the SolutionState. This Stepper does not have any special state data, so just provide the base class StepperState with the Stepper description. This can be checked to ensure that the input StepperState can be used by this Stepper.

Implements Tempus::Stepper< Scalar >.

Definition at line 320 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperHHTAlpha< Scalar >::getNonconstParameterList ( )

Definition at line 506 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperHHTAlpha< Scalar >::getOrder ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 83 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperHHTAlpha< Scalar >::getOrderMax ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 88 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperHHTAlpha< Scalar >::getOrderMin ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 87 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual OrderODE Tempus::StepperHHTAlpha< Scalar >::getOrderODE ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 97 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
Teuchos::RCP< const Teuchos::ParameterList > Tempus::StepperHHTAlpha< Scalar >::getValidParameters ( ) const

Definition at line 467 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
virtual Scalar Tempus::StepperHHTAlpha< Scalar >::getW_xDotDot_coeff ( const Scalar  dt) const
inlinevirtual

Return W_xDotxDot_coeff = d(xDotDot)/d(x).

Definition at line 101 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::initialize ( )
virtual

Initialize during construction and after changing input parameters.

Implements Tempus::Stepper< Scalar >.

Definition at line 181 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
virtual bool Tempus::StepperHHTAlpha< Scalar >::isExplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 90 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperHHTAlpha< Scalar >::isExplicitImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 92 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperHHTAlpha< Scalar >::isImplicit ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 91 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperHHTAlpha< Scalar >::isMultiStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 95 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
virtual bool Tempus::StepperHHTAlpha< Scalar >::isOneStepMethod ( ) const
inlinevirtual

Implements Tempus::Stepper< Scalar >.

Definition at line 94 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::predictDisplacement ( Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 42 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::predictDisplacement_alpha_f ( Thyra::VectorBase< Scalar > &  dPred,
const Thyra::VectorBase< Scalar > &  d
) const

Definition at line 76 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::predictVelocity ( Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  v,
const Thyra::VectorBase< Scalar > &  a,
const Scalar  dt
) const

Definition at line 28 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::predictVelocity_alpha_f ( Thyra::VectorBase< Scalar > &  vPred,
const Thyra::VectorBase< Scalar > &  v
) const

Definition at line 63 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
virtual void Tempus::StepperHHTAlpha< Scalar >::setInitialConditions ( const Teuchos::RCP< SolutionHistory< Scalar > > &  )
inlinevirtual

Set the initial conditions and make them consistent.

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 74 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::setModel ( const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &  appModel)
virtual

Reimplemented from Tempus::StepperImplicit< Scalar >.

Definition at line 166 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
virtual void Tempus::StepperHHTAlpha< Scalar >::setObserver ( Teuchos::RCP< StepperObserver< Scalar > >  obs = Teuchos::null)
inlinevirtual

Set Observer.

Implements Tempus::Stepper< Scalar >.

Definition at line 67 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > &  pl)

Definition at line 356 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
void Tempus::StepperHHTAlpha< Scalar >::takeStep ( const Teuchos::RCP< SolutionHistory< Scalar > > &  solutionHistory)
virtual

Take the specified timestep, dt, and return true if successful.

Implements Tempus::Stepper< Scalar >.

Definition at line 197 of file Tempus_StepperHHTAlpha_impl.hpp.

template<class Scalar >
Teuchos::RCP< Teuchos::ParameterList > Tempus::StepperHHTAlpha< Scalar >::unsetParameterList ( )

Definition at line 517 of file Tempus_StepperHHTAlpha_impl.hpp.

Member Data Documentation

template<class Scalar >
Scalar Tempus::StepperHHTAlpha< Scalar >::alpha_f_
private

Definition at line 158 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperHHTAlpha< Scalar >::alpha_m_
private

Definition at line 159 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperHHTAlpha< Scalar >::beta_
private

Definition at line 156 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
Scalar Tempus::StepperHHTAlpha< Scalar >::gamma_
private

Definition at line 157 of file Tempus_StepperHHTAlpha_decl.hpp.

template<class Scalar >
Teuchos::RCP<Teuchos::FancyOStream> Tempus::StepperHHTAlpha< Scalar >::out_
private

Definition at line 161 of file Tempus_StepperHHTAlpha_decl.hpp.

The documentation for this class was generated from the following files:
