Zoltan2::BaseAdapter< User > Class Template Referenceabstract

#include <Zoltan2_Adapter.hpp>

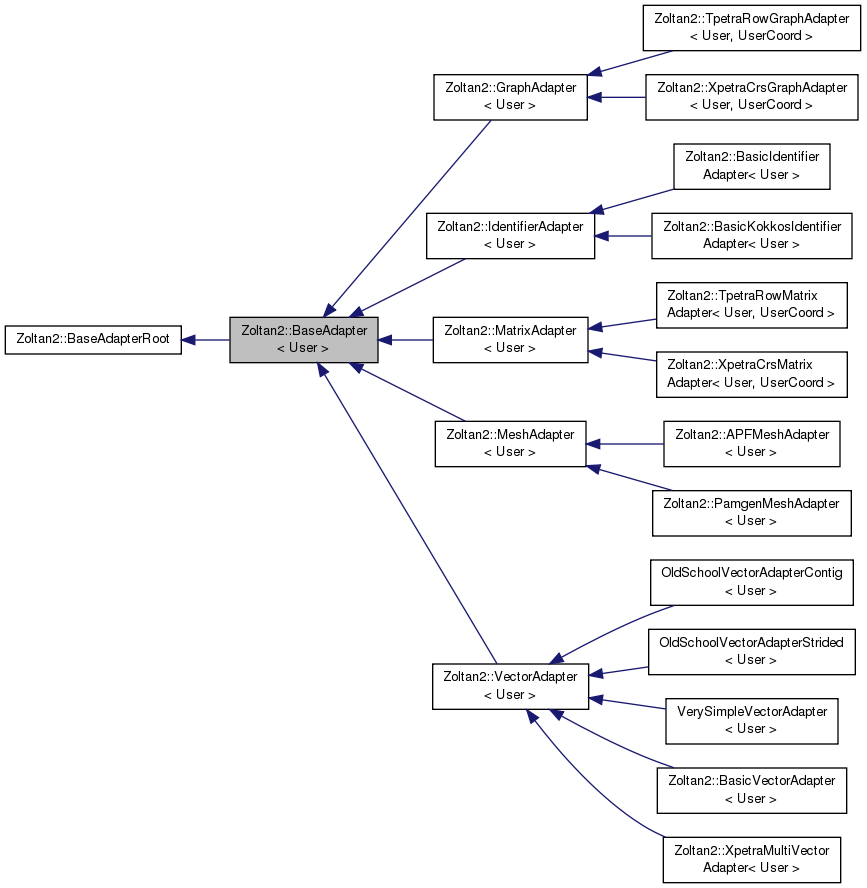

Inheritance diagram for Zoltan2::BaseAdapter< User >:
Inheritance graph
[legend]
Collaboration diagram for Zoltan2::BaseAdapter< User >:
Collaboration graph
[legend]

Public Types

using lno_t = typename InputTraits< User >::lno_t

using gno_t = typename InputTraits< User >::gno_t

using scalar_t = typename InputTraits< User >::scalar_t

using node_t = typename InputTraits< User >::node_t

using part_t = typename InputTraits< User >::part_t

using offset_t = typename InputTraits< User >::offset_t

using host_t = typename Kokkos::HostSpace::memory_space

using device_t = typename node_t::device_type

using ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using IdsDeviceView = Kokkos::View< gno_t *, device_t >

using IdsHostView = typename IdsDeviceView::HostMirror

using ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using OffsetsHostView = typename OffsetsDeviceView::HostMirror

using ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using ScalarsHostView = typename ScalarsDeviceView::HostMirror

using ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using WeightsHostView = typename WeightsDeviceView::HostMirror


Public Member Functions

virtual enum BaseAdapterType adapterType () const =0
 Returns the type of adapter. More...

virtual void getIDsView (const gno_t *&ids) const
 Provide a pointer to this process' identifiers. More...

virtual void getIDsKokkosView (ConstIdsDeviceView &ids) const
 Provide a Kokkos view to this process' identifiers. More...

virtual void getIDsHostView (ConstIdsHostView &hostIds) const
 Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
 Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
 Provide pointer to a weight array with stride. More...

virtual void getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
 Provide kokkos view of weights. More...

virtual void getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
 Provide a Kokkos view (Host side) of the weights. More...

virtual void getWeightsHostView (WeightsHostView &hostWgts) const
 Provide a Kokkos view (Host side) of the weights. More...

virtual void getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
 Provide a Kokkos view (Device side) of the weights. More...

virtual void getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
 Provide a Kokkos view (Device side) of the weights. More...

virtual void getPartsView (const part_t *&inputPart) const
 Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

virtual void getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
 Apply a PartitioningSolution to an input. More...

- Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual ~BaseAdapterRoot ()=default

virtual size_t getLocalNumIDs () const =0
 Returns the number of objects on this process. More...

virtual int getNumWeightsPerID () const
 Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...


Protected Member Functions

void generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const


Detailed Description

template<typename User>
class Zoltan2::BaseAdapter< User >

Definition at line 106 of file Zoltan2_Adapter.hpp.

Member Typedef Documentation

template<typename User>
using Zoltan2::BaseAdapter< User >::lno_t = typename InputTraits<User>::lno_t

Definition at line 109 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::gno_t = typename InputTraits<User>::gno_t

Definition at line 110 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::scalar_t = typename InputTraits<User>::scalar_t

Definition at line 111 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::node_t = typename InputTraits<User>::node_t

Definition at line 112 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::part_t = typename InputTraits<User>::part_t

Definition at line 113 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::offset_t = typename InputTraits<User>::offset_t

Definition at line 114 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::host_t = typename Kokkos::HostSpace::memory_space

Definition at line 115 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::device_t = typename node_t::device_type

Definition at line 116 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstIdsDeviceView = Kokkos::View<const gno_t *, device_t>

Definition at line 118 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

Definition at line 119 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::IdsDeviceView = Kokkos::View<gno_t *, device_t>

Definition at line 121 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::IdsHostView = typename IdsDeviceView::HostMirror

Definition at line 122 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstOffsetsDeviceView = Kokkos::View<const offset_t *, device_t>

Definition at line 124 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

Definition at line 125 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::OffsetsDeviceView = Kokkos::View<offset_t *, device_t>

Definition at line 127 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::OffsetsHostView = typename OffsetsDeviceView::HostMirror

Definition at line 128 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstScalarsDeviceView = Kokkos::View<const scalar_t *, device_t>

Definition at line 130 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

Definition at line 131 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ScalarsDeviceView = Kokkos::View<scalar_t *, device_t>

Definition at line 133 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ScalarsHostView = typename ScalarsDeviceView::HostMirror

Definition at line 134 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstWeightsDeviceView1D = Kokkos::View<const scalar_t *, device_t>

Definition at line 136 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

Definition at line 137 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::WeightsDeviceView1D = Kokkos::View<scalar_t *, device_t>

Definition at line 139 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

Definition at line 140 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstWeightsDeviceView = Kokkos::View<const scalar_t **, device_t>

Definition at line 142 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

Definition at line 143 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::WeightsDeviceView = Kokkos::View<scalar_t **, device_t>

Definition at line 145 of file Zoltan2_Adapter.hpp.

template<typename User>
using Zoltan2::BaseAdapter< User >::WeightsHostView = typename WeightsDeviceView::HostMirror

Definition at line 146 of file Zoltan2_Adapter.hpp.

Member Function Documentation

template<typename User>
virtual enum BaseAdapterType Zoltan2::BaseAdapter< User >::adapterType ( ) const
pure virtual
template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getIDsView ( const gno_t *&  ids) const
inlinevirtual

Provide a pointer to this process' identifiers.

Deprecated:
Use getIDsHostView instead.
Parameters
idswill on return point to the list of the global Ids for this process.

Reimplemented in Zoltan2::MatrixAdapter< User, UserCoord >, Zoltan2::MeshAdapter< User >, Zoltan2::GraphAdapter< User, UserCoord >, Zoltan2::BasicVectorAdapter< User >, VerySimpleVectorAdapter< User >, Zoltan2::BasicIdentifierAdapter< User >, and Zoltan2::BasicKokkosIdentifierAdapter< User >.

Definition at line 157 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getIDsKokkosView ( ConstIdsDeviceView ids) const
inlinevirtual

Provide a Kokkos view to this process' identifiers.

Deprecated:
Use getIDsDeviceView instead.
Parameters
idswill on return point to the list of the global Ids for this process.

Definition at line 172 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getIDsHostView ( ConstIdsHostView hostIds) const
inlinevirtual

Provide a Kokkos view (Host side) to this process' identifiers.

Parameters
hostIdswill on return point to the list of the global Ids for this process.

Definition at line 192 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getIDsDeviceView ( ConstIdsDeviceView deviceIds) const
inlinevirtual

Provide a Kokkos view (Device side) to this process' identifiers.

Parameters
deviceIdswill on return point to the list of the global Ids for this process.

Definition at line 200 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getWeightsView ( const scalar_t *&  wgt,
int &  stride,
int  idx = 0
) const
inlinevirtual

Provide pointer to a weight array with stride.

Parameters
wgton return a pointer to the weights for this idx
strideon return, the value such that the nth weight should be found at wgt[n*stride] .
idxthe weight index, zero or greater This function or getWeightsKokkosView must be implemented in derived adapter if getNumWeightsPerID > 0. This function should not be called if getNumWeightsPerID is zero.

Reimplemented in Zoltan2::MatrixAdapter< User, UserCoord >, Zoltan2::MeshAdapter< User >, Zoltan2::GraphAdapter< User, UserCoord >, Zoltan2::BasicVectorAdapter< User >, Zoltan2::XpetraMultiVectorAdapter< User >, and Zoltan2::BasicKokkosIdentifierAdapter< User >.

Definition at line 213 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getWeightsKokkosView ( Kokkos::View< scalar_t **, device_t > &  wgt) const
inlinevirtual

Provide kokkos view of weights.

Parameters
wgton return a Kokkos view of the weights for this idx This function or getWeightsView must be implemented in derived adapter if getNumWeightsPerID > 0. This function should not be called if getNumWeightsPerID is zero.

Reimplemented in Zoltan2::BasicKokkosIdentifierAdapter< User >.

Definition at line 231 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getWeightsHostView ( WeightsHostView1D hostWgts,
int  idx = 0
) const
inlinevirtual

Provide a Kokkos view (Host side) of the weights.

Parameters
hostWgtson return a Kokkos view of the weights for this idx
idxthe weight index, zero or greater

Definition at line 255 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getWeightsHostView ( WeightsHostView hostWgts) const
inlinevirtual

Provide a Kokkos view (Host side) of the weights.

Parameters
hostWgtson return a Kokkos view of all the weights

Definition at line 262 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getWeightsDeviceView ( WeightsDeviceView1D deviceWgts,
int  idx = 0
) const
inlinevirtual

Provide a Kokkos view (Device side) of the weights.

Parameters
deviceWgtson return a Kokkos view of the weights for this idx
idxthe weight index, zero or greater

Definition at line 270 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getWeightsDeviceView ( WeightsDeviceView deviceWgts) const
inlinevirtual

Provide a Kokkos view (Device side) of the weights.

Parameters
deviceWgtson return a Kokkos view of all the weights

Definition at line 277 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getPartsView ( const part_t *&  inputPart) const
inlinevirtual

Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank.

Parameters
inputParton return a pointer to input part numbers

Reimplemented in VerySimpleVectorAdapter< User >.

Definition at line 290 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getPartsHostView ( Kokkos::View< part_t *, host_t > &  inputPart) const
inlinevirtual

Definition at line 296 of file Zoltan2_Adapter.hpp.

template<typename User>
virtual void Zoltan2::BaseAdapter< User >::getPartsDeviceView ( Kokkos::View< part_t *, device_t > &  inputPart) const
inlinevirtual

Definition at line 300 of file Zoltan2_Adapter.hpp.

template<typename User>
template<typename Adapter >
void Zoltan2::BaseAdapter< User >::applyPartitioningSolution ( const User &  in,
User *&  out,
const PartitioningSolution< Adapter > &  solution
) const
inline

Apply a PartitioningSolution to an input.

This is not a required part of the InputAdapter interface. However if the Caller calls a Problem method to redistribute data, it needs this method to perform the redistribution.

Parameters
inAn input object with a structure and assignment of of global Ids to processes that matches that of the input data that instantiated this Adapter.
outOn return this should point to a newly created object with the specified partitioning.
solutionThe Solution object created by a Problem should be supplied as the third argument. It must have been templated on user data that has the same global ID distribution as this user data.
Returns
Returns the number of local Ids in the new partition.

Definition at line 322 of file Zoltan2_Adapter.hpp.

template<typename User >
void Zoltan2::BaseAdapter< User >::generateWeightFileOnly ( const char *  fileprefix,
const Teuchos::Comm< int > &  comm
) const
protected

Definition at line 377 of file Zoltan2_Adapter.hpp.


The documentation for this class was generated from the following file:
