An adapter for Xpetra::MultiVector. More...

#include <Zoltan2_XpetraMultiVectorAdapter.hpp>

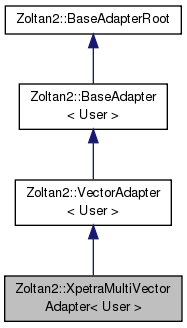

Inheritance diagram for Zoltan2::XpetraMultiVectorAdapter< User >:

Collaboration diagram for Zoltan2::XpetraMultiVectorAdapter< User >:

Public Member Functions
	XpetraMultiVectorAdapter (const RCP< const User > &invector, std::vector< const scalar_t * > &weights, std::vector< int > &weightStrides)
	Constructor. More...

	XpetraMultiVectorAdapter (const RCP< const User > &invector)
	Constructor for case when weights are not being used. More...

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&ids) const

void	getIDsKokkosView (Kokkos::View< const gno_t *, typename node_t::device_type > &ids) const

int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&weights, int &stride, int idx) const
	Provide pointer to a weight array with stride. More...

void	getWeightsKokkos2dView (Kokkos::View< scalar_t **, typename node_t::device_type > &wgt) const

int	getNumEntriesPerID () const
	Return the number of vectors. More...

void	getEntriesView (const scalar_t *&elements, int &stride, int idx=0) const
	Provide a pointer to the elements of the specified vector. More...

void	getEntriesKokkosView (Kokkos::View< scalar_t **, Kokkos::LayoutLeft, typename node_t::device_type > &elements) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, RCP< User > &out, const PartitioningSolution< Adapter > &solution) const

Public Member Functions inherited from Zoltan2::VectorAdapter< User >
enum BaseAdapterType	adapterType () const override
	Returns the type of adapter. More...

virtual void	getEntriesKokkosView (Kokkos::View< scalar_t **, Kokkos::LayoutLeft, typename node_t::device_type > &elements) const
	Provide a Kokkos view to the elements of the specified vector. More...

virtual void	getEntriesHostView (typename AdapterWithCoords< User >::CoordsHostView &elements) const
	Provide a Kokkos view (Host side) to the elements of the specified vector. More...

virtual void	getEntriesDeviceView (typename AdapterWithCoords< User >::CoordsDeviceView &elements) const
	Provide a Kokkos view (Device side) to the elements of the specified vector. More...

void	generateFiles (const char *fileprefix, const Teuchos::Comm< int > &comm) const
	Write files that can be used as input to Zoltan or Zoltan2 driver Creates chaco-formatted input files for coordinates and weights that can be used as input for Zoltan or Zoltan2 drivers. This routine is SERIAL and can be quite slow. It is meant as a debugging tool only, to allow Zoltan developers to replicate performance that applications are seeing using the applicatios' input. More...

int	getDimension () const

void	getCoordinatesView (const scalar_t *&elements, int &stride, int idx=0) const override

void	getCoordinatesKokkosView (typename AdapterWithCoords< User >::CoordsDeviceView &elements) const override

void	getCoordinatesHostView (typename AdapterWithCoords< User >::CoordsHostView &elements) const override

void	getCoordinatesDeviceView (typename AdapterWithCoords< User >::CoordsDeviceView &elements) const override

Public Member Functions inherited from Zoltan2::AdapterWithCoords< User >
virtual void	getCoordinatesKokkosView (CoordsDeviceView &elements) const =0

virtual void	getCoordinatesHostView (CoordsHostView &) const

virtual void	getCoordinatesDeviceView (CoordsDeviceView &elements) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual void	getIDsView (const gno_t *&ids) const
	Provide a pointer to this process' identifiers. More...

virtual void	getIDsKokkosView (ConstIdsDeviceView &ids) const
	Provide a Kokkos view to this process' identifiers. More...

virtual void	getIDsHostView (ConstIdsHostView &hostIds) const
	Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void	getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
	Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
	Provide kokkos view of weights. More...

virtual void	getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsHostView (WeightsHostView &hostWgts) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

virtual void	getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void	getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()=default

Additional Inherited Members
Public Types inherited from Zoltan2::AdapterWithCoords< User >
using	scalar_t = typename BaseAdapter< User >::scalar_t

using	device_t = typename BaseAdapter< User >::node_t::device_type

using	host_t = typename Kokkos::HostSpace::memory_space

using	CoordsDeviceView = Kokkos::View< scalar_t **, Kokkos::LayoutLeft, device_t >

using	CoordsHostView = typename CoordsDeviceView::HostMirror

Public Types inherited from Zoltan2::BaseAdapter< User >
using	lno_t = typename InputTraits< User >::lno_t

using	gno_t = typename InputTraits< User >::gno_t

using	scalar_t = typename InputTraits< User >::scalar_t

using	node_t = typename InputTraits< User >::node_t

using	part_t = typename InputTraits< User >::part_t

using	offset_t = typename InputTraits< User >::offset_t

using	host_t = typename Kokkos::HostSpace::memory_space

using	device_t = typename node_t::device_type

using	ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using	ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using	IdsDeviceView = Kokkos::View< gno_t *, device_t >

using	IdsHostView = typename IdsDeviceView::HostMirror

using	ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using	ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using	OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using	OffsetsHostView = typename OffsetsDeviceView::HostMirror

using	ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using	ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using	ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using	ScalarsHostView = typename ScalarsDeviceView::HostMirror

using	ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using	ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using	WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using	WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using	ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using	ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using	WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using	WeightsHostView = typename WeightsDeviceView::HostMirror

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User>
class Zoltan2::XpetraMultiVectorAdapter< User >

An adapter for Xpetra::MultiVector.

The template parameter is the user's input object:

Epetra_MultiVector
Tpetra::MultiVector
Xpetra::MultiVector

The scalar_t type, representing use data such as vector values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Definition at line 83 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

Constructor & Destructor Documentation

template<typename User >

Zoltan2::XpetraMultiVectorAdapter< User >::XpetraMultiVectorAdapter	(	const RCP< const User > &	invector,
		std::vector< const scalar_t * > &	weights,
		std::vector< int > &	weightStrides
	)

Constructor.

Parameters

invector	the user's Xpetra, Tpetra or Epetra MultiVector object
weights	a list of pointers to arrays of weights. The number of weights per multivector element is assumed to be `weights.size()`.
weightStrides	a list of strides for the `weights`. The weight for weight index `n` for multivector element `k` should be found at `weights[n][weightStrides[n] * k]`. If `weightStrides.size()` is zero, it is assumed all strides are one.

The values pointed to the arguments must remain valid for the lifetime of this Adapter.

Definition at line 237 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User >

Zoltan2::XpetraMultiVectorAdapter< User >::XpetraMultiVectorAdapter ( const RCP< const User > & invector )

Constructor for case when weights are not being used.

Parameters

invector the user's Xpetra, Tpetra or Epetra MultiVector object

Definition at line 270 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

Member Function Documentation

template<typename User>

size_t Zoltan2::XpetraMultiVectorAdapter< User >::getLocalNumIDs ( ) const

inlinevirtual

Returns the number of objects on this process.

Objects may be coordinates, graph vertices, matrix rows, etc. They are the objects to be partitioned, ordered, or colored.

Implements Zoltan2::BaseAdapterRoot.

Definition at line 130 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User>

void Zoltan2::XpetraMultiVectorAdapter< User >::getIDsView ( const gno_t *& ids ) const

inline

Definition at line 132 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User>

void Zoltan2::XpetraMultiVectorAdapter< User >::getIDsKokkosView ( Kokkos::View< const gno_t *, typename node_t::device_type > & ids ) const

inline

Definition at line 137 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User>

int Zoltan2::XpetraMultiVectorAdapter< User >::getNumWeightsPerID ( ) const

inlinevirtual

Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID.

Reimplemented from Zoltan2::BaseAdapterRoot.

Definition at line 167 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User>

void Zoltan2::XpetraMultiVectorAdapter< User >::getWeightsView	(	const scalar_t *&	wgt,
		int &	stride,
		int	idx
	)		const

inlinevirtual

Provide pointer to a weight array with stride.

Parameters

wgt	on return a pointer to the weights for this idx
stride	on return, the value such that the nth weight should be found at `wgt[n*stride]` .
idx	the weight index, zero or greater This function or getWeightsKokkosView must be implemented in derived adapter if getNumWeightsPerID > 0. This function should not be called if getNumWeightsPerID is zero.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 169 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User>

void Zoltan2::XpetraMultiVectorAdapter< User >::getWeightsKokkos2dView ( Kokkos::View< scalar_t **, typename node_t::device_type > & wgt ) const

inline

Definition at line 183 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User>

int Zoltan2::XpetraMultiVectorAdapter< User >::getNumEntriesPerID ( ) const

inlinevirtual

Return the number of vectors.

Implements Zoltan2::VectorAdapter< User >.

Definition at line 205 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User >

void Zoltan2::XpetraMultiVectorAdapter< User >::getEntriesView	(	const scalar_t *&	elements,
		int &	stride,
		int	idx = `0`
	)		const

virtual

Provide a pointer to the elements of the specified vector.

Parameters

elements	will on return point to the vector values corresponding to the global Ids.
stride	the k'th element is located at elements[stride*k]
idx	ranges from zero to one less than getNumEntriesPerID(), and represents the vector for which data is being requested.

Reimplemented from Zoltan2::VectorAdapter< User >.

Definition at line 287 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User >

void Zoltan2::XpetraMultiVectorAdapter< User >::getEntriesKokkosView ( Kokkos::View< scalar_t **, Kokkos::LayoutLeft, typename node_t::device_type > & elements ) const

Definition at line 329 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User >

template<typename Adapter >

void Zoltan2::XpetraMultiVectorAdapter< User >::applyPartitioningSolution	(	const User &	in,
		User *&	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 375 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

template<typename User >

template<typename Adapter >

void Zoltan2::XpetraMultiVectorAdapter< User >::applyPartitioningSolution	(	const User &	in,
		RCP< User > &	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 399 of file Zoltan2_XpetraMultiVectorAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_XpetraMultiVectorAdapter.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename User> class Zoltan2::XpetraMultiVectorAdapter< User >

Constructor & Destructor Documentation

Member Function Documentation

template<typename User>
class Zoltan2::XpetraMultiVectorAdapter< User >
