GraphAdapter defines the interface for graph-based user data. More...

#include <Zoltan2_GraphAdapter.hpp>

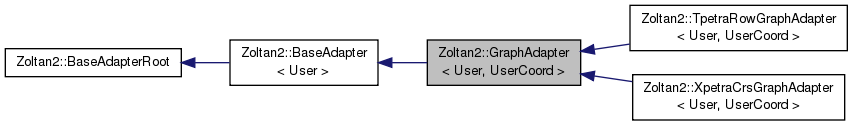

Inheritance diagram for Zoltan2::GraphAdapter< User, UserCoord >:

Collaboration diagram for Zoltan2::GraphAdapter< User, UserCoord >:

Public Member Functions
enum BaseAdapterType	adapterType () const override
	Returns the type of adapter. More...

virtual size_t	getLocalNumVertices () const =0
	Returns the number of vertices on this process. More...

virtual size_t	getLocalNumEdges () const =0
	Returns the number of edges on this process. More...

virtual void	getVertexIDsView (const gno_t *&vertexIds) const =0
	Sets pointers to this process' graph entries. More...

virtual void	getVertexIDsDeviceView (typename Base::ConstIdsDeviceView &vertexIds) const
	Sets pointers to this process' graph entries. More...

virtual void	getVertexIDsHostView (typename Base::ConstIdsHostView &vertexIds) const
	Sets pointers to this process' graph entries. More...

virtual void	getEdgesView (const offset_t &offsets, const gno_t &adjIds) const =0
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

virtual void	getEdgesDeviceView (typename Base::ConstOffsetsDeviceView &offsets, typename Base::ConstIdsDeviceView &adjIds) const
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

virtual void	getEdgesHostView (typename Base::ConstOffsetsHostView &offsets, typename Base::ConstIdsHostView &adjIds) const
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

virtual int	getNumWeightsPerVertex () const
	Returns the number (0 or greater) of weights per vertex. More...

virtual void	getVertexWeightsView (const scalar_t *&weights, int &stride, int=0) const
	Provide a pointer to the vertex weights, if any. More...

virtual void	getVertexWeightsDeviceView (typename Base::WeightsDeviceView1D &weights, int=0) const
	Provide a device view of the vertex weights, if any. More...

virtual void	getVertexWeightsDeviceView (typename Base::WeightsDeviceView &weights) const
	Provide a device view of the vertex weights, if any. More...

virtual void	getVertexWeightsHostView (typename Base::WeightsHostView1D &weights, int=0) const
	Provide a host view of the vertex weights, if any. More...

virtual void	getVertexWeightsHostView (typename Base::WeightsHostView &weights) const
	Provide a host view of the vertex weights, if any. More...

virtual bool	useDegreeAsVertexWeight (int) const
	Indicate whether vertex weight with index idx should be the global degree of the vertex. More...

virtual int	getNumWeightsPerEdge () const
	Returns the number (0 or greater) of edge weights. More...

virtual void	getEdgeWeightsView (const scalar_t *&weights, int &stride, int=0) const
	Provide a pointer to the edge weights, if any. More...

virtual void	getEdgeWeightsDeviceView (typename Base::WeightsDeviceView1D &weights, int=0) const
	Provide a device view of the edge weights, if any. More...

virtual void	getEdgeWeightsDeviceView (typename Base::WeightsDeviceView &weights) const
	Provide a device view of the edge weights, if any. More...

virtual void	getEdgeWeightsHostView (typename Base::WeightsHostView1D &weights, int=0) const
	Provide a host view of the edge weights, if any. More...

virtual void	getEdgeWeightsHostView (typename Base::WeightsHostView &weights) const
	Provide a host view of the edge weights, if any. More...

void	setCoordinateInput (VectorAdapter< UserCoord > *coordData) override
	Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType_. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType_. More...

bool	coordinatesAvailable () const
	Indicate whether coordinate information has been set for this MatrixAdapter. More...

VectorAdapter< UserCoord > *	getCoordinateInput () const override
	Obtain the coordinate data registered by the user. More...

enum GraphEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE. More...

void	setPrimaryEntityType (const std::string &typestr)
	Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType_ to something reasonable: opposite of primaryEntityType_. More...

enum GraphEntityType	getAdjacencyEntityType () const
	Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE. More...

void	setAdjacencyEntityType (const std::string &typestr)
	Sets the adjacency entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to primaryEntityType_ to something reasonable: opposite of adjacencyEntityType_. More...

size_t	getLocalNumIDs () const override
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const override
	Provide a pointer to this process' identifiers. More...

void	getIDsDeviceView (typename Base::ConstIdsDeviceView &Ids) const override

void	getIDsHostView (typename Base::ConstIdsHostView &Ids) const override

int	getNumWeightsPerID () const override
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const override
	Provide pointer to a weight array with stride. More...

void	getWeightsHostView (typename Base::WeightsHostView1D &hostWgts, int idx=0) const override

void	getWeightsHostView (typename Base::WeightsHostView &hostWgts) const override

void	getWeightsDeviceView (typename Base::WeightsDeviceView1D &deviceWgts, int idx=0) const override

void	getWeightsDeviceView (typename Base::WeightsDeviceView &deviceWgts) const override

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual void	getIDsKokkosView (ConstIdsDeviceView &ids) const
	Provide a Kokkos view to this process' identifiers. More...

virtual void	getIDsHostView (ConstIdsHostView &hostIds) const
	Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void	getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
	Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
	Provide kokkos view of weights. More...

virtual void	getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsHostView (WeightsHostView &hostWgts) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

virtual void	getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void	getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()=default

Additional Inherited Members
Public Types inherited from Zoltan2::BaseAdapter< User >
using	lno_t = typename InputTraits< User >::lno_t

using	gno_t = typename InputTraits< User >::gno_t

using	scalar_t = typename InputTraits< User >::scalar_t

using	node_t = typename InputTraits< User >::node_t

using	part_t = typename InputTraits< User >::part_t

using	offset_t = typename InputTraits< User >::offset_t

using	host_t = typename Kokkos::HostSpace::memory_space

using	device_t = typename node_t::device_type

using	ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using	ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using	IdsDeviceView = Kokkos::View< gno_t *, device_t >

using	IdsHostView = typename IdsDeviceView::HostMirror

using	ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using	ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using	OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using	OffsetsHostView = typename OffsetsDeviceView::HostMirror

using	ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using	ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using	ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using	ScalarsHostView = typename ScalarsDeviceView::HostMirror

using	ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using	ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using	WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using	WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using	ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using	ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using	WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using	WeightsHostView = typename WeightsDeviceView::HostMirror

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User, typename UserCoord = User>
class Zoltan2::GraphAdapter< User, UserCoord >

GraphAdapter defines the interface for graph-based user data.

Adapter objects provide access for Zoltan2 to the user's data. Many built-in adapters are already defined for common data structures, such as Tpetra and Epetra objects and C-language pointers to arrays.

Data types:

scalar_t vertex and edge weights
lno_t local indices and local counts
gno_t global indices and global counts
node_t is a Kokkos Node type

The Kokkos node type can be safely ignored.

The template parameter User is a user-defined data type which, through a traits mechanism, provides the actual data types with which the Zoltan2 library will be compiled. User may be the actual class or structure used by application to represent a vector, or it may be the helper class BasicUserTypes. See InputTraits for more information.

The scalar_t type, representing use data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Definition at line 95 of file Zoltan2_GraphAdapter.hpp.

Member Function Documentation

template<typename User, typename UserCoord = User>

enum BaseAdapterType Zoltan2::GraphAdapter< User, UserCoord >::adapterType ( ) const

inlineoverridevirtual

Returns the type of adapter.

Implements Zoltan2::BaseAdapter< User >.

Definition at line 131 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual size_t Zoltan2::GraphAdapter< User, UserCoord >::getLocalNumVertices ( ) const

pure virtual

Returns the number of vertices on this process.

Implemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual size_t Zoltan2::GraphAdapter< User, UserCoord >::getLocalNumEdges ( ) const

pure virtual

Returns the number of edges on this process.

Implemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexIDsView ( const gno_t *& vertexIds ) const

pure virtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a pointer to vertex global Ids

Implemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexIDsDeviceView ( typename Base::ConstIdsDeviceView & vertexIds ) const

inlinevirtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a device Kokkos::View with vertex global Ids

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 154 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexIDsHostView ( typename Base::ConstIdsHostView & vertexIds ) const

inlinevirtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a host Kokkos::View with vertex global Ids

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 162 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgesView	(	const offset_t *&	offsets,
		const gno_t *&	adjIds
	)		const

pure virtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is an array of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	on return will point to the array of adjacent vertices for for each vertex.

Implemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgesDeviceView	(	typename Base::ConstOffsetsDeviceView &	offsets,
		typename Base::ConstIdsDeviceView &	adjIds
	)		const

inlinevirtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is device Kokkos::View of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	Device Kokkos::View of adjacent vertices for for each vertex.

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 188 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgesHostView	(	typename Base::ConstOffsetsHostView &	offsets,
		typename Base::ConstIdsHostView &	adjIds
	)		const

inlinevirtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is host Kokkos::View of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	Host Kokkos::View of adjacent vertices for for each vertex.

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 201 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual int Zoltan2::GraphAdapter< User, UserCoord >::getNumWeightsPerVertex ( ) const

inlinevirtual

Returns the number (0 or greater) of weights per vertex.

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

Definition at line 208 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	= `0`
	)		const

inlinevirtual

Provide a pointer to the vertex weights, if any.

Parameters

weights	is the list of weights of the given index for the vertices returned in getVertexIDsView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerVertex().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

Definition at line 216 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexWeightsDeviceView	(	typename Base::WeightsDeviceView1D &	weights,
		int	= `0`
	)		const

inlinevirtual

Provide a device view of the vertex weights, if any.

Parameters

weights	is the list of weights of the given index for the vertices returned in getVertexIDsView().
idx	ranges from zero to one less than getNumWeightsPerVertex().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 229 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexWeightsDeviceView ( typename Base::WeightsDeviceView & weights ) const

inlinevirtual

Provide a device view of the vertex weights, if any.

Parameters

weights is the view of all the weights for the vertices returned in getVertexIDsView().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 238 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexWeightsHostView	(	typename Base::WeightsHostView1D &	weights,
		int	= `0`
	)		const

inlinevirtual

Provide a host view of the vertex weights, if any.

Parameters

weights	is the list of weights of the given index for the vertices returned in getVertexIDsView().
idx	ranges from zero to one less than getNumWeightsPerVertex().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 248 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getVertexWeightsHostView ( typename Base::WeightsHostView & weights ) const

inlinevirtual

Provide a host view of the vertex weights, if any.

Parameters

weights is the list of all the weights for the vertices returned in getVertexIDsView()

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 257 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual bool Zoltan2::GraphAdapter< User, UserCoord >::useDegreeAsVertexWeight ( int ) const

inlinevirtual

Indicate whether vertex weight with index idx should be the global degree of the vertex.

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

Definition at line 264 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual int Zoltan2::GraphAdapter< User, UserCoord >::getNumWeightsPerEdge ( ) const

inlinevirtual

Returns the number (0 or greater) of edge weights.

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

Definition at line 268 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgeWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int	= `0`
	)		const

inlinevirtual

Provide a pointer to the edge weights, if any.

Parameters

weights	is the list of weights of the given index for the edges returned in getEdgeView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerEdge().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >, and Zoltan2::XpetraCrsGraphAdapter< User, UserCoord >.

Definition at line 276 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgeWeightsDeviceView	(	typename Base::WeightsDeviceView1D &	weights,
		int	= `0`
	)		const

inlinevirtual

Provide a device view of the edge weights, if any.

Parameters

weights	is the list of weights of the given index for the edges returned in getEdgeView().
idx	ranges from zero to one less than getNumWeightsPerEdge().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 289 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgeWeightsDeviceView ( typename Base::WeightsDeviceView & weights ) const

inlinevirtual

Provide a device view of the edge weights, if any.

Parameters

weights is the list of weights for the edges returned in getEdgeView().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 298 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgeWeightsHostView	(	typename Base::WeightsHostView1D &	weights,
		int	= `0`
	)		const

inlinevirtual

Provide a host view of the edge weights, if any.

Parameters

weights	is the list of weights of the given index for the edges returned in getEdgeView().
idx	ranges from zero to one less than getNumWeightsPerEdge().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 308 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

virtual void Zoltan2::GraphAdapter< User, UserCoord >::getEdgeWeightsHostView ( typename Base::WeightsHostView & weights ) const

inlinevirtual

Provide a host view of the edge weights, if any.

Parameters

weights is the list of weights for the edges returned in getEdgeView().

Reimplemented in Zoltan2::TpetraRowGraphAdapter< User, UserCoord >.

Definition at line 317 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::setCoordinateInput ( VectorAdapter< UserCoord > * coordData )

inlineoverridevirtual

Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType_. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType_.

Parameters

coordData is a pointer to a VectorAdapter with the user's coordinate data.

Implements Zoltan2::AdapterWithCoordsWrapper< User, UserCoord >.

Definition at line 329 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

bool Zoltan2::GraphAdapter< User, UserCoord >::coordinatesAvailable ( ) const

inline

Indicate whether coordinate information has been set for this MatrixAdapter.

Definition at line 337 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

VectorAdapter<UserCoord>* Zoltan2::GraphAdapter< User, UserCoord >::getCoordinateInput ( ) const

inlineoverridevirtual

Obtain the coordinate data registered by the user.

Returns: pointer a VectorAdapter with the user's coordinate data.

Implements Zoltan2::AdapterWithCoordsWrapper< User, UserCoord >.

Definition at line 342 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

enum GraphEntityType Zoltan2::GraphAdapter< User, UserCoord >::getPrimaryEntityType ( ) const

inline

Returns the entity to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE.

Definition at line 352 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::setPrimaryEntityType ( const std::string & typestr )

inline

Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType_ to something reasonable: opposite of primaryEntityType_.

Definition at line 361 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

enum GraphEntityType Zoltan2::GraphAdapter< User, UserCoord >::getAdjacencyEntityType ( ) const

inline

Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE.

Definition at line 378 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::setAdjacencyEntityType ( const std::string & typestr )

inline

Sets the adjacency entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to primaryEntityType_ to something reasonable: opposite of adjacencyEntityType_.

Definition at line 387 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

size_t Zoltan2::GraphAdapter< User, UserCoord >::getLocalNumIDs ( ) const

inlineoverridevirtual

Returns the number of objects on this process.

Objects may be coordinates, graph vertices, matrix rows, etc. They are the objects to be partitioned, ordered, or colored.

Implements Zoltan2::BaseAdapterRoot.

Definition at line 401 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getIDsView ( const gno_t *& ids ) const

inlineoverridevirtual

Provide a pointer to this process' identifiers.

Deprecated:: Use getIDsHostView instead.

Parameters

ids	will on return point to the list of the global Ids for this process.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 408 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getIDsDeviceView ( typename Base::ConstIdsDeviceView & Ids ) const

inlineoverride

Definition at line 415 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getIDsHostView ( typename Base::ConstIdsHostView & Ids ) const

inlineoverride

Definition at line 422 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

int Zoltan2::GraphAdapter< User, UserCoord >::getNumWeightsPerID ( ) const

inlineoverridevirtual

Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID.

Reimplemented from Zoltan2::BaseAdapterRoot.

Definition at line 429 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getWeightsView	(	const scalar_t *&	wgt,
		int &	stride,
		int	idx = `0`
	)		const

inlineoverridevirtual

Provide pointer to a weight array with stride.

Parameters

wgt	on return a pointer to the weights for this idx
stride	on return, the value such that the nth weight should be found at `wgt[n*stride]` .
idx	the weight index, zero or greater This function or getWeightsKokkosView must be implemented in derived adapter if getNumWeightsPerID > 0. This function should not be called if getNumWeightsPerID is zero.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 436 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getWeightsHostView	(	typename Base::WeightsHostView1D &	hostWgts,
		int	idx = `0`
	)		const

inlineoverride

Definition at line 445 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getWeightsHostView ( typename Base::WeightsHostView & hostWgts ) const

inlineoverride

Definition at line 453 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getWeightsDeviceView	(	typename Base::WeightsDeviceView1D &	deviceWgts,
		int	idx = `0`
	)		const

inlineoverride

Definition at line 460 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

void Zoltan2::GraphAdapter< User, UserCoord >::getWeightsDeviceView ( typename Base::WeightsDeviceView & deviceWgts ) const

inlineoverride

Definition at line 468 of file Zoltan2_GraphAdapter.hpp.

template<typename User, typename UserCoord = User>

bool Zoltan2::GraphAdapter< User, UserCoord >::useDegreeAsWeight ( int idx ) const

inline

Definition at line 475 of file Zoltan2_GraphAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_GraphAdapter.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

template<typename User, typename UserCoord = User> class Zoltan2::GraphAdapter< User, UserCoord >

Member Function Documentation

template<typename User, typename UserCoord = User>
class Zoltan2::GraphAdapter< User, UserCoord >
