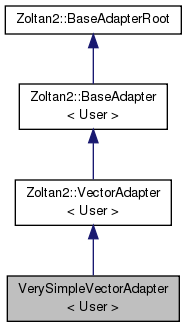

Inheritance diagram for VerySimpleVectorAdapter< User >:

Collaboration diagram for VerySimpleVectorAdapter< User >:

Public Types
typedef Zoltan2::VectorAdapter < User >::lno_t	lno_t

typedef Zoltan2::VectorAdapter < User >::gno_t	gno_t

typedef Zoltan2::VectorAdapter < User >::scalar_t	scalar_t

typedef Zoltan2::VectorAdapter < User >::part_t	part_t

Public Types inherited from Zoltan2::AdapterWithCoords< User >
using	scalar_t = typename BaseAdapter< User >::scalar_t

using	device_t = typename BaseAdapter< User >::node_t::device_type

using	host_t = typename Kokkos::HostSpace::memory_space

using	CoordsDeviceView = Kokkos::View< scalar_t **, Kokkos::LayoutLeft, device_t >

using	CoordsHostView = typename CoordsDeviceView::HostMirror

Public Types inherited from Zoltan2::BaseAdapter< User >
using	lno_t = typename InputTraits< User >::lno_t

using	gno_t = typename InputTraits< User >::gno_t

using	scalar_t = typename InputTraits< User >::scalar_t

using	node_t = typename InputTraits< User >::node_t

using	part_t = typename InputTraits< User >::part_t

using	offset_t = typename InputTraits< User >::offset_t

using	host_t = typename Kokkos::HostSpace::memory_space

using	device_t = typename node_t::device_type

using	ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using	ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using	IdsDeviceView = Kokkos::View< gno_t *, device_t >

using	IdsHostView = typename IdsDeviceView::HostMirror

using	ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using	ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using	OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using	OffsetsHostView = typename OffsetsDeviceView::HostMirror

using	ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using	ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using	ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using	ScalarsHostView = typename ScalarsDeviceView::HostMirror

using	ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using	ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using	WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using	WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using	ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using	ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using	WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using	WeightsHostView = typename WeightsDeviceView::HostMirror

Public Member Functions
	VerySimpleVectorAdapter (const Teuchos::Comm< int > &comm_, int nPartsPerRow_, int lowestPartNum_, bool useInputParts_=false)

void	print (std::string hi)

bool	adapterUsesInputParts ()

int	adapterNPartsPerRow ()

int	adapterLowestPartNum ()

size_t	getLocalNumIDs () const
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const
	Provide a pointer to this process' identifiers. More...

int	getNumEntriesPerID () const
	Return the number of vectors. More...

void	getEntriesView (const scalar_t *&Coords, int &Stride, int Idx) const
	Provide a pointer to the elements of the specified vector. More...

void	getPartsView (const part_t *&InputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

Public Member Functions inherited from Zoltan2::VectorAdapter< User >
enum BaseAdapterType	adapterType () const override
	Returns the type of adapter. More...

virtual void	getEntriesKokkosView (Kokkos::View< scalar_t **, Kokkos::LayoutLeft, typename node_t::device_type > &elements) const
	Provide a Kokkos view to the elements of the specified vector. More...

virtual void	getEntriesHostView (typename AdapterWithCoords< User >::CoordsHostView &elements) const
	Provide a Kokkos view (Host side) to the elements of the specified vector. More...

virtual void	getEntriesDeviceView (typename AdapterWithCoords< User >::CoordsDeviceView &elements) const
	Provide a Kokkos view (Device side) to the elements of the specified vector. More...

void	generateFiles (const char *fileprefix, const Teuchos::Comm< int > &comm) const
	Write files that can be used as input to Zoltan or Zoltan2 driver Creates chaco-formatted input files for coordinates and weights that can be used as input for Zoltan or Zoltan2 drivers. This routine is SERIAL and can be quite slow. It is meant as a debugging tool only, to allow Zoltan developers to replicate performance that applications are seeing using the applicatios' input. More...

int	getDimension () const

void	getCoordinatesView (const scalar_t *&elements, int &stride, int idx=0) const override

void	getCoordinatesKokkosView (typename AdapterWithCoords< User >::CoordsDeviceView &elements) const override

void	getCoordinatesHostView (typename AdapterWithCoords< User >::CoordsHostView &elements) const override

void	getCoordinatesDeviceView (typename AdapterWithCoords< User >::CoordsDeviceView &elements) const override

Public Member Functions inherited from Zoltan2::AdapterWithCoords< User >
virtual void	getCoordinatesKokkosView (CoordsDeviceView &elements) const =0

virtual void	getCoordinatesHostView (CoordsHostView &) const

virtual void	getCoordinatesDeviceView (CoordsDeviceView &elements) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual void	getIDsKokkosView (ConstIdsDeviceView &ids) const
	Provide a Kokkos view to this process' identifiers. More...

virtual void	getIDsHostView (ConstIdsHostView &hostIds) const
	Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void	getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
	Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const
	Provide pointer to a weight array with stride. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
	Provide kokkos view of weights. More...

virtual void	getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsHostView (WeightsHostView &hostWgts) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void	getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()=default

virtual int	getNumWeightsPerID () const
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

Static Public Attributes
static const int	nCoordDim = 2

static const int	nCoordPerRank = 6

Additional Inherited Members
Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Detailed Description

template<typename User>
class VerySimpleVectorAdapter< User >

Definition at line 27 of file Mapping.cpp.

Member Typedef Documentation

template<typename User >

typedef Zoltan2::VectorAdapter<User>::lno_t VerySimpleVectorAdapter< User >::lno_t

Definition at line 34 of file Mapping.cpp.

template<typename User >

typedef Zoltan2::VectorAdapter<User>::gno_t VerySimpleVectorAdapter< User >::gno_t

Definition at line 35 of file Mapping.cpp.

template<typename User >

typedef Zoltan2::VectorAdapter<User>::scalar_t VerySimpleVectorAdapter< User >::scalar_t

Definition at line 36 of file Mapping.cpp.

template<typename User >

typedef Zoltan2::VectorAdapter<User>::part_t VerySimpleVectorAdapter< User >::part_t

Definition at line 37 of file Mapping.cpp.

Constructor & Destructor Documentation

template<typename User >

VerySimpleVectorAdapter< User >::VerySimpleVectorAdapter	(	const Teuchos::Comm< int > &	comm_,
		int	nPartsPerRow_,
		int	lowestPartNum_,
		bool	useInputParts_ = `false`
	)

inline

Definition at line 44 of file Mapping.cpp.

Member Function Documentation

template<typename User >

void VerySimpleVectorAdapter< User >::print ( std::string hi )

inline

Definition at line 71 of file Mapping.cpp.

template<typename User >

bool VerySimpleVectorAdapter< User >::adapterUsesInputParts ( )

inline

Definition at line 109 of file Mapping.cpp.

template<typename User >

int VerySimpleVectorAdapter< User >::adapterNPartsPerRow ( )

inline

Definition at line 110 of file Mapping.cpp.

template<typename User >

int VerySimpleVectorAdapter< User >::adapterLowestPartNum ( )

inline

Definition at line 111 of file Mapping.cpp.

template<typename User >

size_t VerySimpleVectorAdapter< User >::getLocalNumIDs ( ) const

inlinevirtual

Returns the number of objects on this process.

Objects may be coordinates, graph vertices, matrix rows, etc. They are the objects to be partitioned, ordered, or colored.

Implements Zoltan2::BaseAdapterRoot.

Definition at line 114 of file Mapping.cpp.

template<typename User >

void VerySimpleVectorAdapter< User >::getIDsView ( const gno_t *& ids ) const

inlinevirtual

Provide a pointer to this process' identifiers.

Deprecated:: Use getIDsHostView instead.

Parameters

ids	will on return point to the list of the global Ids for this process.

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 115 of file Mapping.cpp.

template<typename User >

int VerySimpleVectorAdapter< User >::getNumEntriesPerID ( ) const

inlinevirtual

Return the number of vectors.

Implements Zoltan2::VectorAdapter< User >.

Definition at line 117 of file Mapping.cpp.

template<typename User >

void VerySimpleVectorAdapter< User >::getEntriesView	(	const scalar_t *&	elements,
		int &	stride,
		int	idx
	)		const

inlinevirtual

Provide a pointer to the elements of the specified vector.

Parameters

elements	will on return point to the vector values corresponding to the global Ids.
stride	the k'th element is located at elements[stride*k]
idx	ranges from zero to one less than getNumEntriesPerID(), and represents the vector for which data is being requested.

Reimplemented from Zoltan2::VectorAdapter< User >.

Definition at line 118 of file Mapping.cpp.

template<typename User >

void VerySimpleVectorAdapter< User >::getPartsView ( const part_t *& inputPart ) const

inlinevirtual

Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank.

Parameters

inputPart on return a pointer to input part numbers

Reimplemented from Zoltan2::BaseAdapter< User >.

Definition at line 124 of file Mapping.cpp.

Member Data Documentation

template<typename User >

const int VerySimpleVectorAdapter< User >::nCoordDim = 2

static

Definition at line 40 of file Mapping.cpp.

template<typename User >

const int VerySimpleVectorAdapter< User >::nCoordPerRank = 6

static

Definition at line 41 of file Mapping.cpp.

The documentation for this class was generated from the following file:

Mapping.cpp
