#include <Xpetra_Operator.hpp>

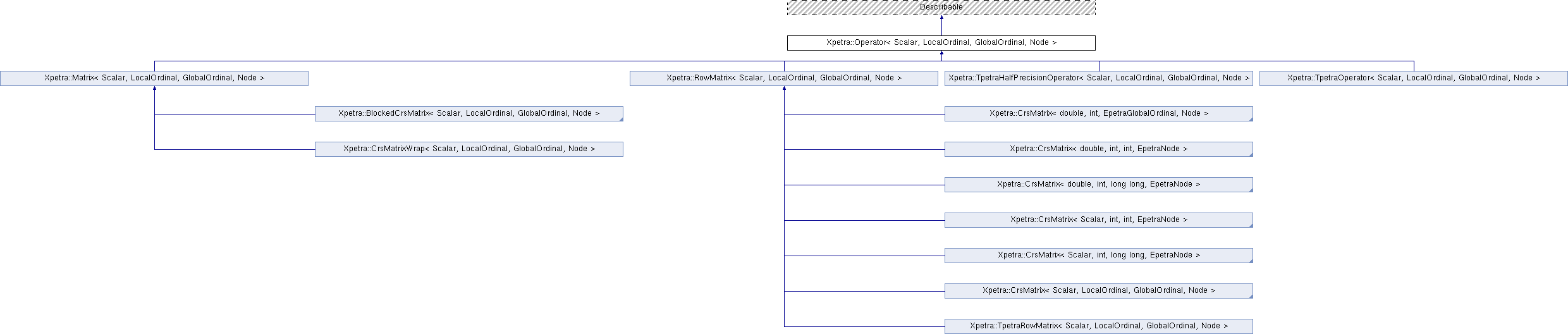

Inheritance diagram for Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const map_type > &)

virtual void	residual (const mv_type &X, const mv_type &B, mv_type &R) const =0
	Compute a residual R = B - (this) X. More...

Private Types
typedef Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node >	map_type

typedef Xpetra::MultiVector < Scalar, LocalOrdinal, GlobalOrdinal, Node >	mv_type

Typedefs that give access to the template parameters.
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal	local_ordinal_type
	The local index type. More...

typedef GlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Pure virtual functions to be overridden by subclasses.
virtual const Teuchos::RCP < const map_type >	getDomainMap () const =0
	The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual const Teuchos::RCP < const map_type >	getRangeMap () const =0
	The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void	apply (const mv_type &X, mv_type &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 64 of file Xpetra_Operator.hpp.

Member Typedef Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::Map<LocalOrdinal, GlobalOrdinal, Node> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::map_type

private

Definition at line 65 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::MultiVector<Scalar, LocalOrdinal, GlobalOrdinal, Node> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::mv_type

private

Definition at line 66 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Scalar Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

The type of the entries of the input and output multivectors.

Definition at line 74 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

The local index type.

Definition at line 77 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

The global index type.

Definition at line 80 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

The Kokkos Node type.

Definition at line 83 of file Xpetra_Operator.hpp.

Constructor & Destructor Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Operator ( )

inlinevirtual

Definition at line 69 of file Xpetra_Operator.hpp.

Member Function Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP<const map_type> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

pure virtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP<const map_type> Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

pure virtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const mv_type &	X,
		mv_type &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits< Scalar >::one()`,
		Scalar	beta = `Teuchos::ScalarTraits< Scalar >::zero()`
	)		const

pure virtual

Computes the operator-multivector application.

Loosely, performs \(Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y\). However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasTransposeApply ( ) const

inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

By default, this returns false. Subclasses must override this method if they can support apply() with mode=Teuchos::TRANS or mode=Teuchos::CONJ_TRANS.

Reimplemented in Xpetra::TpetraOperator< double, int, long long, EpetraNode >, Xpetra::EpetraInverseOperator< EpetraGlobalOrdinal, Node >, Xpetra::TpetraOperator< double, int, int, EpetraNode >, Xpetra::TpetraHalfPrecisionOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraOperator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 113 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const RCP< const map_type > & )

inlinevirtual

Reimplemented in Xpetra::CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 117 of file Xpetra_Operator.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const mv_type &	X,
		const mv_type &	B,
		mv_type &	R
	)		const

pure virtual

Compute a residual R = B - (*this) * X.

The documentation for this class was generated from the following file:

Xpetra_Operator.hpp
