Xpetra-specific matrix class. More...

#include <Xpetra_Matrix_decl.hpp>

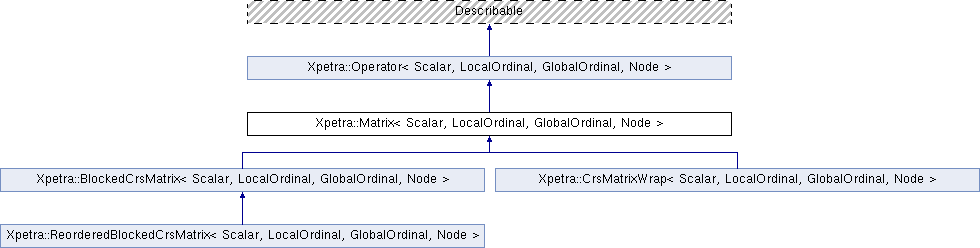

Inheritance diagram for Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

typedef CrsMatrix::local_matrix_type	local_matrix_type

Public Types inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal	local_ordinal_type
	The local index type. More...

typedef GlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Public Member Functions
virtual const Teuchos::RCP < const Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const =0
	Implements DistObject interface. More...

virtual void	doImport (const Matrix &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import. More...

virtual void	doExport (const Matrix &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export. More...

virtual void	doImport (const Matrix &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import (using an Exporter). More...

virtual void	doExport (const Matrix &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export (using an Importer). More...

virtual bool	hasCrsGraph () const =0
	Supports the getCrsGraph() call. More...

virtual RCP< const CrsGraph >	getCrsGraph () const =0
	Returns the CrsGraph associated with this matrix. More...

virtual void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode, Scalar alpha, Scalar beta, bool sumInterfaceValues, const RCP< Import< LocalOrdinal, GlobalOrdinal, Node > > &regionInterfaceImporter, const Teuchos::ArrayRCP< LocalOrdinal > &regionInterfaceLIDs) const =0
	Computes the matrix-multivector multiplication for region layout matrices. More...

void	SetFixedBlockSize (LocalOrdinal blksize, GlobalOrdinal offset=0)

LocalOrdinal	GetFixedBlockSize () const

bool	IsFixedBlockSizeSet () const
	Returns true, if `SetFixedBlockSize` has been called before. More...

virtual LocalOrdinal	GetStorageBlockSize () const =0
	Returns the block size of the storage mechanism, which is usually 1, except for Tpetra::BlockCrsMatrix. More...

virtual void	SetMaxEigenvalueEstimate (Scalar const &sigma)

virtual Scalar	GetMaxEigenvalueEstimate () const

virtual local_matrix_type	getLocalMatrixDevice () const =0

virtual local_matrix_type::HostMirror	getLocalMatrixHost () const =0

virtual void	residual (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &R) const =0
	Compute a residual R = B - (this) X. More...

Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const map_type > &)

virtual const Teuchos::RCP < const map_type >	getDomainMap () const =0
	The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual const Teuchos::RCP < const map_type >	getRangeMap () const =0
	The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void	apply (const mv_type &X, mv_type &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Protected Attributes
Teuchos::Hashtable < viewLabel_t, RCP< MatrixView > >	operatorViewTable_

viewLabel_t	defaultViewLabel_

viewLabel_t	currentViewLabel_

Private Types
typedef Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node >	Map

typedef Xpetra::CrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node >	CrsMatrix

typedef Xpetra::CrsGraph < LocalOrdinal, GlobalOrdinal, Node >	CrsGraph

typedef Xpetra::CrsMatrixFactory < Scalar, LocalOrdinal, GlobalOrdinal, Node >	CrsMatrixFactory

typedef Xpetra::MatrixView < Scalar, LocalOrdinal, GlobalOrdinal, Node >	MatrixView

Constructor/Destructor Methods
	Matrix ()

virtual	~Matrix ()
	Destructor. More...

View management methods
void	CreateView (viewLabel_t viewLabel, const RCP< const Map > &rowMap, const RCP< const Map > &colMap)

void	CreateView (const viewLabel_t viewLabel, const RCP< const Matrix > &A, bool transposeA=false, const RCP< const Matrix > &B=Teuchos::null, bool transposeB=false)

void	PrintViews (Teuchos::FancyOStream &out) const
	Print all of the views associated with the Matrix. More...

void	RemoveView (const viewLabel_t viewLabel)

const viewLabel_t	SwitchToView (const viewLabel_t viewLabel)

bool	IsView (const viewLabel_t viewLabel) const

const viewLabel_t	SwitchToDefaultView ()

const viewLabel_t &	GetDefaultViewLabel () const

const viewLabel_t &	GetCurrentViewLabel () const

Insertion/Removal Methods
virtual void	insertGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)=0
	Insert matrix entries, using global IDs. More...

virtual void	insertLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)=0
	Insert matrix entries, using local IDs. More...

virtual void	replaceGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)=0
	Replace matrix entries, using global IDs. More...

virtual void	replaceLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)=0
	Replace matrix entries, using local IDs. More...

virtual void	setAllToScalar (const Scalar &alpha)=0
	Set all matrix entries equal to scalar. More...

virtual void	scale (const Scalar &alpha)=0
	Scale the current values of a matrix, this = alpha*this. More...

Transformational Methods
virtual void	resumeFill (const RCP< ParameterList > &params=null)=0

virtual void	fillComplete (const RCP< const Map > &domainMap, const RCP< const Map > &rangeMap, const RCP< ParameterList > &params=null)=0
	Signal that data entry is complete, specifying domain and range maps. More...

virtual void	fillComplete (const RCP< ParameterList > &params=null)=0
	Signal that data entry is complete. More...

Methods implementing RowMatrix
virtual const RCP< const Map > &	getRowMap () const
	Returns the Map that describes the row distribution in this matrix. More...

virtual const RCP< const Map > &	getRowMap (viewLabel_t viewLabel) const
	Returns the Map that describes the row distribution in this matrix. More...

virtual const RCP< const Map > &	getColMap () const
	Returns the Map that describes the column distribution in this matrix. This might be `null` until fillComplete() is called. More...

virtual const RCP< const Map > &	getColMap (viewLabel_t viewLabel) const
	Returns the Map that describes the column distribution in this matrix. More...

virtual global_size_t	getGlobalNumRows () const =0
	Returns the number of global rows in this matrix. More...

virtual global_size_t	getGlobalNumCols () const =0
	Returns the number of global columns in the matrix. More...

virtual size_t	getLocalNumRows () const =0
	Returns the number of matrix rows owned on the calling node. More...

virtual global_size_t	getGlobalNumEntries () const =0
	Returns the global number of entries in this matrix. More...

virtual size_t	getLocalNumEntries () const =0
	Returns the local number of entries in this matrix. More...

virtual size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const =0
	Returns the current number of entries on this node in the specified local row. More...

virtual size_t	getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const =0
	Returns the current number of entries in the specified global row. More...

virtual size_t	getGlobalMaxNumRowEntries () const =0
	Returns the maximum number of entries across all rows/columns on all nodes. More...

virtual size_t	getLocalMaxNumRowEntries () const =0
	Returns the maximum number of entries across all rows/columns on this node. More...

virtual bool	isLocallyIndexed () const =0
	If matrix indices are in the local range, this function returns true. Otherwise, this function returns false. */. More...

virtual bool	isGloballyIndexed () const =0
	If matrix indices are in the global range, this function returns true. Otherwise, this function returns false. */. More...

virtual bool	isFillComplete () const =0
	Returns `true` if fillComplete() has been called and the matrix is in compute mode. More...

virtual void	getLocalRowCopy (LocalOrdinal LocalRow, const ArrayView< LocalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const =0
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine. More...

virtual void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const =0
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

virtual void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const =0
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

virtual ScalarTraits< Scalar > ::magnitudeType	getFrobeniusNorm () const =0
	Get Frobenius norm of the matrix. More...

virtual void	leftScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)=0
	Left scale matrix using the given vector entries. More...

virtual void	rightScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)=0
	Right scale matrix using the given vector entries. More...

virtual bool	haveGlobalConstants () const =0
	Returns true if globalConstants have been computed; false otherwise. More...

Overridden from Teuchos::Describable
virtual std::string	description () const =0
	Return a simple one-line description of this object. More...

virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0
	Print the object with some verbosity level to an FancyOStream object. More...

Overridden from Teuchos::LabeledObject
virtual void	setObjectLabel (const std::string &objectLabel)=0

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Xpetra-specific matrix class.

This class is specific to Xpetra and has no analogue in Epetra or Tpetra. The main motivation for this class is to be able to access matrix data in a manner different than how it is stored. For example, it might be more convenient to treat ("view") a matrix stored in compressed row storage as if it were a block matrix. The Xpetra::Matrix class is intended to manage these "views".

How to create a Matrix from an existing CrsMatrix

RCP<Xpetra::CrsMatrix> crsA;

RCP<Xpetra::Matrix> A = rcp(new CrsMatrixWrap(crsA));

Definition at line 60 of file Xpetra_Matrix_decl.hpp.

Member Typedef Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::Map<LocalOrdinal, GlobalOrdinal, Node> Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Map

private

Definition at line 61 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node> Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CrsMatrix

private

Definition at line 62 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::CrsGraph<LocalOrdinal, GlobalOrdinal, Node> Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CrsGraph

private

Definition at line 63 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::CrsMatrixFactory<Scalar, LocalOrdinal, GlobalOrdinal, Node> Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CrsMatrixFactory

private

Definition at line 64 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Xpetra::MatrixView<Scalar, LocalOrdinal, GlobalOrdinal, Node> Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::MatrixView

private

Definition at line 65 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Scalar Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

Definition at line 68 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 69 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 70 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 71 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef CrsMatrix::local_matrix_type Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_type

Definition at line 74 of file Xpetra_Matrix_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Matrix ( )

Definition at line 35 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Matrix ( )

virtual

Destructor.

Definition at line 38 of file Xpetra_Matrix_def.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CreateView	(	viewLabel_t	viewLabel,
		const RCP< const Map > &	rowMap,
		const RCP< const Map > &	colMap
	)

Definition at line 41 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CreateView	(	const viewLabel_t	viewLabel,
		const RCP< const Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	A,
		bool	transposeA = `false`,
		const RCP< const Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	B = `Teuchos::null`,
		bool	transposeB = `false`
	)

Definition at line 48 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::PrintViews ( Teuchos::FancyOStream & out ) const

Print all of the views associated with the Matrix.

Definition at line 91 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::RemoveView ( const viewLabel_t viewLabel )

Definition at line 105 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const std::string Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SwitchToView ( const viewLabel_t viewLabel )

Definition at line 112 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::IsView ( const viewLabel_t viewLabel ) const

Definition at line 120 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const std::string Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SwitchToDefaultView ( )

Definition at line 125 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const std::string & Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetDefaultViewLabel ( ) const

Definition at line 128 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const std::string & Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetCurrentViewLabel ( ) const

Definition at line 131 of file Xpetra_Matrix_def.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

pure virtual

Insert matrix entries, using global IDs.

All index values must be in the global space.

Precondition: globalRow exists as an ID in the global row map; isLocallyIndexed() == false; isStorageOptimized() == false

Postcondition: isGloballyIndexed() == true

Note: If globalRow does not belong to the matrix on this node, then it will be communicated to the appropriate node when globalAssemble() is called (which will, at the latest, occur during the next call to fillComplete().) Otherwise, the entries will be inserted in the local matrix.; If the matrix row already contains values at the indices corresponding to values in cols, then the new values will be summed with the old values; this may happen at insertion or during the next call to fillComplete().; If hasColMap() == true, only (cols[i],vals[i]) where cols[i] belongs to the column map on this node will be inserted into the matrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

pure virtual

Insert matrix entries, using local IDs.

All index values must be in the local space.

Precondition: localRow exists as an ID in the local row map; isGloballyIndexed() == false; isStorageOptimized() == false

Postcondition: isLocallyIndexed() == true

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

pure virtual

Replace matrix entries, using global IDs.

All index values must be in the global space.

Precondition: globalRow is a global row belonging to the matrix on this node.

Note: If (globalRow,cols[i]) corresponds to an entry that is duplicated in this matrix row (likely because it was inserted more than once and fillComplete() has not been called in the interim), the behavior of this function is not defined.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

pure virtual

Replace matrix entries, using local IDs.

All index values must be in the local space. Note that if a value is not already present for the specified location in the matrix, the input value will be ignored silently.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllToScalar ( const Scalar & alpha )

pure virtual

Set all matrix entries equal to scalar.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scale ( const Scalar & alpha )

pure virtual

Scale the current values of a matrix, this = alpha*this.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::resumeFill ( const RCP< ParameterList > & params = null )

pure virtual

Resume fill operations. After calling fillComplete(), resumeFill() must be called before initiating any changes to the matrix.

resumeFill() may be called repeatedly.

Postcondition: isFillActive() == true; isFillComplete() == false

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete	(	const RCP< const Map > &	domainMap,
		const RCP< const Map > &	rangeMap,
		const RCP< ParameterList > &	params = `null`
	)

pure virtual

Signal that data entry is complete, specifying domain and range maps.

Off-node indices are distributed (via globalAssemble()), indices are sorted, redundant indices are eliminated, and global indices are transformed to local indices.

Precondition: isFillActive() == true; isFillComplete()() == false

Postcondition: isFillActive() == false; isFillComplete() == true; if os == DoOptimizeStorage, then isStorageOptimized() == true

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > & params = null )

pure virtual

Signal that data entry is complete.

Off-node entries are distributed (via globalAssemble()), repeated entries are summed, and global indices are transformed to local indices.

Note: This method calls fillComplete( getRowMap(), getRowMap(), os ).

Precondition: isFillActive() == true; isFillComplete()() == false

Postcondition: isFillActive() == false; isFillComplete() == true; if os == DoOptimizeStorage, then isStorageOptimized() == true

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > & Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const

virtual

Returns the Map that describes the row distribution in this matrix.

Definition at line 134 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > & Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( viewLabel_t viewLabel ) const

virtual

Returns the Map that describes the row distribution in this matrix.

Definition at line 137 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > & Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const

virtual

Returns the Map that describes the column distribution in this matrix. This might be null until fillComplete() is called.

Reimplemented in Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 143 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

const RCP< const Xpetra::Map< LocalOrdinal, GlobalOrdinal, Node > > & Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getColMap ( viewLabel_t viewLabel ) const

virtual

Returns the Map that describes the column distribution in this matrix.

Reimplemented in Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 146 of file Xpetra_Matrix_def.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual global_size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const

pure virtual

Returns the number of global rows in this matrix.

Undefined if isFillActive().

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual global_size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const

pure virtual

Returns the number of global columns in the matrix.

Undefined if isFillActive().

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumRows ( ) const

pure virtual

Returns the number of matrix rows owned on the calling node.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual global_size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

pure virtual

Returns the global number of entries in this matrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumEntries ( ) const

pure virtual

Returns the local number of entries in this matrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

pure virtual

Returns the current number of entries on this node in the specified local row.

Returns OrdinalTraits<size_t>::invalid() if the specified local row is not valid for this matrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

pure virtual

Returns the current number of entries in the specified global row.

Returns OrdinalTraits<size_t>::invalid() if the specified global row is not owned by this process.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

pure virtual

Returns the maximum number of entries across all rows/columns on all nodes.

Undefined if isFillActive().

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const

pure virtual

Returns the maximum number of entries across all rows/columns on this node.

Undefined if isFillActive().

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const

pure virtual

If matrix indices are in the local range, this function returns true. Otherwise, this function returns false. */.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const

pure virtual

If matrix indices are in the global range, this function returns true. Otherwise, this function returns false. */.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const

pure virtual

Returns true if fillComplete() has been called and the matrix is in compute mode.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy	(	LocalOrdinal	LocalRow,
		const ArrayView< LocalOrdinal > &	Indices,
		const ArrayView< Scalar > &	Values,
		size_t &	NumEntries
	)		const

pure virtual

Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine.

Parameters

LocalRow	- (In) Local row number for which indices are desired.
Indices	- (Out) Local column indices corresponding to values.
Values	- (Out) Matrix values.
NumIndices	- (Out) Number of indices.

Note: A std::runtime_error exception is thrown if either Indices or Values is not large enough to hold the data associated with row LocalRow. If LocalRow is not valid for this node, then Indices and Values are unchanged and NumIndices is returned as OrdinalTraits<size_t>::invalid().

Precondition: isLocallyIndexed()==true or hasColMap() == true

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

pure virtual

Extract a const, non-persisting view of global indices in a specified row of the matrix.

Parameters

GlobalRow	- (In) Global row number for which indices are desired.
Indices	- (Out) Global column indices corresponding to values.
Values	- (Out) Row values

Precondition: isLocallyIndexed() == false

Postcondition: indices.size() == getNumEntriesInGlobalRow(GlobalRow)

Note: If GlobalRow does not belong to this node, then indices is set to null.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

pure virtual

Extract a const, non-persisting view of local indices in a specified row of the matrix.

Parameters

LocalRow	- (In) Local row number for which indices are desired.
Indices	- (Out) Local column indices corresponding to values.
Values	- (Out) Row values

Precondition: isGloballyIndexed() == false

Postcondition: indices.size() == getNumEntriesInLocalRow(LocalRow)

Note: If LocalRow does not belong to this node, then indices is set to null.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy ( Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & diag ) const

pure virtual

Get a copy of the diagonal entries owned by this node, with local row indices.

Returns a distributed Vector object partitioned according to this matrix's row map, containing the zero and non-zero diagonals owned by this node.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ScalarTraits<Scalar>::magnitudeType Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getFrobeniusNorm ( ) const

pure virtual

Get Frobenius norm of the matrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::leftScale ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & x )

pure virtual

Left scale matrix using the given vector entries.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rightScale ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & x )

pure virtual

Right scale matrix using the given vector entries.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::haveGlobalConstants ( ) const

pure virtual

Returns true if globalConstants have been computed; false otherwise.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual const Teuchos::RCP<const Xpetra::Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

pure virtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

pure virtual

Import.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

pure virtual

Export.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

pure virtual

Import (using an Exporter).

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

pure virtual

Export (using an Importer).

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual std::string Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

pure virtual

Return a simple one-line description of this object.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::ReorderedBlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

pure virtual

Print the object with some verbosity level to an FancyOStream object.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::ReorderedBlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setObjectLabel ( const std::string & objectLabel )

pure virtual

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasCrsGraph ( ) const

pure virtual

Supports the getCrsGraph() call.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual RCP<const CrsGraph> Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getCrsGraph ( ) const

pure virtual

Returns the CrsGraph associated with this matrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode,
		Scalar	alpha,
		Scalar	beta,
		bool	sumInterfaceValues,
		const RCP< Import< LocalOrdinal, GlobalOrdinal, Node > > &	regionInterfaceImporter,
		const Teuchos::ArrayRCP< LocalOrdinal > &	regionInterfaceLIDs
	)		const

pure virtual

Computes the matrix-multivector multiplication for region layout matrices.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetFixedBlockSize	(	LocalOrdinal	blksize,
		GlobalOrdinal	offset = `0`
	)

Set fixed block size of operator (e.g., 3 for 3 DOFs per node).

Parameters

blksize,:	block size denoting how many DOFs per node are used (LocalOrdinal)
offset,:	global offset allows to define operators with global indices starting from a given value "offset" instead of 0. (GlobalOrdinal, default = 0)

Definition at line 152 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

LocalOrdinal Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetFixedBlockSize ( ) const

Definition at line 174 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::IsFixedBlockSizeSet ( ) const

Returns true, if SetFixedBlockSize has been called before.

Definition at line 188 of file Xpetra_Matrix_def.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual LocalOrdinal Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetStorageBlockSize ( ) const

pure virtual

Returns the block size of the storage mechanism, which is usually 1, except for Tpetra::BlockCrsMatrix.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SetMaxEigenvalueEstimate ( Scalar const & sigma )

virtual

Definition at line 193 of file Xpetra_Matrix_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

Scalar Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetMaxEigenvalueEstimate ( ) const

virtual

Definition at line 198 of file Xpetra_Matrix_def.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual local_matrix_type Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMatrixDevice ( ) const

pure virtual

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual local_matrix_type::HostMirror Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMatrixHost ( ) const

pure virtual

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	B,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	R
	)		const

pure virtual

Compute a residual R = B - (*this) * X.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Implemented in Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::CrsMatrixWrap< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::Hashtable<viewLabel_t, RCP<MatrixView> > Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::operatorViewTable_

protected

Definition at line 441 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

viewLabel_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::defaultViewLabel_

protected

Definition at line 443 of file Xpetra_Matrix_decl.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

viewLabel_t Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::currentViewLabel_

protected

Definition at line 444 of file Xpetra_Matrix_decl.hpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Attributes

Private Types

Constructor/Destructor Methods

View management methods

Insertion/Removal Methods

Transformational Methods

Methods implementing RowMatrix

Overridden from Teuchos::Describable

Overridden from Teuchos::LabeledObject

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType> class Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
