#include <Xpetra_EpetraOperator.hpp>

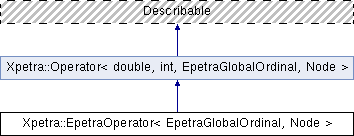

Inheritance diagram for Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >:

Private Types
typedef double	Scalar

typedef int	LocalOrdinal

typedef EpetraGlobalOrdinal	GlobalOrdinal

Private Attributes
RCP< Epetra_Operator >	op_
	The Tpetra::Operator which this class wraps. More...

virtual const Teuchos::RCP < const Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	The Map associated with the domain of this operator, which must be compatible with X.getMap(). More...

virtual const Teuchos::RCP < const Xpetra::Map < LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	The Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

virtual void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const
	Computes the operator-multivector application. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Overridden from Teuchos::Describable
std::string	description () const
	A simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with the given verbosity level to a FancyOStream. More...

Xpetra specific
	EpetraOperator (const Teuchos::RCP< Epetra_Operator > &op)
	EpetraOperator constructor to wrap a Epetra_Operator object. More...

void	residual (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &R) const
	Compute a residual R = B - (this) X. More...

Additional Inherited Members
Public Types inherited from Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >
typedef double	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef int	local_ordinal_type
	The local index type. More...

typedef EpetraGlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Public Member Functions inherited from Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const map_type > &)

Detailed Description

template<class EpetraGlobalOrdinal, class Node>
class Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >

Definition at line 39 of file Xpetra_EpetraOperator.hpp.

Member Typedef Documentation

template<class EpetraGlobalOrdinal , class Node >

typedef double Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::Scalar

private

Definition at line 40 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

typedef int Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::LocalOrdinal

private

Definition at line 41 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

typedef EpetraGlobalOrdinal Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::GlobalOrdinal

private

Definition at line 42 of file Xpetra_EpetraOperator.hpp.

Constructor & Destructor Documentation

template<class EpetraGlobalOrdinal , class Node >

Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::EpetraOperator ( const Teuchos::RCP< Epetra_Operator > & op )

inline

EpetraOperator constructor to wrap a Epetra_Operator object.

Definition at line 124 of file Xpetra_EpetraOperator.hpp.

Member Function Documentation

template<class EpetraGlobalOrdinal , class Node >

virtual const Teuchos::RCP<const Xpetra::Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

The Map associated with the domain of this operator, which must be compatible with X.getMap().

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 48 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

virtual const Teuchos::RCP<const Xpetra::Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

The Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 54 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

virtual void Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::apply	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `Teuchos::ScalarTraits<Scalar>::one()`,
		Scalar	beta = `Teuchos::ScalarTraits<Scalar>::zero()`
	)		const

inlinevirtual

Computes the operator-multivector application.

Loosely, performs \(Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y\). However, the details of operation vary according to the values of alpha and beta. Specifically

if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 66 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

virtual bool Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::hasTransposeApply ( ) const

inlinevirtual

Whether this operator supports applying the transpose or conjugate transpose.

Reimplemented from Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 94 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

std::string Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::description ( ) const

inline

A simple one-line description of this object.

Definition at line 107 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

void Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inline

Print the object with the given verbosity level to a FancyOStream.

Definition at line 113 of file Xpetra_EpetraOperator.hpp.

template<class EpetraGlobalOrdinal , class Node >

void Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::residual	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	B,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	R
	)		const

inlinevirtual

Compute a residual R = B - (*this) * X.

Implements Xpetra::Operator< double, int, EpetraGlobalOrdinal, Node >.

Definition at line 128 of file Xpetra_EpetraOperator.hpp.

Member Data Documentation

template<class EpetraGlobalOrdinal , class Node >

RCP<Epetra_Operator> Xpetra::EpetraOperator< EpetraGlobalOrdinal, Node >::op_

private

The Tpetra::Operator which this class wraps.

Definition at line 140 of file Xpetra_EpetraOperator.hpp.

The documentation for this class was generated from the following file:

Xpetra_EpetraOperator.hpp
