#include <Xpetra_BlockedCrsMatrix.hpp>

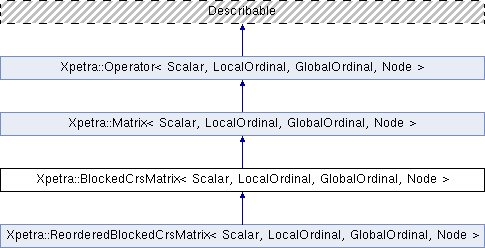

Inheritance diagram for Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

typedef CrsMatrix::local_matrix_type	local_matrix_type

Public Types inherited from Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

typedef CrsMatrix::local_matrix_type	local_matrix_type

Public Types inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal	local_ordinal_type
	The local index type. More...

typedef GlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Public Member Functions
global_size_t	getGlobalNumRows () const
	Returns the number of global rows. More...

global_size_t	getGlobalNumCols () const
	Returns the number of global columns in the matrix. More...

size_t	getLocalNumRows () const
	Returns the number of matrix rows owned on the calling node. More...

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in this matrix. More...

size_t	getLocalNumEntries () const
	Returns the local number of entries in this matrix. More...

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of entries on this node in the specified local row. More...

size_t	getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of entries in the specified (locally owned) global row. More...

size_t	getGlobalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on all nodes. More...

size_t	getLocalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on this node. More...

bool	isLocallyIndexed () const
	If matrix indices of all matrix blocks are in the local range, this function returns true. Otherwise, this function returns false. More...

bool	isGloballyIndexed () const
	If matrix indices are in the global range, this function returns true. Otherwise, this function returns false. More...

bool	isFillComplete () const
	Returns `true` if fillComplete() has been called and the matrix is in compute mode. More...

virtual void	getLocalRowCopy (LocalOrdinal LocalRow, const ArrayView< LocalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine. More...

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

void	getLocalDiagCopy (Vector &diag) const
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

void	leftScale (const Vector &x)
	Left scale matrix using the given vector entries. More...

void	rightScale (const Vector &x)
	Right scale matrix using the given vector entries. More...

virtual ScalarTraits< Scalar > ::magnitudeType	getFrobeniusNorm () const
	Get Frobenius norm of the matrix. More...

virtual bool	haveGlobalConstants () const
	Returns true if globalConstants have been computed; false otherwise. More...

virtual void	bgs_apply (const MultiVector &X, MultiVector &Y, size_t row, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=ScalarTraits< Scalar >::one(), Scalar beta=ScalarTraits< Scalar >::zero()) const
	Special multiplication routine (for BGS/Jacobi smoother) More...

const Teuchos::RCP< const Map >	getMap () const
	Implements DistObject interface. More...

void	doImport (const Matrix &source, const Import &importer, CombineMode CM)
	Import. More...

void	doExport (const Matrix &dest, const Import &importer, CombineMode CM)
	Export. More...

void	doImport (const Matrix &source, const Export &exporter, CombineMode CM)
	Import (using an Exporter). More...

void	doExport (const Matrix &dest, const Export &exporter, CombineMode CM)
	Export (using an Importer). More...

bool	hasCrsGraph () const
	Supports the getCrsGraph() call. More...

RCP< const CrsGraph >	getCrsGraph () const
	Returns the CrsGraph associated with this matrix. More...

local_matrix_type	getLocalMatrixDevice () const
	Access the underlying local Kokkos::CrsMatrix object. More...

local_matrix_type::HostMirror	getLocalMatrixHost () const
	Access the underlying local Kokkos::CrsMatrix object. More...

LocalOrdinal	GetStorageBlockSize () const
	Returns the block size of the storage mechanism. More...

void	residual (const MultiVector &X, const MultiVector &B, MultiVector &R) const
	Compute a residual R = B - (this) X. More...

Public Member Functions inherited from Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
void	SetFixedBlockSize (LocalOrdinal blksize, GlobalOrdinal offset=0)

LocalOrdinal	GetFixedBlockSize () const

bool	IsFixedBlockSizeSet () const
	Returns true, if `SetFixedBlockSize` has been called before. More...

virtual void	SetMaxEigenvalueEstimate (Scalar const &sigma)

virtual Scalar	GetMaxEigenvalueEstimate () const

	Matrix ()

virtual	~Matrix ()
	Destructor. More...

void	CreateView (viewLabel_t viewLabel, const RCP< const Map > &rowMap, const RCP< const Map > &colMap)

void	CreateView (const viewLabel_t viewLabel, const RCP< const Matrix > &A, bool transposeA=false, const RCP< const Matrix > &B=Teuchos::null, bool transposeB=false)

void	PrintViews (Teuchos::FancyOStream &out) const
	Print all of the views associated with the Matrix. More...

void	RemoveView (const viewLabel_t viewLabel)

const viewLabel_t	SwitchToView (const viewLabel_t viewLabel)

bool	IsView (const viewLabel_t viewLabel) const

const viewLabel_t	SwitchToDefaultView ()

const viewLabel_t &	GetDefaultViewLabel () const

const viewLabel_t &	GetCurrentViewLabel () const

virtual const RCP< const Map > &	getRowMap () const
	Returns the Map that describes the row distribution in this matrix. More...

virtual const RCP< const Map > &	getRowMap (viewLabel_t viewLabel) const
	Returns the Map that describes the row distribution in this matrix. More...

virtual const RCP< const Map > &	getColMap () const
	Returns the Map that describes the column distribution in this matrix. This might be `null` until fillComplete() is called. More...

virtual const RCP< const Map > &	getColMap (viewLabel_t viewLabel) const
	Returns the Map that describes the column distribution in this matrix. More...

Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const map_type > &)

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Private Member Functions
void	CreateDefaultView ()

Private Attributes
bool	is_diagonal_
	If we're diagonal, a bunch of the extraction stuff should work. More...

Teuchos::RCP< const MapExtractor >	domainmaps_
	full domain map together with all partial domain maps More...

Teuchos::RCP< const MapExtractor >	rangemaps_
	full range map together with all partial domain maps More...

std::vector< Teuchos::RCP < Matrix > >	blocks_
	row major matrix block storage More...

bool	bRangeThyraMode_
	boolean flag, which is true, if BlockedCrsMatrix has been created using Thyra-style numbering for sub blocks, i.e. all GIDs of submaps are contiguous and start from 0. More...

bool	bDomainThyraMode_
	boolean flag, which is true, if BlockedCrsMatrix has been created using Thyra-style numbering for sub blocks, i.e. all GIDs of submaps are contiguous and start from 0. More...

Constructor/Destructor Methods
	BlockedCrsMatrix (const Teuchos::RCP< const BlockedMap > &rangeMaps, const Teuchos::RCP< const BlockedMap > &domainMaps, size_t numEntriesPerRow)
	Constructor. More...

	BlockedCrsMatrix (Teuchos::RCP< const MapExtractor > &rangeMapExtractor, Teuchos::RCP< const MapExtractor > &domainMapExtractor, size_t numEntriesPerRow)
	Constructor. More...

virtual	~BlockedCrsMatrix ()
	Destructor. More...

Insertion/Removal Methods
void	insertGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using global IDs. More...

void	insertLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using local IDs. More...

void	removeEmptyProcessesInPlace (const Teuchos::RCP< const Map > &newMap)

void	replaceGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Replace matrix entries, using global IDs. More...

void	replaceLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Replace matrix entries, using local IDs. More...

virtual void	setAllToScalar (const Scalar &alpha)
	Set all matrix entries equal to scalar. More...

void	scale (const Scalar &alpha)
	Scale the current values of a matrix, this = alpha*this. More...

Transformational Methods
void	resumeFill (const RCP< ParameterList > &params=null)

void	fillComplete (const RCP< const Map > &domainMap, const RCP< const Map > &rangeMap, const RCP< ParameterList > &params=null)
	Signal that data entry is complete. More...

void	fillComplete (const RCP< ParameterList > &params=null)
	Signal that data entry is complete. More...

Methods implementing Matrix
Multiplies this matrix by a MultiVector. `X` is required to be post-imported, i.e., described by the column map of the matrix. `Y` is required to be pre-exported, i.e., described by the row map of the matrix. Both are required to have constant stride, and they are not permitted to ocupy overlapping space. No runtime checking will be performed in a non-debug build. This method is templated on the scalar type of MultiVector objects, allowing this method to be applied to MultiVector objects of arbitrary type. However, it is recommended that multiply() not be called directly; instead, use the CrsMatrixMultiplyOp, as it will handle the import/exprt operations required to apply a matrix with non-trivial communication needs. If `beta` is equal to zero, the operation will enjoy overwrite semantics (`Y` will be overwritten with the result of the multiplication). Otherwise, the result of the multiplication will be accumulated into `Y`.
virtual void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode, Scalar alpha, Scalar beta, bool sumInterfaceValues, const RCP< Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node > > &regionInterfaceImporter, const Teuchos::ArrayRCP< LocalOrdinal > &regionInterfaceLIDs) const
	sparse matrix-multivector multiplication for the region layout matrices (currently no blocked implementation) More...

virtual void	apply (const MultiVector &X, MultiVector &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=ScalarTraits< Scalar >::one(), Scalar beta=ScalarTraits< Scalar >::zero()) const
	Computes the sparse matrix-multivector multiplication. More...

RCP< const Map >	getFullDomainMap () const
	Returns the Map associated with the full domain of this operator. More...

RCP< const BlockedMap >	getBlockedDomainMap () const
	Returns the BlockedMap associated with the domain of this operator. More...

const RCP< const Map >	getDomainMap () const
	Returns the Map associated with the domain of this operator. More...

RCP< const Map >	getDomainMap (size_t i) const
	Returns the Map associated with the i'th block domain of this operator. More...

RCP< const Map >	getDomainMap (size_t i, bool bThyraMode) const
	Returns the Map associated with the i'th block domain of this operator. More...

RCP< const Map >	getFullRangeMap () const
	Returns the Map associated with the full range of this operator. More...

RCP< const BlockedMap >	getBlockedRangeMap () const
	Returns the BlockedMap associated with the range of this operator. More...

const RCP< const Map >	getRangeMap () const
	Returns the Map associated with the range of this operator. More...

RCP< const Map >	getRangeMap (size_t i) const
	Returns the Map associated with the i'th block range of this operator. More...

RCP< const Map >	getRangeMap (size_t i, bool bThyraMode) const
	Returns the Map associated with the i'th block range of this operator. More...

RCP< const MapExtractor >	getRangeMapExtractor () const
	Returns map extractor class for range map. More...

RCP< const MapExtractor >	getDomainMapExtractor () const
	Returns map extractor for domain map. More...

Overridden from Teuchos::Describable
std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Overridden from Teuchos::LabeledObject
void	setObjectLabel (const std::string &objectLabel)

Block matrix access
virtual bool	isDiagonal () const

virtual size_t	Rows () const
	number of row blocks More...

virtual size_t	Cols () const
	number of column blocks More...

Teuchos::RCP< Matrix >	getCrsMatrix () const
	return unwrap 1x1 blocked operators More...

Teuchos::RCP< Matrix >	getInnermostCrsMatrix ()
	helper routine recursively returns the first inner-most non-null matrix block from a (nested) blocked operator More...

Teuchos::RCP< Matrix >	getMatrix (size_t r, size_t c) const
	return block (r,c) More...

void	setMatrix (size_t r, size_t c, Teuchos::RCP< Matrix > mat)
	set matrix block More...

Teuchos::RCP< Matrix >	Merge () const
	merge BlockedCrsMatrix blocks in a CrsMatrix More...

helper functions
void	Add (const Matrix &A, const Scalar scalarA, Matrix &B, const Scalar scalarB) const
	Add a Xpetra::CrsMatrix to another: B = BscalarB + AscalarA. More...

Additional Inherited Members
Protected Attributes inherited from Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
Teuchos::Hashtable < viewLabel_t, RCP< MatrixView > >	operatorViewTable_

viewLabel_t	defaultViewLabel_

viewLabel_t	currentViewLabel_

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 101 of file Xpetra_BlockedCrsMatrix.hpp.

Member Typedef Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Scalar Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type

Definition at line 103 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 104 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 105 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 106 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef CrsMatrix::local_matrix_type Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_matrix_type

Definition at line 1527 of file Xpetra_BlockedCrsMatrix.hpp.

Constructor & Destructor Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedCrsMatrix	(	const Teuchos::RCP< const BlockedMap > &	rangeMaps,
		const Teuchos::RCP< const BlockedMap > &	domainMaps,
		size_t	numEntriesPerRow
	)

inline

Constructor.

Parameters

rangeMaps	range maps for all blocks
domainMaps	domain maps for all blocks
numEntriesPerRow	estimated number of entries per row in each block(!)

Definition at line 122 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlockedCrsMatrix	(	Teuchos::RCP< const MapExtractor > &	rangeMapExtractor,
		Teuchos::RCP< const MapExtractor > &	domainMapExtractor,
		size_t	numEntriesPerRow
	)

inline

Constructor.

Parameters

rangeMapExtractor	range map extractor for all blocks
domainMapExtractor	domain map extractor for all blocks
numEntriesPerRow	estimated number of entries per row in each block(!)

Note: This constructor will be deprecated. Please use the constructor which takes BlockedMap objects instead.

Definition at line 150 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~BlockedCrsMatrix ( )

inlinevirtual

Destructor.

Definition at line 309 of file Xpetra_BlockedCrsMatrix.hpp.

Member Function Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Insert matrix entries, using global IDs.

Note: this routine throws for Rows() > 1 and/or Cols() > 1

All index values must be in the global space.

Precondition: globalRow exists as an ID in the global row map; isLocallyIndexed() == false; isStorageOptimized() == false

Postcondition: isGloballyIndexed() == true

Note: If globalRow does not belong to the matrix on this node, then it will be communicated to the appropriate node when globalAssemble() is called (which will, at the latest, occur during the next call to fillComplete().) Otherwise, the entries will be inserted in the local matrix.; If the matrix row already contains values at the indices corresponding to values in cols, then the new values will be summed with the old values; this may happen at insertion or during the next call to fillComplete().; If hasColMap() == true, only (cols[i],vals[i]) where cols[i] belongs to the column map on this node will be inserted into the matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 342 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::insertLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Insert matrix entries, using local IDs.

Note: this routine throws if Rows() > 1 and/or Cols() > 1

All index values must be in the local space.

Precondition: localRow exists as an ID in the local row map; isGloballyIndexed() == false; isStorageOptimized() == false

Postcondition: isLocallyIndexed() == true

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 362 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const Map > & newMap )

inline

Definition at line 371 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Replace matrix entries, using global IDs.

All index values must be in the global space.

Precondition: globalRow is a global row belonging to the matrix on this node.

Note: If (globalRow,cols[i]) corresponds to an entry that is duplicated in this matrix row (likely because it was inserted more than once and fillComplete() has not been called in the interim), the behavior of this function is not defined.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 389 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inlinevirtual

Replace matrix entries, using local IDs.

All index values must be in the local space. Note that if a value is not already present for the specified location in the matrix, the input value will be ignored silently.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 405 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setAllToScalar ( const Scalar & alpha )

inlinevirtual

Set all matrix entries equal to scalar.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 417 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scale ( const Scalar & alpha )

inlinevirtual

Scale the current values of a matrix, this = alpha*this.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 429 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::resumeFill ( const RCP< ParameterList > & params = null )

inlinevirtual

Resume fill operations. After calling fillComplete(), resumeFill() must be called before initiating any changes to the matrix.

For BlockedCrsMatrix objects we call the routine iteratively for all sub-blocks.

resumeFill() may be called repeatedly.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 452 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete	(	const RCP< const Map > &	domainMap,
		const RCP< const Map > &	rangeMap,
		const RCP< ParameterList > &	params = `null`
	)

inlinevirtual

Signal that data entry is complete.

Note: for blocked operators the specified domain and range maps have no meaning. We just call fillComplete for all underlying blocks

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 468 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > & params = null )

inlinevirtual

Signal that data entry is complete.

Off-node entries are distributed (via globalAssemble()), repeated entries are summed, and global indices are transformed to local indices.

Note: This method calls fillComplete( getRowMap(), getRowMap(), os ).

Precondition: isFillActive() == true; isFillComplete()() == false

Postcondition: isFillActive() == false; isFillComplete() == true; if os == DoOptimizeStorage, then isStorageOptimized() == true

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 491 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

global_size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const

inlinevirtual

Returns the number of global rows.

Undefined if isFillActive().

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 551 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

global_size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const

inlinevirtual

Returns the number of global columns in the matrix.

Undefined if isFillActive().

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 568 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumRows ( ) const

inlinevirtual

Returns the number of matrix rows owned on the calling node.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 583 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

global_size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const

inlinevirtual

Returns the global number of entries in this matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 598 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalNumEntries ( ) const

inlinevirtual

Returns the local number of entries in this matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 611 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified local row.

Returns OrdinalTraits<size_t>::invalid() if the specified local row is not valid for this matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 625 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

inlinevirtual

Returns the current number of entries in the specified (locally owned) global row.

Returns OrdinalTraits<size_t>::invalid() if the specified local row is not valid for this matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 639 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const

inlinevirtual

Returns the maximum number of entries across all rows/columns on all nodes.

Undefined if isFillActive().

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 652 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const

inlinevirtual

Returns the maximum number of entries across all rows/columns on this node.

Undefined if isFillActive().

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 672 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const

inlinevirtual

If matrix indices of all matrix blocks are in the local range, this function returns true. Otherwise, this function returns false.

if false, then this does not automatically mean that all blocks are globally indexed. The user has to make sure, that all matrix blocks are indexed in the same way (locally or globally). Otherwise the block matrix is not valid...

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 693 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const

inlinevirtual

If matrix indices are in the global range, this function returns true. Otherwise, this function returns false.

if false, then this does not automatically mean that all blocks are locally indexed. The user has to make sure, that all matrix blocks are indexed in the same way (locally or globally). Otherwise the block matrix is not valid...

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 705 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const

inlinevirtual

Returns true if fillComplete() has been called and the matrix is in compute mode.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 714 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowCopy	(	LocalOrdinal	LocalRow,
		const ArrayView< LocalOrdinal > &	Indices,
		const ArrayView< Scalar > &	Values,
		size_t &	NumEntries
	)		const

inlinevirtual

Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine.

Parameters

LocalRow	- (In) Local row number for which indices are desired.
Indices	- (Out) Local column indices corresponding to values.
Values	- (Out) Matrix values.
NumIndices	- (Out) Number of indices.

Note: A std::runtime_error exception is thrown if either Indices or Values is not large enough to hold the data associated with row LocalRow. If LocalRow is not valid for this node, then Indices and Values are unchanged and NumIndices is returned as OrdinalTraits<size_t>::invalid().

Precondition: isLocallyIndexed()==true or hasColMap() == true

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 737 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

inlinevirtual

Extract a const, non-persisting view of global indices in a specified row of the matrix.

Parameters

GlobalRow	- (In) Global row number for which indices are desired.
Indices	- (Out) Global column indices corresponding to values.
Values	- (Out) Row values

Precondition: isLocallyIndexed() == false

Postcondition: indices.size() == getNumEntriesInGlobalRow(GlobalRow)

Note: If GlobalRow does not belong to this node, then indices is set to null.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 759 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

inlinevirtual

Extract a const, non-persisting view of local indices in a specified row of the matrix.

Parameters

LocalRow	- (In) Local row number for which indices are desired.
Indices	- (Out) Global column indices corresponding to values.
Values	- (Out) Row values

Precondition: isGloballyIndexed() == false

Postcondition: indices.size() == getNumEntriesInLocalRow(LocalRow)

Note: If LocalRow does not belong to this node, then indices is set to null.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 778 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagCopy ( Vector & diag ) const

inlinevirtual

Get a copy of the diagonal entries owned by this node, with local row indices.

Returns a distributed Vector object partitioned according to this matrix's row map, containing the the zero and non-zero diagonals owned by this node.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 796 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::leftScale ( const Vector & x )

inlinevirtual

Left scale matrix using the given vector entries.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 831 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rightScale ( const Vector & x )

inlinevirtual

Right scale matrix using the given vector entries.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 869 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ScalarTraits<Scalar>::magnitudeType Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getFrobeniusNorm ( ) const

inlinevirtual

Get Frobenius norm of the matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 907 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::haveGlobalConstants ( ) const

inlinevirtual

Returns true if globalConstants have been computed; false otherwise.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 922 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector &	X,
		MultiVector &	Y,
		Teuchos::ETransp	mode,
		Scalar	alpha,
		Scalar	beta,
		bool	sumInterfaceValues,
		const RCP< Xpetra::Import< LocalOrdinal, GlobalOrdinal, Node > > &	regionInterfaceImporter,
		const Teuchos::ArrayRCP< LocalOrdinal > &	regionInterfaceLIDs
	)		const

inlinevirtual

sparse matrix-multivector multiplication for the region layout matrices (currently no blocked implementation)

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 955 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::apply	(	const MultiVector &	X,
		MultiVector &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `ScalarTraits<Scalar>::one()`,
		Scalar	beta = `ScalarTraits<Scalar>::zero()`
	)		const

inlinevirtual

Computes the sparse matrix-multivector multiplication.

Performs \(Y = \alpha A^{\textrm{mode}} X + \beta Y\), with one special exceptions:

if beta == 0, apply() overwrites Y, so that any values in Y (including NaNs) are ignored.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::ReorderedBlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 963 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getFullDomainMap ( ) const

inline

Returns the Map associated with the full domain of this operator.

Definition at line 1057 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const BlockedMap> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getBlockedDomainMap ( ) const

inline

Returns the BlockedMap associated with the domain of this operator.

Definition at line 1063 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

const RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1069 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( size_t i ) const

inline

Returns the Map associated with the i'th block domain of this operator.

Definition at line 1075 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMap	(	size_t	i,
		bool	bThyraMode
	)		const

inline

Returns the Map associated with the i'th block domain of this operator.

Definition at line 1081 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getFullRangeMap ( ) const

inline

Returns the Map associated with the full range of this operator.

Definition at line 1087 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const BlockedMap> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getBlockedRangeMap ( ) const

inline

Returns the BlockedMap associated with the range of this operator.

Definition at line 1093 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

const RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const

inlinevirtual

Returns the Map associated with the range of this operator.

Implements Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1099 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( size_t i ) const

inline

Returns the Map associated with the i'th block range of this operator.

Definition at line 1105 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMap	(	size_t	i,
		bool	bThyraMode
	)		const

inline

Returns the Map associated with the i'th block range of this operator.

Definition at line 1111 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const MapExtractor> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getRangeMapExtractor ( ) const

inline

Returns map extractor class for range map.

Definition at line 1117 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const MapExtractor> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getDomainMapExtractor ( ) const

inline

Returns map extractor for domain map.

Definition at line 1123 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::bgs_apply	(	const MultiVector &	X,
		MultiVector &	Y,
		size_t	row,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `ScalarTraits<Scalar>::one()`,
		Scalar	beta = `ScalarTraits<Scalar>::zero()`
	)		const

inlinevirtual

Special multiplication routine (for BGS/Jacobi smoother)

Computes the sparse matrix-multivector multiplication (plus linear combination with input/result vector)

Performs \(Y = \alpha A^{\textrm{mode}} X + \beta Y\), with one special exception:

if beta == 0, apply() overwrites Y, so that any values in Y (including NaNs) are ignored.
calculates result only for blocked row "row"
useful for BGS/Jacobi smoother in MueLu: there we have to calculate the residual for the current block row we can skip the MatVec calls in all other block rows

Parameters

X	Vector to be multiplied by matrix (input)
Y	result vector
row	Index of block row to be treated
mode	Transpose mode
alpha	scaling factor for result of matrix-vector product
beta	scaling factor for linear combination with result vector

Definition at line 1141 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

const Teuchos::RCP<const Map> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMap ( ) const

inlinevirtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1211 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const Matrix &	source,
		const Import &	importer,
		CombineMode	CM
	)

inlinevirtual

Import.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1220 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const Matrix &	dest,
		const Import &	importer,
		CombineMode	CM
	)

inlinevirtual

Export.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1230 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doImport	(	const Matrix &	source,
		const Export &	exporter,
		CombineMode	CM
	)

inlinevirtual

Import (using an Exporter).

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1240 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::doExport	(	const Matrix &	dest,
		const Export &	exporter,
		CombineMode	CM
	)

inlinevirtual

Export (using an Importer).

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1250 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

std::string Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

Return a simple one-line description of this object.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::ReorderedBlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1265 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Reimplemented in Xpetra::ReorderedBlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1268 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setObjectLabel ( const std::string & objectLabel )

inlinevirtual

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1300 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::hasCrsGraph ( ) const

inlinevirtual

Supports the getCrsGraph() call.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1314 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

RCP<const CrsGraph> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getCrsGraph ( ) const

inlinevirtual

Returns the CrsGraph associated with this matrix.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1322 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::isDiagonal ( ) const

inlinevirtual

Definition at line 1335 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Rows ( ) const

inlinevirtual

number of row blocks

Definition at line 1338 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Cols ( ) const

inlinevirtual

number of column blocks

Definition at line 1344 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<Matrix> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getCrsMatrix ( ) const

inline

return unwrap 1x1 blocked operators

Definition at line 1350 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<Matrix> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getInnermostCrsMatrix ( )

inline

helper routine recursively returns the first inner-most non-null matrix block from a (nested) blocked operator

Definition at line 1362 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<Matrix> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getMatrix	(	size_t	r,
		size_t	c
	)		const

inline

return block (r,c)

Definition at line 1380 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::setMatrix	(	size_t	r,
		size_t	c,
		Teuchos::RCP< Matrix >	mat
	)

inline

set matrix block

Definition at line 1394 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<Matrix> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Merge ( ) const

inline

merge BlockedCrsMatrix blocks in a CrsMatrix

Definition at line 1408 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

local_matrix_type Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMatrixDevice ( ) const

inlinevirtual

Access the underlying local Kokkos::CrsMatrix object.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1529 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

local_matrix_type::HostMirror Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalMatrixHost ( ) const

inlinevirtual

Access the underlying local Kokkos::CrsMatrix object.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1536 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

LocalOrdinal Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetStorageBlockSize ( ) const

inlinevirtual

Returns the block size of the storage mechanism.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1556 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::residual	(	const MultiVector &	X,
		const MultiVector &	B,
		MultiVector &	R
	)		const

inlinevirtual

Compute a residual R = B - (*this) * X.

Implements Xpetra::Matrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1559 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Add	(	const Matrix &	A,
		const Scalar	scalarA,
		Matrix &	B,
		const Scalar	scalarB
	)		const

inlineprivate

Add a Xpetra::CrsMatrix to another: B = B*scalarB + A*scalarA.

Note, that this routine works only correctly if A only has entries which are empty (zero) in B. We use the insertGlobalValues routine for inserting the new values from A in B. The sumIntoGlobalValues routine is not implemented in Xpetra (and would not extend the graph of B for new entries). Here we need something to catch the exceptions of a future implementation of sumIntoGlobalValues that then adds the remaining new entries with insertGlobal Values.

This routine is private and used only by Merge. Since the blocks in BlockedCrsMatrix are seperated, this routine works for merging a BlockedCrsMatrix.

Definition at line 1582 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

void Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CreateDefaultView ( )

inlineprivate

Definition at line 1629 of file Xpetra_BlockedCrsMatrix.hpp.

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::is_diagonal_

private

If we're diagonal, a bunch of the extraction stuff should work.

Definition at line 1641 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<const MapExtractor> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::domainmaps_

private

full domain map together with all partial domain maps

Definition at line 1642 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

Teuchos::RCP<const MapExtractor> Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::rangemaps_

private

full range map together with all partial domain maps

Definition at line 1643 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

std::vector<Teuchos::RCP<Matrix> > Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::blocks_

private

row major matrix block storage

Definition at line 1645 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::bRangeThyraMode_

private

boolean flag, which is true, if BlockedCrsMatrix has been created using Thyra-style numbering for sub blocks, i.e. all GIDs of submaps are contiguous and start from 0.

Definition at line 1649 of file Xpetra_BlockedCrsMatrix.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

bool Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >::bDomainThyraMode_

private

boolean flag, which is true, if BlockedCrsMatrix has been created using Thyra-style numbering for sub blocks, i.e. all GIDs of submaps are contiguous and start from 0.

Definition at line 1650 of file Xpetra_BlockedCrsMatrix.hpp.

The documentation for this class was generated from the following file:

Xpetra_BlockedCrsMatrix.hpp

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Constructor/Destructor Methods

Insertion/Removal Methods

Transformational Methods

Methods implementing Matrix

Overridden from Teuchos::Describable

Overridden from Teuchos::LabeledObject

Block matrix access

helper functions

Additional Inherited Members

Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType> class Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::BlockedCrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
