#include <Xpetra_EpetraCrsMatrix.hpp>

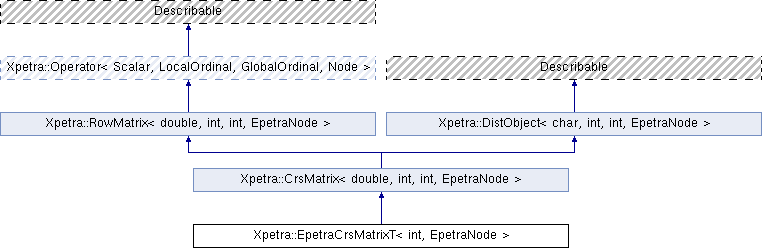

Inheritance diagram for Xpetra::EpetraCrsMatrixT< int, EpetraNode >:

Public Member Functions
	EpetraCrsMatrixT (const EpetraCrsMatrixT &matrix)
	Deep copy constructor. More...

Teuchos::RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getMap () const
	Implements DistObject interface. More...

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import. More...

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export. More...

void	doImport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import (using an Exporter). More...

void	doExport (const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &dest, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export (using an Importer). More...

void	removeEmptyProcessesInPlace (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newMap)

Public Member Functions inherited from Xpetra::CrsMatrix< double, int, int, EpetraNode >
virtual void	getLocalRowCopy (intLocalRow, const ArrayView< int > &Indices, const ArrayView< double > &Values, size_t &NumEntries) const =0
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine. More...

virtual void	residual (const MultiVector< double, int, int, EpetraNode > &X, const MultiVector< double, int, int, EpetraNode > &B, MultiVector< double, int, int, EpetraNode > &R) const =0
	Compute a residual R = B - (this) X. More...

virtual void	setAllValues (const typename local_matrix_type::row_map_type &ptr, const typename local_graph_type::entries_type::non_const_type &ind, const typename local_matrix_type::values_type &val)=0

virtual	~CrsMatrix ()
	Destructor. More...

virtual void	insertGlobalValues (intglobalRow, const ArrayView< const int > &cols, const ArrayView< const double > &vals)=0
	Insert matrix entries, using global IDs. More...

virtual void	insertLocalValues (intlocalRow, const ArrayView< const int > &cols, const ArrayView< const double > &vals)=0
	Insert matrix entries, using local IDs. More...

virtual void	replaceGlobalValues (intglobalRow, const ArrayView< const int > &cols, const ArrayView< const double > &vals)=0
	Replace matrix entries, using global IDs. More...

virtual void	replaceLocalValues (intlocalRow, const ArrayView< const int > &cols, const ArrayView< const double > &vals)=0
	Replace matrix entries, using local IDs. More...

virtual void	setAllToScalar (const double &alpha)=0
	Set all matrix entries equal to scalarThis. More...

virtual void	scale (const double &alpha)=0
	Scale the current values of a matrix, this = alpha*this. More...

virtual void	allocateAllValues (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< int > &colind, ArrayRCP< double > &values)=0
	Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine. More...

virtual void	setAllValues (const ArrayRCP< size_t > &rowptr, const ArrayRCP< int > &colind, const ArrayRCP< double > &values)=0
	Sets the 1D pointer arrays of the graph. More...

virtual void	getAllValues (ArrayRCP< const size_t > &rowptr, ArrayRCP< const int > &colind, ArrayRCP< const double > &values) const =0
	Gets the 1D pointer arrays of the graph. More...

virtual void	getAllValues (ArrayRCP< double > &values)=0
	Gets the 1D pointer arrays of the graph. More...

virtual void	fillComplete (const RCP< const Map< int, int, EpetraNode > > &domainMap, const RCP< const Map< int, int, EpetraNode > > &rangeMap, const RCP< ParameterList > &params=null)=0
	Signal that data entry is complete, specifying domain and range maps. More...

virtual void	replaceDomainMapAndImporter (const Teuchos::RCP< const Map< int, int, EpetraNode > > &newDomainMap, Teuchos::RCP< const Import< int, int, EpetraNode > > &newImporter)=0
	Replaces the current domainMap and importer with the user-specified objects. More...

virtual void	expertStaticFillComplete (const RCP< const Map< int, int, EpetraNode > > &domainMap, const RCP< const Map< int, int, EpetraNode > > &rangeMap, const RCP< const Import< int, int, EpetraNode > > &importer=Teuchos::null, const RCP< const Export< int, int, EpetraNode > > &exporter=Teuchos::null, const RCP< ParameterList > &params=Teuchos::null)=0
	Expert static fill complete. More...

virtual size_t	getNumEntriesInLocalRow (intlocalRow) const =0
	Returns the current number of entries on this node in the specified local row. More...

virtual void	getGlobalRowView (intGlobalRow, ArrayView< const int > &indices, ArrayView< const double > &values) const =0
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

virtual void	getGlobalRowCopy (intGlobalRow, const ArrayView< int > &indices, const ArrayView< double > &values, size_t &numEntries) const =0
	Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage. More...

virtual void	getLocalRowView (intLocalRow, ArrayView< const int > &indices, ArrayView< const double > &values) const =0
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual void	getLocalDiagCopy (Vector< double, int, int, EpetraNode > &diag) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

virtual void	getLocalDiagCopy (Vector< double, int, int, EpetraNode > &diag, const Teuchos::ArrayView< const size_t > &offsets) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets. More...

virtual void	getLocalDiagCopy (Vector< double, int, int, EpetraNode > &diag, const Kokkos::View< const size_t *, typename EpetraNode::device_type, Kokkos::MemoryUnmanaged > &offsets) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets. More...

virtual void	replaceDiag (const Vector< double, int, int, EpetraNode > &diag)=0
	Replace the diagonal entries of the matrix. More...

virtual void	leftScale (const Vector< double, int, int, EpetraNode > &x)=0
	Left scale matrix using the given vector entries. More...

virtual void	rightScale (const Vector< double, int, int, EpetraNode > &x)=0
	Right scale matrix using the given vector entries. More...

virtual void	removeEmptyProcessesInPlace (const RCP< const Map< int, int, EpetraNode > > &newMap)=0

virtual void	apply (const MultiVector< double, int, int, EpetraNode > &X, MultiVector< double, int, int, EpetraNode > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, doublealpha=ScalarTraits< double >::one(), doublebeta=ScalarTraits< double >::zero()) const =0
	Computes the sparse matrix-multivector multiplication. More...

virtual void	apply (const MultiVector< double, int, int, EpetraNode > &X, MultiVector< double, int, int, EpetraNode > &Y, Teuchos::ETransp mode, doublealpha, doublebeta, bool sumInterfaceValues, const RCP< Import< int, int, EpetraNode > > &regionInterfaceImporter, const Teuchos::ArrayRCP< int > &regionInterfaceLIDs) const =0
	Computes the sparse matrix-multivector multiplication for region layout matrices. More...

Public Member Functions inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~RowMatrix ()
	Destructor. More...

virtual size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const =0
	Returns the current number of entries on this node in the specified local row. More...

virtual void	getLocalRowCopy (LocalOrdinal LocalRow, const Teuchos::ArrayView< LocalOrdinal > &Indices, const Teuchos::ArrayView< Scalar > &Values, size_t &NumEntries) const =0
	Extract a list of entries in a specified local row of the graph. Put into storage allocated by calling routine. More...

virtual void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const =0
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

virtual void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const =0
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

virtual void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag) const =0
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

virtual void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
	Computes the operator-multivector application. More...

Public Member Functions inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual	~Operator ()

virtual void	removeEmptyProcessesInPlace (const RCP< const map_type > &)

virtual void	residual (const mv_type &X, const mv_type &B, mv_type &R) const =0
	Compute a residual R = B - (this) X. More...

virtual bool	hasTransposeApply () const
	Whether this operator supports applying the transpose or conjugate transpose. More...

Public Member Functions inherited from Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >
virtual	~DistObject ()
	Destructor. More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Import data into this object using an Import object ("forward mode"). More...

virtual void	beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import data into this object using an Import object ("forward mode"). More...

virtual void	endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Import data into this object using an Import object ("forward mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Export data into this object using an Export object ("forward mode"). More...

virtual void	beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export data into this object using an Export object ("forward mode"). More...

virtual void	endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Export data into this object using an Export object ("forward mode"). More...

virtual void	doImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	beginImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	endImport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
	Import data into this object using an Export object ("reverse mode"). More...

virtual void	doExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
	Export data into this object using an Import object ("reverse mode"). More...

virtual void	beginExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export data into this object using an Import object ("reverse mode"). More...

virtual void	endExport (const DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
	Export data into this object using an Import object ("reverse mode"). More...

Private Types
typedef int	GlobalOrdinal

typedef EpetraNode	Node

typedef CrsMatrix< double, int, GlobalOrdinal, Node > ::scalar_type	Scalar

typedef CrsMatrix< double, int, GlobalOrdinal, Node > ::local_ordinal_type	LocalOrdinal

typedef Xpetra::CrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node > ::local_matrix_type	local_matrix_type

typedef Xpetra::CrsMatrix < Scalar, LocalOrdinal, GlobalOrdinal, Node > ::node_type	node_type

Private Member Functions
void	residual (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &R) const

Private Attributes
RCP< Epetra_CrsMatrix >	mtx_
	The underlying actual matrix object. More...

bool	isFillResumed_
	Flag to keep track of fill status. More...

Constructor/Destructor Methods
	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap)
	Constructor for empty DynamicProfile matrix (no space is preallocated). More...

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &=Teuchos::null)
	Constructor specifying fixed number of entries for each row. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const Teuchos::RCP< Teuchos::ParameterList > &=Teuchos::null)
	Constructor specifying (possibly different) number of entries in each row. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, size_t maxNumEntriesPerRow, const Teuchos::RCP< Teuchos::ParameterList > &=Teuchos::null)
	Constructor specifying column Map and fixed number of entries for each row. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const ArrayRCP< const size_t > &NumEntriesPerRowToAlloc, const Teuchos::RCP< Teuchos::ParameterList > &=Teuchos::null)
	Constructor specifying row and column Maps and number of entries in each row. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &graph, const Teuchos::RCP< Teuchos::ParameterList > &=Teuchos::null)
	Constructor specifying a previously constructed graph. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor for a fused import. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null)
	Constructor for a fused export. More...

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Import< LocalOrdinal, GlobalOrdinal, Node > &RowImporter, const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > DomainImporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)

	EpetraCrsMatrixT (const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &sourceMatrix, const Export< LocalOrdinal, GlobalOrdinal, Node > &RowExporter, const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > DomainExporter, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const Teuchos::RCP< Teuchos::ParameterList > &params)

	EpetraCrsMatrixT (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const local_matrix_type &lclMatrix, const Teuchos::RCP< Teuchos::ParameterList > &params=null)
	Constructor specifying column Map and a local matrix, which the resulting CrsMatrix views. More...

	EpetraCrsMatrixT (const local_matrix_type &lclMatrix, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rowMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &colMap, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=null)

virtual	~EpetraCrsMatrixT ()
	Destructor. More...

Insertion/Removal Methods
void	insertGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using global IDs. More...

void	insertLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &cols, const ArrayView< const Scalar > &vals)
	Insert matrix entries, using local IDs. More...

void	replaceGlobalValues (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &indices, const ArrayView< const Scalar > &values)
	Replace matrix entries, using global IDs. More...

void	replaceLocalValues (LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &indices, const ArrayView< const Scalar > &values)
	Replace matrix entries, using local IDs. More...

void	setAllToScalar (const Scalar &alpha)
	Set all matrix entries equal to scalarThis. More...

void	scale (const Scalar &alpha)
	Scale the current values of a matrix, this = alpha*this. More...

void	allocateAllValues (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind, ArrayRCP< Scalar > &values)
	Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine. More...

void	setAllValues (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind, const ArrayRCP< Scalar > &values)
	Sets the 1D pointer arrays of the graph. More...

void	getAllValues (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind, ArrayRCP< const Scalar > &values) const
	Gets the 1D pointer arrays of the graph. More...

void	getAllValues (ArrayRCP< Scalar > &values)
	Gets the 1D pointer arrays of the graph. More...

bool	haveGlobalConstants () const
	Returns true if globalConstants have been computed; false otherwise. More...

void	expertStaticFillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer=Teuchos::null, const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter=Teuchos::null, const RCP< ParameterList > &=Teuchos::null)
	Expert static fill complete. More...

Transformational Methods
void	resumeFill (const RCP< ParameterList > &=Teuchos::null)

void	fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=Teuchos::null)
	Signal that data entry is complete, specifying domain and range maps. More...

void	fillComplete (const RCP< ParameterList > &params=Teuchos::null)
	Signal that data entry is complete. More...

void	replaceDomainMapAndImporter (const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &newDomainMap, Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &newImporter)
	Replaces the current domainMap and importer with the user-specified objects. More...

Methods implementing RowMatrix
const RCP< const Comm< int > >	getComm () const
	Returns the communicator. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getRowMap () const
	Returns the Map that describes the row distribution in this matrix. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getColMap () const
	Returns the Map that describes the column distribution in this matrix. More...

RCP< const CrsGraph < LocalOrdinal, GlobalOrdinal, Node > >	getCrsGraph () const
	Returns the CrsGraph associated with this matrix. More...

global_size_t	getGlobalNumRows () const
	Number of global elements in the row map of this matrix. More...

global_size_t	getGlobalNumCols () const
	Number of global columns in the matrix. More...

size_t	getLocalNumRows () const
	Returns the number of matrix rows owned on the calling node. More...

size_t	getLocalNumCols () const
	Returns the number of columns connected to the locally owned rows of this matrix. More...

global_size_t	getGlobalNumEntries () const
	Returns the global number of entries in this matrix. More...

size_t	getLocalNumEntries () const
	Returns the local number of entries in this matrix. More...

size_t	getNumEntriesInLocalRow (LocalOrdinal localRow) const
	Returns the current number of entries on this node in the specified local row. More...

size_t	getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const
	Returns the current number of entries on this node in the specified (locally owned) global row. More...

size_t	getGlobalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on all nodes. More...

size_t	getLocalMaxNumRowEntries () const
	Returns the maximum number of entries across all rows/columns on this node. More...

bool	isLocallyIndexed () const
	If matrix indices are in the local range, this function returns true. Otherwise, this function returns false. More...

bool	isGloballyIndexed () const
	If matrix indices are in the global range, this function returns true. Otherwise, this function returns false. More...

bool	isFillComplete () const
	Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called. More...

bool	isFillActive () const
	Returns true if the matrix is in edit mode. More...

ScalarTraits< Scalar > ::magnitudeType	getFrobeniusNorm () const
	Returns the Frobenius norm of the matrix. More...

bool	supportsRowViews () const
	Returns true if getLocalRowView() and getGlobalRowView() are valid for this class. More...

void	getLocalRowCopy (LocalOrdinal LocalRow, const ArrayView< LocalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const
	Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine. More...

void	getGlobalRowCopy (GlobalOrdinal GlobalRow, const ArrayView< GlobalOrdinal > &Indices, const ArrayView< Scalar > &Values, size_t &NumEntries) const
	Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage. More...

void	getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of global indices in a specified row of the matrix. More...

void	getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices, ArrayView< const Scalar > &values) const
	Extract a const, non-persisting view of local indices in a specified row of the matrix. More...

void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag) const
	Get a copy of the diagonal entries owned by this node, with local row indices. More...

void	getLocalDiagOffsets (Teuchos::ArrayRCP< size_t > &) const
	Get offsets of the diagonal entries in the matrix. More...

void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Teuchos::ArrayView< const size_t > &) const
	Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets. More...

void	getLocalDiagCopy (Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &, const Kokkos::View< const size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &) const
	Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets. More...

void	replaceDiag (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &diag)
	Replace the diagonal entries of the matrix. More...

void	leftScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)

void	rightScale (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &x)

Methods implementing Operator
void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=ScalarTraits< Scalar >::one(), Scalar beta=ScalarTraits< Scalar >::zero()) const
	Computes the sparse matrix-multivector multiplication. More...

void	apply (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &X, MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &Y, Teuchos::ETransp mode, Scalar alpha, Scalar beta, bool sumInterfaceValues, const RCP< Import< LocalOrdinal, GlobalOrdinal, Node > > &regionInterfaceImporter, const Teuchos::ArrayRCP< LocalOrdinal > &regionInterfaceLIDs) const

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getDomainMap () const
	Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called. More...

const RCP< const Map < LocalOrdinal, GlobalOrdinal, Node > >	getRangeMap () const
	Returns the Map associated with the range of this operator, which must be compatible with Y.getMap(). More...

Overridden from Teuchos::Describable
std::string	description () const
	A simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

void	setObjectLabel (const std::string &objectLabel)

Xpetra specific
bool	hasMatrix () const
	Does this have an underlying matrix. More...

	EpetraCrsMatrixT (const Teuchos::RCP< Epetra_CrsMatrix > &mtx)
	EpetraCrsMatrixT constructor to wrap a Epetra_CrsMatrix object. More...

RCP< const Epetra_CrsMatrix >	getEpetra_CrsMatrix () const
	Get the underlying Epetra matrix. More...

RCP< Epetra_CrsMatrix >	getEpetra_CrsMatrixNonConst () const
	Get the underlying Epetra matrix. More...

local_matrix_type	getLocalMatrixDevice () const
	Compatibility layer for accessing the matrix data through a Kokkos interface. More...

local_matrix_type::HostMirror	getLocalMatrixHost () const

void	setAllValues (const typename local_matrix_type::row_map_type &ptr, const typename local_matrix_type::StaticCrsGraphType::entries_type::non_const_type &ind, const typename local_matrix_type::values_type &val)

LocalOrdinal	GetStorageBlockSize () const
	Returns the block size of the storage mechanism, which is usually 1, except for Tpetra::BlockCrsMatrix. More...

Additional Inherited Members
Public Types inherited from Xpetra::CrsMatrix< double, int, int, EpetraNode >
typedef double	scalar_type

typedef int	local_ordinal_type

typedef int	global_ordinal_type

typedef EpetraNode	node_type

using	impl_scalar_type = typename Kokkos::ArithTraits< double >::val_type

using	execution_space = typename node_type::device_type

using	local_graph_type = KokkosSparse::StaticCrsGraph< int, Kokkos::LayoutLeft, execution_space, void, size_t >

using	local_matrix_type = KokkosSparse::CrsMatrix< impl_scalar_type, int, execution_space, void, typename local_graph_type::size_type >
	The specialization of Kokkos::CrsMatrix that represents the part of the sparse matrix on each MPI process. The same as for Tpetra. More...

Public Types inherited from Xpetra::RowMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type

typedef LocalOrdinal	local_ordinal_type

typedef GlobalOrdinal	global_ordinal_type

typedef Node	node_type

Public Types inherited from Xpetra::Operator< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar	scalar_type
	The type of the entries of the input and output multivectors. More...

typedef LocalOrdinal	local_ordinal_type
	The local index type. More...

typedef GlobalOrdinal	global_ordinal_type
	The global index type. More...

typedef Node	node_type
	The Kokkos Node type. More...

Detailed Description

template<>
class Xpetra::EpetraCrsMatrixT< int, EpetraNode >

Definition at line 251 of file Xpetra_EpetraCrsMatrix.hpp.

Member Typedef Documentation

typedef int Xpetra::EpetraCrsMatrixT< int, EpetraNode >::GlobalOrdinal

private

Definition at line 253 of file Xpetra_EpetraCrsMatrix.hpp.

typedef EpetraNode Xpetra::EpetraCrsMatrixT< int, EpetraNode >::Node

private

Definition at line 254 of file Xpetra_EpetraCrsMatrix.hpp.

typedef CrsMatrix<double, int, GlobalOrdinal, Node>::scalar_type Xpetra::EpetraCrsMatrixT< int, EpetraNode >::Scalar

private

Definition at line 255 of file Xpetra_EpetraCrsMatrix.hpp.

typedef CrsMatrix<double, int, GlobalOrdinal, Node>::local_ordinal_type Xpetra::EpetraCrsMatrixT< int, EpetraNode >::LocalOrdinal

private

Definition at line 256 of file Xpetra_EpetraCrsMatrix.hpp.

typedef Xpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node>::local_matrix_type Xpetra::EpetraCrsMatrixT< int, EpetraNode >::local_matrix_type

private

Definition at line 260 of file Xpetra_EpetraCrsMatrix.hpp.

typedef Xpetra::CrsMatrix<Scalar, LocalOrdinal, GlobalOrdinal, Node>::node_type Xpetra::EpetraCrsMatrixT< int, EpetraNode >::node_type

private

Definition at line 261 of file Xpetra_EpetraCrsMatrix.hpp.

Constructor & Destructor Documentation

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT ( const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > & rowMap )

inline

Constructor for empty DynamicProfile matrix (no space is preallocated).

Definition at line 269 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	= `Teuchos::null`
	)

inline

Constructor specifying fixed number of entries for each row.

Definition at line 274 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		const Teuchos::RCP< Teuchos::ParameterList > &	= `Teuchos::null`
	)

inline

Constructor specifying (possibly different) number of entries in each row.

Definition at line 279 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		size_t	maxNumEntriesPerRow,
		const Teuchos::RCP< Teuchos::ParameterList > &	= `Teuchos::null`
	)

inline

Constructor specifying column Map and fixed number of entries for each row.

Definition at line 286 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const ArrayRCP< const size_t > &	NumEntriesPerRowToAlloc,
		const Teuchos::RCP< Teuchos::ParameterList > &	= `Teuchos::null`
	)

inline

Constructor specifying row and column Maps and number of entries in each row.

Definition at line 291 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const CrsGraph< LocalOrdinal, GlobalOrdinal, Node > > &	graph,
		const Teuchos::RCP< Teuchos::ParameterList > &	= `Teuchos::null`
	)

inline

Constructor specifying a previously constructed graph.

Definition at line 298 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor for a fused import.

Definition at line 303 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `Teuchos::null`
	)

inline

Constructor for a fused export.

Definition at line 324 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	RowImporter,
		const Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > >	DomainImporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

inline

Definition at line 343 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const CrsMatrix< Scalar, LocalOrdinal, GlobalOrdinal, Node > > &	sourceMatrix,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	RowExporter,
		const Teuchos::RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > >	DomainExporter,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const Teuchos::RCP< Teuchos::ParameterList > &	params
	)

inline

Definition at line 365 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const local_matrix_type &	lclMatrix,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `null`
	)

inline

Constructor specifying column Map and a local matrix, which the resulting CrsMatrix views.

Unlike most other CrsMatrix constructors, successful completion of this constructor will result in a fill-complete matrix.

Parameters

rowMap	[in] Distribution of rows of the matrix.
colMap	[in] Distribution of columns of the matrix.
lclMatrix	[in] A local CrsMatrix containing all local matrix values as well as a local graph. The graph's local row indices must come from the specified row Map, and its local column indices must come from the specified column Map.
params	[in/out] Optional list of parameters. If not null, any missing parameters will be filled in with their default values.

Definition at line 409 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT	(	const local_matrix_type &	lclMatrix,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rowMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	colMap,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap = `Teuchos::null`,
		const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap = `Teuchos::null`,
		const Teuchos::RCP< Teuchos::ParameterList > &	params = `null`
	)

inline

Definition at line 416 of file Xpetra_EpetraCrsMatrix.hpp.

virtual Xpetra::EpetraCrsMatrixT< int, EpetraNode >::~EpetraCrsMatrixT ( )

inlinevirtual

Destructor.

Definition at line 481 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT ( const EpetraCrsMatrixT< int, EpetraNode > & matrix )

inline

Deep copy constructor.

Definition at line 1168 of file Xpetra_EpetraCrsMatrix.hpp.

Xpetra::EpetraCrsMatrixT< int, EpetraNode >::EpetraCrsMatrixT ( const Teuchos::RCP< Epetra_CrsMatrix > & mtx )

inline

EpetraCrsMatrixT constructor to wrap a Epetra_CrsMatrix object.

Definition at line 1249 of file Xpetra_EpetraCrsMatrix.hpp.

Member Function Documentation

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::insertGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inline

Insert matrix entries, using global IDs.

Definition at line 489 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::insertLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	cols,
		const ArrayView< const Scalar > &	vals
	)

inline

Insert matrix entries, using local IDs.

Definition at line 495 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::replaceGlobalValues	(	GlobalOrdinal	globalRow,
		const ArrayView< const GlobalOrdinal > &	indices,
		const ArrayView< const Scalar > &	values
	)

inline

Replace matrix entries, using global IDs.

Definition at line 501 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::replaceLocalValues	(	LocalOrdinal	localRow,
		const ArrayView< const LocalOrdinal > &	indices,
		const ArrayView< const Scalar > &	values
	)

inline

Replace matrix entries, using local IDs.

Definition at line 519 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::setAllToScalar ( const Scalar & alpha )

inline

Set all matrix entries equal to scalarThis.

Definition at line 537 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::scale ( const Scalar & alpha )

inline

Scale the current values of a matrix, this = alpha*this.

Definition at line 543 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::allocateAllValues	(	size_t	numNonZeros,
		ArrayRCP< size_t > &	rowptr,
		ArrayRCP< LocalOrdinal > &	colind,
		ArrayRCP< Scalar > &	values
	)

inline

Allocates and returns ArrayRCPs of the Crs arrays — This is an Xpetra-only routine.

Definition at line 550 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::setAllValues	(	const ArrayRCP< size_t > &	rowptr,
		const ArrayRCP< LocalOrdinal > &	colind,
		const ArrayRCP< Scalar > &	values
	)

inline

Sets the 1D pointer arrays of the graph.

Definition at line 578 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getAllValues	(	ArrayRCP< const size_t > &	rowptr,
		ArrayRCP< const LocalOrdinal > &	colind,
		ArrayRCP< const Scalar > &	values
	)		const

inline

Gets the 1D pointer arrays of the graph.

Definition at line 606 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getAllValues ( ArrayRCP< Scalar > & values )

inline

Gets the 1D pointer arrays of the graph.

Definition at line 630 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::haveGlobalConstants ( ) const

inlinevirtual

Returns true if globalConstants have been computed; false otherwise.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 642 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::expertStaticFillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	importer = `Teuchos::null`,
		const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &	exporter = `Teuchos::null`,
		const RCP< ParameterList > &	= `Teuchos::null`
	)

inline

Expert static fill complete.

Definition at line 645 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::resumeFill ( const RCP< ParameterList > & = Teuchos::null )

inlinevirtual

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 678 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::fillComplete	(	const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	domainMap,
		const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	rangeMap,
		const RCP< ParameterList > &	params = `Teuchos::null`
	)

inline

Signal that data entry is complete, specifying domain and range maps.

Definition at line 686 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::fillComplete ( const RCP< ParameterList > & params = Teuchos::null )

inlinevirtual

Signal that data entry is complete.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 698 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::replaceDomainMapAndImporter	(	const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &	newDomainMap,
		Teuchos::RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &	newImporter
	)

inline

Replaces the current domainMap and importer with the user-specified objects.

Definition at line 713 of file Xpetra_EpetraCrsMatrix.hpp.

const RCP<const Comm<int> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getComm ( ) const

inline

Returns the communicator.

Definition at line 732 of file Xpetra_EpetraCrsMatrix.hpp.

const RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getRowMap ( ) const

inlinevirtual

Returns the Map that describes the row distribution in this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 738 of file Xpetra_EpetraCrsMatrix.hpp.

const RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getColMap ( ) const

inlinevirtual

Returns the Map that describes the column distribution in this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 744 of file Xpetra_EpetraCrsMatrix.hpp.

RCP<const CrsGraph<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getCrsGraph ( ) const

inlinevirtual

Returns the CrsGraph associated with this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 750 of file Xpetra_EpetraCrsMatrix.hpp.

global_size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getGlobalNumRows ( ) const

inlinevirtual

Number of global elements in the row map of this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 756 of file Xpetra_EpetraCrsMatrix.hpp.

global_size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getGlobalNumCols ( ) const

inlinevirtual

Number of global columns in the matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 762 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalNumRows ( ) const

inlinevirtual

Returns the number of matrix rows owned on the calling node.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 768 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalNumCols ( ) const

inlinevirtual

Returns the number of columns connected to the locally owned rows of this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 774 of file Xpetra_EpetraCrsMatrix.hpp.

global_size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getGlobalNumEntries ( ) const

inlinevirtual

Returns the global number of entries in this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 780 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalNumEntries ( ) const

inlinevirtual

Returns the local number of entries in this matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 786 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getNumEntriesInLocalRow ( LocalOrdinal localRow ) const

inline

Returns the current number of entries on this node in the specified local row.

Definition at line 792 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getNumEntriesInGlobalRow ( GlobalOrdinal globalRow ) const

inlinevirtual

Returns the current number of entries on this node in the specified (locally owned) global row.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 798 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getGlobalMaxNumRowEntries ( ) const

inlinevirtual

Returns the maximum number of entries across all rows/columns on all nodes.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 804 of file Xpetra_EpetraCrsMatrix.hpp.

size_t Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalMaxNumRowEntries ( ) const

inlinevirtual

Returns the maximum number of entries across all rows/columns on this node.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 810 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::isLocallyIndexed ( ) const

inlinevirtual

If matrix indices are in the local range, this function returns true. Otherwise, this function returns false.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 816 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::isGloballyIndexed ( ) const

inlinevirtual

If matrix indices are in the global range, this function returns true. Otherwise, this function returns false.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 822 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::isFillComplete ( ) const

inlinevirtual

Returns true if the matrix is in compute mode, i.e. if fillComplete() has been called.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 828 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::isFillActive ( ) const

inlinevirtual

Returns true if the matrix is in edit mode.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 837 of file Xpetra_EpetraCrsMatrix.hpp.

ScalarTraits<Scalar>::magnitudeType Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getFrobeniusNorm ( ) const

inlinevirtual

Returns the Frobenius norm of the matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 843 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::supportsRowViews ( ) const

inlinevirtual

Returns true if getLocalRowView() and getGlobalRowView() are valid for this class.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 849 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalRowCopy	(	LocalOrdinal	LocalRow,
		const ArrayView< LocalOrdinal > &	Indices,
		const ArrayView< Scalar > &	Values,
		size_t &	NumEntries
	)		const

inline

Extract a list of entries in a specified local row of the matrix. Put into storage allocated by calling routine.

Definition at line 855 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getGlobalRowCopy	(	GlobalOrdinal	GlobalRow,
		const ArrayView< GlobalOrdinal > &	Indices,
		const ArrayView< Scalar > &	Values,
		size_t &	NumEntries
	)		const

inline

Extract a list of entries in a specified global row of this matrix. Put into pre-allocated storage.

Definition at line 864 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getGlobalRowView	(	GlobalOrdinal	GlobalRow,
		ArrayView< const GlobalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

inline

Extract a const, non-persisting view of global indices in a specified row of the matrix.

Definition at line 873 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalRowView	(	LocalOrdinal	LocalRow,
		ArrayView< const LocalOrdinal > &	indices,
		ArrayView< const Scalar > &	values
	)		const

inline

Extract a const, non-persisting view of local indices in a specified row of the matrix.

Definition at line 891 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalDiagCopy ( Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & diag ) const

inline

Get a copy of the diagonal entries owned by this node, with local row indices.

Definition at line 909 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalDiagOffsets ( Teuchos::ArrayRCP< size_t > & ) const

inlinevirtual

Get offsets of the diagonal entries in the matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 915 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalDiagCopy	(	Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	,
		const Teuchos::ArrayView< const size_t > &
	)		const

inline

Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets.

Definition at line 920 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalDiagCopy	(	Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	,
		const Kokkos::View< const size_t *, typename Node::device_type, Kokkos::MemoryUnmanaged > &
	)		const

inline

Get a copy of the diagonal entries owned by this node, with local row indices, using row offsets.

Definition at line 925 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::replaceDiag ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & diag )

inline

Replace the diagonal entries of the matrix.

Definition at line 930 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::leftScale ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & x )

inline

Definition at line 934 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::rightScale ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > & x )

inline

Definition at line 937 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::apply	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode = `Teuchos::NO_TRANS`,
		Scalar	alpha = `ScalarTraits<Scalar>::one()`,
		Scalar	beta = `ScalarTraits<Scalar>::zero()`
	)		const

inline

Computes the sparse matrix-multivector multiplication.

Definition at line 947 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::apply	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	Y,
		Teuchos::ETransp	mode,
		Scalar	alpha,
		Scalar	beta,
		bool	sumInterfaceValues,
		const RCP< Import< LocalOrdinal, GlobalOrdinal, Node > > &	regionInterfaceImporter,
		const Teuchos::ArrayRCP< LocalOrdinal > &	regionInterfaceLIDs
	)		const

inline

Definition at line 973 of file Xpetra_EpetraCrsMatrix.hpp.

const RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getDomainMap ( ) const

inlinevirtual

Returns the Map associated with the domain of this operator. This will be null until fillComplete() is called.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 978 of file Xpetra_EpetraCrsMatrix.hpp.

const RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getRangeMap ( ) const

inlinevirtual

Returns the Map associated with the range of this operator, which must be compatible with Y.getMap().

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 984 of file Xpetra_EpetraCrsMatrix.hpp.

std::string Xpetra::EpetraCrsMatrixT< int, EpetraNode >::description ( ) const

inlinevirtual

A simple one-line description of this object.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 995 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

inlinevirtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 1016 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::setObjectLabel ( const std::string & objectLabel )

inlinevirtual

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 1161 of file Xpetra_EpetraCrsMatrix.hpp.

Teuchos::RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getMap ( ) const

inlinevirtual

Implements DistObject interface.

Access function for the Tpetra::Map this DistObject was constructed with.

Implements Xpetra::DistObject< Packet, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 1176 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::doImport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inline

Import.

Definition at line 1182 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::doExport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Import< LocalOrdinal, GlobalOrdinal, Node > &	importer,
		CombineMode	CM
	)

inline

Export.

Definition at line 1195 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::doImport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	source,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inline

Import (using an Exporter).

Definition at line 1208 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::doExport	(	const DistObject< char, LocalOrdinal, GlobalOrdinal, Node > &	dest,
		const Export< LocalOrdinal, GlobalOrdinal, Node > &	exporter,
		CombineMode	CM
	)

inline

Export (using an Importer).

Definition at line 1221 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > & newMap )

inline

Definition at line 1233 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::hasMatrix ( ) const

inlinevirtual

Does this have an underlying matrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 1246 of file Xpetra_EpetraCrsMatrix.hpp.

RCP<const Epetra_CrsMatrix> Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getEpetra_CrsMatrix ( ) const

inline

Get the underlying Epetra matrix.

Definition at line 1254 of file Xpetra_EpetraCrsMatrix.hpp.

RCP<Epetra_CrsMatrix> Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getEpetra_CrsMatrixNonConst ( ) const

inline

Get the underlying Epetra matrix.

Definition at line 1257 of file Xpetra_EpetraCrsMatrix.hpp.

local_matrix_type Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalMatrixDevice ( ) const

inlinevirtual

Compatibility layer for accessing the matrix data through a Kokkos interface.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 1262 of file Xpetra_EpetraCrsMatrix.hpp.

local_matrix_type::HostMirror Xpetra::EpetraCrsMatrixT< int, EpetraNode >::getLocalMatrixHost ( ) const

inlinevirtual

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 1274 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::setAllValues	(	const typename local_matrix_type::row_map_type &	ptr,
		const typename local_matrix_type::StaticCrsGraphType::entries_type::non_const_type &	ind,
		const typename local_matrix_type::values_type &	val
	)

inline

Definition at line 1302 of file Xpetra_EpetraCrsMatrix.hpp.

LocalOrdinal Xpetra::EpetraCrsMatrixT< int, EpetraNode >::GetStorageBlockSize ( ) const

inlinevirtual

Returns the block size of the storage mechanism, which is usually 1, except for Tpetra::BlockCrsMatrix.

Implements Xpetra::CrsMatrix< double, int, int, EpetraNode >.

Definition at line 1330 of file Xpetra_EpetraCrsMatrix.hpp.

void Xpetra::EpetraCrsMatrixT< int, EpetraNode >::residual	(	const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	X,
		const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	B,
		MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &	R
	)		const

inlineprivate

Definition at line 1340 of file Xpetra_EpetraCrsMatrix.hpp.

Member Data Documentation

RCP<Epetra_CrsMatrix> Xpetra::EpetraCrsMatrixT< int, EpetraNode >::mtx_

private

The underlying actual matrix object.

Definition at line 1351 of file Xpetra_EpetraCrsMatrix.hpp.

bool Xpetra::EpetraCrsMatrixT< int, EpetraNode >::isFillResumed_

private

Flag to keep track of fill status.

For Epetra, fillResume() is a fictitious operation but we need to keep track of it. This boolean is true only is resumeFill() have been called and fillComplete() have not been called afterward.

Definition at line 1359 of file Xpetra_EpetraCrsMatrix.hpp.

The documentation for this class was generated from the following file:

Xpetra_EpetraCrsMatrix.hpp

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Constructor/Destructor Methods

Insertion/Removal Methods

Transformational Methods

Methods implementing RowMatrix

Methods implementing Operator

Overridden from Teuchos::Describable

Xpetra specific

Additional Inherited Members

Detailed Description

template<> class Xpetra::EpetraCrsMatrixT< int, EpetraNode >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<>
class Xpetra::EpetraCrsMatrixT< int, EpetraNode >
