Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node > Class Template Referenceabstract

#include <Xpetra_CrsGraph.hpp>

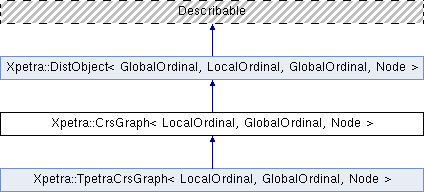

Inheritance diagram for Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >:
Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node > Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >

Public Types

typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type


Constructor/Destructor Methods

virtual ~CrsGraph ()
 Destructor. More...


Insertion/Removal Methods

virtual void insertGlobalIndices (GlobalOrdinal globalRow, const ArrayView< const GlobalOrdinal > &indices)=0
 Insert global indices into the graph. More...

virtual void insertLocalIndices (const LocalOrdinal localRow, const ArrayView< const LocalOrdinal > &indices)=0
 Insert local indices into the graph. More...

virtual void removeLocalIndices (LocalOrdinal localRow)=0
 Remove all graph indices from the specified local row. More...

virtual void allocateAllIndices (size_t numNonZeros, ArrayRCP< size_t > &rowptr, ArrayRCP< LocalOrdinal > &colind)=0
 Allocates the 1D pointer arrays of the graph. More...

virtual void setAllIndices (const ArrayRCP< size_t > &rowptr, const ArrayRCP< LocalOrdinal > &colind)=0
 Sets the 1D pointer arrays of the graph. More...

virtual void getAllIndices (ArrayRCP< const size_t > &rowptr, ArrayRCP< const LocalOrdinal > &colind) const =0
 Gets the 1D pointer arrays of the graph. More...


Transformational Methods

virtual void fillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< ParameterList > &params=null)=0
 Signal that data entry is complete, specifying domain and range maps. More...

virtual void fillComplete (const RCP< ParameterList > &params=null)=0
 Signal that data entry is complete. More...

virtual void expertStaticFillComplete (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &domainMap, const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &rangeMap, const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &importer=null, const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &exporter=null, const RCP< Teuchos::ParameterList > &params=null)=0
 Expert version of fillComplete. More...


Methods implementing RowGraph.

virtual RCP< const Comm< int > > getComm () const =0
 Returns the communicator. More...

virtual RCP< const Map
< LocalOrdinal, GlobalOrdinal,
Node > > 		getRowMap () const =0
 Returns the Map that describes the row distribution in this graph. More...

virtual RCP< const Map
< LocalOrdinal, GlobalOrdinal,
Node > > 		getColMap () const =0
 Returns the Map that describes the column distribution in this graph. More...

virtual RCP< const Map
< LocalOrdinal, GlobalOrdinal,
Node > > 		getDomainMap () const =0
 Returns the Map associated with the domain of this graph. More...

virtual RCP< const Map
< LocalOrdinal, GlobalOrdinal,
Node > > 		getRangeMap () const =0
 Returns the Map associated with the domain of this graph. More...

virtual RCP< const Import
< LocalOrdinal, GlobalOrdinal,
Node > > 		getImporter () const =0
 Returns the importer associated with this graph. More...

virtual RCP< const Export
< LocalOrdinal, GlobalOrdinal,
Node > > 		getExporter () const =0
 Returns the exporter associated with this graph. More...

virtual global_size_t getGlobalNumRows () const =0
 Returns the number of global rows in the graph. More...

virtual global_size_t getGlobalNumCols () const =0
 Returns the number of global columns in the graph. More...

virtual size_t getLocalNumRows () const =0
 Returns the number of graph rows owned on the calling node. More...

virtual size_t getLocalNumCols () const =0
 Returns the number of columns connected to the locally owned rows of this graph. More...

virtual GlobalOrdinal getIndexBase () const =0
 Returns the index base for global indices for this graph. More...

virtual global_size_t getGlobalNumEntries () const =0
 Returns the global number of entries in the graph. More...

virtual size_t getLocalNumEntries () const =0
 Returns the local number of entries in the graph. More...

virtual size_t getNumEntriesInGlobalRow (GlobalOrdinal globalRow) const =0
 Returns the current number of entries on this node in the specified global row. More...

virtual size_t getNumEntriesInLocalRow (LocalOrdinal localRow) const =0
 Returns the current number of entries on this node in the specified local row. More...

virtual size_t getNumAllocatedEntriesInGlobalRow (GlobalOrdinal globalRow) const =0
 Returns the current number of allocated entries for this node in the specified global row . More...

virtual size_t getNumAllocatedEntriesInLocalRow (LocalOrdinal localRow) const =0
 Returns the current number of allocated entries on this node in the specified local row. More...

virtual size_t getGlobalMaxNumRowEntries () const =0
 Maximum number of entries in all rows over all processes. More...

virtual size_t getLocalMaxNumRowEntries () const =0
 Maximum number of entries in all rows owned by the calling process. More...

virtual bool hasColMap () const =0
 Whether the graph has a column Map. More...

virtual bool isLocallyIndexed () const =0
 Whether column indices are stored using local indices on the calling process. More...

virtual bool isGloballyIndexed () const =0
 Whether column indices are stored using global indices on the calling process. More...

virtual bool isFillComplete () const =0
 Whether fillComplete() has been called and the graph is in compute mode. More...

virtual bool isStorageOptimized () const =0
 Returns true if storage has been optimized. More...

virtual void getGlobalRowView (GlobalOrdinal GlobalRow, ArrayView< const GlobalOrdinal > &Indices) const =0
 Return a const, nonpersisting view of global indices in the given row. More...

virtual void getLocalRowView (LocalOrdinal LocalRow, ArrayView< const LocalOrdinal > &indices) const =0
 Return a const, nonpersisting view of local indices in the given row. More...

virtual void computeGlobalConstants ()=0
 Force the computation of global constants if we don't have them. More...


Tpetra-specific routines

typedef node_type::execution_space execution_space

typedef node_type::device_type device_type

typedef Kokkos::StaticCrsGraph
< LocalOrdinal,
Kokkos::LayoutLeft,
device_type, void, size_t > 		local_graph_type

virtual
local_graph_type::HostMirror 		getLocalGraphHost () const =0
 Get the local graph. More...

virtual local_graph_type getLocalGraphDevice () const =0

virtual void getLocalDiagOffsets (const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &offsets) const =0
 Get offsets of the diagonal entries in the matrix. More...


Overridden from Teuchos::Describable

virtual std::string description () const =0
 Return a simple one-line description of this object. More...

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0
 Print the object with some verbosity level to an FancyOStream object. More...


Detailed Description

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >

Definition at line 46 of file Xpetra_CrsGraph.hpp.

Member Typedef Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef LocalOrdinal Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 49 of file Xpetra_CrsGraph.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef GlobalOrdinal Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 50 of file Xpetra_CrsGraph.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef Node Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 51 of file Xpetra_CrsGraph.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef node_type::execution_space Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::execution_space

Definition at line 195 of file Xpetra_CrsGraph.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef node_type::device_type Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::device_type

Definition at line 196 of file Xpetra_CrsGraph.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
typedef Kokkos::StaticCrsGraph<LocalOrdinal, Kokkos::LayoutLeft, device_type, void, size_t> Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::local_graph_type

Definition at line 197 of file Xpetra_CrsGraph.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::~CrsGraph ( )
inlinevirtual

Destructor.

Definition at line 57 of file Xpetra_CrsGraph.hpp.

Member Function Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertGlobalIndices ( GlobalOrdinal  globalRow,
const ArrayView< const GlobalOrdinal > &  indices
)
pure virtual

Insert global indices into the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::insertLocalIndices ( const LocalOrdinal  localRow,
const ArrayView< const LocalOrdinal > &  indices
)
pure virtual

Insert local indices into the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::removeLocalIndices ( LocalOrdinal  localRow)
pure virtual

Remove all graph indices from the specified local row.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::allocateAllIndices ( size_t  numNonZeros,
ArrayRCP< size_t > &  rowptr,
ArrayRCP< LocalOrdinal > &  colind
)
pure virtual

Allocates the 1D pointer arrays of the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::setAllIndices ( const ArrayRCP< size_t > &  rowptr,
const ArrayRCP< LocalOrdinal > &  colind
)
pure virtual

Sets the 1D pointer arrays of the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getAllIndices ( ArrayRCP< const size_t > &  rowptr,
ArrayRCP< const LocalOrdinal > &  colind
) const
pure virtual

Gets the 1D pointer arrays of the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &  domainMap,
const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &  rangeMap,
const RCP< ParameterList > &  params = null
)
pure virtual

Signal that data entry is complete, specifying domain and range maps.

Implemented in Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, and Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::fillComplete ( const RCP< ParameterList > &  params = null)
pure virtual

Signal that data entry is complete.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::expertStaticFillComplete ( const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &  domainMap,
const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > > &  rangeMap,
const RCP< const Import< LocalOrdinal, GlobalOrdinal, Node > > &  importer = null,
const RCP< const Export< LocalOrdinal, GlobalOrdinal, Node > > &  exporter = null,
const RCP< Teuchos::ParameterList > &  params = null
)
pure virtual

Expert version of fillComplete.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Comm<int> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getComm ( ) const
pure virtual

Returns the communicator.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRowMap ( ) const
pure virtual

Returns the Map that describes the row distribution in this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getColMap ( ) const
pure virtual

Returns the Map that describes the column distribution in this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getDomainMap ( ) const
pure virtual

Returns the Map associated with the domain of this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getRangeMap ( ) const
pure virtual

Returns the Map associated with the domain of this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Import<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getImporter ( ) const
pure virtual

Returns the importer associated with this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual RCP<const Export<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getExporter ( ) const
pure virtual

Returns the exporter associated with this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual global_size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumRows ( ) const
pure virtual

Returns the number of global rows in the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual global_size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumCols ( ) const
pure virtual

Returns the number of global columns in the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumRows ( ) const
pure virtual

Returns the number of graph rows owned on the calling node.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumCols ( ) const
pure virtual

Returns the number of columns connected to the locally owned rows of this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual GlobalOrdinal Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getIndexBase ( ) const
pure virtual

Returns the index base for global indices for this graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual global_size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalNumEntries ( ) const
pure virtual

Returns the global number of entries in the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalNumEntries ( ) const
pure virtual

Returns the local number of entries in the graph.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInGlobalRow ( GlobalOrdinal  globalRow) const
pure virtual

Returns the current number of entries on this node in the specified global row.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumEntriesInLocalRow ( LocalOrdinal  localRow) const
pure virtual

Returns the current number of entries on this node in the specified local row.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInGlobalRow ( GlobalOrdinal  globalRow) const
pure virtual

Returns the current number of allocated entries for this node in the specified global row .

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getNumAllocatedEntriesInLocalRow ( LocalOrdinal  localRow) const
pure virtual

Returns the current number of allocated entries on this node in the specified local row.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalMaxNumRowEntries ( ) const
pure virtual

Maximum number of entries in all rows over all processes.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual size_t Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalMaxNumRowEntries ( ) const
pure virtual

Maximum number of entries in all rows owned by the calling process.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual bool Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::hasColMap ( ) const
pure virtual

Whether the graph has a column Map.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual bool Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isLocallyIndexed ( ) const
pure virtual

Whether column indices are stored using local indices on the calling process.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual bool Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isGloballyIndexed ( ) const
pure virtual

Whether column indices are stored using global indices on the calling process.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual bool Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isFillComplete ( ) const
pure virtual

Whether fillComplete() has been called and the graph is in compute mode.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual bool Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::isStorageOptimized ( ) const
pure virtual

Returns true if storage has been optimized.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getGlobalRowView ( GlobalOrdinal  GlobalRow,
ArrayView< const GlobalOrdinal > &  Indices
) const
pure virtual

Return a const, nonpersisting view of global indices in the given row.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalRowView ( LocalOrdinal  LocalRow,
ArrayView< const LocalOrdinal > &  indices
) const
pure virtual

Return a const, nonpersisting view of local indices in the given row.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::computeGlobalConstants ( )
pure virtual

Force the computation of global constants if we don't have them.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >, and Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual local_graph_type::HostMirror Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalGraphHost ( ) const
pure virtual

Get the local graph.

Warning
THIS IS AN EXPERT MODE FUNCTION. THIS IS AN IMPLEMENTATION DETAIL. DO NOT CALL THIS FUNCTION!!!

This is only a valid representation of the local graph if the (global) graph is fill complete.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual local_graph_type Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalGraphDevice ( ) const
pure virtual

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >, and Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::getLocalDiagOffsets ( const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &  offsets) const
pure virtual

Get offsets of the diagonal entries in the matrix.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual std::string Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::description ( ) const
pure virtual

Return a simple one-line description of this object.

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >, and Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
virtual void Xpetra::CrsGraph< LocalOrdinal, GlobalOrdinal, Node >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
pure virtual

Print the object with some verbosity level to an FancyOStream object.

Implements Xpetra::DistObject< GlobalOrdinal, LocalOrdinal, GlobalOrdinal, Node >.

Implemented in Xpetra::EpetraCrsGraphT< long long, EpetraNode >, Xpetra::TpetraCrsGraph< int, long long, EpetraNode >, Xpetra::EpetraCrsGraphT< int, EpetraNode >, Xpetra::TpetraCrsGraph< int, int, EpetraNode >, Xpetra::EpetraCrsGraphT< GlobalOrdinal, Node >, and Xpetra::TpetraCrsGraph< LocalOrdinal, GlobalOrdinal, Node >.

The documentation for this class was generated from the following file:
