Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node > Class Template Reference

#include <Xpetra_Export.hpp>

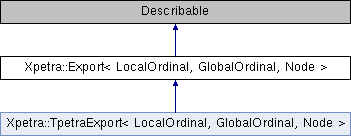

Inheritance diagram for Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >:

Public Types
typedef LocalOrdinal	local_ordinal_type
typedef GlobalOrdinal	global_ordinal_type
typedef Node	node_type

Constructor/Destructor Methods
virtual	~Export ()
	Destructor. More...

Export Attribute Methods
virtual size_t	getNumSameIDs () const =0
	Number of initial identical IDs. More...
virtual size_t	getNumPermuteIDs () const =0
	Number of IDs to permute but not to communicate. More...
virtual ArrayView< const LocalOrdinal >	getPermuteFromLIDs () const =0
	List of local IDs in the source Map that are permuted. More...
virtual ArrayView< const LocalOrdinal >	getPermuteToLIDs () const =0
	List of local IDs in the target Map that are permuted. More...
virtual size_t	getNumRemoteIDs () const =0
	Number of entries not on the calling process. More...
virtual ArrayView< const LocalOrdinal >	getRemoteLIDs () const =0
	List of entries in the target Map to receive from other processes. More...
virtual size_t	getNumExportIDs () const =0
	Number of entries that must be sent by the calling process to other processes. More...
virtual ArrayView< const LocalOrdinal >	getExportLIDs () const =0
	List of entries in the source Map that will be sent to other processes. More...
virtual ArrayView< const int >	getExportPIDs () const =0
	List of processes to which entries will be sent. More...
virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getSourceMap () const =0
	The source Map used to construct this Export. More...
virtual Teuchos::RCP< const Map< LocalOrdinal, GlobalOrdinal, Node > >	getTargetMap () const =0
	The target Map used to construct this Export. More...
virtual void	setDistributorParameters (const Teuchos::RCP< Teuchos::ParameterList > params) const =0
	Set parameters on the underlying object. More...

I/O Methods
virtual void	print (std::ostream &os) const =0
	Print the Export's data to the given output stream. More...

Detailed Description

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>
class Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >

Definition at line 26 of file Xpetra_Export.hpp.

Member Typedef Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef LocalOrdinal Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type

Definition at line 29 of file Xpetra_Export.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef GlobalOrdinal Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type

Definition at line 30 of file Xpetra_Export.hpp.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

typedef Node Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::node_type

Definition at line 31 of file Xpetra_Export.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::~Export ( )

inlinevirtual

Destructor.

Definition at line 37 of file Xpetra_Export.hpp.

Member Function Documentation

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getNumSameIDs ( ) const

pure virtual

Number of initial identical IDs.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getNumPermuteIDs ( ) const

pure virtual

Number of IDs to permute but not to communicate.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView<const LocalOrdinal> Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getPermuteFromLIDs ( ) const

pure virtual

List of local IDs in the source Map that are permuted.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView<const LocalOrdinal> Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getPermuteToLIDs ( ) const

pure virtual

List of local IDs in the target Map that are permuted.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getNumRemoteIDs ( ) const

pure virtual

Number of entries not on the calling process.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView<const LocalOrdinal> Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getRemoteLIDs ( ) const

pure virtual

List of entries in the target Map to receive from other processes.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual size_t Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getNumExportIDs ( ) const

pure virtual

Number of entries that must be sent by the calling process to other processes.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView<const LocalOrdinal> Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getExportLIDs ( ) const

pure virtual

List of entries in the source Map that will be sent to other processes.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual ArrayView<const int> Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getExportPIDs ( ) const

pure virtual

List of processes to which entries will be sent.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual Teuchos::RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getSourceMap ( ) const

pure virtual

The source Map used to construct this Export.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual Teuchos::RCP<const Map<LocalOrdinal, GlobalOrdinal, Node> > Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::getTargetMap ( ) const

pure virtual

The target Map used to construct this Export.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::setDistributorParameters ( const Teuchos::RCP< Teuchos::ParameterList >  params ) const

pure virtual

Set parameters on the underlying object.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

template<class LocalOrdinal, class GlobalOrdinal, class Node = Tpetra::KokkosClassic::DefaultNode::DefaultNodeType>

virtual void Xpetra::Export< LocalOrdinal, GlobalOrdinal, Node >::print ( std::ostream &  os ) const

pure virtual

Print the Export's data to the given output stream.

Implemented in Xpetra::TpetraExport< int, long long, EpetraNode >, Xpetra::TpetraExport< int, int, EpetraNode >, Xpetra::EpetraExportT< EpetraGlobalOrdinal, Node >, and Xpetra::TpetraExport< LocalOrdinal, GlobalOrdinal, Node >.

---

The documentation for this class was generated from the following file:

• Xpetra_Export.hpp
