Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Referenceabstract

#include <Xpetra_Vector_fwd.hpp>

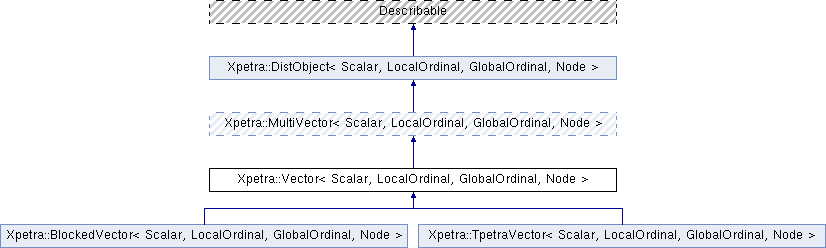

Inheritance diagram for Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > Xpetra::BlockedVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > Xpetra::TpetraVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Public Types

using scalar_type = Scalar

using local_ordinal_type = LocalOrdinal

using global_ordinal_type = GlobalOrdinal

using node_type = Node

typedef Xpetra::MultiVector
< Scalar, LocalOrdinal,
GlobalOrdinal, Node >
::dual_view_type
dual_view_type

- Public Types inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar scalar_type

typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type

using impl_scalar_type = typename Kokkos::ArithTraits< Scalar >::val_type

using dual_view_type = Kokkos::DualView< impl_scalar_type **, Kokkos::LayoutStride, typename node_type::device_type, Kokkos::MemoryUnmanaged >

using dual_view_type_const = Kokkos::DualView< const impl_scalar_type **, Kokkos::LayoutStride, typename node_type::device_type, Kokkos::MemoryUnmanaged >

using host_execution_space = typename dual_view_type::host_mirror_space

using dev_execution_space = typename dual_view_type::t_dev::execution_space


Public Member Functions

template<class TargetDeviceType , class AccessType >
std::conditional< std::is_same
< typename
dual_view_type::t_dev_um::execution_space::memory_space,
typename
TargetDeviceType::memory_space >
::value, typename
dual_view_type::t_dev_um,
typename
dual_view_type::t_host_um >
::type
getLocalView (AccessType access_type) const

- Public Member Functions inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual ~MultiVector ()
 Destructor. More...

MultiVector< Scalar,
LocalOrdinal, GlobalOrdinal,
Node > &
operator= (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs)
 Assignment operator: Does a deep copy. More...

virtual void replaceGlobalValue (GlobalOrdinal globalRow, size_t vectorIndex, const Scalar &value)=0
 Replace value, using global (row) index. More...

virtual void sumIntoGlobalValue (GlobalOrdinal globalRow, size_t vectorIndex, const Scalar &value)=0
 Add value to existing value, using global (row) index. More...

virtual void replaceLocalValue (LocalOrdinal myRow, size_t vectorIndex, const Scalar &value)=0
 Replace value, using local (row) index. More...

virtual void sumIntoLocalValue (LocalOrdinal myRow, size_t vectorIndex, const Scalar &value)=0
 Add value to existing value, using local (row) index. More...

virtual void putScalar (const Scalar &value)=0
 Set all values in the multivector with the given value. More...

virtual Teuchos::RCP< const
Vector< Scalar, LocalOrdinal,
GlobalOrdinal, Node > >
getVector (size_t j) const =0
 Return a Vector which is a const view of column j. More...

virtual Teuchos::RCP< Vector
< Scalar, LocalOrdinal,
GlobalOrdinal, Node > >
getVectorNonConst (size_t j)=0
 Return a Vector which is a nonconst view of column j. More...

virtual Teuchos::ArrayRCP
< const Scalar >
getData (size_t j) const =0
 Const view of the local values in a particular vector of this multivector. More...

virtual Teuchos::ArrayRCP< Scalar > getDataNonConst (size_t j)=0
 View of the local values in a particular vector of this multivector. More...

virtual void dot (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Teuchos::ArrayView< Scalar > &dots) const =0
 Compute dot product of each corresponding pair of vectors, dots[i] = this[i].dot(A[i]). More...

virtual void abs (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A)=0
 Put element-wise absolute values of input Multi-vector in target: A = abs(this). More...

virtual void reciprocal (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A)=0
 Put element-wise reciprocal values of input Multi-vector in target, this(i,j) = 1/A(i,j). More...

virtual void scale (const Scalar &alpha)=0
 Scale the current values of a multi-vector, this = alpha*this. More...

virtual void scale (Teuchos::ArrayView< const Scalar > alpha)=0
 Scale the current values of a multi-vector, this[j] = alpha[j]*this[j]. More...

virtual void update (const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Scalar &beta)=0
 Update multi-vector values with scaled values of A, this = beta*this + alpha*A. More...

virtual void update (const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const Scalar &beta, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, const Scalar &gamma)=0
 Update multi-vector with scaled values of A and B, this = gamma*this + alpha*A + beta*B. More...

virtual void norm1 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const =0
 Compute 1-norm of each vector in multi-vector. More...

virtual void norm2 (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const =0

virtual void normInf (const Teuchos::ArrayView< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > &norms) const =0
 Compute Inf-norm of each vector in multi-vector. More...

virtual void meanValue (const Teuchos::ArrayView< Scalar > &means) const =0

virtual void multiply (Teuchos::ETransp transA, Teuchos::ETransp transB, const Scalar &alpha, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, const Scalar &beta)=0
 Matrix-matrix multiplication: this = beta*this + alpha*op(A)*op(B). More...

virtual void elementWiseMultiply (Scalar scalarAB, const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &A, const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &B, Scalar scalarThis)=0
 Multiply a Vector A elementwise by a MultiVector B. More...

virtual size_t getNumVectors () const =0
 Number of columns in the multivector. More...

virtual size_t getLocalLength () const =0
 Local number of rows on the calling process. More...

virtual global_size_t getGlobalLength () const =0
 Global number of rows in the multivector. More...

virtual bool isSameSize (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &vec) const =0

virtual void replaceMap (const RCP< const Map< LocalOrdinal, GlobalOrdinal, Node >> &map)=0

virtual void setSeed (unsigned int seed)=0
 Set seed for Random function. More...

virtual void randomize (bool bUseXpetraImplementation=false)=0
 Set multi-vector values to random numbers. More...

virtual void randomize (const Scalar &minVal, const Scalar &maxVal, bool bUseXpetraImplementation=false)=0
 Set multi-vector values to random numbers. More...

virtual void Xpetra_randomize ()
 Set multi-vector values to random numbers. XPetra implementation. More...

virtual void Xpetra_randomize (const Scalar &minVal, const Scalar &maxVal)
 Set multi-vector values to random numbers. XPetra implementation. More...

virtual
dual_view_type::t_host_const_um
getHostLocalView (Access::ReadOnlyStruct) const

virtual
dual_view_type::t_dev_const_um
getDeviceLocalView (Access::ReadOnlyStruct) const

virtual dual_view_type::t_host_um getHostLocalView (Access::OverwriteAllStruct) const

virtual dual_view_type::t_dev_um getDeviceLocalView (Access::OverwriteAllStruct) const

virtual dual_view_type::t_host_um getHostLocalView (Access::ReadWriteStruct) const

virtual dual_view_type::t_dev_um getDeviceLocalView (Access::ReadWriteStruct) const

- Public Member Functions inherited from Xpetra::DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual ~DistObject ()
 Destructor. More...

virtual void doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
 Import data into this object using an Import object ("forward mode"). More...

virtual void doImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
 Import data into this object using an Export object ("reverse mode"). More...

virtual void beginImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Import data into this object using an Import object ("forward mode"). More...

virtual void beginImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Import data into this object using an Export object ("reverse mode"). More...

virtual void endImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Import data into this object using an Import object ("forward mode"). More...

virtual void endImport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Import data into this object using an Export object ("reverse mode"). More...

virtual void doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)=0
 Export data into this object using an Export object ("forward mode"). More...

virtual void doExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)=0
 Export data into this object using an Import object ("reverse mode"). More...

virtual void beginExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Export data into this object using an Export object ("forward mode"). More...

virtual void beginExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Export data into this object using an Import object ("reverse mode"). More...

virtual void endExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Export< LocalOrdinal, GlobalOrdinal, Node > &exporter, CombineMode CM)
 Export data into this object using an Export object ("forward mode"). More...

virtual void endExport (const DistObject< Scalar, LocalOrdinal, GlobalOrdinal, Node > &source, const Import< LocalOrdinal, GlobalOrdinal, Node > &importer, CombineMode CM)
 Export data into this object using an Import object ("reverse mode"). More...

virtual Teuchos::RCP< const
Map< LocalOrdinal,
GlobalOrdinal, Node > >
getMap () const =0
 The Map describing the parallel distribution of this object. More...


Constructor/Destructor Methods

virtual ~Vector ()
 Destructor. More...


Post-construction modification routines

virtual void replaceGlobalValue (GlobalOrdinal globalRow, const Scalar &value)=0
 Replace current value at the specified location with specified value. More...

virtual void sumIntoGlobalValue (GlobalOrdinal globalRow, const Scalar &value)=0
 Adds specified value to existing value at the specified location. More...

virtual void replaceLocalValue (LocalOrdinal myRow, const Scalar &value)=0
 Replace current value at the specified location with specified values. More...

virtual void sumIntoLocalValue (LocalOrdinal myRow, const Scalar &value)=0
 Adds specified value to existing value at the specified location. More...


Mathematical methods

virtual Scalar dot (const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &a) const =0
 Computes dot product of this Vector against input Vector x. More...

virtual Teuchos::ScalarTraits
< Scalar >::magnitudeType
norm1 () const =0
 Return 1-norm of this Vector. More...

virtual Teuchos::ScalarTraits
< Scalar >::magnitudeType
norm2 () const =0
 Compute 2-norm of this Vector. More...

virtual Teuchos::ScalarTraits
< Scalar >::magnitudeType
normInf () const =0
 Compute Inf-norm of this Vector. More...

virtual Scalar meanValue () const =0
 Compute mean (average) value of this Vector. More...


Overridden from Teuchos::Describable

virtual std::string description () const =0
 Return a simple one-line description of this object. More...

virtual void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const =0
 Print the object with some verbosity level to an FancyOStream object. More...


Additional Inherited Members

- Protected Member Functions inherited from Xpetra::MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >
virtual void assign (const MultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &rhs)=0
 Implementation of the assignment operator (operator=); does a deep copy. More...


Detailed Description

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
class Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Definition at line 15 of file Xpetra_Vector_fwd.hpp.

Member Typedef Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::scalar_type = Scalar

Definition at line 27 of file Xpetra_Vector.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::local_ordinal_type = LocalOrdinal

Definition at line 28 of file Xpetra_Vector.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::global_ordinal_type = GlobalOrdinal

Definition at line 29 of file Xpetra_Vector.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
using Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::node_type = Node

Definition at line 30 of file Xpetra_Vector.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
typedef Xpetra::MultiVector<Scalar, LocalOrdinal, GlobalOrdinal, Node>::dual_view_type Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dual_view_type

Definition at line 42 of file Xpetra_Vector.hpp.

Constructor & Destructor Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
virtual Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~Vector ( )
inlinevirtual

Destructor.

Definition at line 59 of file Xpetra_Vector.hpp.

Member Function Documentation

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
template<class TargetDeviceType , class AccessType >
std::conditional< std::is_same< typename dual_view_type::t_dev_um::execution_space::memory_space, typename TargetDeviceType::memory_space>::value, typename dual_view_type::t_dev_um, typename dual_view_type::t_host_um>::type Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::getLocalView ( AccessType  access_type) const
inline

Definition at line 51 of file Xpetra_Vector.hpp.

template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
virtual void Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::replaceGlobalValue ( GlobalOrdinal  globalRow,
const Scalar &  value
)
pure virtual
template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
virtual Scalar Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::dot ( const Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node > &  a) const
pure virtual
template<class Scalar, class LocalOrdinal, class GlobalOrdinal, class Node>
virtual void Xpetra::Vector< Scalar, LocalOrdinal, GlobalOrdinal, Node >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
pure virtual

The documentation for this class was generated from the following files:
