Base node implementation class for SPMD multi-vectors. More...

#include <Thyra_SpmdMultiVectorDefaultBase_decl.hpp>

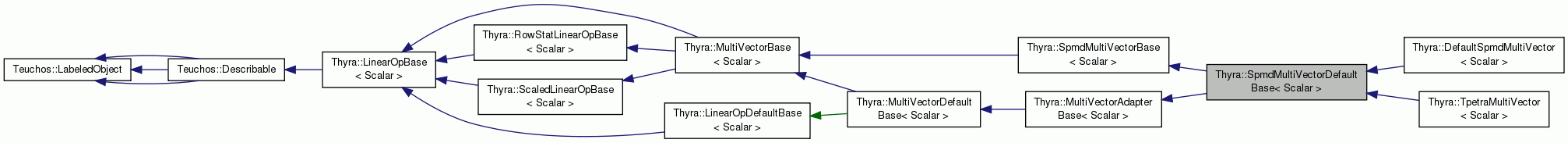

Inheritance diagram for Thyra::SpmdMultiVectorDefaultBase< Scalar >:

Constructors / initializers / accessors
	SpmdMultiVectorDefaultBase ()

Overridden public functions from MultiVectorAdapterBase
RCP< const ScalarProdVectorSpaceBase < Scalar > >	rangeScalarProdVecSpc () const
	Returns `spmdSpace`. More...

Protected funtions overridden from SpmdMultiVectorBase.
RTOpPack::SubMultiVectorView < Scalar >	getNonconstLocalSubMultiVectorImpl ()

RTOpPack::ConstSubMultiVectorView < Scalar >	getLocalSubMultiVectorImpl () const

Protected functions overridden from MultiVectorBase
void	mvMultiReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const

void	acquireDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const

void	releaseDetachedMultiVectorViewImpl (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const

void	acquireNonconstDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)

void	commitNonconstDetachedMultiVectorViewImpl (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)

Protected functions overridden from MultiVectorAdapterBase
void	euclideanApply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Uses `GEMM()` and `Teuchos::reduceAll()` to implement. More...

Protected functions for subclasses to call.
virtual void	updateSpmdSpace ()
	Subclasses should call whenever the structure of the VectorSpaceBase changes. More...

Range1D	validateRowRange (const Range1D &rowRng) const
	Validate and resize the row range. More...

Range1D	validateColRange (const Range1D &rowCol) const
	Validate and resize the column range. More...

Additional Inherited Members
Public Member Functions inherited from Thyra::SpmdMultiVectorBase< Scalar >
RCP< const SpmdVectorSpaceBase < Scalar > >	spmdSpace () const
	Returns the SPMD vector space object for the range of `*this` multi-vector. More...

RTOpPack::SubMultiVectorView < Scalar >	getNonconstLocalSubMultiVector ()
	Get a non-const generalized view of local multi-vector data. More...

RTOpPack::ConstSubMultiVectorView < Scalar >	getLocalSubMultiVector () const
	Get a const generalized view of local multi-vector data. More...

void	getNonconstLocalData (const Ptr< ArrayRCP< Scalar > > &localValues, const Ptr< Ordinal > &leadingDim)
	Returns a non-`const` pointer to a Fortran-style view of the local multi-vector data. More...

void	getLocalData (const Ptr< ArrayRCP< const Scalar > > &localValues, const Ptr< Ordinal > &leadingDim) const
	Returns a `const` pointer to a Fortran-style view of the local multi-vector data. More...

Public Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	assign (Scalar alpha)
	V = alpha. More...

void	assign (const MultiVectorBase< Scalar > &mv)
	V = mv. More...

void	scale (Scalar alpha)

void	update (Scalar alpha, const MultiVectorBase< Scalar > &mv)

void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	`Y.col(j)(i) = betaY.col(j)(i) + sum( alpha[k]X[k].col(j)(i),` More...

void	dots (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Column-wise Euclidean dot product. More...

void	norms_1 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 1-norms. More...

void	norms_2 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 2-norms. More...

void	norms_inf (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise infinity-norms. More...

RCP< const VectorBase< Scalar > >	col (Ordinal j) const
	Calls colImpl(). More...

RCP< VectorBase< Scalar > >	col (Ordinal j)
	Calls nonconstColImpl(). More...

RCP< const MultiVectorBase < Scalar > >	subView (const Range1D &colRng) const
	Calls contigSubViewImpl(). More...

RCP< MultiVectorBase< Scalar > >	subView (const Range1D &colRng)
	Calls nonconstContigSubViewImpl(). More...

RCP< const MultiVectorBase < Scalar > >	subView (const ArrayView< const int > &cols) const
	nonContigSubViewImpl(). More...

RCP< MultiVectorBase< Scalar > >	subView (const ArrayView< const int > &cols)
	nonconstNonContigSubViewImpl(). More...

void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const
	Calls mvMultiReductApplyOpImpl(). More...

void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const
	mvSingleReductApplyOpImpl(). More...

void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls acquireDetachedMultiVectorViewImpl(). More...

void	releaseDetachedView (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls releaseDetachedMultiVectorViewImpl(). More...

void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls acquireNonconstDetachedMultiVectorViewImpl(). More...

void	commitDetachedView (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls commitNonconstDetachedMultiVectorViewImpl(). More...

RCP< const LinearOpBase< Scalar > >	clone () const
	This function is simply overridden to return `this->clone_mv()`. More...

Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not. More...

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`. More...

Public Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
bool	rowStatIsSupported (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
	Determine if a given row stat is supported. More...

void	getRowStat (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
	Get some statistics about a supported row. More...

Public Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
bool	supportsScaleLeft () const
	Determines if this objects supports left scaling. More...

bool	supportsScaleRight () const
	Determines if this objects supports right scaling. More...

void	scaleLeft (const VectorBase< Scalar > &row_scaling)
	Left scales operator with diagonal scaling operator. More...

void	scaleRight (const VectorBase< Scalar > &col_scaling)
	Right scales operator with diagonal scaling operator. More...

Public Member Functions inherited from Thyra::MultiVectorAdapterBase< Scalar >
virtual RCP< const ScalarProdVectorSpaceBase < Scalar > >	domainScalarProdVecSpc () const =0

RCP< const VectorSpaceBase < Scalar > >	range () const
	Returns `this->rangeScalarProdVecSpc()` More...

RCP< const VectorSpaceBase < Scalar > >	domain () const
	Returns `this->domainScalarProdVecSpc()` More...

Public Member Functions inherited from Thyra::MultiVectorDefaultBase< Scalar >
virtual RCP< MultiVectorBase < Scalar > >	clone_mv () const

Protected Member Functions inherited from Thyra::SpmdMultiVectorBase< Scalar >
virtual RCP< const SpmdVectorSpaceBase< Scalar > >	spmdSpaceImpl () const =0
	Virtual implementation for spmdSpace(). More...

virtual void	getNonconstLocalMultiVectorDataImpl (const Ptr< ArrayRCP< Scalar > > &localValues, const Ptr< Ordinal > &leadingDim)=0
	Virtual implementation for getNonconstLocalData(). More...

virtual void	getLocalMultiVectorDataImpl (const Ptr< ArrayRCP< const Scalar > > &localValues, const Ptr< Ordinal > &leadingDim) const =0
	Virtual implementation for getLocalData(). More...

Protected Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	absRowSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const

void	absColSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const

virtual RCP< const VectorBase < Scalar > >	colImpl (Ordinal j) const
	Return a non-changeable view of a constituent column vector. More...

virtual RCP< VectorBase< Scalar > >	nonconstColImpl (Ordinal j)=0
	Return a changeable view of a constituent column vector. More...

virtual bool	rowStatIsSupportedImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat) const

virtual void	getRowStatImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const

virtual bool	supportsScaleLeftImpl () const

virtual bool	supportsScaleRightImpl () const

virtual void	scaleLeftImpl (const VectorBase< Scalar > &row_scaling)

virtual void	scaleRightImpl (const VectorBase< Scalar > &col_scaling)

Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::MultiVectorAdapterBase< Scalar >
bool	opSupportedImpl (EOpTransp M_trans) const

void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const

Protected Member Functions inherited from Thyra::MultiVectorDefaultBase< Scalar >
virtual void	assignImpl (Scalar alpha)
	Default implementation of assign(scalar) using RTOps. More...

virtual void	assignMultiVecImpl (const MultiVectorBase< Scalar > &mv)
	Default implementation of assign(MV) using RTOps. More...

virtual void	scaleImpl (Scalar alpha)
	Default implementation of scale using RTOps. More...

virtual void	updateImpl (Scalar alpha, const MultiVectorBase< Scalar > &mv)
	Default implementation of update using RTOps. More...

virtual void	linearCombinationImpl (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	Default implementation of linear_combination using RTOps. More...

virtual void	dotsImpl (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Default implementation of dots using RTOps. More...

virtual void	norms1Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_1 using RTOps. More...

virtual void	norms2Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_2 using RTOps. More...

virtual void	normsInfImpl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_inf using RTOps. More...

RCP< const MultiVectorBase < Scalar > >	contigSubViewImpl (const Range1D &colRng) const

RCP< MultiVectorBase< Scalar > >	nonconstContigSubViewImpl (const Range1D &colRng)

RCP< const MultiVectorBase < Scalar > >	nonContigSubViewImpl (const ArrayView< const int > &cols) const

RCP< MultiVectorBase< Scalar > >	nonconstNonContigSubViewImpl (const ArrayView< const int > &cols)

virtual void	mvSingleReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const

Protected Member Functions inherited from Thyra::LinearOpDefaultBase< Scalar >
std::string	description () const
	Default description that gives the label, type, and dimenstion . More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
	Generates a default outputting for all linear operators. More...

Related Functions inherited from Thyra::MultiVectorBase< Scalar >
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and return an array of the reduction objects. More...

template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and reduce the intermediate reduction objects into one reduction object. More...

template<class Scalar >
void	norms (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector natural norm. More...

template<class Scalar , class NormOp >
void	reductions (const MultiVectorBase< Scalar > &V, const NormOp &op, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector reductions. More...

template<class Scalar >
void	norms_1 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector one norm. More...

template<class Scalar >
void	norms_2 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector 2 (Euclidean) norm. More...

template<class Scalar >
void	norms_inf (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector infinity norm. More...

template<class Scalar >
Array< typename ScalarTraits < Scalar >::magnitudeType >	norms_inf (const MultiVectorBase< Scalar > &V)
	Column-wise multi-vector infinity norm. More...

template<class Scalar >
void	dots (const MultiVectorBase< Scalar > &V1, const MultiVectorBase< Scalar > &V2, const ArrayView< Scalar > &dots)
	Multi-vector dot product. More...

template<class Scalar >
void	sums (const MultiVectorBase< Scalar > &V, const ArrayView< Scalar > &sums)
	Multi-vector column sum. More...

template<class Scalar >
ScalarTraits< Scalar > ::magnitudeType	norm_1 (const MultiVectorBase< Scalar > &V)
	Take the induced matrix one norm of a multi-vector. More...

template<class Scalar >
void	scale (Scalar alpha, const Ptr< MultiVectorBase< Scalar > > &V)
	V = alpha*V. More...

template<class Scalar >
void	scaleUpdate (const VectorBase< Scalar > &a, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	A*U + V -> V (where A is a diagonal matrix with diagonal a). More...

template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, Scalar alpha)
	V = alpha. More...

template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, const MultiVectorBase< Scalar > &U)
	V = U. More...

template<class Scalar >
void	update (Scalar alpha, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha*U + V -> V. More...

template<class Scalar >
void	update (const ArrayView< const Scalar > &alpha, Scalar beta, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha[j]betaU(j) + V(j) - > V(j), for j = 0 ,,, More...

template<class Scalar >
void	update (const MultiVectorBase< Scalar > &U, const ArrayView< const Scalar > &alpha, Scalar beta, const Ptr< MultiVectorBase< Scalar > > &V)
	U(j) + alpha[j]betaV(j) - > V(j), for j = 0 ,,, U.domain()->dim()-1. More...

template<class Scalar >
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &X, const Scalar &beta, const Ptr< MultiVectorBase< Scalar > > &Y)
	`Y.col(j)(i) = betaY.col(j)(i) + sum( alpha[k]X[k].col(j)(i), k=0...m-1 )`, for `i = 0...Y->range()->dim()-1`, `j = 0...Y->domain()->dim()-1`. More...

template<class Scalar >
void	randomize (Scalar l, Scalar u, const Ptr< MultiVectorBase< Scalar > > &V)
	Generate a random multi-vector with elements uniformly distributed elements. More...

template<class Scalar >
void	Vt_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	`Z(i,j) *= alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	Vp_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	`Z(i,j) += alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	Vp_V (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X)
	`Z(i,j) += X(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	V_VpV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	`Z(i,j) = X(i,j) + Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	V_VmV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	`Z(i,j) = X(i,j) - Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	V_StVpV (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	`Z(i,j) = alpha*X(i,j) + Y(i), i = 0...z->space()->dim()-1`, , j = 0...Z->domain()->dim()-1. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Detailed Description

template<class Scalar>
class Thyra::SpmdMultiVectorDefaultBase< Scalar >

Base node implementation class for SPMD multi-vectors.

By inheriting from this base class, multi-vector implementations allow their multi-vector objects to be seamlessly combined with other SPMD multi-vector objects (of different concrete types) in applyOp() and apply(). A big part of this protocol is that every multi-vector object can expose an SpmdVectorSpaceBase object through the virtual function spmdSpace().

Notes to subclass developers

Concrete subclasses must override only five functions: spmdSpace(), getLocalData(const Scalar**,Ordinal*), freeLocalData(const Scalar**,Ordinal*), getLocalData(Scalar**,Ordinal*), and commitLocalData(Scalar**,Ordinal*). Note that overriding the spmdSpace() function requires implementing or using a pre-implemented concrete SpmdVectorSpaceBase subclass.

If the acquireDetachedView() functions are ever called with index ranges outside of those of the local process, then the default implementations in MultiVectorBase of all of the functions (const) MultiVectorBase::acquireDetachedView(), MultiVectorBase::releaseDetachedView(), (non-const) MultiVectorBase::acquireDetachedView() and MultiVectorBase::commitDetachedView() are called in instead. Alternatively, a subclass could provide more specialized implementations of these functions (for more efficient gather/scatter operations) if desired but this should not be needed for most use cases.

It is interesting to note that in the above use case that the explicit subvector access functions call on its default implementation defined in MultiVectorBase (which calls on applyOp()) and the operator will be properly applied since the version of applyOp() implemented in this class will only request local vector data and hence there will only be two levels of recursion for any call to an explicit subvector access function. This is a truly elegant result.

Note that a multi-vector subclass derived from this base class must only be directly used in SPMD mode for this to work properly.

Definition at line 66 of file Thyra_SpmdMultiVectorDefaultBase_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::SpmdMultiVectorDefaultBase< Scalar >::SpmdMultiVectorDefaultBase ( )

Definition at line 45 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

Member Function Documentation

template<class Scalar >

RCP< const ScalarProdVectorSpaceBase< Scalar > > Thyra::SpmdMultiVectorDefaultBase< Scalar >::rangeScalarProdVecSpc ( ) const

virtual

Returns spmdSpace.

Implements Thyra::MultiVectorAdapterBase< Scalar >.

Definition at line 59 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

RTOpPack::SubMultiVectorView< Scalar > Thyra::SpmdMultiVectorDefaultBase< Scalar >::getNonconstLocalSubMultiVectorImpl ( )

protectedvirtual

Implements Thyra::SpmdMultiVectorBase< Scalar >.

Definition at line 72 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

RTOpPack::ConstSubMultiVectorView< Scalar > Thyra::SpmdMultiVectorDefaultBase< Scalar >::getLocalSubMultiVectorImpl ( ) const

protectedvirtual

Implements Thyra::SpmdMultiVectorBase< Scalar >.

Definition at line 91 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::mvMultiReductApplyOpImpl	(	const RTOpPack::RTOpT< Scalar > &	primary_op,
		const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &	multi_vecs,
		const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &	targ_multi_vecs,
		const ArrayView< const Ptr< RTOpPack::ReductTarget > > &	reduct_objs,
		const Ordinal	primary_global_offset
	)		const

protectedvirtual

Implements Thyra::MultiVectorBase< Scalar >.

Reimplemented in Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 112 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::acquireDetachedMultiVectorViewImpl	(	const Range1D &	rowRng,
		const Range1D &	colRng,
		RTOpPack::ConstSubMultiVectorView< Scalar > *	sub_mv
	)		const

protectedvirtual

Implements Thyra::MultiVectorBase< Scalar >.

Reimplemented in Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 200 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::releaseDetachedMultiVectorViewImpl ( RTOpPack::ConstSubMultiVectorView< Scalar > * sub_mv ) const

protectedvirtual

Implements Thyra::MultiVectorBase< Scalar >.

Definition at line 233 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::acquireNonconstDetachedMultiVectorViewImpl	(	const Range1D &	rowRng,
		const Range1D &	colRng,
		RTOpPack::SubMultiVectorView< Scalar > *	sub_mv
	)

protectedvirtual

Implements Thyra::MultiVectorBase< Scalar >.

Reimplemented in Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 252 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::commitNonconstDetachedMultiVectorViewImpl ( RTOpPack::SubMultiVectorView< Scalar > * sub_mv )

protectedvirtual

Implements Thyra::MultiVectorBase< Scalar >.

Reimplemented in Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 290 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::euclideanApply	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const

protectedvirtual

Uses GEMM() and Teuchos::reduceAll() to implement.

ToDo: Finish documentation!

Implements Thyra::MultiVectorAdapterBase< Scalar >.

Reimplemented in Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 312 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

void Thyra::SpmdMultiVectorDefaultBase< Scalar >::updateSpmdSpace ( )

protectedvirtual

Subclasses should call whenever the structure of the VectorSpaceBase changes.

WARNING! This function can be overridden by subclasses but this particular function implementation must be called back from within any override (i.e. call SpmdMultiVectorDefaultBase<Scalar>::updateSpmdSpace();).

Definition at line 633 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

Range1D Thyra::SpmdMultiVectorDefaultBase< Scalar >::validateRowRange ( const Range1D & rowRng ) const

protected

Validate and resize the row range.

This function throws an exception if the input range is invalid

Definition at line 654 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

template<class Scalar >

Range1D Thyra::SpmdMultiVectorDefaultBase< Scalar >::validateColRange ( const Range1D & rowCol ) const

protected

Validate and resize the column range.

This function throws an exception if the input range is invalid

Definition at line 670 of file Thyra_SpmdMultiVectorDefaultBase_def.hpp.

The documentation for this class was generated from the following files:

Constructors / initializers / accessors

Overridden public functions from MultiVectorAdapterBase

Protected funtions overridden from SpmdMultiVectorBase.

Protected functions overridden from MultiVectorBase

Protected functions overridden from MultiVectorAdapterBase

Protected functions for subclasses to call.

Additional Inherited Members

Detailed Description

template<class Scalar> class Thyra::SpmdMultiVectorDefaultBase< Scalar >

Constructor & Destructor Documentation

Member Function Documentation

template<class Scalar>
class Thyra::SpmdMultiVectorDefaultBase< Scalar >
