Node subclass for MultiVectorBase subclasses that allows the insertion of an application defined scalar product. More...

#include <Thyra_MultiVectorAdapterBase_decl.hpp>

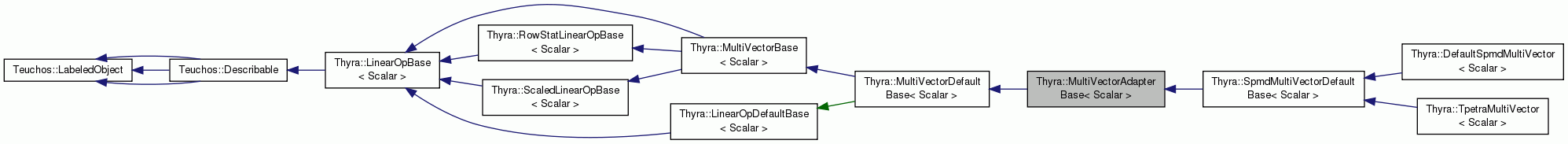

Inheritance diagram for Thyra::MultiVectorAdapterBase< Scalar >:

[legend]

Pure virtual functions to override in subclasses
virtual RCP< const ScalarProdVectorSpaceBase < Scalar > >	rangeScalarProdVecSpc () const =0

virtual RCP< const ScalarProdVectorSpaceBase < Scalar > >	domainScalarProdVecSpc () const =0

virtual void	euclideanApply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
	Apply the linear operator to a multi-vector with respect to a Euclidean vector space where the scalar product is the dot product. More...

Overridden functions from LinearOp
RCP< const VectorSpaceBase < Scalar > >	range () const
	Returns `this->rangeScalarProdVecSpc()` More...

RCP< const VectorSpaceBase < Scalar > >	domain () const
	Returns `this->domainScalarProdVecSpc()` More...

Overridden protected functions from LinearOpBase
bool	opSupportedImpl (EOpTransp M_trans) const

void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const

Additional Inherited Members
Public Member Functions inherited from Thyra::MultiVectorDefaultBase< Scalar >
virtual RCP< MultiVectorBase < Scalar > >	clone_mv () const

Public Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	assign (Scalar alpha)
	V = alpha. More...

void	assign (const MultiVectorBase< Scalar > &mv)
	V = mv. More...

void	scale (Scalar alpha)

void	update (Scalar alpha, const MultiVectorBase< Scalar > &mv)

void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	`Y.col(j)(i) = betaY.col(j)(i) + sum( alpha[k]X[k].col(j)(i),` More...

void	dots (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Column-wise Euclidean dot product. More...

void	norms_1 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 1-norms. More...

void	norms_2 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 2-norms. More...

void	norms_inf (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise infinity-norms. More...

RCP< const VectorBase< Scalar > >	col (Ordinal j) const
	Calls colImpl(). More...

RCP< VectorBase< Scalar > >	col (Ordinal j)
	Calls nonconstColImpl(). More...

RCP< const MultiVectorBase < Scalar > >	subView (const Range1D &colRng) const
	Calls contigSubViewImpl(). More...

RCP< MultiVectorBase< Scalar > >	subView (const Range1D &colRng)
	Calls nonconstContigSubViewImpl(). More...

RCP< const MultiVectorBase < Scalar > >	subView (const ArrayView< const int > &cols) const
	nonContigSubViewImpl(). More...

RCP< MultiVectorBase< Scalar > >	subView (const ArrayView< const int > &cols)
	nonconstNonContigSubViewImpl(). More...

void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const
	Calls mvMultiReductApplyOpImpl(). More...

void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const
	mvSingleReductApplyOpImpl(). More...

void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls acquireDetachedMultiVectorViewImpl(). More...

void	releaseDetachedView (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls releaseDetachedMultiVectorViewImpl(). More...

void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls acquireNonconstDetachedMultiVectorViewImpl(). More...

void	commitDetachedView (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls commitNonconstDetachedMultiVectorViewImpl(). More...

RCP< const LinearOpBase< Scalar > >	clone () const
	This function is simply overridden to return `this->clone_mv()`. More...

Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
bool	opSupported (EOpTransp M_trans) const
	Return if the `M_trans` operation of `apply()` is supported or not. More...

void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : `Y = alphaop(M)X + beta*Y`. More...

Public Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
bool	rowStatIsSupported (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
	Determine if a given row stat is supported. More...

void	getRowStat (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
	Get some statistics about a supported row. More...

Public Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
bool	supportsScaleLeft () const
	Determines if this objects supports left scaling. More...

bool	supportsScaleRight () const
	Determines if this objects supports right scaling. More...

void	scaleLeft (const VectorBase< Scalar > &row_scaling)
	Left scales operator with diagonal scaling operator. More...

void	scaleRight (const VectorBase< Scalar > &col_scaling)
	Right scales operator with diagonal scaling operator. More...

Protected Member Functions inherited from Thyra::MultiVectorDefaultBase< Scalar >
virtual void	assignImpl (Scalar alpha)
	Default implementation of assign(scalar) using RTOps. More...

virtual void	assignMultiVecImpl (const MultiVectorBase< Scalar > &mv)
	Default implementation of assign(MV) using RTOps. More...

virtual void	scaleImpl (Scalar alpha)
	Default implementation of scale using RTOps. More...

virtual void	updateImpl (Scalar alpha, const MultiVectorBase< Scalar > &mv)
	Default implementation of update using RTOps. More...

virtual void	linearCombinationImpl (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	Default implementation of linear_combination using RTOps. More...

virtual void	dotsImpl (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Default implementation of dots using RTOps. More...

virtual void	norms1Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_1 using RTOps. More...

virtual void	norms2Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_2 using RTOps. More...

virtual void	normsInfImpl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Default implementation of norms_inf using RTOps. More...

RCP< const MultiVectorBase < Scalar > >	contigSubViewImpl (const Range1D &colRng) const

RCP< MultiVectorBase< Scalar > >	nonconstContigSubViewImpl (const Range1D &colRng)

RCP< const MultiVectorBase < Scalar > >	nonContigSubViewImpl (const ArrayView< const int > &cols) const

RCP< MultiVectorBase< Scalar > >	nonconstNonContigSubViewImpl (const ArrayView< const int > &cols)

virtual void	mvMultiReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const

virtual void	mvSingleReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const

virtual void	acquireDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const

virtual void	releaseDetachedMultiVectorViewImpl (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const

virtual void	acquireNonconstDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)

virtual void	commitNonconstDetachedMultiVectorViewImpl (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)

Protected Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	absRowSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const

void	absColSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const

virtual RCP< const VectorBase < Scalar > >	colImpl (Ordinal j) const
	Return a non-changeable view of a constituent column vector. More...

virtual RCP< VectorBase< Scalar > >	nonconstColImpl (Ordinal j)=0
	Return a changeable view of a constituent column vector. More...

virtual bool	rowStatIsSupportedImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat) const

virtual void	getRowStatImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const

virtual bool	supportsScaleLeftImpl () const

virtual bool	supportsScaleRightImpl () const

virtual void	scaleLeftImpl (const VectorBase< Scalar > &row_scaling)

virtual void	scaleRightImpl (const VectorBase< Scalar > &col_scaling)

Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::LinearOpDefaultBase< Scalar >
std::string	description () const
	Default description that gives the label, type, and dimenstion . More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
	Generates a default outputting for all linear operators. More...

Related Functions inherited from Thyra::MultiVectorBase< Scalar >
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and return an array of the reduction objects. More...

template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and reduce the intermediate reduction objects into one reduction object. More...

template<class Scalar >
void	norms (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector natural norm. More...

template<class Scalar , class NormOp >
void	reductions (const MultiVectorBase< Scalar > &V, const NormOp &op, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector reductions. More...

template<class Scalar >
void	norms_1 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector one norm. More...

template<class Scalar >
void	norms_2 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector 2 (Euclidean) norm. More...

template<class Scalar >
void	norms_inf (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector infinity norm. More...

template<class Scalar >
Array< typename ScalarTraits < Scalar >::magnitudeType >	norms_inf (const MultiVectorBase< Scalar > &V)
	Column-wise multi-vector infinity norm. More...

template<class Scalar >
void	dots (const MultiVectorBase< Scalar > &V1, const MultiVectorBase< Scalar > &V2, const ArrayView< Scalar > &dots)
	Multi-vector dot product. More...

template<class Scalar >
void	sums (const MultiVectorBase< Scalar > &V, const ArrayView< Scalar > &sums)
	Multi-vector column sum. More...

template<class Scalar >
ScalarTraits< Scalar > ::magnitudeType	norm_1 (const MultiVectorBase< Scalar > &V)
	Take the induced matrix one norm of a multi-vector. More...

template<class Scalar >
void	scale (Scalar alpha, const Ptr< MultiVectorBase< Scalar > > &V)
	V = alpha*V. More...

template<class Scalar >
void	scaleUpdate (const VectorBase< Scalar > &a, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	A*U + V -> V (where A is a diagonal matrix with diagonal a). More...

template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, Scalar alpha)
	V = alpha. More...

template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, const MultiVectorBase< Scalar > &U)
	V = U. More...

template<class Scalar >
void	update (Scalar alpha, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha*U + V -> V. More...

template<class Scalar >
void	update (const ArrayView< const Scalar > &alpha, Scalar beta, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha[j]betaU(j) + V(j) - > V(j), for j = 0 ,,, More...

template<class Scalar >
void	update (const MultiVectorBase< Scalar > &U, const ArrayView< const Scalar > &alpha, Scalar beta, const Ptr< MultiVectorBase< Scalar > > &V)
	U(j) + alpha[j]betaV(j) - > V(j), for j = 0 ,,, U.domain()->dim()-1. More...

template<class Scalar >
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &X, const Scalar &beta, const Ptr< MultiVectorBase< Scalar > > &Y)
	`Y.col(j)(i) = betaY.col(j)(i) + sum( alpha[k]X[k].col(j)(i), k=0...m-1 )`, for `i = 0...Y->range()->dim()-1`, `j = 0...Y->domain()->dim()-1`. More...

template<class Scalar >
void	randomize (Scalar l, Scalar u, const Ptr< MultiVectorBase< Scalar > > &V)
	Generate a random multi-vector with elements uniformly distributed elements. More...

template<class Scalar >
void	Vt_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	`Z(i,j) *= alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	Vp_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	`Z(i,j) += alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	Vp_V (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X)
	`Z(i,j) += X(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	V_VpV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	`Z(i,j) = X(i,j) + Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	V_VmV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	`Z(i,j) = X(i,j) - Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1`. More...

template<class Scalar >
void	V_StVpV (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	`Z(i,j) = alpha*X(i,j) + Y(i), i = 0...z->space()->dim()-1`, , j = 0...Z->domain()->dim()-1. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Detailed Description

template<class Scalar>
class Thyra::MultiVectorAdapterBase< Scalar >

Node subclass for MultiVectorBase subclasses that allows the insertion of an application defined scalar product.

Most concrete MultiVector adapter subclasses should derive from this base subclass in order to allow for the incorporate of application-defined scalar products.

ToDo: Finish Documentation!

Definition at line 35 of file Thyra_MultiVectorAdapterBase_decl.hpp.

Member Function Documentation

template<class Scalar >

virtual RCP<const ScalarProdVectorSpaceBase<Scalar> > Thyra::MultiVectorAdapterBase< Scalar >::rangeScalarProdVecSpc ( ) const

pure virtual

Implemented in Thyra::SpmdMultiVectorDefaultBase< Scalar >.

template<class Scalar >

virtual RCP<const ScalarProdVectorSpaceBase<Scalar> > Thyra::MultiVectorAdapterBase< Scalar >::domainScalarProdVecSpc ( ) const

pure virtual

Implemented in Thyra::DefaultSpmdMultiVector< Scalar >, and Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

template<class Scalar >

virtual void Thyra::MultiVectorAdapterBase< Scalar >::euclideanApply	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const

pure virtual

Apply the linear operator to a multi-vector with respect to a Euclidean vector space where the scalar product is the dot product.

Preconditions:

this->applySupports(conj)==true

Implemented in Thyra::TpetraMultiVector< Scalar, LocalOrdinal, GlobalOrdinal, Node >, and Thyra::SpmdMultiVectorDefaultBase< Scalar >.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::MultiVectorAdapterBase< Scalar >::range ( ) const

virtual

Returns this->rangeScalarProdVecSpc()

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 26 of file Thyra_MultiVectorAdapterBase_def.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::MultiVectorAdapterBase< Scalar >::domain ( ) const

virtual

Returns this->domainScalarProdVecSpc()

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 34 of file Thyra_MultiVectorAdapterBase_def.hpp.

template<class Scalar >

bool Thyra::MultiVectorAdapterBase< Scalar >::opSupportedImpl ( EOpTransp M_trans ) const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 44 of file Thyra_MultiVectorAdapterBase_def.hpp.

template<class Scalar >

void Thyra::MultiVectorAdapterBase< Scalar >::applyImpl	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 53 of file Thyra_MultiVectorAdapterBase_def.hpp.

The documentation for this class was generated from the following files:

Pure virtual functions to override in subclasses

Overridden functions from LinearOp

Overridden protected functions from LinearOpBase

Additional Inherited Members

Detailed Description

template<class Scalar> class Thyra::MultiVectorAdapterBase< Scalar >

Member Function Documentation

template<class Scalar>
class Thyra::MultiVectorAdapterBase< Scalar >
