Default base class for concrete model evaluators. More...

#include <Thyra_ModelEvaluatorDefaultBase.hpp>

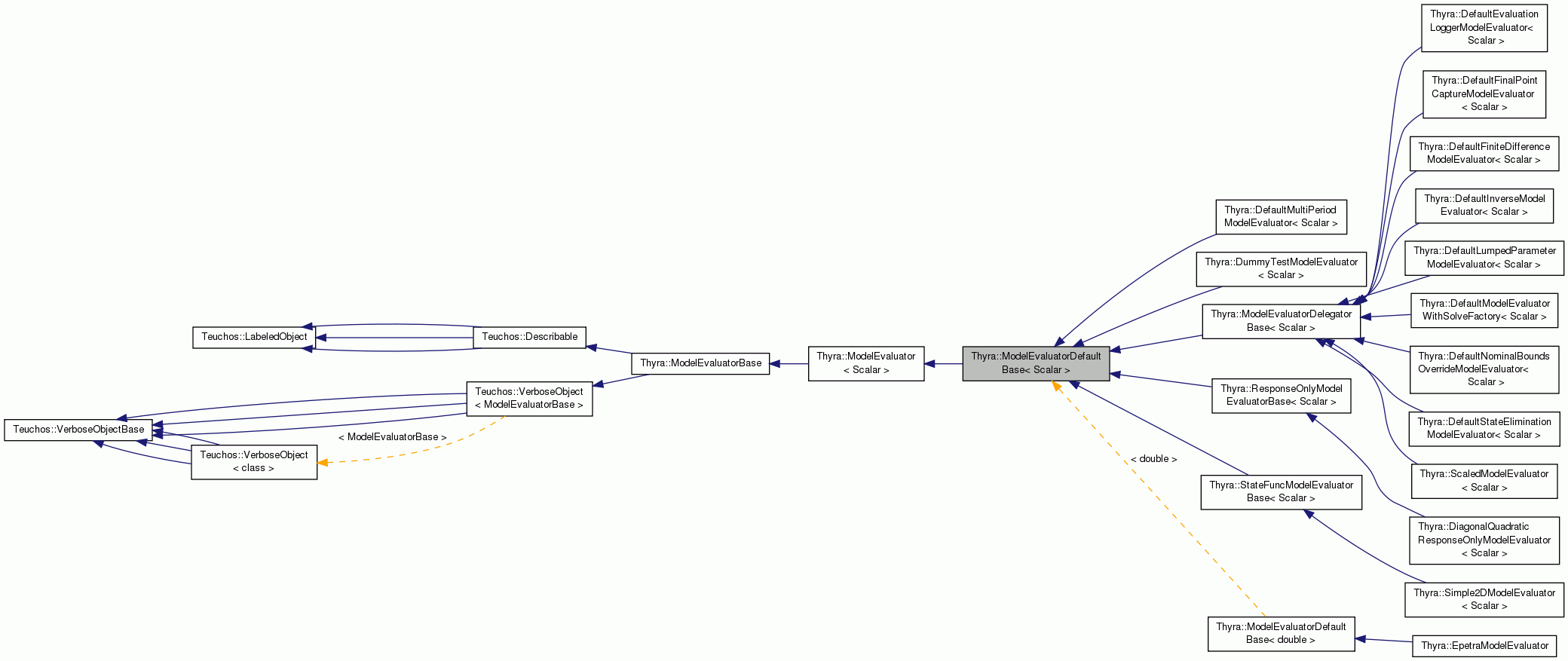

Inheritance diagram for Thyra::ModelEvaluatorDefaultBase< Scalar >:

Protected Member Functions
	ModelEvaluatorDefaultBase ()

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP < ModelEvaluatorBase::InArgs < Scalar > >	clone (const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Create a clone of an InArgs object. More...

template<class Scalar >
ModelEvaluatorBase::Derivative < Scalar >	derivativeGradient (const RCP< MultiVectorBase< Scalar > > &grad)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DfDp_mv (const ModelEvaluator< Scalar > &model, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_dot_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDp_mv (const ModelEvaluator< Scalar > &model, int j, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	get_dmv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName)

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	get_mv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
void	assertDerivSpaces (const std::string &modelEvalDescription, const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &deriv_name, const VectorSpaceBase< Scalar > &fnc_space, const std::string &fnc_space_name, const VectorSpaceBase< Scalar > &var_space, const std::string &var_space_name)
	Assert that that Thyra objects imbedded in a Derivative object matches its function and variable spaces. More...

template<class Scalar >
void	assertInArgsOutArgsSetup (const std::string &modelEvalDescription, const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs)
	Assert that an InArgs and OutArgs object are setup consistently. More...

template<class Scalar >
void	assertInArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Assert that the objects in an InArgs object match a given model. More...

template<class Scalar >
void	assertOutArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const ModelEvaluatorBase::InArgs< Scalar > *inArgs=0)
	Assert that the objects in an OutArgs object match a given model. More...

Related Functions inherited from Thyra::ModelEvaluatorBase
std::string	toString (ModelEvaluatorBase::EInArgsMembers)

std::string	toString (ModelEvaluatorBase::EOutArgsMembers)

std::string	toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation	getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

Overridden from ModelEvaluator
int	Np () const

int	Ng () const

RCP< LinearOpBase< Scalar > >	create_DfDp_op (int l) const

RCP< LinearOpBase< Scalar > >	create_DgDx_dot_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDx_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDp_op (int j, int l) const

RCP< LinearOpWithSolveBase < Scalar > >	create_W () const

ModelEvaluatorBase::OutArgs < Scalar >	createOutArgs () const

void	evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const

virtual RCP< const VectorSpaceBase< Scalar > >	get_f_multiplier_space () const

virtual RCP< const VectorSpaceBase< Scalar > >	get_g_multiplier_space (int j) const

Setup functions called by subclasses
void	initializeDefaultBase ()
	Function called by subclasses to fully initialize this object on any important change. More...

void	resetDefaultBase ()
	Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed. More...

Additional Inherited Members
Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Public Types inherited from Thyra::ModelEvaluatorBase
enum	EInArgsMembers { IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly, IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t, IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size, IN_ARG_stage_number }

enum	EInArgs_p_mp { IN_ARG_p_mp }

enum	EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
	The type of an evaluation. More...

enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp, OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly }

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
virtual RCP< const VectorSpaceBase< Scalar > >	get_x_space () const =0
	Return the vector space for the state variables `x <: RE^n_x`. More...

virtual RCP< const VectorSpaceBase< Scalar > >	get_f_space () const =0
	Return the vector space for the state function `f(...) <: RE^n_x`. More...

virtual RCP< const VectorSpaceBase< Scalar > >	get_p_space (int l) const =0
	Return the vector space for the auxiliary parameters `p(l) <: RE^n_p_l`. More...

virtual RCP< const Teuchos::Array< std::string > >	get_p_names (int l) const =0
	Get the names of the parameters associated with parameter subvector l if available. More...

virtual RCP< const VectorSpaceBase< Scalar > >	get_g_space (int j) const =0
	Return the vector space for the auxiliary response functions `g(j) <: RE^n_g_j`. More...

virtual Teuchos::ArrayView < const std::string >	get_g_names (int j) const =0
	Get the names of the response functions associated with subvector j if available. More...

virtual ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const =0
	Return the set of nominal values or initial guesses for the supported the input arguments. More...

virtual ModelEvaluatorBase::InArgs < Scalar >	getLowerBounds () const =0
	Return the set of lower bounds for the input arguments. More...

virtual ModelEvaluatorBase::InArgs < Scalar >	getUpperBounds () const =0
	Return the set of upper bounds for the input arguments. More...

virtual RCP< LinearOpBase < Scalar > >	create_W_op () const =0
	If supported, create a `LinearOpBase` object for `W` to be evaluated. More...

virtual RCP < PreconditionerBase< Scalar > >	create_W_prec () const =0
	If supported, create a `PreconditionerBase` object for `W_prec` to be evaluated. More...

virtual RCP< const LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const =0
	If supported, return a `LinearOpWithSolveFactoryBase` object that can be used to initialize a `LOWSB` object for `W` given a `LOB` object for `W_op`. More...

virtual ModelEvaluatorBase::InArgs < Scalar >	createInArgs () const =0
	Create an empty input arguments object that can be set up and passed to `evalModel()`. More...

virtual void	reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)=0
	Report the final point and whether the problem was considered solved or not. More...

Public Member Functions inherited from Thyra::ModelEvaluatorBase
	ModelEvaluatorBase ()
	constructor More...

Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int	NUM_E_IN_ARGS_MEMBERS =13

static const int	NUM_E_OUT_ARGS_MEMBERS =7

Detailed Description

template<class Scalar>
class Thyra::ModelEvaluatorDefaultBase< Scalar >

Default base class for concrete model evaluators.

The primary purposes of this base class are to:

Provide default implementations for other forms of derivatives in ModelEvaluatorBase::Derivative. For example, if a multi-vector form of a derivative (i.e. my column DhDy or by row DhDy^T) is provided then the other form will be provided assuming the range space has in-core vectors. Also, if any multi-vector form of a general derivative is provided, a LinearOpBase version is automatically supported.
Provide a default implementation for computing the LOWSB from W given the LOB-only form W_op given a LOWSFB object W_factory supplied by the subclass. If the subclass wants to take this over, then it should override create_W().
Assert (in debug mode) that the underlying model has been set up correctly.

ToDo: Finish Documentation!

Definition at line 156 of file Thyra_ModelEvaluatorDefaultBase.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::ModelEvaluatorDefaultBase< Scalar >::ModelEvaluatorDefaultBase ( )

protected

Definition at line 1004 of file Thyra_ModelEvaluatorDefaultBase.hpp.

Member Function Documentation

template<class Scalar >

int Thyra::ModelEvaluatorDefaultBase< Scalar >::Np ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DiagonalQuadraticResponseOnlyModelEvaluator< Scalar >.

Definition at line 372 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

int Thyra::ModelEvaluatorDefaultBase< Scalar >::Ng ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DiagonalQuadraticResponseOnlyModelEvaluator< Scalar >.

Definition at line 380 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::create_DfDp_op ( int l ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 400 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::create_DgDx_dot_op ( int j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 421 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::create_DgDx_op ( int j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 442 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::create_DgDp_op	(	int	j,
		int	l
	)		const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 463 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< LinearOpWithSolveBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::create_W ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::ModelEvaluatorDelegatorBase< Scalar >, Thyra::DefaultStateEliminationModelEvaluator< Scalar >, and Thyra::ResponseOnlyModelEvaluatorBase< Scalar >.

Definition at line 389 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

ModelEvaluatorBase::OutArgs< Scalar > Thyra::ModelEvaluatorDefaultBase< Scalar >::createOutArgs ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 485 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorDefaultBase< Scalar >::evalModel	(	const ModelEvaluatorBase::InArgs< Scalar > &	inArgs,
		const ModelEvaluatorBase::OutArgs< Scalar > &	outArgs
	)		const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 493 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::get_f_multiplier_space ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::ModelEvaluatorDelegatorBase< Scalar >.

Definition at line 942 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::ModelEvaluatorDefaultBase< Scalar >::get_g_multiplier_space ( int j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::ModelEvaluatorDelegatorBase< Scalar >.

Definition at line 949 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorDefaultBase< Scalar >::initializeDefaultBase ( )

protected

Function called by subclasses to fully initialize this object on any important change.

Note: This class will automatically call this function the first time to set things up and does not need to be called by the client the first time. However, if the state of the object changes, then this function should be called to reset the state of this object's implemention!

Definition at line 712 of file Thyra_ModelEvaluatorDefaultBase.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorDefaultBase< Scalar >::resetDefaultBase ( )

protected

Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed.

This is used when a derived class changes state and requires lazy initialization.

Definition at line 856 of file Thyra_ModelEvaluatorDefaultBase.hpp.

Friends And Related Function Documentation

template<class Scalar >

RCP< ModelEvaluatorBase::InArgs< Scalar > > clone ( const ModelEvaluatorBase::InArgs< Scalar > & inArgs )

Warning! This function only creates a shallow copy of the underlying input objects. Therefore, be careful if you try to modify any of these.

template<class Scalar >

ModelEvaluatorBase::Derivative< Scalar > derivativeGradient ( const RCP< MultiVectorBase< Scalar > > & grad )

ModelEvaluatorBase::DerivativeMultiVector< Scalar > create_DfDp_mv	(	const ModelEvaluator< Scalar > &	model,
		int	l,
		ModelEvaluatorBase::EDerivativeMultiVectorOrientation	orientation
	)

ModelEvaluatorBase::DerivativeMultiVector< Scalar > create_DgDx_dot_mv	(	const ModelEvaluator< Scalar > &	model,
		int	j,
		ModelEvaluatorBase::EDerivativeMultiVectorOrientation	orientation
	)

ModelEvaluatorBase::DerivativeMultiVector< Scalar > create_DgDx_mv	(	const ModelEvaluator< Scalar > &	model,
		int	j,
		ModelEvaluatorBase::EDerivativeMultiVectorOrientation	orientation
	)

ModelEvaluatorBase::DerivativeMultiVector< Scalar > create_DgDp_mv	(	const ModelEvaluator< Scalar > &	model,
		int	j,
		int	l,
		ModelEvaluatorBase::EDerivativeMultiVectorOrientation	orientation
	)

ModelEvaluatorBase::DerivativeMultiVector< Scalar > get_dmv	(	const ModelEvaluatorBase::Derivative< Scalar > &	deriv,
		const std::string &	derivName
	)

RCP< MultiVectorBase< Scalar > > get_mv	(	const ModelEvaluatorBase::Derivative< Scalar > &	deriv,
		const std::string &	derivName,
		ModelEvaluatorBase::EDerivativeMultiVectorOrientation	orientation
	)

void assertDerivSpaces	(	const std::string &	modelEvalDescription,
		const ModelEvaluatorBase::Derivative< Scalar > &	deriv,
		const std::string &	deriv_name,
		const VectorSpaceBase< Scalar > &	fnc_space,
		const std::string &	fnc_space_name,
		const VectorSpaceBase< Scalar > &	var_space,
		const std::string &	var_space_name
	)

template<class Scalar >

void assertInArgsOutArgsSetup	(	const std::string &	modelEvalDescription,
		const ModelEvaluatorBase::InArgs< Scalar > &	inArgs,
		const ModelEvaluatorBase::OutArgs< Scalar > &	outArgs
	)

template<class Scalar >

void assertInArgsEvalObjects	(	const ModelEvaluator< Scalar > &	model,
		const ModelEvaluatorBase::InArgs< Scalar > &	inArgs
	)

template<class Scalar >

void assertOutArgsEvalObjects	(	const ModelEvaluator< Scalar > &	model,
		const ModelEvaluatorBase::OutArgs< Scalar > &	outArgs,
		const ModelEvaluatorBase::InArgs< Scalar > *	inArgs = `0`
	)

The documentation for this class was generated from the following files:

Protected Member Functions

Related Functions

Overridden from ModelEvaluator

Setup functions called by subclasses

Additional Inherited Members

Detailed Description

template<class Scalar> class Thyra::ModelEvaluatorDefaultBase< Scalar >

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

template<class Scalar>
class Thyra::ModelEvaluatorDefaultBase< Scalar >
