Thyra::PreconditionerBase< Scalar > Class Template Reference

Simple interface class to access a precreated preconditioner as one or more linear operators objects and information on how they are meant to be applied. More...

#include <Thyra_PreconditionerBase.hpp>

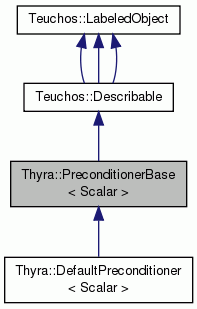

Inheritance diagram for Thyra::PreconditionerBase< Scalar >:

Pure virtual public functions that must be overridden in subclasses
virtual bool	isLeftPrecOpConst () const =0
	Return if the underlying left preconditioner operator is const-only or allows non-const access. More...
virtual Teuchos::RCP < LinearOpBase< Scalar > >	getNonconstLeftPrecOp ()=0
	Return a non-const left preconditioner linear operator if one is designed or targeted to be applied on the left. More...
virtual Teuchos::RCP< const LinearOpBase< Scalar > >	getLeftPrecOp () const =0
	Return a const left preconditioner linear operator if one is designed or targeted to be applied on the left. More...
virtual bool	isRightPrecOpConst () const =0
	Return if the underlying right preconditioner operator is const-only or allows non-const access. More...
virtual Teuchos::RCP < LinearOpBase< Scalar > >	getNonconstRightPrecOp ()=0
	Return a non-const right preconditioner linear operator if one is designed or targeted to be applied on the right. More...
virtual Teuchos::RCP< const LinearOpBase< Scalar > >	getRightPrecOp () const =0
	Return a const right preconditioner linear operator if one is designed or targeted to be applied on the right. More...
virtual bool	isUnspecifiedPrecOpConst () const =0
	Return if the underlying unspecified preconditioner operator is const-only or allows non-const access. More...
virtual Teuchos::RCP < LinearOpBase< Scalar > >	getNonconstUnspecifiedPrecOp ()=0
	Return a non-const generic preconditioner linear operator that is not designed or targeted to be applied on the left or on the right. More...
virtual Teuchos::RCP< const LinearOpBase< Scalar > >	getUnspecifiedPrecOp () const =0
	Return a const generic preconditioner linear operator that is not designed or targeted to be applied on the left or on the right. More...

Detailed Description

template<class Scalar>
class Thyra::PreconditionerBase< Scalar >

Simple interface class to access a precreated preconditioner as one or more linear operators objects and information on how they are meant to be applied.

This class supports four different kinds of preconditioners:

• Single preconditioner linear operator designed or targeted to be applied on the left:
  • getLeftPrecOp().get()!=NULL
  • getRightPrecOp().get()==NULL
  • getUnspecifiedPrecOp().get()==NULL
• Single preconditioner linear operator designed or targeted to be applied on the right:
  • getLeftPrecOp().get()==NULL
  • getRightPrecOp().get()!=NULL
  • getUnspecifiedPrecOp().get()==NULL
• Split two-sided preconditioner with linear operators designed or targeted to be applied on the left and the right:
  • getLeftPrecOp().get()!=NULL
  • getRightPrecOp().get()!=NULL
  • getUnspecifiedPrecOp().get()==NULL
• Single preconditioner linear operator not designed or targeted to be applied on the left or the right:
  • getLeftPrecOp().get()==NULL
  • getRightPrecOp().get()==NULL
  • getUnspecifiedPrecOp().get()!=NULL

Definition at line 21 of file Thyra_OperatorSolveTypes.hpp.

Member Function Documentation

template<class Scalar >

virtual bool Thyra::PreconditionerBase< Scalar >::isLeftPrecOpConst ( ) const

pure virtual

Return if the underlying left preconditioner operator is const-only or allows non-const access.

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<LinearOpBase<Scalar> > Thyra::PreconditionerBase< Scalar >::getNonconstLeftPrecOp ( )

pure virtual

Return a non-const left preconditioner linear operator if one is designed or targeted to be applied on the left.

Preconditions:

• [isLeftPrecOpConst()==true] getLeftPrecOp().get()==NULL

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const LinearOpBase<Scalar> > Thyra::PreconditionerBase< Scalar >::getLeftPrecOp ( ) const

pure virtual

Return a const left preconditioner linear operator if one is designed or targeted to be applied on the left.

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual bool Thyra::PreconditionerBase< Scalar >::isRightPrecOpConst ( ) const

pure virtual

Return if the underlying right preconditioner operator is const-only or allows non-const access.

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<LinearOpBase<Scalar> > Thyra::PreconditionerBase< Scalar >::getNonconstRightPrecOp ( )

pure virtual

Return a non-const right preconditioner linear operator if one is designed or targeted to be applied on the right.

Preconditions:

• [isRightPrecOpConst()==true] getRightPrecOp().get()==NULL

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const LinearOpBase<Scalar> > Thyra::PreconditionerBase< Scalar >::getRightPrecOp ( ) const

pure virtual

Return a const right preconditioner linear operator if one is designed or targeted to be applied on the right.

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual bool Thyra::PreconditionerBase< Scalar >::isUnspecifiedPrecOpConst ( ) const

pure virtual

Return if the underlying unspecified preconditioner operator is const-only or allows non-const access.

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<LinearOpBase<Scalar> > Thyra::PreconditionerBase< Scalar >::getNonconstUnspecifiedPrecOp ( )

pure virtual

Return a non-const generic preconditioner linear operator that is not designed or targeted to be applied on the left or on the right.

Implemented in Thyra::DefaultPreconditioner< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const LinearOpBase<Scalar> > Thyra::PreconditionerBase< Scalar >::getUnspecifiedPrecOp ( ) const

pure virtual

Return a const generic preconditioner linear operator that is not designed or targeted to be applied on the left or on the right.

Preconditions:

• [isUnspecifiedPrecOpConst()==true] getUnspecifiedPrecOp().get()==NULL

Implemented in Thyra::DefaultPreconditioner< Scalar >.

---

The documentation for this class was generated from the following files:

• Thyra_OperatorSolveTypes.hpp
• Thyra_PreconditionerBase.hpp
