Factory interface for creating LinearOpWithSolveBase objects from compatible LinearOpBase objects. More...

#include <Thyra_LinearOpWithSolveFactoryBase_decl.hpp>

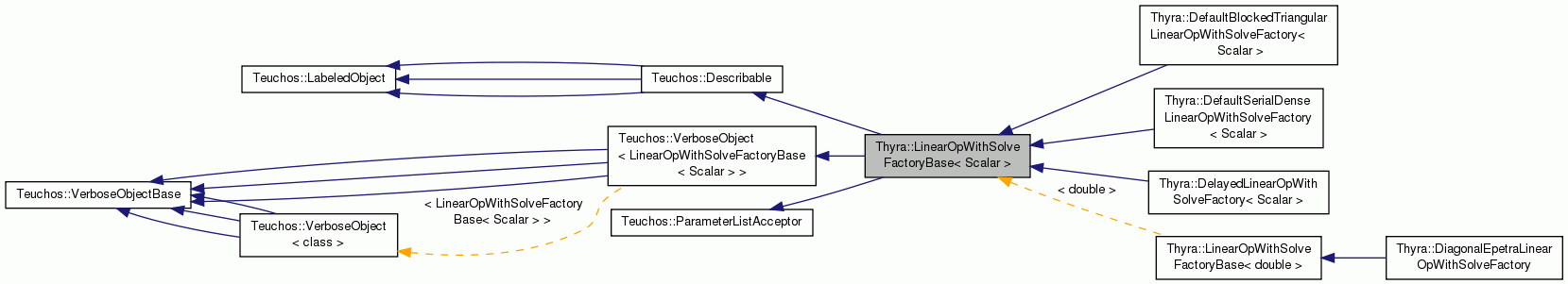

Inheritance diagram for Thyra::LinearOpWithSolveFactoryBase< Scalar >:

Related Functions
(Note that these are not member functions.)
template<class Scalar >
bool	isCompatible (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const LinearOpBase< Scalar > &fwdOp)
	Return if the forward operator is a compatible source for a LOWSFB object. More...

template<class Scalar >
void	setDefaultObjectLabel (const LinearOpBase< Scalar > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op)
	Set default label on a LOWSB object. More...

template<class Scalar >
void	initializeOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Initialize a pre-created LOWSB object given a forward operator. More...

template<class Scalar >
void	initializeAndReuseOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op)
	Reinitialize a pre-created LOWSB object given a forward operator, reusing a much as possible from the prior LOWSB object. More...

template<class Scalar >
void	initializePreconditionedOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const RCP< const PreconditionerBase< Scalar > > &prec, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Initialize a preconditioned LOWSB object given an external preconditioner. More...

template<class Scalar >
void	initializeApproxPreconditionedOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const RCP< const LinearOpBase< Scalar > > &approxFwdOp, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Initialize a preconditioned LOWSB object given an external operator to be used to generate the preconditioner internally. More...

template<class Scalar >
RCP< LinearOpWithSolveBase < Scalar > >	linearOpWithSolve (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const RCP< const LinearOpBase< Scalar > > &fwdOp, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED)
	Create and initialize a `LinearOpWithSolveBase` object from a `LinearOpBase` object using a `LinearOpWithSolveFactoryBase` strategy object. More...

template<class Scalar >
RCP< LinearOpBase< Scalar > >	inverse (const LinearOpWithSolveFactoryBase< Scalar > &LOWSF, const RCP< const LinearOpBase< Scalar > > &fwdOp, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED, const Ptr< const SolveCriteria< Scalar > > &fwdSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnFwdSolveFailure=THROW_ON_SOLVE_FAILURE, const Ptr< const SolveCriteria< Scalar > > &adjSolveCriteria=Teuchos::null, const EThrowOnSolveFailure throwOnAdjSolveFailure=THROW_ON_SOLVE_FAILURE)
	Form a const implicit inverse operator `M = inv(A)` given a factory. More...

template<class Scalar >
void	uninitializeOp (const LinearOpWithSolveFactoryBase< Scalar > &lowsFactory, const Ptr< LinearOpWithSolveBase< Scalar > > &Op, const Ptr< RCP< const LinearOpBase< Scalar > > > &fwdOp=Teuchos::null, const Ptr< RCP< const PreconditionerBase< Scalar > > > &prec=Teuchos::null, const Ptr< RCP< const LinearOpBase< Scalar > > > &approxFwdOp=Teuchos::null, const Ptr< ESupportSolveUse > &supportSolveUse=Teuchos::null)
	Uninitialized a pre-created LOWSB object, returning input objects used to initialize it. More...

Preconditioner Factory Management
virtual bool	acceptsPreconditionerFactory () const
	Determines if `*this` accepts external preconditioner factories. More...

virtual void	setPreconditionerFactory (const RCP< PreconditionerFactoryBase< Scalar > > &precFactory, const std::string &precFactoryName)
	Set a preconditioner factory object. More...

virtual RCP < PreconditionerFactoryBase < Scalar > >	getPreconditionerFactory () const
	Get a preconditioner factory object. More...

virtual void	unsetPreconditionerFactory (RCP< PreconditionerFactoryBase< Scalar > > precFactory=NULL, std::string precFactoryName=NULL)
	Unset the preconditioner factory (if one is set). More...

Creation/Initialization of basic LinearOpWithSolveBase objects
virtual bool	isCompatible (const LinearOpSourceBase< Scalar > &fwdOpSrc) const =0
	Check that a `LinearOpBase` object is compatible with `*this` factory object. More...

virtual RCP < LinearOpWithSolveBase < Scalar > >	createOp () const =0
	Create an (uninitialized) `LinearOpWithSolveBase` object to be initialized later in `this->initializeOp()`. More...

virtual void	initializeOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED) const =0
	Initialize a pre-created `LinearOpWithSolveBase` object given a "compatible" `LinearOpBase` object. More...

virtual void	initializeAndReuseOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, LinearOpWithSolveBase< Scalar > *Op) const
	Initialize a pre-created `LinearOpWithSolveBase` object given a "compatible" `LinearOpBase` object but allow for reuse of any preprocessing that is in `*Op`. More...

virtual void	uninitializeOp (LinearOpWithSolveBase< Scalar > Op, RCP< const LinearOpSourceBase< Scalar > > fwdOpSrc=NULL, RCP< const PreconditionerBase< Scalar > > prec=NULL, RCP< const LinearOpSourceBase< Scalar > > approxFwdOpSrc=NULL, ESupportSolveUse *supportSolveUse=NULL) const =0
	Uninitialize a `LinearOpWithSolveBase` object and return its remembered forward linear operator and potentially also its externally generated preconditioner. More...

Creation/Initialization of Preconditioned LinearOpWithSolveBase objects
virtual bool	supportsPreconditionerInputType (const EPreconditionerInputType precOpType) const
	Determines if `*this` supports given preconditioner type. More...

virtual void	initializePreconditionedOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, const RCP< const PreconditionerBase< Scalar > > &prec, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED) const
	Initialize a pre-created `LinearOpWithSolveBase` object given a "compatible" `LinearOpBase` object and an optional `PreconditionerBase` object. More...

virtual void	initializeApproxPreconditionedOp (const RCP< const LinearOpSourceBase< Scalar > > &fwdOpSrc, const RCP< const LinearOpSourceBase< Scalar > > &approxFwdOpSrc, LinearOpWithSolveBase< Scalar > *Op, const ESupportSolveUse supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED) const
	Initialize a pre-created `LinearOpWithSolveBase` object given a "compatible" forward `LinearOpBase` object and an approximate forward `LinearOpBase` object. More...

Detailed Description

template<class Scalar>
class Thyra::LinearOpWithSolveFactoryBase< Scalar >

Factory interface for creating LinearOpWithSolveBase objects from compatible LinearOpBase objects.

Outline

Introduction

This strategy interface allows a client to take one or more "compatible" LinearOpBase objects and then create one or more LinearOpWithSolveBase objects that can then be used to solve for linear systems. This interface carefully separates the construction from the initialization of a LinearOpWithSolveBase object.

Note that the non-member functions defined here provide for simpler use cases and are demonstrated in the example code below.

This interface can be implemented by both direct and iterative linear solvers.

This interface supports the concept of an external preconditioner that can be created by the client an passed into the function initializePreconditionedOp()

Use cases

The following use cases demonstrate and specify the behavior of this interface in several different situations. These use cases don't cover very possible variation but implementors and clients should get a pretty good idea of the desired behavior from what is specified below.

Note: All of the code fragments shown in the below use cases is code that is compiled and run automatically by the test harness and the code fragments are automatically pulled into this HTML documentation whenever the documentation is rebuilt. Therefore, one can have a very high degree of confidence that the code shown in these examples is correct.

The following use cases are described below:

Performing a single linear solve given a forward operator

Performing a single linear solve is at minimum a two step process. The following example function shows how to take a LinearOpBase object, a compatible LinearOpWithSolveFactoryBase object, a RHS and a LHS and then solve the linear system using the default solve criteria:

template<class Scalar>
void singleLinearSolve(
  const Thyra::LinearOpBase<Scalar> &A,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  const Thyra::VectorBase<Scalar> &b,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x,
  Teuchos::FancyOStream &out
  )
{
  typedef Teuchos::ScalarTraits<Scalar> ST;
  using Teuchos::rcpFromRef;
  Teuchos::OSTab tab(out);
  out << "\nPerforming a single linear solve ...\n";
  // Create the LOWSB object that will be used to solve the linear system
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    Thyra::linearOpWithSolve(lowsFactory, rcpFromRef(A));
  // Solve the system using a default solve criteria using a non-member helper function
  assign(x, ST::zero()); // Must initialize to a guess before solve!
  Thyra::SolveStatus<Scalar>
    status = Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b, x);
  out << "\nSolve status:\n" << status;
} // end singleLinearSolve

See the documentation for the LinearOpWithSolveBase interface for how to specify solve criteria, how to perform adjoint (i.e. transpose) solve, and how to solve systems with multiple RHSs.

Note that the forward operator A is passed into this function singleLinearSolve(...) as a raw object reference and not as a Teuchos::RCP wrapped object since no persisting relationship with this object will be last after this function exists, even if an exception is thrown.

Also note that once the above function exits that all memory of the invertible operator created as part of the invertibleA object will be erased. The following use cases show more sophisticated uses of these interfaces.

Creating invertible operators for scaled and/or adjoint forward operators

This interface requires that all good implementations support implicitly scaled and adjoint (or transposed) forward operators. The following example function shows how this looks:

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createScaledAdjointLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Scalar &scalar,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating a scaled adjoint LinearOpWithSolveBase object ...\n";
  // Create the LOWSB object that will be used to solve the linear system
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleAdjointA =
    Thyra::linearOpWithSolve(lowsFactory,scale(scalar,adjoint(A)));
  out << "\nCreated LOWSB object:\n" << describe(*invertibleAdjointA,
    Teuchos::VERB_MEDIUM);
  return invertibleAdjointA;
} // end createScaledAdjointLinearOpWithSolve

In the above example, the functions adjoint() and scale() create an implicitly scaled adjoint operator of type DefaultScaledAdjointLinearOp which is then unwrapped by the lowsFactory implementation. The idea is that any operation that works with a particular forward operator A should automatically work with an implicitly scaled and/or adjoint view of that forward operator. The specification of this interface actually says that all LinearOpBase objects that support the abstract mix-in interface ScaledAdjointLinearOpBase will allow this feature.

Above also note that the forward operator A is passed in as a Teuchos::RCP wrapped object since it will be used to create a persisting relationship with the returned Thyra::LinearOpWithSolveBase object. Also note that the lowsFactory object is still passed in as a raw object reference since no persisting relationship with lowsFactory is created as a side effect of calling this function. Remember, the specification of this interface requires that the returned LinearOpWithSolveBase objects be independent from the lowsFactory object that creates them. In other words, once a LinearOpWithSolveFactoryBase object creates a LinearOpWithSolveBase object, then the LinearOpWithSolveFactoryBase object can be deleted and the LinearOpWithSolveBase it created must still be valid.

Updates of linear operator between linear solves

In this use case is comprised of:

Creating a LinearOpWithSolveBase object from a LinearOpBase object
Using the LinearOpWithSolveBase object to solve one or more linear systems
Modifying the LinearOpBase object and reinitializing the LinearOpWithSolveBase object
Using the updated LinearOpWithSolveBase object to solve one or more linear systems

The below code fragment shows how this looks.

template<class Scalar>
void solveNumericalChangeSolve(
  const Teuchos::Ptr<Thyra::LinearOpBase<Scalar> > &A,
  const Thyra::LinearOpChanger<Scalar> &opChanger,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  const Thyra::VectorBase<Scalar> &b1,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x1,
  const Thyra::VectorBase<Scalar> &b2,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x2,
  Teuchos::FancyOStream &out
  )
{
  using Teuchos::as; using Teuchos::ptr; using Teuchos::rcpFromPtr;
  Teuchos::OSTab tab(out);
  out << "\nPerforming a solve, changing the operator, then performing another"
      << " solve ...\n";
  // Get a local non-owned RCP to A to be used by lowsFactory
  Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > rcpA = rcpFromPtr(A);
  // Create the LOWSB object that will be used to solve the linear system
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  // Initialize the invertible linear operator given the forward operator
  Thyra::initializeOp<Scalar>(lowsFactory, rcpA, invertibleA.ptr());
  // Solve the system using a default solve criteria using a non-member helper function
  Thyra::assign(x1, as<Scalar>(0.0));
  Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b1, x1);
  // Before the forward operator A is changed it is recommended that you
  // uninitialize *invertibleA first to avoid accidental use of *invertiableA
  // while it may be in an inconsistent state from the time between *A changes
  // and *invertibleA is explicitly updated. However, this step is not
  // required!
  Thyra::uninitializeOp<Scalar>(lowsFactory, invertibleA.ptr());
  // Change the operator and reinitialize the invertible operator
  opChanger.changeOp(A);
  Thyra::initializeOp<Scalar>(lowsFactory, rcpA, invertibleA.ptr());
  // Note that above will reuse any factorization structures that may have been
  // created in the first call to initializeOp(...).
  // Finally, solve another linear system with new values of A
  Thyra::assign<Scalar>(x2, as<Scalar>(0.0));
  Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b2, x2);
} // end solveNumericalChangeSolve

In the above code fragment the call to the function lowsFactory.uninitializeOp(&*invertibleA) may not fully uninitialize the *invertibleA object as it may contain memory of a factorization structure, or a communication pattern, or whatever may have been computed in the first call to lowsFactory.initializeOp(rcpA,&*invertibleA). This allows for a more efficient reinitialization on the second call of lowsFactory.initializeOp(rcpA,&*invertibleA).

Reuse of factorizations for small changes in the forward operator

This interface supports the notion of the reuse of all factorizations or other expensive preprocessing used in the last initialization of the LinearOpWithSolveBase object. The primary use for this is the reuse of a preconditioner for small changes in the matrix values. While this approach generally is not very effective in many cases, there are some cases, such as in transient solvers, where this has been shown to be effective in some problems.

The below example function shows what this looks like:

template<class Scalar>
void solveSmallNumericalChangeSolve(
  const Teuchos::Ptr<Thyra::LinearOpBase<Scalar> > &A,
  const Thyra::LinearOpChanger<Scalar> &opSmallChanger,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  const Thyra::VectorBase<Scalar> &b1,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x1,
  const Thyra::VectorBase<Scalar> &b2,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x2,
  Teuchos::FancyOStream &out
  )
{
  using Teuchos::ptr; using Teuchos::as; using Teuchos::rcpFromPtr;
  Teuchos::OSTab tab(out);
  out << "\nPerforming a solve, changing the operator in a very small way,"
      << " then performing another solve ...\n";
  // Get a local non-owned RCP to A to be used by lowsFactory
  Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > rcpA = rcpFromPtr(A);
  // Create the LOWSB object that will be used to solve the linear system
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  // Initialize the invertible linear operator given the forward operator
  Thyra::initializeOp<Scalar>(lowsFactory, rcpA, invertibleA.ptr());
  // Solve the system using a default solve criteria using a non-member helper function
  Thyra::assign(x1, as<Scalar>(0.0));
  Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b1, x1);
  // Before the forward operator A is changed it is recommended that you
  // uninitialize *invertibleA first to avoid accidental use of *invertiableA
  // while it may be in an inconsistent state from the time between *A changes
  // and *invertibleA is explicitly updated. However, this step is not
  // required!
  Thyra::uninitializeOp<Scalar>(lowsFactory, invertibleA.ptr());
  // Change the operator and reinitialize the invertible operator
  opSmallChanger.changeOp(A);
  Thyra::initializeAndReuseOp<Scalar>(lowsFactory, rcpA, invertibleA.ptr());
  // Note that above a maximum amount of reuse will be achieved, such as
  // keeping the same preconditioner.
  Thyra::assign(x2, as<Scalar>(0.0));
  Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b2, x2);
} // end solveSmallNumericalChangeSolve

Note that the *invertibleA object reinitialized in the second call to lowsFactory.initializeAndReuseOp(rcpA,&*invertibleA) must be able to correctly solve the linear systems to an appropriate accuracy. For example, a preconditioned iterative linear solver might keep the same preconditioner but would use the updated forward operator to define the linear system. A direct solver can not reuse the factorization unless it has an iterative refinement feature (which uses the updated forward operator) or some other device. Or a direct solver might, for instance, reuse the same factorization structure and not re-pivot where it might re-pivot generally.

Updating the linear solver for major changes in the structure of the forward operator

A major change in the shape or structure of a forward operator generally eliminates the possibility of reusing any computations between different calls to initializeOp(). In these instances, the client might as well just recreate the LinearOpWithSolveBase using createOp() before the reinitialization.

The below example function shows what this looks like:

template<class Scalar>
void solveMajorChangeSolve(
  const Teuchos::Ptr<Thyra::LinearOpBase<Scalar> > &A,
  const Thyra::LinearOpChanger<Scalar> &opMajorChanger,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  const Thyra::VectorBase<Scalar> &b1,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x1,
  const Thyra::VectorBase<Scalar> &b2,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x2,
  Teuchos::FancyOStream &out
  )
{
  using Teuchos::as; using Teuchos::rcpFromPtr;
  Teuchos::OSTab tab(out);
  out << "\nPerforming a solve, changing the operator in a major way, then performing"
      << " another solve ...\n";
  // Get a local non-owned RCP to A to be used by lowsFactory
  Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > rcpA = rcpFromPtr(A);
  // Create the LOWSB object that will be used to solve the linear system
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  // Initialize the invertible linear operator given the forward operator
  Thyra::initializeOp<Scalar>(lowsFactory, rcpA, invertibleA.ptr());
  // Solve the system using a default solve criteria using a non-member helper function
  Thyra::assign(x1, as<Scalar>(0.0));
  Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b1, x1);
  // Before the forward operator A is changed it is recommended that you
  // uninitialize *invertibleA first to avoid accidental use of *invertiableA
  // while it may be in an inconsistent state from the time between *A changes
  // and *invertibleA is explicitly updated. However, this step is not
  // required!
  Thyra::uninitializeOp<Scalar>(lowsFactory, invertibleA.ptr());
  // Change the operator in some major way (perhaps even changing its structure)
  opMajorChanger.changeOp(A);
  // Recreate the LOWSB object and initialize it from scratch
  invertibleA = lowsFactory.createOp();
  Thyra::initializeOp<Scalar>(lowsFactory, rcpA, invertibleA.ptr());
  // Solve another set of linear systems
  Thyra::assign(x2, as<Scalar>(0.0));
  Thyra::solve<Scalar>(*invertibleA, Thyra::NOTRANS, b2, x2);
} // end solveMajorChangeSolve

Externally defined preconditioners

This interface also supports the use of externally defined preconditioners that are created and controlled by the client. Client-created and client-controlled preconditioners can be passed along with the forward operator through the function initializePreconditionedOp(). Only LinearOpWithSolveFactoryBase objects that return supportsPreconditionerType()==true will support externally defined preconditioners. In general, iterative linear solver implementations will support externally defined preconditioners and direct linear solver implementations will not.

Externally defined preconditioners can be passed in as operators or as matrices and these two sub use cases are described below.

Use of externally defined preconditioner operators

The client can use externally defined preconditioner linear operator(s) for LinearOpWithSolveFactoryBase objects that accept preconditioners. Preconditioner operator(s) are specified through the PreconditionerBase interface. A PreconditionerBase object is essentially an encapsulation of a left, right, or split left/right preconditioner.

Using an externally defined PreconditionerBase object

Given an externally defined PreconditionerBase object, the client can pass it allow with a forward linear operator to initialize a LinearOpWithSolveBase object as shown in the following code fragment:

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createGeneralPreconditionedLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Teuchos::RCP<const Thyra::PreconditionerBase<Scalar> > &P,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating an externally preconditioned LinearOpWithSolveBase object ...\n";
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A, P, invertibleA.ptr());
  out << "\nCreated LOWSB object:\n" << describe(*invertibleA, Teuchos::VERB_MEDIUM);
  return invertibleA;
} // end createGeneralPreconditionedLinearOpWithSolve

Using a single externally defined LinearOpBase object as an unspecified preconditioner

A client can easily use any compatible appropriately defined LinearOpBase object as a preconditioner operator. To do so, it can just be wrapped by the default PreconditionerBase implementation class DefaultPreconditioner.

The following code fragment shows show to use an externally defined LinearOpBase object as a preconditioner operator without specifying whether it should be applied on the right or on the left.

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createUnspecifiedPreconditionedLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &P_op,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating an LinearOpWithSolveBase object given a preconditioner operator"
      << " not targeted to the left or right ...\n";
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A,
    Thyra::unspecifiedPrec<Scalar>(P_op), invertibleA.ptr());
  // Above, the lowsFactory object will decide whether to apply the single
  // preconditioner operator on the left or on the right.
  out << "\nCreated LOWSB object:\n" << describe(*invertibleA, Teuchos::VERB_MEDIUM);
  return invertibleA;
} // end createUnspecifiedPreconditionedLinearOpWithSolve

Using a single externally defined LinearOpBase object as a left preconditioner

An externally defined LinearOpBase object can be used as a preconditioner operator targeted as a left preconditioner as shown in the following code fragment:

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createLeftPreconditionedLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &P_op_left,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating an LinearOpWithSolveBase object given a left preconditioner"
      << " operator ...\n";
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A,
    Thyra::leftPrec<Scalar>(P_op_left), invertibleA.ptr());
  out << "\nCreated LOWSB object:\n" << describe(*invertibleA, Teuchos::VERB_MEDIUM);
  return invertibleA;
} // end createLeftPreconditionedLinearOpWithSolve

Using a single externally defined LinearOpBase object as a right preconditioner

An externally defined LinearOpBase object can be used as a preconditioner operator targeted as a right preconditioner as shown in the following code fragement:

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createRightPreconditionedLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &P_op_right,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating an LinearOpWithSolveBase object given a right"
      << " preconditioner operator ...\n";
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A,
    Thyra::rightPrec<Scalar>(P_op_right), invertibleA.ptr());
  out << "\nCreated LOWSB object:\n" << describe(*invertibleA, Teuchos::VERB_MEDIUM);
  return invertibleA;
} // end createRightPreconditionedLinearOpWithSolve

Using two single externally defined LinearOpBase objects as a split left/right preconditioner

Two externally defined LinearOpBase objects can be used as preconditioner operators for form a split preconditioner targeted to the left and right as shown in the following code fragement:

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createLeftRightPreconditionedLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &P_op_left,
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &P_op_right,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating an LinearOpWithSolveBase object given a left and"
      << "right preconditioner operator ...\n";
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A,
    Thyra::splitPrec<Scalar>(P_op_left, P_op_right), invertibleA.ptr());
  out << "\nCreated LOWSB object:\n" << describe(*invertibleA, Teuchos::VERB_MEDIUM);
  return invertibleA;
} // end createLeftRightPreconditionedLinearOpWithSolve

The use of externally defined preconditioner matrices

A different linear operator can be used to build a preconditioner internally when initializing a LinearOpWithSolveBase object. The following code fragement shows how to use an approximate forward linear from which to form a preconditioner internally:

template<class Scalar>
Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> >
createMatrixPreconditionedLinearOpWithSolve(
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A,
  const Teuchos::RCP<const Thyra::LinearOpBase<Scalar> > &A_approx,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  Teuchos::FancyOStream &out
  )
{
  Teuchos::OSTab tab(out);
  out << "\nCreating a LinearOpWithSolveBase object given an approximate forward"
      << " operator to define the preconditioner ...\n";
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializeApproxPreconditionedOp<Scalar>(lowsFactory, A, A_approx,
    invertibleA.ptr());
  out << "\nCreated LOWSB object:\n" << describe(*invertibleA, Teuchos::VERB_MEDIUM);
  return invertibleA;
} // end createMatrixPreconditionedLinearOpWithSolve

Reuse of externally defined preconditioner operators

Reusing an externally defined preconditioner is a very straightforward matter conceptually. Since the client controls the creation and initialization of the preconditioner, the client can control which preconditioners are paired with which forward operators in order to form LinearOpWithSolveBase objects. However, when an abstract PreconditionerFactoryBase object is used to create and maintain the preconditioner, the exact nature of the preconditioner after the operator is updated is undefined. The following code fragment show a use case where the operator is reused without explicitly updating the preconditioner between solves:

template<class Scalar>
void externalPreconditionerReuseWithSolves(
  const Teuchos::Ptr<Thyra::LinearOpBase<Scalar> > &A_inout,
  const Thyra::LinearOpChanger<Scalar> &opChanger,
  const Thyra::LinearOpWithSolveFactoryBase<Scalar> &lowsFactory,
  const Thyra::PreconditionerFactoryBase<Scalar> &precFactory,
  const Thyra::VectorBase<Scalar> &b1,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x1,
  const Thyra::VectorBase<Scalar> &b2,
  const Teuchos::Ptr<Thyra::VectorBase<Scalar> > &x2,
  Teuchos::FancyOStream &out
  )
{
  using Teuchos::tab; using Teuchos::rcpFromPtr;
  typedef Teuchos::ScalarTraits<Scalar> ST;
  Teuchos::OSTab tab2(out);
  out << "\nShowing resuse of the preconditioner ...\n";
  Teuchos::RCP<Thyra::LinearOpBase<Scalar> > A = rcpFromPtr(A_inout);
  // Create the initial preconditioner for the input forward operator
  Teuchos::RCP<Thyra::PreconditionerBase<Scalar> > P =
    precFactory.createPrec();
  Thyra::initializePrec<Scalar>(precFactory, A, P.ptr());
  // Create the invertible LOWS object given the preconditioner
  Teuchos::RCP<Thyra::LinearOpWithSolveBase<Scalar> > invertibleA =
    lowsFactory.createOp();
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A, P, invertibleA.ptr());
  // Solve the first linear system
  assign(x1, ST::zero());
  Thyra::SolveStatus<Scalar> status1 = Thyra::solve<Scalar>(*invertibleA,
    Thyra::NOTRANS, b1, x1);
  out << "\nSolve status:\n" << status1;
  // Change the forward linear operator without changing the preconditioner
  opChanger.changeOp(A.ptr());
  // Warning! After the above change the integrity of the preconditioner
  // linear operators in P is undefined. For some implementations of the
  // preconditioner, its behavior will remain unchanged (e.g. ILU) which in
  // other cases the behavior will change but the preconditioner will still
  // work (e.g. Jacobi). However, there may be valid implementations where
  // the preconditioner will simply break if the forward operator that it is
  // based on breaks.
  //
  // Reinitialize the LOWS object given the updated forward operator A and the
  // old preconditioner P.
  Thyra::initializePreconditionedOp<Scalar>(lowsFactory, A, P, invertibleA.ptr());
  // Solve the second linear system
  assign(x2, ST::zero());
  Thyra::SolveStatus<Scalar>status2 = Thyra::solve<Scalar>(*invertibleA,
    Thyra::NOTRANS, b2, x2);
  out << "\nSolve status:\n" << status2;
} // end externalPreconditionerReuseWithSolves

Reuse of externally defined preconditioner matrices

This interface does not guarantee the correct reuse of externally defined preconditioner matrices. The problem is that the internally generated preconditioner may be dependent on the input preconditioner matrix and it is not clear for the current interface design how to cleanly handle this use case. However, when the client knows that the internally generated preconditioner operator is independent from the externally defined preconditioner input matrix, then the function initializeAndReuseOp() can be called to reuse the internal preconditioner but this is implementation defined.

Output and verbosity

TODO: Provide some guidance on how clients and subclasses should interpret Teuchos::EVerbLevel.

Notes to subclass developers

This interface assumes a minimal default set of functionality that is appropriate for direct and simple iterative linear solver implementations. The pure virtual functions that must be overridden by a subclass are isCompatible(), createOp(), initializeOp(), and uninitializeOp(). By far the most complex function to implement is initializeOp() which is where the real guts of the factory method is defined.

If the concrete subclass can support some significant type of preprocessing reuse then it may override to function initializeAndReuseOp(). The most common use of this function it to support the reuse of preconditioners between small changes in forward operator matrix values.

If the concrete subclass can utilize a preconditioner, then it should override the functions supportsPreconditionerInputType() and initializePreconditionedOp(). The subclass implementation can decide if preconditioner operators and/or matrices are supported or not and this is determined by the return value from supportsPreconditionerInputType().

Definition at line 372 of file Thyra_LinearOpWithSolveFactoryBase_decl.hpp.

Member Function Documentation

template<class Scalar >

bool Thyra::LinearOpWithSolveFactoryBase< Scalar >::acceptsPreconditionerFactory ( ) const

virtual

Determines if *this accepts external preconditioner factories.

The default implementation returns false.

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 21 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar>

void Thyra::LinearOpWithSolveFactoryBase< Scalar >::setPreconditionerFactory	(	const RCP< PreconditionerFactoryBase< Scalar > > &	precFactory,
		const std::string &	precFactoryName
	)

virtual

Set a preconditioner factory object.

Parameters

precFactory	[in] The preconditioner factory to be used internally to create preconditioners.
precFactoryName	[in] The name to give to the preconditioner factory internally. This name is used when setting parameters in the parameter list.

Preconditions:

this->acceptsPreconditionerFactory()==true
precFactory.get()!=NULL

Postconditions:

this->getPreconditionerFactory().get()==precFactory.get()

The default implementation thrown an exception which is consistent with the default implementation acceptsPreconditionerFactory()==false.

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 28 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar >

RCP< PreconditionerFactoryBase< Scalar > > Thyra::LinearOpWithSolveFactoryBase< Scalar >::getPreconditionerFactory ( ) const

virtual

Get a preconditioner factory object.

The default implementation returns Teuchos::null.

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 43 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar>

void Thyra::LinearOpWithSolveFactoryBase< Scalar >::unsetPreconditionerFactory	(	RCP< PreconditionerFactoryBase< Scalar > > *	precFactory = `NULL`,
		std::string *	precFactoryName = `NULL`
	)

virtual

Unset the preconditioner factory (if one is set).

Postconditions:

this->getPreconditionerFactory().get()==NULL

The default implementation returns Teuchos::null.

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 50 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar>

virtual bool Thyra::LinearOpWithSolveFactoryBase< Scalar >::isCompatible ( const LinearOpSourceBase< Scalar > & fwdOpSrc ) const

pure virtual

Check that a LinearOpBase object is compatible with *this factory object.

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >, and Thyra::DiagonalEpetraLinearOpWithSolveFactory.

template<class Scalar>

virtual RCP<LinearOpWithSolveBase<Scalar> > Thyra::LinearOpWithSolveFactoryBase< Scalar >::createOp ( ) const

pure virtual

Create an (uninitialized) LinearOpWithSolveBase object to be initialized later in this->initializeOp().

Note that on output return->domain().get()==NULL may be true which means that the operator is not fully initialized. In fact, the output operator object is not guaranteed to be fully initialized until after it is passed through this->initializeOp().

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >, and Thyra::DiagonalEpetraLinearOpWithSolveFactory.

template<class Scalar>

virtual void Thyra::LinearOpWithSolveFactoryBase< Scalar >::initializeOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)		const

pure virtual

Initialize a pre-created LinearOpWithSolveBase object given a "compatible" LinearOpBase object.

Parameters

fwdOpSrc	[in] The forward linear operator that will be used to create the output `LinearOpWithSolveBase` object. Note that this object is remembered by the `*Op` object on output.
Op	[in/out] The output `LinearOpWithSolveBase` object. This object must have be created first by `this->createOp()`. The object may have also already been passed through this function several times. Note that subclasses should always first strip off the transpose and scaling by calling `unwrap()` before attempting to dynamic cast the object.
supportSolveUse	[in] Determines if `Op->solve(...)` or `Op->solveTranspose(...)` will be called. This allows `this` factory object to determine how to best initialize the `Op` object. Default `supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED`

Preconditions:

fwdOpSrc.get()!=NULL
this->isCompatible(*fwdOpSrc)==true
Op!=NULL
*Op must have been created by this->createOp() prior to calling this function.
[supportSolveUse==SUPPORT_SOLVE_FORWARD_ONLY] this->solveSupportsConj(conj)==true for any value of conj
[supportSolveUse==SUPPORT_SOLVE_TRANSPOSE_ONLY] this->solveTransposeSupportsConj(conj)==true for any value of conj
[supportSolveUse==SUPPORT_SOLVE_FORWARD_AND_TRANSPOSE] this->solveSupportsConj(conj)==true && this->solveTransposeSupportsConj(conj)==true for any value of conj

Postconditions:




Throws CatastrophicSolveFailure if the underlying linear solver could not be created successfully (e.g. due to a factorization failure or some other cause).



Op->range()->isCompatible(*fwdOpSrc->range())==true



Op->domain()->isCompatible(*fwdOpSrc->domain())==true



Op->apply() and Op->applyTranspose() must behave exactly the same as fwdOpSrc->apply() and fwdOpSrc->applyTranspose()



Op->solveSupportsConj(conj)==this->solveSupportsConj(conj)



Op->solveTransposeSupportsConj(conj)==this->solveTransposeSupportsConj(conj)



fwdOpSrc.count() after output is greater than fwdOpSrc.count() just before this call and therefore the client can assume that the *fwdOpSrc object will be remembered by the *Op object. The client must be careful not to modify the *fwdOpSrc object or else the *Op object may also be modified and become invalid.





Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >, and Thyra::DiagonalEpetraLinearOpWithSolveFactory.

template<class Scalar>

void Thyra::LinearOpWithSolveFactoryBase< Scalar >::initializeAndReuseOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op
	)		const

virtual

Initialize a pre-created LinearOpWithSolveBase object given a "compatible" LinearOpBase object but allow for reuse of any preprocessing that is in *Op.

Parameters

fwdOpSrc	[in] The forward linear operator that will be used to create the output `LinearOpWithSolveBase` object.
Op	[in/out] The output `LinearOpWithSolveBase` object. This object must have be created first by `this->createOp()` and may have already been through at least one previous set of calls to `this->initializeOp()` and `this->uninitializeOp()`. Note that subclasses should always first strip off the transpose and scaling by calling `unwrap()` before attempting to dynamic cast the object.

Preconditions:

fwdOpSrc.get()!=NULL
this->isCompatible(*fwdOpSrc)==true
Op!=NULL
*Op must have been created by this->createOp() prior to calling this function.

Postconditions:

Throws CatastrophicSolveFailure if the underlying linear solver could not be created successfully (e.g. due to a factorization failure or some other cause).
Op->range()->isCompatible(*fwdOpSrc->range())==true
Op->domain()->isCompatible(*fwdOpSrc->domain())==true
Op->apply() and Op->applyTranspose() must behave exactly the same as fwdOpSrc->apply() and fwdOpSrc->applyTranspose()
Op->solveSupportsConj(conj)==this->solveSupportsConj(conj)
Op->solveTransposeSupportsConj(conj)==this->solveTransposeSupportsConj(conj)
fwdOpSrc.count() after output is greater than fwdOpSrc.count() just before this call and therefore the client can assume that the *fwdOpSrc object will be remembered by the *Op object. The client must be careful not to modify the *fwdOpSrc object or else the *Op object may also be modified.

The purpose of this function is to allow the reuse of old factorizations and/or preconditioners that may go into the initialization of the *Op objects. Note that by calling this function, the performance Op->solve(...) may not be as good as when calling the function this->initializeOp(...,Op) to initialize *Op.

The default implementation of this function just calls this->initializeOp(fwdOpSrc,Op) which does the default implementation.

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 61 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar>

virtual void Thyra::LinearOpWithSolveFactoryBase< Scalar >::uninitializeOp	(	LinearOpWithSolveBase< Scalar > *	Op,
		RCP< const LinearOpSourceBase< Scalar > > *	fwdOpSrc = `NULL`,
		RCP< const PreconditionerBase< Scalar > > *	prec = `NULL`,
		RCP< const LinearOpSourceBase< Scalar > > *	approxFwdOpSrc = `NULL`,
		ESupportSolveUse *	supportSolveUse = `NULL`
	)		const

pure virtual

Uninitialize a LinearOpWithSolveBase object and return its remembered forward linear operator and potentially also its externally generated preconditioner.

Parameters

Op	[in/out] On input, `*Op` is an initialized or uninitialized object and on output is uninitialized. Note that "uninitialized" does not mean that `Op` is completely stateless. It may still remember some aspect of the matrix `fwdOpSrc` that will allow for a more efficient initialization next time through `this->initializeOp()`.
fwdOpSrc	[in/out] If `fwdOpSrc!=NULL` on input, then on output this is set to the same forward operator passed into `this->initializeOp()`.
prec	[in/out] If `prep!=NULL` on input, then on output, this this is set to same preconditioner that was passed into `this->initializePreconditionedOp()`.
approxFwdOpSrc	[in/out] If `approxFwdOpSrc!=NULL` on input, then on output, this is set to same approximate forward operator that was passed into `this->initializePreconditionedOp()`.
ESupportSolveUse	[in/out] If `fwdOpSrc!=NULL` on input, then on output this is set to same option value passed to `this->initializeOp()`.

Preconditions:

*Op must have been created by this->createOp() prior to calling this function.
Op may or may not have been passed through a call to this->initializeOp() or this->initializePreconditionedOp().

Postconditions:

If *Op on input was initialized through a call to this->initializeOp() and if fwdOpSrc!=NULL then (*fwdOpSrc).get()!=NULL.
If *Op was uninitialized on input and fwdOpSrc!=NULL then fwdOpSrc->get()==NULL out output.
On output, *Op can be considered to be uninitialized and it is safe to modify the forward operator object *(*fwdOpSrc) returned in fwdOpSrc. The default is fwdOpSrc==NULL in which case the forward operator will not be returned in *fwdOpSrc.

This function should be called before the forward operator passed in to this->initializeOp() is modified. Otherwise, *this could be left in an inconsistent state. However, this is not required.

Implemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >, and Thyra::DiagonalEpetraLinearOpWithSolveFactory.

template<class Scalar >

bool Thyra::LinearOpWithSolveFactoryBase< Scalar >::supportsPreconditionerInputType ( const EPreconditionerInputType precOpType ) const

virtual

Determines if *this supports given preconditioner type.

The default implementation returns false.

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 71 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar>

void Thyra::LinearOpWithSolveFactoryBase< Scalar >::initializePreconditionedOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		const RCP< const PreconditionerBase< Scalar > > &	prec,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)		const

virtual

Initialize a pre-created LinearOpWithSolveBase object given a "compatible" LinearOpBase object and an optional PreconditionerBase object.

Parameters

fwdOpSrc	[in] The forward linear operator that will be used to create the output `LinearOpWithSolveBase` object.
prec	[in] The preconditioner that will be used to create the output `LinearOpWithSolveBase` object if preconditioners are supported.
Op	[in/out] The output `LinearOpWithSolveBase` object. This object must have be created first by `this->createOp()`. The object may have also already been passed through this function several times. Note that subclasses should always first strip off the transpose and scaling by calling `unwrap()` before attempting to dynamic cast the object.
supportSolveUse	[in] Determines if `Op->solve(...)` or `Op->solveTranspose(...)` will be called. This allows `this` factory object determine how to best initialize the `Op` object. Default `supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED`

Preconditions:

fwdOpSrc.get()!=NULL
prec.get()!=NULL
this->isCompatible(*fwdOpSrc)==true
Op!=NULL
*Op must have been created by this->createOp() prior to calling this function.
It is allowed for an implementation to throw an exception if this->supportsPreconditionerInputType(PRECONDITIONER_INPUT_TYPE_AS_OPERATOR)==false but this is not required.
[supportSolveUse==SUPPORT_SOLVE_FORWARD_ONLY] this->solveSupportsConj(conj)==true for any value of conj
[supportSolveUse==SUPPORT_SOLVE_TRANSPOSE_ONLY] this->solveTransposeSupportsConj(conj)==true for any value of conj
[supportSolveUse==SUPPORT_SOLVE_FORWARD_AND_TRANSPOSE] this->solveSupportsConj(conj)==true && this->solveTransposeSupportsConj(conj)==true for any value of conj

Postconditions:




Throws CatastrophicSolveFailure if the underlying linear solver could not be created successfully (e.g. due to a factorization failure or some other cause).



Op->range()->isCompatible(*fwdOpSrc->range())==true



Op->domain()->isCompatible(*fwdOpSrc->domain())==true



Op->apply() and Op->applyTranspose() must behave exactly the same as fwdOpSrc->apply() and fwdOpSrc->applyTranspose()



<t>Op->solveSupportsConj(conj)==this->solveSupportsConj(conj)



<t>Op->solveTransposeSupportsConj(conj)==this->solveTransposeSupportsConj(conj)



fwdOpSrc.count() after output is greater than fwdOpSrc.count() just before this call and therefore the client can assume that the *fwdOpSrc object will be remembered by the *Op object. The client must be careful not to modify the *fwdOpSrc object or else the *Op object may also be modified.



If this->supportsPreconditionerInputType(PRECONDITIONER_INPUT_TYPE_AS_OPERATOR)==true then
<ul>

  <li><tt>prec.count()</tt> after output is greater than
  <tt>prec.count()</tt> just before this call and therefore the
  client can assume that the <tt>*prec</tt> object will be remembered
  by the <tt>*Op</tt> object.  The client must be careful not to
  modify the <tt>*prec</tt> object or else the <tt>*Op</tt> object
  may also be modified.

</ul>



else if an exception is not thrown then


prec.count() after output is equal to prec.count() just before this call and therefore the *prec is ignored and is not remembered.







Warning! It is allowed for an implementation to throw an exception if this->supportsPreconditionerInputType(PRECONDITIONER_INPUT_TYPE_AS_OPERATOR)==false so therefore a client should not call this function if preconditioners are not supported! The mode of silently ignoring preconditioners is acceptable in some cases and is therefore allowed behavior.
The default implementation throws an exception which is consistent with the default implementation of this->supportsPreconditionerInputType() which assumes by default that preconditioners can not be supported..

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 80 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

template<class Scalar>

void Thyra::LinearOpWithSolveFactoryBase< Scalar >::initializeApproxPreconditionedOp	(	const RCP< const LinearOpSourceBase< Scalar > > &	fwdOpSrc,
		const RCP< const LinearOpSourceBase< Scalar > > &	approxFwdOpSrc,
		LinearOpWithSolveBase< Scalar > *	Op,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)		const

virtual

Initialize a pre-created LinearOpWithSolveBase object given a "compatible" forward LinearOpBase object and an approximate forward LinearOpBase object.

Parameters

fwdOpSrc	[in] The forward linear operator that will be used to create the output `LinearOpWithSolveBase` object.
approxFwdOpSrc	[in] Approximation to `fwdOpSrc` from which a preconditioner will be created for.
Op	[in/out] The output `LinearOpWithSolveBase` object. This object must have be created first by `this->createOp()`. The object may have also already been passed through this function several times. Note that subclasses should always first strip off the transpose and scaling by calling `unwrap()` before attempting to dynamic cast the object.
supportSolveUse	[in] Determines if `Op->solve(...)` or `Op->solveTranspose(...)` will be called. This allows `this` factory object determine how to best initialize the `Op` object. Default `supportSolveUse=SUPPORT_SOLVE_UNSPECIFIED`

ToDo: finish documentation!

Reimplemented in Thyra::DefaultBlockedTriangularLinearOpWithSolveFactory< Scalar >, Thyra::DelayedLinearOpWithSolveFactory< Scalar >, and Thyra::DefaultSerialDenseLinearOpWithSolveFactory< Scalar >.

Definition at line 96 of file Thyra_LinearOpWithSolveFactoryBase_def.hpp.

Friends And Related Function Documentation

template<class Scalar >

bool isCompatible	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const LinearOpBase< Scalar > &	fwdOp
	)

Definition at line 28 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

void setDefaultObjectLabel	(	const LinearOpBase< Scalar > &	fwdOp,
		const Ptr< LinearOpWithSolveBase< Scalar > > &	Op
	)

Definition at line 42 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

void initializeOp	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const RCP< const LinearOpBase< Scalar > > &	fwdOp,
		const Ptr< LinearOpWithSolveBase< Scalar > > &	Op,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)

Definition at line 59 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

void initializeAndReuseOp	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const RCP< const LinearOpBase< Scalar > > &	fwdOp,
		const Ptr< LinearOpWithSolveBase< Scalar > > &	Op
	)

Definition at line 77 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

void initializePreconditionedOp	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const RCP< const LinearOpBase< Scalar > > &	fwdOp,
		const RCP< const PreconditionerBase< Scalar > > &	prec,
		const Ptr< LinearOpWithSolveBase< Scalar > > &	Op,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)

Definition at line 94 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

void initializeApproxPreconditionedOp	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const RCP< const LinearOpBase< Scalar > > &	fwdOp,
		const RCP< const LinearOpBase< Scalar > > &	approxFwdOp,
		const Ptr< LinearOpWithSolveBase< Scalar > > &	Op,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)

Definition at line 114 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

RCP< LinearOpWithSolveBase< Scalar > > linearOpWithSolve	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const RCP< const LinearOpBase< Scalar > > &	fwdOp,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`
	)

Definition at line 134 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > inverse	(	const LinearOpWithSolveFactoryBase< Scalar > &	LOWSF,
		const RCP< const LinearOpBase< Scalar > > &	fwdOp,
		const ESupportSolveUse	supportSolveUse = `SUPPORT_SOLVE_UNSPECIFIED`,
		const Ptr< const SolveCriteria< Scalar > > &	fwdSolveCriteria = `Teuchos::null`,
		const EThrowOnSolveFailure	throwOnFwdSolveFailure = `THROW_ON_SOLVE_FAILURE`,
		const Ptr< const SolveCriteria< Scalar > > &	adjSolveCriteria = `Teuchos::null`,
		const EThrowOnSolveFailure	throwOnAdjSolveFailure = `THROW_ON_SOLVE_FAILURE`
	)

Definition at line 153 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

template<class Scalar >

void uninitializeOp	(	const LinearOpWithSolveFactoryBase< Scalar > &	lowsFactory,
		const Ptr< LinearOpWithSolveBase< Scalar > > &	Op,
		const Ptr< RCP< const LinearOpBase< Scalar > > > &	fwdOp = `Teuchos::null`,
		const Ptr< RCP< const PreconditionerBase< Scalar > > > &	prec = `Teuchos::null`,
		const Ptr< RCP< const LinearOpBase< Scalar > > > &	approxFwdOp = `Teuchos::null`,
		const Ptr< ESupportSolveUse > &	supportSolveUse = `Teuchos::null`
	)

Definition at line 174 of file Thyra_LinearOpWithSolveFactoryHelpers.hpp.

The documentation for this class was generated from the following files:

Related Functions

Preconditioner Factory Management

Creation/Initialization of basic LinearOpWithSolveBase objects

Creation/Initialization of Preconditioned LinearOpWithSolveBase objects

Detailed Description

template<class Scalar> class Thyra::LinearOpWithSolveFactoryBase< Scalar >

Outline

Introduction

Use cases

Performing a single linear solve given a forward operator

Creating invertible operators for scaled and/or adjoint forward operators

Updates of linear operator between linear solves

Reuse of factorizations for small changes in the forward operator

Updating the linear solver for major changes in the structure of the forward operator

Externally defined preconditioners

Use of externally defined preconditioner operators

The use of externally defined preconditioner matrices

Reuse of externally defined preconditioner operators

Reuse of externally defined preconditioner matrices

Output and verbosity

Notes to subclass developers

Member Function Documentation

Friends And Related Function Documentation

template<class Scalar>
class Thyra::LinearOpWithSolveFactoryBase< Scalar >
