Concrete Adapter subclass that takes an EpetraExt::ModelEvaluator object and wraps it as a Thyra::ModelEvaluator object. More...

#include <Thyra_EpetraModelEvaluator.hpp>

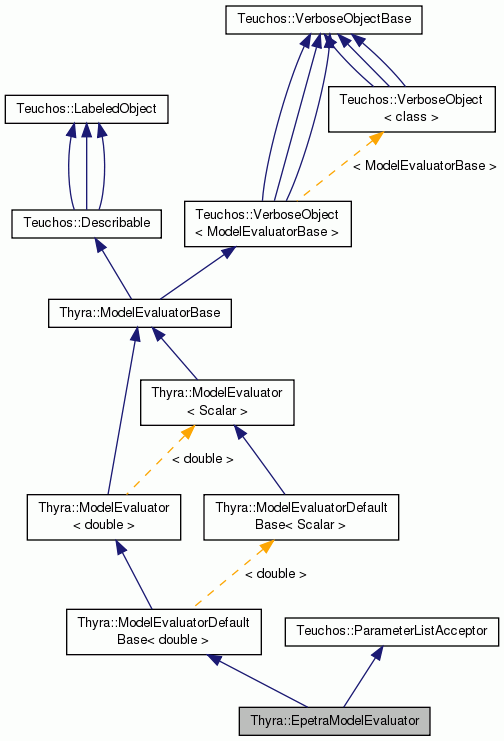

Inheritance diagram for Thyra::EpetraModelEvaluator:

[legend]

Related Functions
(Note that these are not member functions.)
RCP< EpetraModelEvaluator >	epetraModelEvaluator (const RCP< const EpetraExt::ModelEvaluator > &epetraModel, const RCP< LinearOpWithSolveFactoryBase< double > > &W_factory)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation	convert (const EpetraExt::ModelEvaluator::EDerivativeMultiVectorOrientation &mvOrientation)

EpetraExt::ModelEvaluator::EDerivativeMultiVectorOrientation	convert (const ModelEvaluatorBase::EDerivativeMultiVectorOrientation &mvOrientation)

ModelEvaluatorBase::DerivativeProperties	convert (const EpetraExt::ModelEvaluator::DerivativeProperties &derivativeProperties)

ModelEvaluatorBase::DerivativeSupport	convert (const EpetraExt::ModelEvaluator::DerivativeSupport &derivativeSupport)

EpetraExt::ModelEvaluator::Derivative	convert (const ModelEvaluatorBase::Derivative< double > &derivative, const RCP< const Epetra_Map > &fnc_map, const RCP< const Epetra_Map > &var_map)

Related Functions inherited from Thyra::ModelEvaluatorBase
std::string	toString (ModelEvaluatorBase::EInArgsMembers)

std::string	toString (ModelEvaluatorBase::EOutArgsMembers)

std::string	toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation	getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

Constructors/initializers/accessors/utilities.
	EpetraModelEvaluator ()

	EpetraModelEvaluator (const RCP< const EpetraExt::ModelEvaluator > &epetraModel, const RCP< LinearOpWithSolveFactoryBase< double > > &W_factory)

void	initialize (const RCP< const EpetraExt::ModelEvaluator > &epetraModel, const RCP< LinearOpWithSolveFactoryBase< double > > &W_factory)

RCP< const EpetraExt::ModelEvaluator >	getEpetraModel () const

void	setNominalValues (const ModelEvaluatorBase::InArgs< double > &nominalValues)
	Set the nominal values. More...

void	setStateVariableScalingVec (const RCP< const Epetra_Vector > &stateVariableScalingVec)
	Set the state variable scaling vector `s_x` (see above). More...

RCP< const Epetra_Vector >	getStateVariableInvScalingVec () const
	Get the state variable scaling vector `s_x` (see above). More...

RCP< const Epetra_Vector >	getStateVariableScalingVec () const
	Get the inverse state variable scaling vector `inv_s_x` (see above). More...

void	setStateFunctionScalingVec (const RCP< const Epetra_Vector > &stateFunctionScalingVec)
	Set the state function scaling vector `s_f` (see above). More...

RCP< const Epetra_Vector >	getStateFunctionScalingVec () const
	Get the state function scaling vector `s_f` (see above). More...

void	uninitialize (RCP< const EpetraExt::ModelEvaluator > epetraModel=NULL, RCP< LinearOpWithSolveFactoryBase< double > > W_factory=NULL)

const ModelEvaluatorBase::InArgs < double > &	getFinalPoint () const

bool	finalPointWasSolved () const

Public functions overridden from Teuchos::Describable.
std::string	description () const

Overridden from ParameterListAcceptor
void	setParameterList (RCP< Teuchos::ParameterList > const &paramList)

RCP< Teuchos::ParameterList >	getNonconstParameterList ()

RCP< Teuchos::ParameterList >	unsetParameterList ()

RCP< const Teuchos::ParameterList >	getParameterList () const

RCP< const Teuchos::ParameterList >	getValidParameters () const

Public functions overridden from ModelEvaulator.
int	Np () const

int	Ng () const

RCP< const VectorSpaceBase < double > >	get_x_space () const

RCP< const VectorSpaceBase < double > >	get_f_space () const

RCP< const VectorSpaceBase < double > >	get_p_space (int l) const

RCP< const Teuchos::Array < std::string > >	get_p_names (int l) const

RCP< const VectorSpaceBase < double > >	get_g_space (int j) const

Teuchos::ArrayView< const std::string >	get_g_names (int j) const

ModelEvaluatorBase::InArgs < double >	getNominalValues () const

ModelEvaluatorBase::InArgs < double >	getLowerBounds () const

ModelEvaluatorBase::InArgs < double >	getUpperBounds () const

RCP< LinearOpBase< double > >	create_W_op () const

RCP< PreconditionerBase< double > >	create_W_prec () const
	Returns null currently. More...

RCP< const LinearOpWithSolveFactoryBase < double > >	get_W_factory () const

ModelEvaluatorBase::InArgs < double >	createInArgs () const

void	reportFinalPoint (const ModelEvaluatorBase::InArgs< double > &finalPoint, const bool wasSolved)

Additional Inherited Members
Public Types inherited from Thyra::ModelEvaluator< double >
typedef Teuchos::ScalarTraits < double >::magnitudeType	ScalarMag

Public Types inherited from Thyra::ModelEvaluatorBase
enum	EInArgsMembers { IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly, IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t, IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size, IN_ARG_stage_number }

enum	EInArgs_p_mp { IN_ARG_p_mp }

enum	EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
	The type of an evaluation. More...

enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp, OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly }

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< double >
int	Np () const

int	Ng () const

RCP< LinearOpBase< double > >	create_DfDp_op (int l) const

RCP< LinearOpBase< double > >	create_DgDx_dot_op (int j) const

RCP< LinearOpBase< double > >	create_DgDx_op (int j) const

RCP< LinearOpBase< double > >	create_DgDp_op (int j, int l) const

RCP< LinearOpWithSolveBase < double > >	create_W () const

ModelEvaluatorBase::OutArgs < double >	createOutArgs () const

void	evalModel (const ModelEvaluatorBase::InArgs< double > &inArgs, const ModelEvaluatorBase::OutArgs< double > &outArgs) const

virtual RCP< const VectorSpaceBase< double > >	get_f_multiplier_space () const

virtual RCP< const VectorSpaceBase< double > >	get_g_multiplier_space (int j) const

Public Member Functions inherited from Thyra::ModelEvaluator< double >
Public Member Functions inherited from Thyra::ModelEvaluatorBase
	ModelEvaluatorBase ()
	constructor More...

Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int	NUM_E_IN_ARGS_MEMBERS =13

static const int	NUM_E_OUT_ARGS_MEMBERS =7

Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< double >
	ModelEvaluatorDefaultBase ()

void	initializeDefaultBase ()
	Function called by subclasses to fully initialize this object on any important change. More...

void	resetDefaultBase ()
	Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed. More...

Detailed Description

Concrete Adapter subclass that takes an EpetraExt::ModelEvaluator object and wraps it as a Thyra::ModelEvaluator object.

This class takes care of the basic details of wrapping and unwrapping Epetra from Thyra objects. This class is highly configurable and will be maintained and modified in the future as the basic link between the Epetra world and the Thyra world for nonlinear models and nonlinear algorithms.

Scaling

This class can handle scaling of the state function f(...) and of the state variables x and all of the affected derivatives.

The scaling for the state function can be set manually using setStateFunctionScalingVec() or can be computed automatically using the parameter "State Function Scaling" (see documentation output from this->getValidParameters()->print(...)) in the input parameter list set by setParameterList(). Reguardless of how the state function scaling is computed, it will compute a positive vector s_f that defines a diagonal matrix S_f = diag(s_f) that transforms the state function:

   f(...) = S_f * f_orig(...)

where f_orig(...) is the original state function as computed by the underlying EpetraExt::ModelEvaluator object and f(...) is the state function as computed by evalModel().

The scaling for the state variables must be set manually using Thyra::setStateVariableScalingVec(). The vector that is set s_x>/tt> defines a diagonal scaling matrix S_x = diag(s_x) that transforms the variables as:


   x = S_x * x_orig

where x_orig is the original unscaled state variable vector as defined by the underlying EpetraExt::ModelEvaluator object and x is the scaled state varaible vector as returned from getNominalValues() and as accepted by evalModel(). Note that when the scaled variables x are passed into evalModel that they are unscaled as:


   x_orig = inv(S_x) * x

where inv(S_x) is the inverse of the diagonals of S_x which is stored as a vector inv_s_x.

Note how these scalings affect the state function:


   f(x,...) = S_f * f_orig( inv(S_x)*x...)

which as the state/state Jacobian:


   W = d(f)/d(x) = S_f * d(f_orig)/d(x_orig) * inv(S_x)

Currently, this class does not handle scalings of the parameters p(l) or of the auxilary response functions g(j)(...).

The state varaible and state function scaling gives the following scaled quantities:


   f = S_f * f_orig

   W = S_f * W_orig * inv(S_x)

   DfDp(l) = S_f * DfDp_orig(l)

   g(j) = g_orig(j)

   DgDx_dot(j) = DgDx_dot_orig(j) * inv(S_x)

   DgDx(j) = DgDx_orig(j) * inv(S_x)

   DgDp(j,l) = DgDp_orig(j,l)

Since the scaling is done explicitly, the client never even sees the orginal scaling and the linear solver (and contained preconditioner) are computed from the scaled W shown above.

ToDo: Describe how scaling affects the Hessian-vector products an how you just need to scale the Lagrange mutipliers as:


 u^T * f(...) = u^T * (S_f * f_orig(...)) = u_f^T * f_orig(...)

where u_f = S_f * u.

ToDo: Finish documentation!

Definition at line 143 of file Thyra_EpetraModelEvaluator.hpp.

Constructor & Destructor Documentation

Thyra::EpetraModelEvaluator::EpetraModelEvaluator ( )

Definition at line 91 of file Thyra_EpetraModelEvaluator.cpp.

Thyra::EpetraModelEvaluator::EpetraModelEvaluator	(	const RCP< const EpetraExt::ModelEvaluator > &	epetraModel,
		const RCP< LinearOpWithSolveFactoryBase< double > > &	W_factory
	)

Definition at line 97 of file Thyra_EpetraModelEvaluator.cpp.

Member Function Documentation

void Thyra::EpetraModelEvaluator::initialize	(	const RCP< const EpetraExt::ModelEvaluator > &	epetraModel,
		const RCP< LinearOpWithSolveFactoryBase< double > > &	W_factory
	)

Definition at line 108 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const EpetraExt::ModelEvaluator > Thyra::EpetraModelEvaluator::getEpetraModel ( ) const

Definition at line 165 of file Thyra_EpetraModelEvaluator.cpp.

void Thyra::EpetraModelEvaluator::setNominalValues ( const ModelEvaluatorBase::InArgs< double > & nominalValues )

Set the nominal values.

Warning, if scaling is being used, these must be according to the scaled values, not the original unscaled values.

Definition at line 171 of file Thyra_EpetraModelEvaluator.cpp.

void Thyra::EpetraModelEvaluator::setStateVariableScalingVec ( const RCP< const Epetra_Vector > & stateVariableScalingVec )

Set the state variable scaling vector s_x (see above).

This function must be called after intialize() or the constructur in order to set the scaling vector correctly!

ToDo: Move this into an external strategy class object!

Definition at line 180 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const Epetra_Vector > Thyra::EpetraModelEvaluator::getStateVariableInvScalingVec ( ) const

Get the state variable scaling vector s_x (see above).

Definition at line 202 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const Epetra_Vector > Thyra::EpetraModelEvaluator::getStateVariableScalingVec ( ) const

Get the inverse state variable scaling vector inv_s_x (see above).

Definition at line 195 of file Thyra_EpetraModelEvaluator.cpp.

void Thyra::EpetraModelEvaluator::setStateFunctionScalingVec ( const RCP< const Epetra_Vector > & stateFunctionScalingVec )

Set the state function scaling vector s_f (see above).

Definition at line 209 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const Epetra_Vector > Thyra::EpetraModelEvaluator::getStateFunctionScalingVec ( ) const

Get the state function scaling vector s_f (see above).

Definition at line 218 of file Thyra_EpetraModelEvaluator.cpp.

void Thyra::EpetraModelEvaluator::uninitialize	(	RCP< const EpetraExt::ModelEvaluator > *	epetraModel = `NULL`,
		RCP< LinearOpWithSolveFactoryBase< double > > *	W_factory = `NULL`
	)

Definition at line 224 of file Thyra_EpetraModelEvaluator.cpp.

const ModelEvaluatorBase::InArgs< double > & Thyra::EpetraModelEvaluator::getFinalPoint ( ) const

Definition at line 241 of file Thyra_EpetraModelEvaluator.cpp.

bool Thyra::EpetraModelEvaluator::finalPointWasSolved ( ) const

Definition at line 247 of file Thyra_EpetraModelEvaluator.cpp.

std::string Thyra::EpetraModelEvaluator::description ( ) const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 256 of file Thyra_EpetraModelEvaluator.cpp.

void Thyra::EpetraModelEvaluator::setParameterList ( RCP< Teuchos::ParameterList > const & paramList )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 278 of file Thyra_EpetraModelEvaluator.cpp.

RCP< Teuchos::ParameterList > Thyra::EpetraModelEvaluator::getNonconstParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 299 of file Thyra_EpetraModelEvaluator.cpp.

RCP< Teuchos::ParameterList > Thyra::EpetraModelEvaluator::unsetParameterList ( )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 306 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const Teuchos::ParameterList > Thyra::EpetraModelEvaluator::getParameterList ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 315 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const Teuchos::ParameterList > Thyra::EpetraModelEvaluator::getValidParameters ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 322 of file Thyra_EpetraModelEvaluator.cpp.

int Thyra::EpetraModelEvaluator::Np ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 371 of file Thyra_EpetraModelEvaluator.cpp.

int Thyra::EpetraModelEvaluator::Ng ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 377 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const VectorSpaceBase< double > > Thyra::EpetraModelEvaluator::get_x_space ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 384 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const VectorSpaceBase< double > > Thyra::EpetraModelEvaluator::get_f_space ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 391 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const VectorSpaceBase< double > > Thyra::EpetraModelEvaluator::get_p_space ( int l ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 398 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const Teuchos::Array< std::string > > Thyra::EpetraModelEvaluator::get_p_names ( int l ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 408 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const VectorSpaceBase< double > > Thyra::EpetraModelEvaluator::get_g_space ( int j ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 418 of file Thyra_EpetraModelEvaluator.cpp.

Teuchos::ArrayView< const std::string > Thyra::EpetraModelEvaluator::get_g_names ( int j ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 426 of file Thyra_EpetraModelEvaluator.cpp.

ModelEvaluatorBase::InArgs< double > Thyra::EpetraModelEvaluator::getNominalValues ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 436 of file Thyra_EpetraModelEvaluator.cpp.

ModelEvaluatorBase::InArgs< double > Thyra::EpetraModelEvaluator::getLowerBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 444 of file Thyra_EpetraModelEvaluator.cpp.

ModelEvaluatorBase::InArgs< double > Thyra::EpetraModelEvaluator::getUpperBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 452 of file Thyra_EpetraModelEvaluator.cpp.

RCP< LinearOpBase< double > > Thyra::EpetraModelEvaluator::create_W_op ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 460 of file Thyra_EpetraModelEvaluator.cpp.

RCP< PreconditionerBase< double > > Thyra::EpetraModelEvaluator::create_W_prec ( ) const

virtual

Returns null currently.

Implements Thyra::ModelEvaluator< double >.

Definition at line 467 of file Thyra_EpetraModelEvaluator.cpp.

RCP< const LinearOpWithSolveFactoryBase< double > > Thyra::EpetraModelEvaluator::get_W_factory ( ) const

virtual

.

Implements Thyra::ModelEvaluator< double >.

Definition at line 474 of file Thyra_EpetraModelEvaluator.cpp.

ModelEvaluatorBase::InArgs< double > Thyra::EpetraModelEvaluator::createInArgs ( ) const

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 480 of file Thyra_EpetraModelEvaluator.cpp.

void Thyra::EpetraModelEvaluator::reportFinalPoint	(	const ModelEvaluatorBase::InArgs< double > &	finalPoint,
		const bool	wasSolved
	)

virtual

Implements Thyra::ModelEvaluator< double >.

Definition at line 488 of file Thyra_EpetraModelEvaluator.cpp.

Friends And Related Function Documentation

RCP< EpetraModelEvaluator > epetraModelEvaluator	(	const RCP< const EpetraExt::ModelEvaluator > &	epetraModel,
		const RCP< LinearOpWithSolveFactoryBase< double > > &	W_factory
	)

EpetraExt::ModelEvaluator::Derivative convert	(	const ModelEvaluatorBase::Derivative< double > &	derivative,
		const RCP< const Epetra_Map > &	fnc_map,
		const RCP< const Epetra_Map > &	var_map
	)

Related Functions

Constructors/initializers/accessors/utilities.

Public functions overridden from Teuchos::Describable.

Overridden from ParameterListAcceptor

Public functions overridden from ModelEvaulator.

Additional Inherited Members

Detailed Description

Scaling

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation
