Epetra Finite-Element VbrMatrix. More...

#include <Epetra_FEVbrMatrix.h>

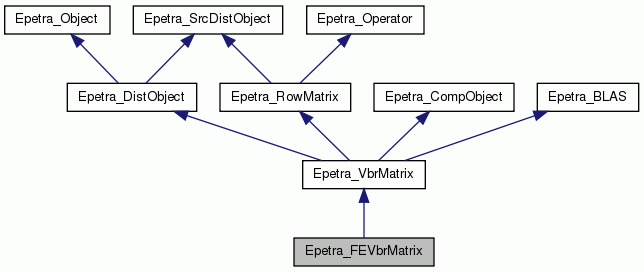

Inheritance diagram for Epetra_FEVbrMatrix:

Constructors/Destructor
	Epetra_FEVbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, int *NumBlockEntriesPerRow, bool ignoreNonLocalEntries=false)
	Epetra_FEVbrMatrix constuctor with variable number of indices per row. More...

	Epetra_FEVbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, int NumBlockEntriesPerRow, bool ignoreNonLocalEntries=false)
	Epetra_FEVbrMatrix constuctor with fixed number of indices per row. More...

	Epetra_FEVbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, const Epetra_BlockMap &ColMap, int *NumBlockEntriesPerRow, bool ignoreNonLocalEntries=false)
	Epetra_FEVbrMatrix constuctor with variable number of indices per row. More...

	Epetra_FEVbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, const Epetra_BlockMap &ColMap, int NumBlockEntriesPerRow, bool ignoreNonLocalEntries=false)
	Epetra_FEVbrMatrix constuctor with fixed number of indices per row. More...

	Epetra_FEVbrMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph, bool ignoreNonLocalEntries=false)
	Constructor with pre-constructed Graph. More...

	Epetra_FEVbrMatrix (const Epetra_FEVbrMatrix &src)
	Copy Constructor. More...

virtual	~Epetra_FEVbrMatrix ()
	Epetra_VbrMatrix Destructor. More...

Insertion/Replace/SumInto methods
bool	ignoreNonLocalEntries_

int	numNonlocalBlockRows_

int *	nonlocalBlockRows_

int *	nonlocalBlockRowLengths_

int *	nonlocalBlockRowAllocLengths_

int **	nonlocalBlockCols_

Epetra_SerialDenseMatrix ***	nonlocalCoefs_

int	curRowOffset_

int	curColOffset_

int	curNumCols_

int *	curCols_

int	curMode_

Epetra_FEVbrMatrix &	operator= (const Epetra_FEVbrMatrix &src)

int	PutScalar (double ScalarConstant)
	Initialize all values in graph of the matrix with constant value. More...

int	BeginInsertGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate insertion of a list of elements in a given global row of the matrix, values are inserted via SubmitEntry(). More...

int	BeginReplaceGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate replacement of current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry() More...

int	BeginSumIntoGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate summing into current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry() More...

int	SubmitBlockEntry (double *Values, int LDA, int NumRows, int NumCols)
	Submit a block entry to the indicated block row and column specified in the Begin routine. More...

int	EndSubmitEntries ()
	Completes processing of all data passed in for the current block row. More...

int	GlobalAssemble (bool callFillComplete=true)

int	SetupForNonlocalSubmits (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal, Epetra_CombineMode SubmitMode)

int	InputNonlocalBlockEntry (double *Values, int LDA, int NumRows, int NumCols)

int	InsertNonlocalRow (int row, int offset, int numCols)

void	destroyNonlocalData ()

Additional Inherited Members
Public Member Functions inherited from Epetra_VbrMatrix
	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, int *NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with variable number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, int NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with fixed number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, const Epetra_BlockMap &ColMap, int *NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with variable number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, const Epetra_BlockMap &ColMap, int NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with fixed number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph)
	Construct a matrix using an existing Epetra_CrsGraph object. More...

	Epetra_VbrMatrix (const Epetra_VbrMatrix &Matrix)
	Copy constructor. More...

virtual	~Epetra_VbrMatrix ()
	Epetra_VbrMatrix Destructor. More...

Epetra_VbrMatrix &	operator= (const Epetra_VbrMatrix &src)

int	PutScalar (double ScalarConstant)
	Initialize all values in graph of the matrix with constant value. More...

int	Scale (double ScalarConstant)
	Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A). More...

int	DirectSubmitBlockEntry (int GlobalBlockRow, int GlobalBlockCol, const double *values, int LDA, int NumRows, int NumCols, bool sum_into)
	Submit a block-entry directly into the matrix (without using a begin/end sequence) More...

int	BeginInsertGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate insertion of a list of elements in a given global row of the matrix, values are inserted via SubmitEntry(). More...

int	BeginInsertMyValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate insertion of a list of elements in a given local row of the matrix, values are inserted via SubmitEntry(). More...

int	BeginReplaceGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate replacement of current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry() More...

int	BeginReplaceMyValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate replacement of current values with this list of entries for a given local row of the matrix, values are replaced via SubmitEntry() More...

int	BeginSumIntoGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate summing into current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry() More...

int	BeginSumIntoMyValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate summing into current values with this list of entries for a given local row of the matrix, values are replaced via SubmitEntry() More...

int	SubmitBlockEntry (double *Values, int LDA, int NumRows, int NumCols)
	Submit a block entry to the indicated block row and column specified in the Begin routine. More...

int	SubmitBlockEntry (Epetra_SerialDenseMatrix &Mat)
	Submit a block entry to the indicated block row and column specified in the Begin routine. More...

int	EndSubmitEntries ()
	Completes processing of all data passed in for the current block row. More...

int	ReplaceDiagonalValues (const Epetra_Vector &Diagonal)
	Replaces diagonal values of the with those in the user-provided vector. More...

int	FillComplete ()
	Signal that data entry is complete, perform transformations to local index space. More...

int	FillComplete (const Epetra_BlockMap &DomainMap, const Epetra_BlockMap &RangeMap)
	Signal that data entry is complete, perform transformations to local index space. More...

bool	Filled () const
	If FillComplete() has been called, this query returns true, otherwise it returns false. More...

int	ExtractGlobalBlockRowPointers (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Copy the block indices into user-provided array, set pointers for rest of data for specified global block row. More...

int	ExtractMyBlockRowPointers (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Copy the block indices into user-provided array, set pointers for rest of data for specified local block row. More...

int	BeginExtractGlobalBlockRowCopy (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, int ColDims) const
	Initiates a copy of the specified global row in user-provided arrays. More...

int	BeginExtractMyBlockRowCopy (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, int ColDims) const
	Initiates a copy of the specified local row in user-provided arrays. More...

int	ExtractEntryCopy (int SizeOfValues, double *Values, int LDA, bool SumInto) const
	Extract a copy of an entry from the block row specified by one of the BeginExtract routines. More...

int	BeginExtractGlobalBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int *&BlockIndices) const
	Initiates a view of the specified global row, only works if matrix indices are in global mode. More...

int	BeginExtractMyBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int *&BlockIndices) const
	Initiates a view of the specified local row, only works if matrix indices are in local mode. More...

int	ExtractEntryView (Epetra_SerialDenseMatrix *&entry) const
	Returns a pointer to the current block entry. More...

int	ExtractGlobalBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int &BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Initiates a view of the specified global row, only works if matrix indices are in global mode. More...

int	ExtractMyBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int &BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Initiates a view of the specified local row, only works if matrix indices are in local mode. More...

int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
	Returns a copy of the main diagonal in a user-provided vector. More...

int	BeginExtractBlockDiagonalCopy (int MaxNumBlockDiagonalEntries, int &NumBlockDiagonalEntries, int *RowColDims) const
	Initiates a copy of the block diagonal entries to user-provided arrays. More...

int	ExtractBlockDiagonalEntryCopy (int SizeOfValues, double *Values, int LDA, bool SumInto) const
	Extract a copy of a block diagonal entry from the matrix. More...

int	BeginExtractBlockDiagonalView (int &NumBlockDiagonalEntries, int *&RowColDims) const
	Initiates a view of the block diagonal entries. More...

int	ExtractBlockDiagonalEntryView (double *&Values, int &LDA) const
	Extract a view of a block diagonal entry from the matrix. More...

int	Multiply1 (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const
	Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_Vector x in y. More...

int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_MultiVector X in Y. More...

int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_Vector &x, Epetra_Vector &y) const
	Returns the result of a solve using the Epetra_VbrMatrix on a Epetra_Vector x in y. More...

int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_MultiVector X in Y. More...

int	InvRowSums (Epetra_Vector &x) const
	Computes the sum of absolute values of the rows of the Epetra_VbrMatrix, results returned in x. More...

int	LeftScale (const Epetra_Vector &x)
	Scales the Epetra_VbrMatrix on the left with a Epetra_Vector x. More...

int	InvColSums (Epetra_Vector &x) const
	Computes the sum of absolute values of the columns of the Epetra_VbrMatrix, results returned in x. More...

int	RightScale (const Epetra_Vector &x)
	Scales the Epetra_VbrMatrix on the right with a Epetra_Vector x. More...

int	OptimizeStorage ()
	Eliminates memory that is used for construction. Make consecutive row index sections contiguous. More...

bool	StorageOptimized () const
	If OptimizeStorage() has been called, this query returns true, otherwise it returns false. More...

bool	IndicesAreGlobal () const
	If matrix indices has not been transformed to local, this query returns true, otherwise it returns false. More...

bool	IndicesAreLocal () const
	If matrix indices has been transformed to local, this query returns true, otherwise it returns false. More...

bool	IndicesAreContiguous () const
	If matrix indices are packed into single array (done in OptimizeStorage()) return true, otherwise false. More...

bool	LowerTriangular () const
	If matrix is lower triangular in local index space, this query returns true, otherwise it returns false. More...

bool	UpperTriangular () const
	If matrix is upper triangular in local index space, this query returns true, otherwise it returns false. More...

bool	NoDiagonal () const
	If matrix has no diagonal entries based on global row/column index comparisons, this query returns true, otherwise it returns false. More...

double	NormInf () const
	Returns the infinity norm of the global matrix. More...

double	NormOne () const
	Returns the one norm of the global matrix. More...

double	NormFrobenius () const
	Returns the frobenius norm of the global matrix. More...

int	MaxRowDim () const
	Returns the maximum row dimension of all block entries on this processor. More...

int	MaxColDim () const
	Returns the maximum column dimension of all block entries on this processor. More...

int	GlobalMaxRowDim () const
	Returns the maximum row dimension of all block entries across all processors. More...

int	GlobalMaxColDim () const
	Returns the maximum column dimension of all block entries across all processors. More...

int	NumMyRows () const
	Returns the number of matrix rows owned by the calling processor. More...

int	NumMyCols () const
	Returns the number of matrix columns owned by the calling processor. More...

int	NumMyNonzeros () const
	Returns the number of nonzero entriesowned by the calling processor . More...

int	NumGlobalRows () const
	Returns the number of global matrix rows. More...

long long	NumGlobalRows64 () const

int	NumGlobalCols () const
	Returns the number of global matrix columns. More...

long long	NumGlobalCols64 () const

int	NumGlobalNonzeros () const
	Returns the number of nonzero entries in the global matrix. More...

long long	NumGlobalNonzeros64 () const

int	NumMyBlockRows () const
	Returns the number of Block matrix rows owned by the calling processor. More...

int	NumMyBlockCols () const
	Returns the number of Block matrix columns owned by the calling processor. More...

int	NumMyBlockEntries () const
	Returns the number of nonzero block entries in the calling processor's portion of the matrix. More...

int	NumMyBlockDiagonals () const
	Returns the number of local nonzero block diagonal entries, based on global row/column index comparisons. More...

int	NumMyDiagonals () const
	Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

int	NumGlobalBlockRows () const
	Returns the number of global Block matrix rows. More...

long long	NumGlobalBlockRows64 () const

int	NumGlobalBlockCols () const
	Returns the number of global Block matrix columns. More...

long long	NumGlobalBlockCols64 () const

int	NumGlobalBlockEntries () const
	Returns the number of nonzero block entries in the global matrix. More...

long long	NumGlobalBlockEntries64 () const

int	NumGlobalBlockDiagonals () const
	Returns the number of global nonzero block diagonal entries, based on global row/column index comparisions. More...

long long	NumGlobalBlockDiagonals64 () const

int	NumGlobalDiagonals () const
	Returns the number of global nonzero diagonal entries, based on global row/column index comparisions. More...

long long	NumGlobalDiagonals64 () const

int	NumGlobalBlockEntries (int Row) const
	Returns the current number of nonzero Block entries in specified global row on this processor. More...

int	NumAllocatedGlobalBlockEntries (int Row) const
	Returns the allocated number of nonzero Block entries in specified global row on this processor. More...

int	MaxNumBlockEntries () const
	Returns the maximum number of nonzero entries across all rows on this processor. More...

int	GlobalMaxNumBlockEntries () const
	Returns the maximum number of nonzero entries across all rows on this processor. More...

int	NumMyBlockEntries (int Row) const
	Returns the current number of nonzero Block entries in specified local row on this processor. More...

int	NumAllocatedMyBlockEntries (int Row) const
	Returns the allocated number of nonzero Block entries in specified local row on this processor. More...

int	MaxNumNonzeros () const
	Returns the maximum number of nonzero entries across all block rows on this processor. More...

int	GlobalMaxNumNonzeros () const
	Returns the maximum number of nonzero entries across all block rows on all processors. More...

int	IndexBase () const
	Returns the index base for row and column indices for this graph. More...

long long	IndexBase64 () const

const Epetra_CrsGraph &	Graph () const
	Returns a pointer to the Epetra_CrsGraph object associated with this matrix. More...

const Epetra_Import *	Importer () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

const Epetra_Export *	Exporter () const
	Returns the Epetra_Export object that contains the export operations for distributed operations. More...

const Epetra_BlockMap &	DomainMap () const
	Returns the Epetra_BlockMap object associated with the domain of this matrix operator. More...

const Epetra_BlockMap &	RangeMap () const
	Returns the Epetra_BlockMap object associated with the range of this matrix operator. More...

const Epetra_BlockMap &	RowMap () const
	Returns the RowMap object as an Epetra_BlockMap (the Epetra_Map base class) needed for implementing Epetra_RowMatrix. More...

const Epetra_BlockMap &	ColMap () const
	Returns the ColMap as an Epetra_BlockMap (the Epetra_Map base class) needed for implementing Epetra_RowMatrix. More...

const Epetra_Comm &	Comm () const
	Fills a matrix with rows from a source matrix based on the specified importer. More...

int	LRID (int GRID_in) const
	Returns the local row index for given global row index, returns -1 if no local row for this global row. More...

int	LRID (long long GRID_in) const

int	GRID (int LRID_in) const
	Returns the global row index for give local row index, returns IndexBase-1 if we don't have this local row. More...

long long	GRID64 (int LRID_in) const

int	LCID (int GCID_in) const
	Returns the local column index for given global column index, returns -1 if no local column for this global column. More...

int	LCID (long long GCID_in) const

int	GCID (int LCID_in) const
	Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column. More...

long long	GCID64 (int LCID_in) const

bool	MyGRID (int GRID_in) const
	Returns true if the GRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGRID (long long GRID_in) const

bool	MyLRID (int LRID_in) const
	Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGCID (int GCID_in) const
	Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGCID (long long GCID_in) const

bool	MyLCID (int LCID_in) const
	Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGlobalBlockRow (int GID) const
	Returns true of GID is owned by the calling processor, otherwise it returns false. More...

bool	MyGlobalBlockRow (long long GID) const

virtual void	Print (std::ostream &os) const
	Print method. More...

const char *	Label () const
	Returns a character string describing the operator. More...

int	SetUseTranspose (bool UseTranspose_in)
	If set true, transpose of this operator will be applied. More...

int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

bool	HasNormInf () const
	Returns true because this class can compute an Inf-norm. More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Map &	OperatorDomainMap () const
	Returns the Epetra_Map object associated with the domain of this matrix operator. More...

const Epetra_Map &	OperatorRangeMap () const
	Returns the Epetra_Map object associated with the range of this matrix operator. More...

int	ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified global row in user-provided arrays. More...

int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified local row in user-provided arrays. More...

int	NumMyRowEntries (int MyRow, int &NumEntries) const
	Return the current number of values stored for the specified local row. More...

int	MaxNumEntries () const
	Returns the maximum of NumMyRowEntries() over all rows. More...

const Epetra_BlockMap &	Map () const
	Map() method inherited from Epetra_DistObject. More...

const Epetra_Map &	RowMatrixRowMap () const
	Returns the EpetraMap object associated with the rows of this matrix. More...

const Epetra_Map &	RowMatrixColMap () const
	Returns the Epetra_Map object associated with columns of this matrix. More...

const Epetra_Import *	RowMatrixImporter () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

const Epetra_BlockMap &	BlockImportMap () const
	Use BlockColMap() instead. More...

int	TransformToLocal ()
	Use FillComplete() instead. More...

int	TransformToLocal (const Epetra_BlockMap DomainMap, const Epetra_BlockMap RangeMap)
	Use FillComplete(const Epetra_BlockMap& DomainMap, const Epetra_BlockMap& RangeMap) instead. More...

Public Member Functions inherited from Epetra_DistObject
	Epetra_DistObject (const Epetra_BlockMap &Map)
	Basic Epetra_DistObject constuctor. More...

	Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

	Epetra_DistObject (const Epetra_DistObject &Source)
	Epetra_DistObject copy constructor. More...

virtual	~Epetra_DistObject ()
	Epetra_DistObject destructor. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_Comm &	Comm () const
	Returns the address of the Epetra_Comm for this multi-vector. More...

bool	DistributedGlobal () const
	Returns true if this multi-vector is distributed global, i.e., not local replicated. More...

Public Member Functions inherited from Epetra_Object
	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
	Epetra_Object Constructor. More...

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)
	Epetra_Object Constructor. More...

	Epetra_Object (const Epetra_Object &Object)
	Epetra_Object Copy Constructor. More...

virtual	~Epetra_Object ()
	Epetra_Object Destructor. More...

virtual void	SetLabel (const char *const Label)
	Epetra_Object Label definition using char *. More...

virtual int	ReportError (const std::string Message, int ErrorCode) const
	Error reporting method. More...

Public Member Functions inherited from Epetra_SrcDistObject
virtual	~Epetra_SrcDistObject ()
	Epetra_SrcDistObject destructor. More...

Public Member Functions inherited from Epetra_CompObject
Epetra_CompObject &	operator= (const Epetra_CompObject &src)

	Epetra_CompObject ()
	Basic Epetra_CompObject constuctor. More...

	Epetra_CompObject (const Epetra_CompObject &Source)
	Epetra_CompObject copy constructor. More...

virtual	~Epetra_CompObject ()
	Epetra_CompObject destructor. More...

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)
	Set the internal Epetra_Flops() pointer. More...

void	SetFlopCounter (const Epetra_CompObject &CompObject)
	Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject. More...

void	UnsetFlopCounter ()
	Set the internal Epetra_Flops() pointer to 0 (no flops counted). More...

Epetra_Flops *	GetFlopCounter () const
	Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none. More...

void	ResetFlops () const
	Resets the number of floating point operations to zero for this multi-vector. More...

double	Flops () const
	Returns the number of floating point operations with this multi-vector. More...

void	UpdateFlops (int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long long Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (double Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (float Flops_in) const
	Increment Flop count for this object. More...

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)
	Epetra_BLAS Constructor. More...

	Epetra_BLAS (const Epetra_BLAS &BLAS)
	Epetra_BLAS Copy Constructor. More...

virtual	~Epetra_BLAS (void)
	Epetra_BLAS Destructor. More...

float	ASUM (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS one norm function (SASUM). More...

double	ASUM (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS one norm function (DASUM). More...

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (SDOT). More...

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (DDOT). More...

float	NRM2 (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS norm function (SNRM2). More...

double	NRM2 (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS norm function (DNRM2). More...

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
	Epetra_BLAS vector scale function (SSCAL) More...

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
	Epetra_BLAS vector scale function (DSCAL) More...

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector copy function (SCOPY) More...

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector scale function (DCOPY) More...

int	IAMAX (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (ISAMAX) More...

int	IAMAX (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (IDAMAX) More...

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (SAXPY) More...

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (DAXPY) More...

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (SGEMV) More...

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (DGEMV) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (SGEMM) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DGEMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DSYMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (STRMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (DTRMM) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (ssyrk) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (dsyrk) More...

Public Member Functions inherited from Epetra_RowMatrix
virtual	~Epetra_RowMatrix ()
	Destructor. More...

Public Member Functions inherited from Epetra_Operator
virtual	~Epetra_Operator ()
	Destructor. More...

Static Public Member Functions inherited from Epetra_Object
static void	SetTracebackMode (int TracebackModeValue)
	Set the value of the Epetra_Object error traceback report mode. More...

static int	GetTracebackMode ()
	Get the value of the Epetra_Object error report mode. More...

static std::ostream &	GetTracebackStream ()
	Get the output stream for error reporting. More...

Static Public Attributes inherited from Epetra_Object
static int	TracebackMode

Protected Member Functions inherited from Epetra_VbrMatrix
void	DeleteMemory ()

bool	Allocated () const

int	SetAllocated (bool Flag)

Epetra_SerialDenseMatrix ***	Values () const

int	DoMultiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

int	DoSolve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

void	InitializeDefaults ()

int	Allocate ()

int	BeginInsertValues (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal)

int	BeginReplaceValues (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal)

int	BeginSumIntoValues (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal)

int	SetupForSubmits (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal, Epetra_CombineMode SubmitMode)

int	EndReplaceSumIntoValues ()

int	EndInsertValues ()

int	CopyMat (double A, int LDA, int NumRows, int NumCols, double B, int LDB, bool SumInto) const

int	BeginExtractBlockRowCopy (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, int ColDims, bool IndicesAreLocal) const

int	SetupForExtracts (int BlockRow, int &RowDim, int NumBlockEntries, bool ExtractView, bool IndicesAreLocal) const

int	ExtractBlockDimsCopy (int NumBlockEntries, int *ColDims) const

int	ExtractBlockRowPointers (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, Epetra_SerialDenseMatrix *&Values, bool IndicesAreLocal) const

int	BeginExtractBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int *&BlockIndices, bool IndicesAreLocal) const

int	CopyMatDiag (double A, int LDA, int NumRows, int NumCols, double Diagonal) const

int	ReplaceMatDiag (double A, int LDA, int NumRows, int NumCols, double Diagonal)

void	BlockRowMultiply (bool TransA, int RowDim, int NumEntries, int BlockIndices, int RowOff, int FirstPointInElementList, int ElementSizeList, double Alpha, Epetra_SerialDenseMatrix As, double X, double Beta, double *Y, int NumVectors) const

void	BlockRowMultiply (bool TransA, int RowDim, int NumEntries, int BlockIndices, int RowOff, int FirstPointInElementList, int ElementSizeList, Epetra_SerialDenseMatrix As, double X, double *Y, int NumVectors) const

void	FastBlockRowMultiply (bool TransA, int RowDim, int NumEntries, int BlockIndices, int RowOff, int FirstPointInElementList, int ElementSizeList, Epetra_SerialDenseMatrix As, double X, double *Y, int NumVectors) const

int	InverseSums (bool DoRows, Epetra_Vector &x) const

int	Scale (bool DoRows, const Epetra_Vector &x)

void	BlockRowNormInf (int RowDim, int NumEntries, Epetra_SerialDenseMatrix *As, double Y) const

void	BlockRowNormOne (int RowDim, int NumEntries, int BlockRowIndices, Epetra_SerialDenseMatrix As, int ColFirstPointInElementList, double *x) const

void	SetStaticGraph (bool Flag)

int	CheckSizes (const Epetra_SrcDistObject &A)
	Allows the source and target (this) objects to be compared for compatibility, return nonzero if not. More...

int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
	Perform ID copies and permutations that are on processor. More...

int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
	Perform any packing or preparation required for call to DoTransfer(). More...

int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
	Perform any unpacking and combining after call to DoTransfer(). More...

int	SortEntries ()
	Sort column entries, row-by-row, in ascending order. More...

bool	Sorted () const
	If SortEntries() has been called, this query returns true, otherwise it returns false. More...

int	MergeRedundantEntries ()
	Add entries that have the same column index. Remove redundant entries from list. More...

bool	NoRedundancies () const
	If MergeRedundantEntries() has been called, this query returns true, otherwise it returns false. More...

bool	StaticGraph () const

int	GeneratePointObjects () const

int	BlockMap2PointMap (const Epetra_BlockMap &BlockMap, Epetra_Map *&PointMap) const

int	UpdateOperatorXY (const Epetra_MultiVector &X, const Epetra_MultiVector &Y) const

Protected Member Functions inherited from Epetra_DistObject
virtual int	DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int PermuteToLIDs, int PermuteFromLIDs, int RemoteLIDs, int ExportLIDs, int &LenExports, char &Exports, int &LenImports, char &Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
	Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object. More...

Protected Member Functions inherited from Epetra_Object
std::string	toString (const int &x) const

std::string	toString (const long long &x) const

std::string	toString (const double &x) const

Protected Attributes inherited from Epetra_VbrMatrix
Epetra_CrsGraph *	Graph_

bool	Allocated_

bool	StaticGraph_

bool	UseTranspose_

bool	constructedWithFilledGraph_

bool	matrixFillCompleteCalled_

bool	StorageOptimized_

int	NumMyBlockRows_

Epetra_DataAccess	CV_

int *	NumBlockEntriesPerRow_

int *	NumAllocatedBlockEntriesPerRow_

int **	Indices_

int *	ElementSizeList_

int *	FirstPointInElementList_

Epetra_SerialDenseMatrix ***	Entries_

double *	All_Values_Orig_

double *	All_Values_

double	NormInf_

double	NormOne_

double	NormFrob_

Epetra_MultiVector *	ImportVector_

Epetra_MultiVector *	ExportVector_

int *	TempRowDims_

Epetra_SerialDenseMatrix **	TempEntries_

int	LenTemps_

int	CurBlockRow_

int	CurNumBlockEntries_

int *	CurBlockIndices_

int	CurEntry_

bool	CurIndicesAreLocal_

Epetra_CombineMode	CurSubmitMode_

int	CurExtractBlockRow_

int	CurExtractEntry_

int	CurExtractNumBlockEntries_

bool	CurExtractIndicesAreLocal_

bool	CurExtractView_

int	CurRowDim_

int	CurBlockDiag_

Epetra_Map *	RowMatrixRowMap_

Epetra_Map *	RowMatrixColMap_

Epetra_Import *	RowMatrixImporter_

Epetra_Map *	OperatorDomainMap_

Epetra_Map *	OperatorRangeMap_

Epetra_MultiVector *	OperatorX_

Epetra_MultiVector *	OperatorY_

bool	HavePointObjects_

bool	squareFillCompleteCalled_

Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap	Map_

const Epetra_Comm *	Comm_

char *	Exports_

char *	Imports_

int	LenExports_

int	LenImports_

int *	Sizes_

Protected Attributes inherited from Epetra_CompObject
Epetra_Flops *	FlopCounter_

Detailed Description

Epetra Finite-Element VbrMatrix.

This class provides the ability to input finite-element style sub-matrix data, including sub-matrices with non-local rows (which could correspond to shared finite-element nodes for example). This class inherits Epetra_VbrMatrix, and so all Epetra_VbrMatrix functionality is also available.

Definition at line 65 of file Epetra_FEVbrMatrix.h.

Constructor & Destructor Documentation

Epetra_FEVbrMatrix::Epetra_FEVbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		int *	NumBlockEntriesPerRow,
		bool	ignoreNonLocalEntries = `false`
	)

Epetra_FEVbrMatrix constuctor with variable number of indices per row.

Creates a Epetra_FEVbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - A Epetra_BlockMap listing the block rows that this processor will contribute to.
In	NumBlockEntriesPerRow - An integer array of length NumRows such that NumBlockEntriesPerRow[i] indicates the (approximate) number of Block entries in the ith row.

Definition at line 59 of file Epetra_FEVbrMatrix.cpp.

Epetra_FEVbrMatrix::Epetra_FEVbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		int	NumBlockEntriesPerRow,
		bool	ignoreNonLocalEntries = `false`
	)

Epetra_FEVbrMatrix constuctor with fixed number of indices per row.

Creates a Epetra_FEVbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - An Epetra_BlockMap listing the block rows that this processor will contribute to.
In	NumBlockEntriesPerRow - An integer that indicates the (approximate) number of Block entries in the each Block row. Note that it is possible to use 0 for this value and let fill occur during the insertion phase.

Definition at line 80 of file Epetra_FEVbrMatrix.cpp.

Epetra_FEVbrMatrix::Epetra_FEVbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		const Epetra_BlockMap &	ColMap,
		int *	NumBlockEntriesPerRow,
		bool	ignoreNonLocalEntries = `false`
	)

Epetra_FEVbrMatrix constuctor with variable number of indices per row.

Creates a Epetra_FEVbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - A Epetra_BlockMap listing the block rows that this processor will contribute to.
In	ColMap - A Epetra_BlockMap listing the block columns to be contained on this processor.
In	NumBlockEntriesPerRow - An integer array of length NumRows such that NumBlockEntriesPerRow[i] indicates the (approximate) number of Block entries in the ith row.

Definition at line 101 of file Epetra_FEVbrMatrix.cpp.

Epetra_FEVbrMatrix::Epetra_FEVbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		const Epetra_BlockMap &	ColMap,
		int	NumBlockEntriesPerRow,
		bool	ignoreNonLocalEntries = `false`
	)

Epetra_FEVbrMatrix constuctor with fixed number of indices per row.

Creates a Epetra_FEVbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - An Epetra_BlockMap listing the block rows that this processor will contribute to.
In	ColMap - An Epetra_BlockMap listing the block columns to be contained on this processor.
In	NumBlockEntriesPerRow - An integer that indicates the (approximate) number of Block entries in the each Block row. Note that it is possible to use 0 for this value and let fill occur during the insertion phase.

Definition at line 123 of file Epetra_FEVbrMatrix.cpp.

Epetra_FEVbrMatrix::Epetra_FEVbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_CrsGraph &	Graph,
		bool	ignoreNonLocalEntries = `false`
	)

Constructor with pre-constructed Graph.

Definition at line 145 of file Epetra_FEVbrMatrix.cpp.

Epetra_FEVbrMatrix::Epetra_FEVbrMatrix ( const Epetra_FEVbrMatrix & src )

Copy Constructor.

Definition at line 165 of file Epetra_FEVbrMatrix.cpp.

Epetra_FEVbrMatrix::~Epetra_FEVbrMatrix ( )

virtual

Epetra_VbrMatrix Destructor.

Definition at line 216 of file Epetra_FEVbrMatrix.cpp.

Member Function Documentation

Epetra_FEVbrMatrix & Epetra_FEVbrMatrix::operator= ( const Epetra_FEVbrMatrix & src )

Definition at line 184 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::PutScalar ( double ScalarConstant )

Initialize all values in graph of the matrix with constant value.

Parameters

In	ScalarConstant - Value to use.

Returns: Integer error code, set to 0 if successful.

Definition at line 247 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::BeginInsertGlobalValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate insertion of a list of elements in a given global row of the matrix, values are inserted via SubmitEntry().

Parameters

In	BlockRow - Block Row number (in global coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Global column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 522 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::BeginReplaceGlobalValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate replacement of current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry()

Parameters

In	Row - Block Row number (in global coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Global column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 539 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::BeginSumIntoGlobalValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate summing into current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry()

Parameters

In	Row - Block Row number (in global coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Global column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 556 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::SubmitBlockEntry	(	double *	Values,
		int	LDA,
		int	NumRows,
		int	NumCols
	)

Submit a block entry to the indicated block row and column specified in the Begin routine.

Definition at line 634 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::EndSubmitEntries ( )

Completes processing of all data passed in for the current block row.

  This function completes the processing of all block entries submitted via SubmitBlockEntry().
  It also checks to make sure that SubmitBlockEntry was called the correct number of times as

specified by the Begin routine that initiated the entry process.

Definition at line 655 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::GlobalAssemble ( bool callFillComplete = true )

Definition at line 266 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::SetupForNonlocalSubmits	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices,
		bool	IndicesAreLocal,
		Epetra_CombineMode	SubmitMode
	)

private

Definition at line 573 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::InputNonlocalBlockEntry	(	double *	Values,
		int	LDA,
		int	NumRows,
		int	NumCols
	)

private

Definition at line 400 of file Epetra_FEVbrMatrix.cpp.

int Epetra_FEVbrMatrix::InsertNonlocalRow	(	int	row,
		int	offset,
		int	numCols
	)

private

Definition at line 464 of file Epetra_FEVbrMatrix.cpp.

void Epetra_FEVbrMatrix::destroyNonlocalData ( )

private

Definition at line 222 of file Epetra_FEVbrMatrix.cpp.

Member Data Documentation

bool Epetra_FEVbrMatrix::ignoreNonLocalEntries_

private

Definition at line 273 of file Epetra_FEVbrMatrix.h.

int Epetra_FEVbrMatrix::numNonlocalBlockRows_

private

Definition at line 275 of file Epetra_FEVbrMatrix.h.

int* Epetra_FEVbrMatrix::nonlocalBlockRows_

private

Definition at line 276 of file Epetra_FEVbrMatrix.h.

int* Epetra_FEVbrMatrix::nonlocalBlockRowLengths_

private

Definition at line 277 of file Epetra_FEVbrMatrix.h.

int* Epetra_FEVbrMatrix::nonlocalBlockRowAllocLengths_

private

Definition at line 278 of file Epetra_FEVbrMatrix.h.

int** Epetra_FEVbrMatrix::nonlocalBlockCols_

private

Definition at line 279 of file Epetra_FEVbrMatrix.h.

Epetra_SerialDenseMatrix*** Epetra_FEVbrMatrix::nonlocalCoefs_

private

Definition at line 285 of file Epetra_FEVbrMatrix.h.

int Epetra_FEVbrMatrix::curRowOffset_

private

Definition at line 289 of file Epetra_FEVbrMatrix.h.

int Epetra_FEVbrMatrix::curColOffset_

private

Definition at line 290 of file Epetra_FEVbrMatrix.h.

int Epetra_FEVbrMatrix::curNumCols_

private

Definition at line 291 of file Epetra_FEVbrMatrix.h.

int* Epetra_FEVbrMatrix::curCols_

private

Definition at line 292 of file Epetra_FEVbrMatrix.h.

int Epetra_FEVbrMatrix::curMode_

private

Definition at line 293 of file Epetra_FEVbrMatrix.h.

The documentation for this class was generated from the following files:

Constructors/Destructor

Insertion/Replace/SumInto methods

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
