Epetra_MultiVector: A class for constructing and using dense multi-vectors, vectors and matrices in parallel. More...

#include <Epetra_MultiVector.h>

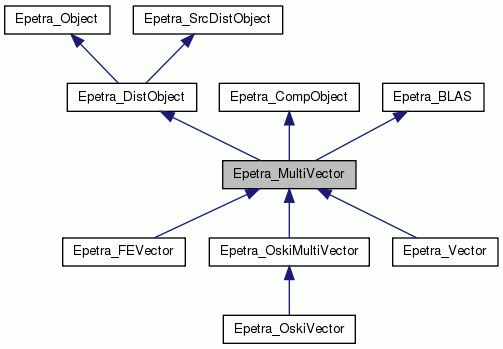

Inheritance diagram for Epetra_MultiVector:

Public Member Functions
int	ReplaceMap (const Epetra_BlockMap &map)
	Replace map, only if new map has same point-structure as current map. More...

int	Reduce ()

Public Member Functions inherited from Epetra_DistObject
	Epetra_DistObject (const Epetra_BlockMap &Map)
	Basic Epetra_DistObject constuctor. More...

	Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

	Epetra_DistObject (const Epetra_DistObject &Source)
	Epetra_DistObject copy constructor. More...

virtual	~Epetra_DistObject ()
	Epetra_DistObject destructor. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_BlockMap &	Map () const
	Returns the address of the Epetra_BlockMap for this multi-vector. More...

const Epetra_Comm &	Comm () const
	Returns the address of the Epetra_Comm for this multi-vector. More...

bool	DistributedGlobal () const
	Returns true if this multi-vector is distributed global, i.e., not local replicated. More...

Public Member Functions inherited from Epetra_Object
	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
	Epetra_Object Constructor. More...

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)
	Epetra_Object Constructor. More...

	Epetra_Object (const Epetra_Object &Object)
	Epetra_Object Copy Constructor. More...

virtual	~Epetra_Object ()
	Epetra_Object Destructor. More...

virtual void	SetLabel (const char *const Label)
	Epetra_Object Label definition using char *. More...

virtual const char *	Label () const
	Epetra_Object Label access funtion. More...

virtual int	ReportError (const std::string Message, int ErrorCode) const
	Error reporting method. More...

Public Member Functions inherited from Epetra_SrcDistObject
virtual	~Epetra_SrcDistObject ()
	Epetra_SrcDistObject destructor. More...

Public Member Functions inherited from Epetra_CompObject
Epetra_CompObject &	operator= (const Epetra_CompObject &src)

	Epetra_CompObject ()
	Basic Epetra_CompObject constuctor. More...

	Epetra_CompObject (const Epetra_CompObject &Source)
	Epetra_CompObject copy constructor. More...

virtual	~Epetra_CompObject ()
	Epetra_CompObject destructor. More...

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)
	Set the internal Epetra_Flops() pointer. More...

void	SetFlopCounter (const Epetra_CompObject &CompObject)
	Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject. More...

void	UnsetFlopCounter ()
	Set the internal Epetra_Flops() pointer to 0 (no flops counted). More...

Epetra_Flops *	GetFlopCounter () const
	Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none. More...

void	ResetFlops () const
	Resets the number of floating point operations to zero for this multi-vector. More...

double	Flops () const
	Returns the number of floating point operations with this multi-vector. More...

void	UpdateFlops (int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long long Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (double Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (float Flops_in) const
	Increment Flop count for this object. More...

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)
	Epetra_BLAS Constructor. More...

	Epetra_BLAS (const Epetra_BLAS &BLAS)
	Epetra_BLAS Copy Constructor. More...

virtual	~Epetra_BLAS (void)
	Epetra_BLAS Destructor. More...

float	ASUM (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS one norm function (SASUM). More...

double	ASUM (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS one norm function (DASUM). More...

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (SDOT). More...

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (DDOT). More...

float	NRM2 (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS norm function (SNRM2). More...

double	NRM2 (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS norm function (DNRM2). More...

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
	Epetra_BLAS vector scale function (SSCAL) More...

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
	Epetra_BLAS vector scale function (DSCAL) More...

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector copy function (SCOPY) More...

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector scale function (DCOPY) More...

int	IAMAX (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (ISAMAX) More...

int	IAMAX (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (IDAMAX) More...

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (SAXPY) More...

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (DAXPY) More...

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (SGEMV) More...

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (DGEMV) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (SGEMM) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DGEMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DSYMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (STRMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (DTRMM) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (ssyrk) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (dsyrk) More...

Protected Member Functions
void	Assign (const Epetra_MultiVector &rhs)

int	CheckInput ()

Protected Member Functions inherited from Epetra_DistObject
virtual int	DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int PermuteToLIDs, int PermuteFromLIDs, int RemoteLIDs, int ExportLIDs, int &LenExports, char &Exports, int &LenImports, char &Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
	Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object. More...

Protected Member Functions inherited from Epetra_Object
std::string	toString (const int &x) const

std::string	toString (const long long &x) const

std::string	toString (const double &x) const

Protected Attributes
double *	Values_

Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap	Map_

const Epetra_Comm *	Comm_

char *	Exports_

char *	Imports_

int	LenExports_

int	LenImports_

int *	Sizes_

Protected Attributes inherited from Epetra_CompObject
Epetra_Flops *	FlopCounter_

Private Member Functions
int	AllocateForCopy (void)

int	DoCopy (void)

void	UpdateDoubleTemp () const

void	UpdateVectors () const

int	AllocateForView (void)

int	DoView (void)

template<typename int_type >
int	ChangeGlobalValue (int_type GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue, bool SumInto)

int	ChangeMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue, bool SumInto)

int	CheckSizes (const Epetra_SrcDistObject &A)
	Allows the source and target (this) objects to be compared for compatibility, return nonzero if not. More...

int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
	Perform ID copies and permutations that are on processor. More...

int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
	Perform any packing or preparation required for call to DoTransfer(). More...

int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
	Perform any unpacking and combining after call to DoTransfer(). More...

Private Attributes
double **	Pointers_

int	MyLength_

long long	GlobalLength_

int	NumVectors_

bool	UserAllocated_

bool	ConstantStride_

int	Stride_

bool	Allocated_

double *	DoubleTemp_

Epetra_Vector **	Vectors_

Epetra_Util	Util_

Constructors/destructors
	Epetra_MultiVector (const Epetra_BlockMap &Map, int NumVectors, bool zeroOut=true)
	Basic Epetra_MultiVector constuctor. More...

	Epetra_MultiVector (const Epetra_MultiVector &Source)
	Epetra_MultiVector copy constructor. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, double *A, int MyLDA, int NumVectors)
	Set multi-vector values from two-dimensional array. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_BlockMap &Map, double **ArrayOfPointers, int NumVectors)
	Set multi-vector values from array of pointers. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_MultiVector &Source, int *Indices, int NumVectors)
	Set multi-vector values from list of vectors in an existing Epetra_MultiVector. More...

	Epetra_MultiVector (Epetra_DataAccess CV, const Epetra_MultiVector &Source, int StartIndex, int NumVectors)
	Set multi-vector values from range of vectors in an existing Epetra_MultiVector. More...

virtual	~Epetra_MultiVector ()
	Epetra_MultiVector destructor. More...

Post-construction modification routines
int	ReplaceGlobalValue (int GlobalRow, int VectorIndex, double ScalarValue)
	Replace current value at the specified (GlobalRow, VectorIndex) location with ScalarValue. More...

int	ReplaceGlobalValue (long long GlobalRow, int VectorIndex, double ScalarValue)

int	ReplaceGlobalValue (int GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Replace current value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location with ScalarValue. More...

int	ReplaceGlobalValue (long long GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)

int	SumIntoGlobalValue (int GlobalRow, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (GlobalRow, VectorIndex) location. More...

int	SumIntoGlobalValue (long long GlobalRow, int VectorIndex, double ScalarValue)

int	SumIntoGlobalValue (int GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location. More...

int	SumIntoGlobalValue (long long GlobalBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)

int	ReplaceMyValue (int MyRow, int VectorIndex, double ScalarValue)
	Replace current value at the specified (MyRow, VectorIndex) location with ScalarValue. More...

int	ReplaceMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Replace current value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location with ScalarValue. More...

int	SumIntoMyValue (int MyRow, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (MyRow, VectorIndex) location. More...

int	SumIntoMyValue (int MyBlockRow, int BlockRowOffset, int VectorIndex, double ScalarValue)
	Adds ScalarValue to existing value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location. More...

int	PutScalar (double ScalarConstant)
	Initialize all values in a multi-vector with constant value. More...

int	Random ()
	Set multi-vector values to random numbers. More...

Extraction methods
int	ExtractCopy (double *A, int MyLDA) const
	Put multi-vector values into user-provided two-dimensional array. More...

int	ExtractCopy (double **ArrayOfPointers) const
	Put multi-vector values into user-provided array of pointers. More...

int	ExtractView (double *A, int MyLDA) const
	Set user-provided addresses of A and MyLDA. More...

int	ExtractView (double ***ArrayOfPointers) const
	Set user-provided addresses of ArrayOfPointers. More...

Mathematical methods
int	Dot (const Epetra_MultiVector &A, double *Result) const
	Computes dot product of each corresponding pair of vectors. More...

int	Abs (const Epetra_MultiVector &A)
	Puts element-wise absolute values of input Multi-vector in target. More...

int	Reciprocal (const Epetra_MultiVector &A)
	Puts element-wise reciprocal values of input Multi-vector in target. More...

int	Scale (double ScalarValue)
	Scale the current values of a multi-vector, this = ScalarValue*this. More...

int	Scale (double ScalarA, const Epetra_MultiVector &A)
	Replace multi-vector values with scaled values of A, this = ScalarA*A. More...

int	Update (double ScalarA, const Epetra_MultiVector &A, double ScalarThis)
	Update multi-vector values with scaled values of A, this = ScalarThis*this + ScalarA*A. More...

int	Update (double ScalarA, const Epetra_MultiVector &A, double ScalarB, const Epetra_MultiVector &B, double ScalarThis)
	Update multi-vector with scaled values of A and B, this = ScalarThis*this + ScalarAA + ScalarBB. More...

int	Norm1 (double *Result) const
	Compute 1-norm of each vector in multi-vector. More...

int	Norm2 (double *Result) const
	Compute 2-norm of each vector in multi-vector. More...

int	NormInf (double *Result) const
	Compute Inf-norm of each vector in multi-vector. More...

int	NormWeighted (const Epetra_MultiVector &Weights, double *Result) const
	Compute Weighted 2-norm (RMS Norm) of each vector in multi-vector. More...

int	MinValue (double *Result) const
	Compute minimum value of each vector in multi-vector. More...

int	MaxValue (double *Result) const
	Compute maximum value of each vector in multi-vector. More...

int	MeanValue (double *Result) const
	Compute mean (average) value of each vector in multi-vector. More...

int	Multiply (char TransA, char TransB, double ScalarAB, const Epetra_MultiVector &A, const Epetra_MultiVector &B, double ScalarThis)
	Matrix-Matrix multiplication, this = ScalarThis*this + ScalarABAB. More...

int	Multiply (double ScalarAB, const Epetra_MultiVector &A, const Epetra_MultiVector &B, double ScalarThis)
	Multiply a Epetra_MultiVector with another, element-by-element. More...

int	ReciprocalMultiply (double ScalarAB, const Epetra_MultiVector &A, const Epetra_MultiVector &B, double ScalarThis)
	Multiply a Epetra_MultiVector by the reciprocal of another, element-by-element. More...

Random number utilities
int	SetSeed (unsigned int Seed_in)
	Set seed for Random function. More...

unsigned int	Seed ()
	Get seed from Random function. More...

Overloaded operators
Epetra_MultiVector &	operator= (const Epetra_MultiVector &Source)
	= Operator. More...

double *&	operator[] (int i)
	Vector access function. More...

double *const &	operator[] (int i) const
	Vector access function. More...

Epetra_Vector *&	operator() (int i)
	Vector access function. More...

const Epetra_Vector *&	operator() (int i) const
	Vector access function. More...

Attribute access functions
int	NumVectors () const
	Returns the number of vectors in the multi-vector. More...

int	MyLength () const
	Returns the local vector length on the calling processor of vectors in the multi-vector. More...

int	GlobalLength () const
	Returns the global vector length of vectors in the multi-vector. More...

long long	GlobalLength64 () const
	Returns the 64-bit global vector length of vectors in the multi-vector. More...

int	Stride () const
	Returns the stride between vectors in the multi-vector (only meaningful if ConstantStride() is true). More...

bool	ConstantStride () const
	Returns true if this multi-vector has constant stride between vectors. More...

I/O methods
virtual void	Print (std::ostream &os) const
	Print method. More...

Expert-only unsupported methods
int	ResetView (double **ArrayOfPointers)
	Reset the view of an existing multivector to point to new user data. More...

double *	Values () const
	Get pointer to MultiVector values. More...

double **	Pointers () const
	Get pointer to individual vector pointers. More...

Additional Inherited Members
Static Public Member Functions inherited from Epetra_Object
static void	SetTracebackMode (int TracebackModeValue)
	Set the value of the Epetra_Object error traceback report mode. More...

static int	GetTracebackMode ()
	Get the value of the Epetra_Object error report mode. More...

static std::ostream &	GetTracebackStream ()
	Get the output stream for error reporting. More...

Static Public Attributes inherited from Epetra_Object
static int	TracebackMode

Detailed Description

Epetra_MultiVector: A class for constructing and using dense multi-vectors, vectors and matrices in parallel.

The Epetra_MultiVector class enables the construction and use of real-valued, double-precision dense vectors, multi-vectors, and matrices in a distributed memory environment. The dimensions and distribution of the dense multi-vectors is determined in part by a Epetra_Comm object, a Epetra_Map (or Epetra_LocalMap or Epetra_BlockMap) and the number of vectors passed to the constructors described below.

There are several concepts that important for understanding the Epetra_MultiVector class:

Multi-vectors, Vectors and Matrices.
- Vector - A list of real-valued, double-precision numbers. Also a multi-vector with one vector.
- Multi-Vector - A collection of one or more vectors, all having the same length and distribution.
- (Dense) Matrix - A special form of multi-vector such that stride in memory between any two consecutive vectors in the multi-vector is the same for all vectors. This is identical to a two-dimensional array in Fortran and plays an important part in high performance computations.
Distributed Global vs. Replicated Local.
- Distributed Global Multi-vectors - In most instances, a multi-vector will be partitioned across multiple memory images associated with multiple processors. In this case, there is a unique copy of each element and elements are spread across all processors specified by the Epetra_Comm communicator.
- Replicated Local Multi-vectors - Some algorithms use multi-vectors that are too small to be distributed across all processors, the Hessenberg matrix in a GMRES computation. In other cases, such as with block iterative methods, block dot product functions produce small dense matrices that are required by all processors. Replicated local multi-vectors handle these types of situation.
Multi-vector Functions vs. Dense Matrix Functions.
- Multi-vector functions - These functions operate simultaneously but independently on each vector in the multi-vector and produce individual results for each vector.
- Dense matrix functions - These functions operate on the multi-vector as a matrix, providing access to selected dense BLAS and LAPACK operations.

Constructing Epetra_MultiVectors

Except for the basic constructor and copy constructor, Epetra_MultiVector constructors have two data access modes:

Copy mode - Allocates memory and makes a copy of the user-provided data. In this case, the user data is not needed after construction.
View mode - Creates a "view" of the user data. In this case, the user data is required to remain intact for the life of the multi-vector.

Warning: View mode is extremely dangerous from a data hiding perspective. Therefore, we strongly encourage users to develop code using Copy mode first and only use the View mode in a secondary optimization phase.

All Epetra_MultiVector constructors require a map argument that describes the layout of elements on the parallel machine. Specifically, map is a Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object describing the desired memory layout for the multi-vector.

There are six different Epetra_MultiVector constructors:

Basic - All values are zero.
Copy - Copy an existing multi-vector.
Copy from or make view of two-dimensional Fortran style array.
Copy from or make view of an array of pointers.
Copy or make view of a list of vectors from another Epetra_MultiVector object.
Copy or make view of a range of vectors from another Epetra_MultiVector object.

Extracting Data from Epetra_MultiVectors

Once a Epetra_MultiVector is constructed, it is possible to extract a copy of the values or create a view of them.

Warning: ExtractView functions are extremely dangerous from a data hiding perspective. For both ExtractView fuctions, there is a corresponding ExtractCopy function. We strongly encourage users to develop code using ExtractCopy functions first and only use the ExtractView functions in a secondary optimization phase.

There are four Extract functions:

ExtractCopy - Copy values into a user-provided two-dimensional array.
ExtractCopy - Copy values into a user-provided array of pointers.
ExtractView - Set user-provided two-dimensional array parameters to point to Epetra_MultiVector data.
ExtractView - Set user-provided array of pointer parameters to point to Epetra_MultiVector data.

Vector, Matrix and Utility Functions

Once a Epetra_MultiVector is constructed, a variety of mathematical functions can be applied to the individual vectors. Specifically:

Dot Products.
Vector Updates.
p Norms.
Weighted Norms.
Minimum, Maximum and Average Values.

In addition, a matrix-matrix multiply function supports a variety of operations on any viable combination of global distributed and local replicated multi-vectors using calls to DGEMM, a high performance kernel for matrix operations. In the near future we will add support for calls to other selected BLAS and LAPACK functions.

Counting Floating Point Operations

Each Epetra_MultiVector object keep track of the number of serial floating point operations performed using the specified object as the this argument to the function. The Flops() function returns this number as a double precision number. Using this information, in conjunction with the Epetra_Time class, one can get accurate parallel performance numbers. The ResetFlops() function resets the floating point counter.

Warning: A Epetra_Map, Epetra_LocalMap or Epetra_BlockMap object is required for all Epetra_MultiVector constructors.

Definition at line 192 of file Epetra_MultiVector.h.

Constructor & Destructor Documentation

Epetra_MultiVector::Epetra_MultiVector	(	const Epetra_BlockMap &	Map,
		int	NumVectors,
		bool	zeroOut = `true`
	)

Basic Epetra_MultiVector constuctor.

Creates a Epetra_MultiVector object and, by default, fills with zero values.

Parameters

In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.

Warning: Note that, because Epetra_LocalMap derives from Epetra_Map and Epetra_Map derives from Epetra_BlockMap, this constructor works for all three types of Epetra map classes.

Parameters

In	NumVectors - Number of vectors in multi-vector.
In	zeroOut - If `true` then the allocated memory will be zeroed out initialy. If `false` then this memory will not be touched which can be significantly faster.

Returns: Pointer to a Epetra_MultiVector.

Definition at line 60 of file Epetra_MultiVector.cpp.

Epetra_MultiVector::Epetra_MultiVector ( const Epetra_MultiVector & Source )

Epetra_MultiVector copy constructor.

Definition at line 85 of file Epetra_MultiVector.cpp.

Epetra_MultiVector::Epetra_MultiVector	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	Map,
		double *	A,
		int	MyLDA,
		int	NumVectors
	)

Set multi-vector values from two-dimensional array.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	A - Pointer to an array of double precision numbers. The first vector starts at A. The second vector starts at A+MyLDA, the third at A+2*MyLDA, and so on.
In	MyLDA - The "Leading Dimension", or stride between vectors in memory.

Warning: This value refers to the stride on the calling processor. Thus it is a local quantity, not a global quantity.

Parameters

In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 111 of file Epetra_MultiVector.cpp.

Epetra_MultiVector::Epetra_MultiVector	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	Map,
		double **	ArrayOfPointers,
		int	NumVectors
	)

Set multi-vector values from array of pointers.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Map - A Epetra_LocalMap, Epetra_Map or Epetra_BlockMap.
In	ArrayOfPointers - An array of pointers such that ArrayOfPointers[i] points to the memory location containing ith vector to be copied.
In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 141 of file Epetra_MultiVector.cpp.

Epetra_MultiVector::Epetra_MultiVector	(	Epetra_DataAccess	CV,
		const Epetra_MultiVector &	Source,
		int *	Indices,
		int	NumVectors
	)

Set multi-vector values from list of vectors in an existing Epetra_MultiVector.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Source - An existing fully constructed Epetra_MultiVector.
In	Indices - Integer list of the vectors to copy.
In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 172 of file Epetra_MultiVector.cpp.

Epetra_MultiVector::Epetra_MultiVector	(	Epetra_DataAccess	CV,
		const Epetra_MultiVector &	Source,
		int	StartIndex,
		int	NumVectors
	)

Set multi-vector values from range of vectors in an existing Epetra_MultiVector.

Parameters

In	Epetra_DataAccess - Enumerated type set to Copy or View.
In	Source - An existing fully constructed Epetra_MultiVector.
In	StartIndex - First of the vectors to copy.
In	NumVectors - Number of vectors in multi-vector.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 203 of file Epetra_MultiVector.cpp.

Epetra_MultiVector::~Epetra_MultiVector ( )

virtual

Epetra_MultiVector destructor.

Definition at line 230 of file Epetra_MultiVector.cpp.

Member Function Documentation

int Epetra_MultiVector::ReplaceGlobalValue	(	int	GlobalRow,
		int	VectorIndex,
		double	ScalarValue
	)

Replace current value at the specified (GlobalRow, VectorIndex) location with ScalarValue.

Replaces the existing value for a single entry in the multivector. The specified global row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

If the map associated with this multivector is an Epetra_BlockMap, only the first point entry associated with the global row will be modified. To modify a different point entry, use the other version of this method

Parameters

In	GlobalRow - Row of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 363 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ReplaceGlobalValue	(	long long	GlobalRow,
		int	VectorIndex,
		double	ScalarValue
	)

Definition at line 372 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ReplaceGlobalValue	(	int	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue
	)

Replace current value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location with ScalarValue.

Replaces the existing value for a single entry in the multivector. The specified global block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	GlobalBlockRow - BlockRow of Multivector to modify in global index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 381 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ReplaceGlobalValue	(	long long	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue
	)

Definition at line 390 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SumIntoGlobalValue	(	int	GlobalRow,
		int	VectorIndex,
		double	ScalarValue
	)

Adds ScalarValue to existing value at the specified (GlobalRow, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified global row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

If the map associated with this multivector is an Epetra_BlockMap, only the first point entry associated with the global row will be modified. To modify a different point entry, use the other version of this method

Parameters

In	GlobalRow - Row of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 399 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SumIntoGlobalValue	(	long long	GlobalRow,
		int	VectorIndex,
		double	ScalarValue
	)

Definition at line 408 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SumIntoGlobalValue	(	int	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue
	)

Adds ScalarValue to existing value at the specified (GlobalBlockRow, BlockRowOffset, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified global block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	GlobalBlockRow - BlockRow of Multivector to modify in global index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in global index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if GlobalRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 417 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SumIntoGlobalValue	(	long long	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue
	)

Definition at line 426 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ReplaceMyValue	(	int	MyRow,
		int	VectorIndex,
		double	ScalarValue
	)

Replace current value at the specified (MyRow, VectorIndex) location with ScalarValue.

Replaces the existing value for a single entry in the multivector. The specified local row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

This method is intended for use with vectors based on an Epetra_Map. If used on a vector based on a non-trivial Epetra_BlockMap, this will update only block row 0, i.e.

Epetra_MultiVector::ReplaceMyValue ( MyRow, VectorIndex, ScalarValue ) is equivalent to: Epetra_MultiVector::ReplaceMyValue ( 0, MyRow, VectorIndex, ScalarValue )

Parameters

In	MyRow - Row of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 434 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ReplaceMyValue	(	int	MyBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue
	)

Replace current value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location with ScalarValue.

Replaces the existing value for a single entry in the multivector. The specified local block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	MyBlockRow - BlockRow of Multivector to modify in local index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 441 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SumIntoMyValue	(	int	MyRow,
		int	VectorIndex,
		double	ScalarValue
	)

Adds ScalarValue to existing value at the specified (MyRow, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified local row must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

If the map associated with this multivector is an Epetra_BlockMap, only the first point entry associated with the local row will be modified. To modify a different point entry, use the other version of this method

Parameters

In	MyRow - Row of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors().

Definition at line 448 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SumIntoMyValue	(	int	MyBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue
	)

Adds ScalarValue to existing value at the specified (MyBlockRow, BlockRowOffset, VectorIndex) location.

Sums the given value into the existing value for a single entry in the multivector. The specified local block row and block row offset must correspond to a GID owned by the map of the multivector on the calling processor. In other words, this method does not perform cross-processor communication.

Parameters

In	MyBlockRow - BlockRow of Multivector to modify in local index space.
In	BlockRowOffset - Offset into BlockRow of Multivector to modify in local index space.
In	VectorIndex - Vector within MultiVector that should to modify.
In	ScalarValue - Value to add to existing value.

Returns: Integer error code, set to 0 if successful, set to 1 if MyRow not associated with calling processor set to -1 if VectorIndex >= NumVectors(), set to -2 if BlockRowOffset is out-of-range.

Definition at line 454 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::PutScalar ( double ScalarConstant )

Initialize all values in a multi-vector with constant value.

Parameters

In	ScalarConstant - Value to use.

Returns: Integer error code, set to 0 if successful.

Definition at line 595 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Random ( )

Set multi-vector values to random numbers.

MultiVector uses the random number generator provided by Epetra_Util. The multi-vector values will be set to random values on the interval (-1.0, 1.0).

Returns: Integer error code, set to 0 if successful.

Definition at line 490 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ExtractCopy	(	double *	A,
		int	MyLDA
	)		const

Put multi-vector values into user-provided two-dimensional array.

Parameters

Out	A - Pointer to memory space that will contain the multi-vector values. The first vector will be copied to the memory pointed to by A. The second vector starts at A+MyLDA, the third at A+2*MyLDA, and so on.
In	MyLDA - The "Leading Dimension", or stride between vectors in memory.

Warning: This value refers to the stride on the calling processor. Thus it is a local quantity, not a global quantity.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 521 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ExtractCopy ( double ** ArrayOfPointers ) const

Put multi-vector values into user-provided array of pointers.

Parameters

Out	ArrayOfPointers - An array of pointers to memory space that will contain the multi-vector values, such that ArrayOfPointers[i] points to the memory location where the ith vector to be copied.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 556 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ExtractView	(	double **	A,
		int *	MyLDA
	)		const

Set user-provided addresses of A and MyLDA.

Parameters

A	(Out) - Address of a pointer to that will be set to point to the values of the multi-vector. The first vector will be at the memory pointed to by A. The second vector starts at A+MyLDA, the third at A+2*MyLDA, and so on.
MyLDA	(Out) - Address of the "Leading Dimension", or stride between vectors in memory.

Warning: This value refers to the stride on the calling processor. Thus it is a local quantity, not a global quantity.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 574 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ExtractView ( double *** ArrayOfPointers ) const

Set user-provided addresses of ArrayOfPointers.

Parameters

ArrayOfPointers (Out) - Address of array of pointers to memory space that will set to the multi-vector array of pointers, such that ArrayOfPointers[i] points to the memory location where the ith vector is located.

Returns: Integer error code, set to 0 if successful.

See Detailed Description section for further discussion.

Definition at line 587 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Dot	(	const Epetra_MultiVector &	A,
		double *	Result
	)		const

Computes dot product of each corresponding pair of vectors.

Parameters

In	A - Multi-vector to be used with the "\e this" multivector.
Out	Result - Result[i] will contain the ith dot product result.

Returns: Integer error code, set to 0 if successful.

Definition at line 1123 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Abs ( const Epetra_MultiVector & A )

Puts element-wise absolute values of input Multi-vector in target.

Parameters

In	A - Input Multi-vector.
Out	this will contain the absolute values of the entries of A.

Returns: Integer error code, set to 0 if successful.

Note: It is possible to use the same argument for A and this.

Definition at line 1158 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Reciprocal ( const Epetra_MultiVector & A )

Puts element-wise reciprocal values of input Multi-vector in target.

Parameters

In	A - Input Multi-vector.
Out	this will contain the element-wise reciprocal values of the entries of A.

Returns: Integer error code, set to 0 if successful. Returns 2 if some entry is too small, but not zero. Returns 1 if some entry is zero.

Note: It is possible to use the same argument for A and this. Also, if a given value of A is smaller than Epetra_DoubleMin (defined in Epetra_Epetra.h), but nonzero, then the return code is 2. If an entry is zero, the return code is 1. However, in all cases the reciprocal value is still used, even if a NaN is the result.

Definition at line 1180 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Scale ( double ScalarValue )

Scale the current values of a multi-vector, this = ScalarValue*this.

Parameters

In	ScalarValue - Scale value.
Out	This - Multi-vector with scaled values.

Returns: Integer error code, set to 0 if successful.

Definition at line 1229 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Scale	(	double	ScalarA,
		const Epetra_MultiVector &	A
	)

Replace multi-vector values with scaled values of A, this = ScalarA*A.

Parameters

In	ScalarA - Scale value.
In	A - Multi-vector to copy.
Out	This - Multi-vector with values overwritten by scaled values of A.

Returns: Integer error code, set to 0 if successful.

Definition at line 1251 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Update	(	double	ScalarA,
		const Epetra_MultiVector &	A,
		double	ScalarThis
	)

Update multi-vector values with scaled values of A, this = ScalarThis*this + ScalarA*A.

Parameters

In	ScalarA - Scale value for A.
In	A - Multi-vector to add.
In	ScalarThis - Scale value for this.
Out	This - Multi-vector with updatede values.

Returns: Integer error code, set to 0 if successful.

Definition at line 1276 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Update	(	double	ScalarA,
		const Epetra_MultiVector &	A,
		double	ScalarB,
		const Epetra_MultiVector &	B,
		double	ScalarThis
	)

Update multi-vector with scaled values of A and B, this = ScalarThis*this + ScalarA*A + ScalarB*B.

Parameters

In	ScalarA - Scale value for A.
In	A - Multi-vector to add.
In	ScalarB - Scale value for B.
In	B - Multi-vector to add.
In	ScalarThis - Scale value for this.
Out	This - Multi-vector with updatede values.

Returns: Integer error code, set to 0 if successful.

Definition at line 1341 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Norm1 ( double * Result ) const

Compute 1-norm of each vector in multi-vector.

Parameters

Out	Result - Result[i] contains 1-norm of ith vector.

Warning: Map of the this multivector must have unique GIDs (UniqueGIDs() must return true).

Returns: Integer error code, set to 0 if successful.

Definition at line 1508 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Norm2 ( double * Result ) const

Compute 2-norm of each vector in multi-vector.

Parameters

Out	Result - Result[i] contains 2-norm of ith vector.

Warning: Map of the this multivector must have unique GIDs (UniqueGIDs() must return true).

Returns: Integer error code, set to 0 if successful.

Definition at line 1547 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::NormInf ( double * Result ) const

Compute Inf-norm of each vector in multi-vector.

Parameters

Out	Result - Result[i] contains Inf-norm of ith vector.

Returns: Integer error code, set to 0 if successful.

Definition at line 1580 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::NormWeighted	(	const Epetra_MultiVector &	Weights,
		double *	Result
	)		const

Compute Weighted 2-norm (RMS Norm) of each vector in multi-vector.

Parameters

In	Weights - Multi-vector of weights. If Weights contains a single vector, that vector will be used as the weights for all vectors of this. Otherwise, Weights should have the same number of vectors as this.
Out	Result - Result[i] contains the weighted 2-norm of ith vector. Specifically if we denote the ith vector in the multivector by , and the ith weight vector by and let j represent the jth entry of each vector, on return Result[i] will contain the following result: $\sqrt{(1/n)\sum_{j=1}^n(x_j/w_j)^2}$ , where is the global length of the vectors.

Returns: Integer error code, set to 0 if successful.

Definition at line 1624 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::MinValue ( double * Result ) const

Compute minimum value of each vector in multi-vector.

Note that the vector contents must be already initialized for this function to compute a well-defined result. The length of the vector need not be greater than zero on all processors. If length is greater than zero on any processor then a valid result will be computed.

Parameters

Out	Result - Result[i] contains minimum value of ith vector.

Returns: Integer error code, set to 0 if successful.

Definition at line 1674 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::MaxValue ( double * Result ) const

Compute maximum value of each vector in multi-vector.

Note that the vector contents must be already initialized for this function to compute a well-defined result. The length of the vector need not be greater than zero on all processors. If length is greater than zero on any processor then a valid result will be computed.

Parameters

Out	Result - Result[i] contains maximum value of ith vector.

Returns: Integer error code, set to 0 if successful.

Definition at line 1787 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::MeanValue ( double * Result ) const

Compute mean (average) value of each vector in multi-vector.

Parameters

Out	Result - Result[i] contains mean value of ith vector.

Warning: Map of the this multivector must have unique GIDs (UniqueGIDs() must return true).

Returns: Integer error code, set to 0 if successful.

Definition at line 1900 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Multiply	(	char	TransA,
		char	TransB,
		double	ScalarAB,
		const Epetra_MultiVector &	A,
		const Epetra_MultiVector &	B,
		double	ScalarThis
	)

Matrix-Matrix multiplication, this = ScalarThis*this + ScalarAB*A*B.

This function performs a variety of matrix-matrix multiply operations, interpreting the Epetra_MultiVectors (this-aka C , A and B) as 2D matrices. Variations are due to the fact that A, B and C can be local replicated or global distributed Epetra_MultiVectors and that we may or may not operate with the transpose of A and B. Possible cases are:

Total of 32 case (2^5).
Num
OPERATIONS                        case  Notes
1) C(local) = A^X(local) * B^X(local)  4   (X=Transpose or Not, No comm needed)
2) C(local) = A^T(distr) * B  (distr)  1   (2D dot product, replicate C)
3) C(distr) = A  (distr) * B^X(local)  2   (2D vector update, no comm needed)

Note that the following operations are not meaningful for
1D distributions:

1) C(local) = A^T(distr) * B^T(distr)  1
2) C(local) = A  (distr) * B^X(distr)  2
3) C(distr) = A^X(local) * B^X(local)  4
4) C(distr) = A^X(local) * B^X(distr)  4
5) C(distr) = A^T(distr) * B^X(local)  2
6) C(local) = A^X(distr) * B^X(local)  4
7) C(distr) = A^X(distr) * B^X(local)  4
8) C(local) = A^X(local) * B^X(distr)  4

Parameters

In	TransA - Operate with the transpose of A if = 'T', else no transpose if = 'N'.
In	TransB - Operate with the transpose of B if = 'T', else no transpose if = 'N'.
In	ScalarAB - Scalar to multiply with A*B.
In	A - Multi-vector.
In	B - Multi-vector.
In	ScalarThis - Scalar to multiply with this.

Warning: Map of the distributed multivectors must have unique GIDs (UniqueGIDs() must return true).

Returns: Integer error code, set to 0 if successful.

Warning: {Each multi-vector A, B and this is checked if it has constant stride using the ConstantStride() query function. If it does not have constant stride, a temporary copy is made and used for the computation. This activity is transparent to the user, except that there is memory and computation overhead. All temporary space is deleted prior to exit.}

A.ConstantStride() || B.ConstantStride() ) EPETRA_CHK_ERR(-1); // Return error

Definition at line 1936 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::Multiply	(	double	ScalarAB,
		const Epetra_MultiVector &	A,
		const Epetra_MultiVector &	B,
		double	ScalarThis
	)

Multiply a Epetra_MultiVector with another, element-by-element.

This function supports diagonal matrix multiply. A is usually a single vector while B and this may have one or more columns. Note that B and this must have the same shape. A can be one vector or have the same shape as B. The actual computation is this = ScalarThis * this + ScalarAB * B @ A where @ denotes element-wise multiplication.

Definition at line 2087 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ReciprocalMultiply	(	double	ScalarAB,
		const Epetra_MultiVector &	A,
		const Epetra_MultiVector &	B,
		double	ScalarThis
	)

Multiply a Epetra_MultiVector by the reciprocal of another, element-by-element.

This function supports diagonal matrix scaling. A is usually a single vector while B and this may have one or more columns. Note that B and this must have the same shape. A can be one vector or have the same shape as B. The actual computation is this = ScalarThis * this + ScalarAB * B @ A where @ denotes element-wise division.

Definition at line 2210 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::SetSeed ( unsigned int Seed_in )

inline

Set seed for Random function.

Parameters

In	Seed - Should be an integer on the interval (0, 2^31-1).

Returns: Integer error code, set to 0 if successful.

Definition at line 878 of file Epetra_MultiVector.h.

unsigned int Epetra_MultiVector::Seed ( )

inline

Get seed from Random function.

Returns: Current random number seed.

Definition at line 884 of file Epetra_MultiVector.h.

Epetra_MultiVector & Epetra_MultiVector::operator= ( const Epetra_MultiVector & Source )

= Operator.

Parameters

In	A - Epetra_MultiVector to copy.

Returns: Epetra_MultiVector.

Definition at line 2368 of file Epetra_MultiVector.cpp.

double*& Epetra_MultiVector::operator[] ( int i )

inline

Vector access function.

Returns: Pointer to the array of doubles containing the local values of the ith vector in the multi-vector.

Definition at line 908 of file Epetra_MultiVector.h.

double* const& Epetra_MultiVector::operator[] ( int i ) const

inline

Vector access function.

Returns: Pointer to the array of doubles containing the local values of the ith vector in the multi-vector.

Definition at line 914 of file Epetra_MultiVector.h.

Epetra_Vector *& Epetra_MultiVector::operator() ( int i )

Vector access function.

Returns: An Epetra_Vector pointer to the ith vector in the multi-vector.

Definition at line 2335 of file Epetra_MultiVector.cpp.

const Epetra_Vector *& Epetra_MultiVector::operator() ( int i ) const

Vector access function.

Returns: An Epetra_Vector pointer to the ith vector in the multi-vector.

Definition at line 2351 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::NumVectors ( ) const

inline

Returns the number of vectors in the multi-vector.

Definition at line 933 of file Epetra_MultiVector.h.

int Epetra_MultiVector::MyLength ( ) const

inline

Returns the local vector length on the calling processor of vectors in the multi-vector.

Definition at line 936 of file Epetra_MultiVector.h.

int Epetra_MultiVector::GlobalLength ( ) const

inline

Returns the global vector length of vectors in the multi-vector.

Definition at line 939 of file Epetra_MultiVector.h.

long long Epetra_MultiVector::GlobalLength64 ( ) const

inline

Returns the 64-bit global vector length of vectors in the multi-vector.

Definition at line 942 of file Epetra_MultiVector.h.

int Epetra_MultiVector::Stride ( ) const

inline

Returns the stride between vectors in the multi-vector (only meaningful if ConstantStride() is true).

Definition at line 945 of file Epetra_MultiVector.h.

bool Epetra_MultiVector::ConstantStride ( ) const

inline

Returns true if this multi-vector has constant stride between vectors.

Definition at line 948 of file Epetra_MultiVector.h.

int Epetra_MultiVector::ReplaceMap ( const Epetra_BlockMap & map )

Replace map, only if new map has same point-structure as current map.

return 0 if map is replaced, -1 if not.

Definition at line 536 of file Epetra_MultiVector.cpp.

void Epetra_MultiVector::Print ( std::ostream & os ) const

virtual

Print method.

Reimplemented from Epetra_DistObject.

Definition at line 2447 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ResetView ( double ** ArrayOfPointers )

Reset the view of an existing multivector to point to new user data.

Allows the (very) light-weight replacement of multivector values for an existing multivector that was constructed using an Epetra_DataAccess mode of View. No checking is performed to see if the array of values passed in contains valid data. It is assumed that the user has verified the integrity of data before calling this method. This method is useful for situations where a multivector is needed for use with an Epetra operator or matrix and the user is not passing in a multivector, or the multivector is being passed in with another map that is not exactly compatible with the operator, but has the correct number of entries.

This method is used by AztecOO and Ifpack in the matvec, and solve methods to improve performance and reduce repeated calls to constructors and destructors.

Parameters

ArrayOfPointers Contains the array of pointers containing the multivector data.

Returns: Integer error code, set to 0 if successful, -1 if the multivector was not created as a View.

Warning: This method is extremely dangerous and should only be used by experts.

Definition at line 2435 of file Epetra_MultiVector.cpp.

double* Epetra_MultiVector::Values ( ) const

inline

Get pointer to MultiVector values.

Definition at line 989 of file Epetra_MultiVector.h.

double** Epetra_MultiVector::Pointers ( ) const

inline

Get pointer to individual vector pointers.

Definition at line 992 of file Epetra_MultiVector.h.

int Epetra_MultiVector::Reduce ( )

Definition at line 2400 of file Epetra_MultiVector.cpp.

void Epetra_MultiVector::Assign ( const Epetra_MultiVector & rhs )

protected

Definition at line 2377 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::CheckInput ( )

protected

int Epetra_MultiVector::AllocateForCopy ( void )

private

Definition at line 248 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::DoCopy ( void )

private

Definition at line 278 of file Epetra_MultiVector.cpp.

void Epetra_MultiVector::UpdateDoubleTemp ( ) const

inlineprivate

Definition at line 1017 of file Epetra_MultiVector.h.

void Epetra_MultiVector::UpdateVectors ( ) const

inlineprivate

Definition at line 1020 of file Epetra_MultiVector.h.

int Epetra_MultiVector::AllocateForView ( void )

private

Definition at line 306 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::DoView ( void )

private

Definition at line 333 of file Epetra_MultiVector.cpp.

template<typename int_type >

int Epetra_MultiVector::ChangeGlobalValue	(	int_type	GlobalBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue,
		bool	SumInto
	)

private

Definition at line 462 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::ChangeMyValue	(	int	MyBlockRow,
		int	BlockRowOffset,
		int	VectorIndex,
		double	ScalarValue,
		bool	SumInto
	)

private

Definition at line 473 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::CheckSizes ( const Epetra_SrcDistObject & Source )

privatevirtual

Allows the source and target (this) objects to be compared for compatibility, return nonzero if not.

Implements Epetra_DistObject.

Definition at line 610 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::CopyAndPermute	(	const Epetra_SrcDistObject &	Source,
		int	NumSameIDs,
		int	NumPermuteIDs,
		int *	PermuteToLIDs,
		int *	PermuteFromLIDs,
		const Epetra_OffsetIndex *	Indexor,
		Epetra_CombineMode	CombineMode = `Zero`
	)

privatevirtual

Perform ID copies and permutations that are on processor.

Implements Epetra_DistObject.

Definition at line 619 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::PackAndPrepare	(	const Epetra_SrcDistObject &	Source,
		int	NumExportIDs,
		int *	ExportLIDs,
		int &	LenExports,
		char *&	Exports,
		int &	SizeOfPacket,
		int *	Sizes,
		bool &	VarSizes,
		Epetra_Distributor &	Distor
	)

privatevirtual

Perform any packing or preparation required for call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 724 of file Epetra_MultiVector.cpp.

int Epetra_MultiVector::UnpackAndCombine	(	const Epetra_SrcDistObject &	Source,
		int	NumImportIDs,
		int *	ImportLIDs,
		int	LenImports,
		char *	Imports,
		int &	SizeOfPacket,
		Epetra_Distributor &	Distor,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor
	)

privatevirtual

Perform any unpacking and combining after call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 816 of file Epetra_MultiVector.cpp.

Member Data Documentation

double* Epetra_MultiVector::Values_

protected

Definition at line 1007 of file Epetra_MultiVector.h.

double** Epetra_MultiVector::Pointers_

private

Definition at line 1069 of file Epetra_MultiVector.h.

int Epetra_MultiVector::MyLength_

private

Definition at line 1071 of file Epetra_MultiVector.h.

long long Epetra_MultiVector::GlobalLength_

private

Definition at line 1072 of file Epetra_MultiVector.h.

int Epetra_MultiVector::NumVectors_

private

Definition at line 1073 of file Epetra_MultiVector.h.

bool Epetra_MultiVector::UserAllocated_

private

Definition at line 1074 of file Epetra_MultiVector.h.

bool Epetra_MultiVector::ConstantStride_

private

Definition at line 1075 of file Epetra_MultiVector.h.

int Epetra_MultiVector::Stride_

private

Definition at line 1076 of file Epetra_MultiVector.h.

bool Epetra_MultiVector::Allocated_

private

Definition at line 1077 of file Epetra_MultiVector.h.

double* Epetra_MultiVector::DoubleTemp_

mutableprivate

Definition at line 1078 of file Epetra_MultiVector.h.

Epetra_Vector** Epetra_MultiVector::Vectors_

mutableprivate

Definition at line 1079 of file Epetra_MultiVector.h.

Epetra_Util Epetra_MultiVector::Util_

private

Definition at line 1080 of file Epetra_MultiVector.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Constructors/destructors

Post-construction modification routines

Extraction methods

Mathematical methods

Random number utilities

Overloaded operators

Attribute access functions

I/O methods

Expert-only unsupported methods

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
