Epetra_VbrMatrix: A class for the construction and use of real-valued double-precision variable block-row sparse matrices. More...

#include <Epetra_VbrMatrix.h>

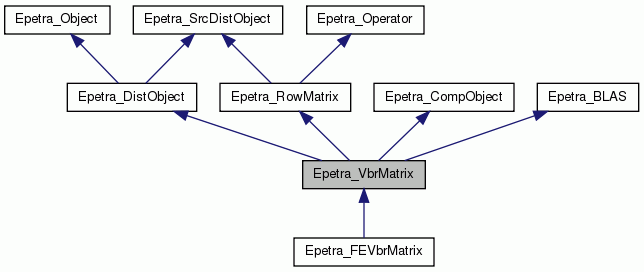

Inheritance diagram for Epetra_VbrMatrix:

[legend]

Protected Member Functions
void	DeleteMemory ()

bool	Allocated () const

int	SetAllocated (bool Flag)

Epetra_SerialDenseMatrix ***	Values () const

int	DoMultiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

int	DoSolve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const

void	InitializeDefaults ()

int	Allocate ()

int	BeginInsertValues (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal)

int	BeginReplaceValues (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal)

int	BeginSumIntoValues (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal)

int	SetupForSubmits (int BlockRow, int NumBlockEntries, int *BlockIndices, bool IndicesAreLocal, Epetra_CombineMode SubmitMode)

int	EndReplaceSumIntoValues ()

int	EndInsertValues ()

int	CopyMat (double A, int LDA, int NumRows, int NumCols, double B, int LDB, bool SumInto) const

int	BeginExtractBlockRowCopy (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, int ColDims, bool IndicesAreLocal) const

int	SetupForExtracts (int BlockRow, int &RowDim, int NumBlockEntries, bool ExtractView, bool IndicesAreLocal) const

int	ExtractBlockDimsCopy (int NumBlockEntries, int *ColDims) const

int	ExtractBlockRowPointers (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, Epetra_SerialDenseMatrix *&Values, bool IndicesAreLocal) const

int	BeginExtractBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int *&BlockIndices, bool IndicesAreLocal) const

int	CopyMatDiag (double A, int LDA, int NumRows, int NumCols, double Diagonal) const

int	ReplaceMatDiag (double A, int LDA, int NumRows, int NumCols, double Diagonal)

void	BlockRowMultiply (bool TransA, int RowDim, int NumEntries, int BlockIndices, int RowOff, int FirstPointInElementList, int ElementSizeList, double Alpha, Epetra_SerialDenseMatrix As, double X, double Beta, double *Y, int NumVectors) const

void	BlockRowMultiply (bool TransA, int RowDim, int NumEntries, int BlockIndices, int RowOff, int FirstPointInElementList, int ElementSizeList, Epetra_SerialDenseMatrix As, double X, double *Y, int NumVectors) const

void	FastBlockRowMultiply (bool TransA, int RowDim, int NumEntries, int BlockIndices, int RowOff, int FirstPointInElementList, int ElementSizeList, Epetra_SerialDenseMatrix As, double X, double *Y, int NumVectors) const

int	InverseSums (bool DoRows, Epetra_Vector &x) const

int	Scale (bool DoRows, const Epetra_Vector &x)

void	BlockRowNormInf (int RowDim, int NumEntries, Epetra_SerialDenseMatrix *As, double Y) const

void	BlockRowNormOne (int RowDim, int NumEntries, int BlockRowIndices, Epetra_SerialDenseMatrix As, int ColFirstPointInElementList, double *x) const

void	SetStaticGraph (bool Flag)

int	CheckSizes (const Epetra_SrcDistObject &A)
	Allows the source and target (this) objects to be compared for compatibility, return nonzero if not. More...

int	CopyAndPermute (const Epetra_SrcDistObject &Source, int NumSameIDs, int NumPermuteIDs, int PermuteToLIDs, int PermuteFromLIDs, const Epetra_OffsetIndex *Indexor, Epetra_CombineMode CombineMode=Zero)
	Perform ID copies and permutations that are on processor. More...

int	PackAndPrepare (const Epetra_SrcDistObject &Source, int NumExportIDs, int ExportLIDs, int &LenExports, char &Exports, int &SizeOfPacket, int *Sizes, bool &VarSizes, Epetra_Distributor &Distor)
	Perform any packing or preparation required for call to DoTransfer(). More...

int	UnpackAndCombine (const Epetra_SrcDistObject &Source, int NumImportIDs, int ImportLIDs, int LenImports, char Imports, int &SizeOfPacket, Epetra_Distributor &Distor, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor)
	Perform any unpacking and combining after call to DoTransfer(). More...

int	SortEntries ()
	Sort column entries, row-by-row, in ascending order. More...

bool	Sorted () const
	If SortEntries() has been called, this query returns true, otherwise it returns false. More...

int	MergeRedundantEntries ()
	Add entries that have the same column index. Remove redundant entries from list. More...

bool	NoRedundancies () const
	If MergeRedundantEntries() has been called, this query returns true, otherwise it returns false. More...

bool	StaticGraph () const

int	GeneratePointObjects () const

int	BlockMap2PointMap (const Epetra_BlockMap &BlockMap, Epetra_Map *&PointMap) const

int	UpdateOperatorXY (const Epetra_MultiVector &X, const Epetra_MultiVector &Y) const

Protected Member Functions inherited from Epetra_DistObject
virtual int	DoTransfer (const Epetra_SrcDistObject &A, Epetra_CombineMode CombineMode, int NumSameIDs, int NumPermuteIDs, int NumRemoteIDs, int NumExportIDs, int PermuteToLIDs, int PermuteFromLIDs, int RemoteLIDs, int ExportLIDs, int &LenExports, char &Exports, int &LenImports, char &Imports, Epetra_Distributor &Distor, bool DoReverse, const Epetra_OffsetIndex *Indexor)
	Perform actual transfer (redistribution) of data across memory images, using Epetra_Distributor object. More...

Protected Member Functions inherited from Epetra_Object
std::string	toString (const int &x) const

std::string	toString (const long long &x) const

std::string	toString (const double &x) const

Protected Attributes
Epetra_CrsGraph *	Graph_

bool	Allocated_

bool	StaticGraph_

bool	UseTranspose_

bool	constructedWithFilledGraph_

bool	matrixFillCompleteCalled_

bool	StorageOptimized_

int	NumMyBlockRows_

Epetra_DataAccess	CV_

int *	NumBlockEntriesPerRow_

int *	NumAllocatedBlockEntriesPerRow_

int **	Indices_

int *	ElementSizeList_

int *	FirstPointInElementList_

Epetra_SerialDenseMatrix ***	Entries_

double *	All_Values_Orig_

double *	All_Values_

double	NormInf_

double	NormOne_

double	NormFrob_

Epetra_MultiVector *	ImportVector_

Epetra_MultiVector *	ExportVector_

int *	TempRowDims_

Epetra_SerialDenseMatrix **	TempEntries_

int	LenTemps_

int	CurBlockRow_

int	CurNumBlockEntries_

int *	CurBlockIndices_

int	CurEntry_

bool	CurIndicesAreLocal_

Epetra_CombineMode	CurSubmitMode_

int	CurExtractBlockRow_

int	CurExtractEntry_

int	CurExtractNumBlockEntries_

bool	CurExtractIndicesAreLocal_

bool	CurExtractView_

int	CurRowDim_

int	CurBlockDiag_

Epetra_Map *	RowMatrixRowMap_

Epetra_Map *	RowMatrixColMap_

Epetra_Import *	RowMatrixImporter_

Epetra_Map *	OperatorDomainMap_

Epetra_Map *	OperatorRangeMap_

Epetra_MultiVector *	OperatorX_

Epetra_MultiVector *	OperatorY_

bool	HavePointObjects_

bool	squareFillCompleteCalled_

Protected Attributes inherited from Epetra_DistObject
Epetra_BlockMap	Map_

const Epetra_Comm *	Comm_

char *	Exports_

char *	Imports_

int	LenExports_

int	LenImports_

int *	Sizes_

Protected Attributes inherited from Epetra_CompObject
Epetra_Flops *	FlopCounter_

Constructors/Destructor
	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, int *NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with variable number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, int NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with fixed number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, const Epetra_BlockMap &ColMap, int *NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with variable number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_BlockMap &RowMap, const Epetra_BlockMap &ColMap, int NumBlockEntriesPerRow)
	Epetra_VbrMatrix constuctor with fixed number of indices per row. More...

	Epetra_VbrMatrix (Epetra_DataAccess CV, const Epetra_CrsGraph &Graph)
	Construct a matrix using an existing Epetra_CrsGraph object. More...

	Epetra_VbrMatrix (const Epetra_VbrMatrix &Matrix)
	Copy constructor. More...

virtual	~Epetra_VbrMatrix ()
	Epetra_VbrMatrix Destructor. More...

Insertion/Replace/SumInto methods
Epetra_VbrMatrix &	operator= (const Epetra_VbrMatrix &src)

int	PutScalar (double ScalarConstant)
	Initialize all values in graph of the matrix with constant value. More...

int	Scale (double ScalarConstant)
	Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A). More...

int	DirectSubmitBlockEntry (int GlobalBlockRow, int GlobalBlockCol, const double *values, int LDA, int NumRows, int NumCols, bool sum_into)
	Submit a block-entry directly into the matrix (without using a begin/end sequence) More...

int	BeginInsertGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate insertion of a list of elements in a given global row of the matrix, values are inserted via SubmitEntry(). More...

int	BeginInsertMyValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate insertion of a list of elements in a given local row of the matrix, values are inserted via SubmitEntry(). More...

int	BeginReplaceGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate replacement of current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry() More...

int	BeginReplaceMyValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate replacement of current values with this list of entries for a given local row of the matrix, values are replaced via SubmitEntry() More...

int	BeginSumIntoGlobalValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate summing into current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry() More...

int	BeginSumIntoMyValues (int BlockRow, int NumBlockEntries, int *BlockIndices)
	Initiate summing into current values with this list of entries for a given local row of the matrix, values are replaced via SubmitEntry() More...

int	SubmitBlockEntry (double *Values, int LDA, int NumRows, int NumCols)
	Submit a block entry to the indicated block row and column specified in the Begin routine. More...

int	SubmitBlockEntry (Epetra_SerialDenseMatrix &Mat)
	Submit a block entry to the indicated block row and column specified in the Begin routine. More...

int	EndSubmitEntries ()
	Completes processing of all data passed in for the current block row. More...

int	ReplaceDiagonalValues (const Epetra_Vector &Diagonal)
	Replaces diagonal values of the with those in the user-provided vector. More...

int	FillComplete ()
	Signal that data entry is complete, perform transformations to local index space. More...

int	FillComplete (const Epetra_BlockMap &DomainMap, const Epetra_BlockMap &RangeMap)
	Signal that data entry is complete, perform transformations to local index space. More...

bool	Filled () const
	If FillComplete() has been called, this query returns true, otherwise it returns false. More...

Extraction methods
int	ExtractGlobalBlockRowPointers (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Copy the block indices into user-provided array, set pointers for rest of data for specified global block row. More...

int	ExtractMyBlockRowPointers (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Copy the block indices into user-provided array, set pointers for rest of data for specified local block row. More...

int	BeginExtractGlobalBlockRowCopy (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, int ColDims) const
	Initiates a copy of the specified global row in user-provided arrays. More...

int	BeginExtractMyBlockRowCopy (int BlockRow, int MaxNumBlockEntries, int &RowDim, int &NumBlockEntries, int BlockIndices, int ColDims) const
	Initiates a copy of the specified local row in user-provided arrays. More...

int	ExtractEntryCopy (int SizeOfValues, double *Values, int LDA, bool SumInto) const
	Extract a copy of an entry from the block row specified by one of the BeginExtract routines. More...

int	BeginExtractGlobalBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int *&BlockIndices) const
	Initiates a view of the specified global row, only works if matrix indices are in global mode. More...

int	BeginExtractMyBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int *&BlockIndices) const
	Initiates a view of the specified local row, only works if matrix indices are in local mode. More...

int	ExtractEntryView (Epetra_SerialDenseMatrix *&entry) const
	Returns a pointer to the current block entry. More...

int	ExtractGlobalBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int &BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Initiates a view of the specified global row, only works if matrix indices are in global mode. More...

int	ExtractMyBlockRowView (int BlockRow, int &RowDim, int &NumBlockEntries, int &BlockIndices, Epetra_SerialDenseMatrix *&Values) const
	Initiates a view of the specified local row, only works if matrix indices are in local mode. More...

int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const
	Returns a copy of the main diagonal in a user-provided vector. More...

int	BeginExtractBlockDiagonalCopy (int MaxNumBlockDiagonalEntries, int &NumBlockDiagonalEntries, int *RowColDims) const
	Initiates a copy of the block diagonal entries to user-provided arrays. More...

int	ExtractBlockDiagonalEntryCopy (int SizeOfValues, double *Values, int LDA, bool SumInto) const
	Extract a copy of a block diagonal entry from the matrix. More...

int	BeginExtractBlockDiagonalView (int &NumBlockDiagonalEntries, int *&RowColDims) const
	Initiates a view of the block diagonal entries. More...

int	ExtractBlockDiagonalEntryView (double *&Values, int &LDA) const
	Extract a view of a block diagonal entry from the matrix. More...

Computational methods
int	Multiply1 (bool TransA, const Epetra_Vector &x, Epetra_Vector &y) const
	Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_Vector x in y. More...

int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_MultiVector X in Y. More...

int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_Vector &x, Epetra_Vector &y) const
	Returns the result of a solve using the Epetra_VbrMatrix on a Epetra_Vector x in y. More...

int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_MultiVector X in Y. More...

int	InvRowSums (Epetra_Vector &x) const
	Computes the sum of absolute values of the rows of the Epetra_VbrMatrix, results returned in x. More...

int	LeftScale (const Epetra_Vector &x)
	Scales the Epetra_VbrMatrix on the left with a Epetra_Vector x. More...

int	InvColSums (Epetra_Vector &x) const
	Computes the sum of absolute values of the columns of the Epetra_VbrMatrix, results returned in x. More...

int	RightScale (const Epetra_Vector &x)
	Scales the Epetra_VbrMatrix on the right with a Epetra_Vector x. More...

Matrix Properties Query Methods
int	OptimizeStorage ()
	Eliminates memory that is used for construction. Make consecutive row index sections contiguous. More...

bool	StorageOptimized () const
	If OptimizeStorage() has been called, this query returns true, otherwise it returns false. More...

bool	IndicesAreGlobal () const
	If matrix indices has not been transformed to local, this query returns true, otherwise it returns false. More...

bool	IndicesAreLocal () const
	If matrix indices has been transformed to local, this query returns true, otherwise it returns false. More...

bool	IndicesAreContiguous () const
	If matrix indices are packed into single array (done in OptimizeStorage()) return true, otherwise false. More...

bool	LowerTriangular () const
	If matrix is lower triangular in local index space, this query returns true, otherwise it returns false. More...

bool	UpperTriangular () const
	If matrix is upper triangular in local index space, this query returns true, otherwise it returns false. More...

bool	NoDiagonal () const
	If matrix has no diagonal entries based on global row/column index comparisons, this query returns true, otherwise it returns false. More...

Attribute access functions
double	NormInf () const
	Returns the infinity norm of the global matrix. More...

double	NormOne () const
	Returns the one norm of the global matrix. More...

double	NormFrobenius () const
	Returns the frobenius norm of the global matrix. More...

int	MaxRowDim () const
	Returns the maximum row dimension of all block entries on this processor. More...

int	MaxColDim () const
	Returns the maximum column dimension of all block entries on this processor. More...

int	GlobalMaxRowDim () const
	Returns the maximum row dimension of all block entries across all processors. More...

int	GlobalMaxColDim () const
	Returns the maximum column dimension of all block entries across all processors. More...

int	NumMyRows () const
	Returns the number of matrix rows owned by the calling processor. More...

int	NumMyCols () const
	Returns the number of matrix columns owned by the calling processor. More...

int	NumMyNonzeros () const
	Returns the number of nonzero entriesowned by the calling processor . More...

int	NumGlobalRows () const
	Returns the number of global matrix rows. More...

long long	NumGlobalRows64 () const

int	NumGlobalCols () const
	Returns the number of global matrix columns. More...

long long	NumGlobalCols64 () const

int	NumGlobalNonzeros () const
	Returns the number of nonzero entries in the global matrix. More...

long long	NumGlobalNonzeros64 () const

int	NumMyBlockRows () const
	Returns the number of Block matrix rows owned by the calling processor. More...

int	NumMyBlockCols () const
	Returns the number of Block matrix columns owned by the calling processor. More...

int	NumMyBlockEntries () const
	Returns the number of nonzero block entries in the calling processor's portion of the matrix. More...

int	NumMyBlockDiagonals () const
	Returns the number of local nonzero block diagonal entries, based on global row/column index comparisons. More...

int	NumMyDiagonals () const
	Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

int	NumGlobalBlockRows () const
	Returns the number of global Block matrix rows. More...

long long	NumGlobalBlockRows64 () const

int	NumGlobalBlockCols () const
	Returns the number of global Block matrix columns. More...

long long	NumGlobalBlockCols64 () const

int	NumGlobalBlockEntries () const
	Returns the number of nonzero block entries in the global matrix. More...

long long	NumGlobalBlockEntries64 () const

int	NumGlobalBlockDiagonals () const
	Returns the number of global nonzero block diagonal entries, based on global row/column index comparisions. More...

long long	NumGlobalBlockDiagonals64 () const

int	NumGlobalDiagonals () const
	Returns the number of global nonzero diagonal entries, based on global row/column index comparisions. More...

long long	NumGlobalDiagonals64 () const

int	NumGlobalBlockEntries (int Row) const
	Returns the current number of nonzero Block entries in specified global row on this processor. More...

int	NumAllocatedGlobalBlockEntries (int Row) const
	Returns the allocated number of nonzero Block entries in specified global row on this processor. More...

int	MaxNumBlockEntries () const
	Returns the maximum number of nonzero entries across all rows on this processor. More...

int	GlobalMaxNumBlockEntries () const
	Returns the maximum number of nonzero entries across all rows on this processor. More...

int	NumMyBlockEntries (int Row) const
	Returns the current number of nonzero Block entries in specified local row on this processor. More...

int	NumAllocatedMyBlockEntries (int Row) const
	Returns the allocated number of nonzero Block entries in specified local row on this processor. More...

int	MaxNumNonzeros () const
	Returns the maximum number of nonzero entries across all block rows on this processor. More...

int	GlobalMaxNumNonzeros () const
	Returns the maximum number of nonzero entries across all block rows on all processors. More...

int	IndexBase () const
	Returns the index base for row and column indices for this graph. More...

long long	IndexBase64 () const

const Epetra_CrsGraph &	Graph () const
	Returns a pointer to the Epetra_CrsGraph object associated with this matrix. More...

const Epetra_Import *	Importer () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

const Epetra_Export *	Exporter () const
	Returns the Epetra_Export object that contains the export operations for distributed operations. More...

const Epetra_BlockMap &	DomainMap () const
	Returns the Epetra_BlockMap object associated with the domain of this matrix operator. More...

const Epetra_BlockMap &	RangeMap () const
	Returns the Epetra_BlockMap object associated with the range of this matrix operator. More...

const Epetra_BlockMap &	RowMap () const
	Returns the RowMap object as an Epetra_BlockMap (the Epetra_Map base class) needed for implementing Epetra_RowMatrix. More...

const Epetra_BlockMap &	ColMap () const
	Returns the ColMap as an Epetra_BlockMap (the Epetra_Map base class) needed for implementing Epetra_RowMatrix. More...

const Epetra_Comm &	Comm () const
	Fills a matrix with rows from a source matrix based on the specified importer. More...

Local/Global ID methods
int	LRID (int GRID_in) const
	Returns the local row index for given global row index, returns -1 if no local row for this global row. More...

int	LRID (long long GRID_in) const

int	GRID (int LRID_in) const
	Returns the global row index for give local row index, returns IndexBase-1 if we don't have this local row. More...

long long	GRID64 (int LRID_in) const

int	LCID (int GCID_in) const
	Returns the local column index for given global column index, returns -1 if no local column for this global column. More...

int	LCID (long long GCID_in) const

int	GCID (int LCID_in) const
	Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column. More...

long long	GCID64 (int LCID_in) const

bool	MyGRID (int GRID_in) const
	Returns true if the GRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGRID (long long GRID_in) const

bool	MyLRID (int LRID_in) const
	Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGCID (int GCID_in) const
	Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGCID (long long GCID_in) const

bool	MyLCID (int LCID_in) const
	Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false. More...

bool	MyGlobalBlockRow (int GID) const
	Returns true of GID is owned by the calling processor, otherwise it returns false. More...

bool	MyGlobalBlockRow (long long GID) const

I/O Methods
virtual void	Print (std::ostream &os) const
	Print method. More...

Additional methods required to support the Epetra_Operator interface
const char *	Label () const
	Returns a character string describing the operator. More...

int	SetUseTranspose (bool UseTranspose_in)
	If set true, transpose of this operator will be applied. More...

int	Apply (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y. More...

int	ApplyInverse (const Epetra_MultiVector &X, Epetra_MultiVector &Y) const
	Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y. More...

bool	HasNormInf () const
	Returns true because this class can compute an Inf-norm. More...

bool	UseTranspose () const
	Returns the current UseTranspose setting. More...

const Epetra_Map &	OperatorDomainMap () const
	Returns the Epetra_Map object associated with the domain of this matrix operator. More...

const Epetra_Map &	OperatorRangeMap () const
	Returns the Epetra_Map object associated with the range of this matrix operator. More...

Additional methods required to implement RowMatrix interface
int	ExtractGlobalRowCopy (int GlobalRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified global row in user-provided arrays. More...

int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double Values, int Indices) const
	Returns a copy of the specified local row in user-provided arrays. More...

int	NumMyRowEntries (int MyRow, int &NumEntries) const
	Return the current number of values stored for the specified local row. More...

int	MaxNumEntries () const
	Returns the maximum of NumMyRowEntries() over all rows. More...

const Epetra_BlockMap &	Map () const
	Map() method inherited from Epetra_DistObject. More...

const Epetra_Map &	RowMatrixRowMap () const
	Returns the EpetraMap object associated with the rows of this matrix. More...

const Epetra_Map &	RowMatrixColMap () const
	Returns the Epetra_Map object associated with columns of this matrix. More...

const Epetra_Import *	RowMatrixImporter () const
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

Deprecated methods: These methods still work, but will be removed in a future version
const Epetra_BlockMap &	BlockImportMap () const
	Use BlockColMap() instead. More...

int	TransformToLocal ()
	Use FillComplete() instead. More...

int	TransformToLocal (const Epetra_BlockMap DomainMap, const Epetra_BlockMap RangeMap)
	Use FillComplete(const Epetra_BlockMap& DomainMap, const Epetra_BlockMap& RangeMap) instead. More...

Additional Inherited Members
Public Member Functions inherited from Epetra_DistObject
	Epetra_DistObject (const Epetra_BlockMap &Map)
	Basic Epetra_DistObject constuctor. More...

	Epetra_DistObject (const Epetra_BlockMap &Map, const char *const Label)

	Epetra_DistObject (const Epetra_DistObject &Source)
	Epetra_DistObject copy constructor. More...

virtual	~Epetra_DistObject ()
	Epetra_DistObject destructor. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Import object. More...

int	Import (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Imports an Epetra_DistObject using the Epetra_Export object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Import &Importer, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Import object. More...

int	Export (const Epetra_SrcDistObject &A, const Epetra_Export &Exporter, Epetra_CombineMode CombineMode, const Epetra_OffsetIndex *Indexor=0)
	Exports an Epetra_DistObject using the Epetra_Export object. More...

const Epetra_Comm &	Comm () const
	Returns the address of the Epetra_Comm for this multi-vector. More...

bool	DistributedGlobal () const
	Returns true if this multi-vector is distributed global, i.e., not local replicated. More...

Public Member Functions inherited from Epetra_Object
	Epetra_Object (int TracebackModeIn=-1, bool set_label=true)
	Epetra_Object Constructor. More...

	Epetra_Object (const char *const Label, int TracebackModeIn=-1)
	Epetra_Object Constructor. More...

	Epetra_Object (const Epetra_Object &Object)
	Epetra_Object Copy Constructor. More...

virtual	~Epetra_Object ()
	Epetra_Object Destructor. More...

virtual void	SetLabel (const char *const Label)
	Epetra_Object Label definition using char *. More...

virtual int	ReportError (const std::string Message, int ErrorCode) const
	Error reporting method. More...

Public Member Functions inherited from Epetra_SrcDistObject
virtual	~Epetra_SrcDistObject ()
	Epetra_SrcDistObject destructor. More...

Public Member Functions inherited from Epetra_CompObject
Epetra_CompObject &	operator= (const Epetra_CompObject &src)

	Epetra_CompObject ()
	Basic Epetra_CompObject constuctor. More...

	Epetra_CompObject (const Epetra_CompObject &Source)
	Epetra_CompObject copy constructor. More...

virtual	~Epetra_CompObject ()
	Epetra_CompObject destructor. More...

void	SetFlopCounter (const Epetra_Flops &FlopCounter_in)
	Set the internal Epetra_Flops() pointer. More...

void	SetFlopCounter (const Epetra_CompObject &CompObject)
	Set the internal Epetra_Flops() pointer to the flop counter of another Epetra_CompObject. More...

void	UnsetFlopCounter ()
	Set the internal Epetra_Flops() pointer to 0 (no flops counted). More...

Epetra_Flops *	GetFlopCounter () const
	Get the pointer to the Epetra_Flops() object associated with this object, returns 0 if none. More...

void	ResetFlops () const
	Resets the number of floating point operations to zero for this multi-vector. More...

double	Flops () const
	Returns the number of floating point operations with this multi-vector. More...

void	UpdateFlops (int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long int Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (long long Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (double Flops_in) const
	Increment Flop count for this object. More...

void	UpdateFlops (float Flops_in) const
	Increment Flop count for this object. More...

Public Member Functions inherited from Epetra_BLAS
	Epetra_BLAS (void)
	Epetra_BLAS Constructor. More...

	Epetra_BLAS (const Epetra_BLAS &BLAS)
	Epetra_BLAS Copy Constructor. More...

virtual	~Epetra_BLAS (void)
	Epetra_BLAS Destructor. More...

float	ASUM (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS one norm function (SASUM). More...

double	ASUM (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS one norm function (DASUM). More...

float	DOT (const int N, const float X, const float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (SDOT). More...

double	DOT (const int N, const double X, const double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS dot product function (DDOT). More...

float	NRM2 (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS norm function (SNRM2). More...

double	NRM2 (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS norm function (DNRM2). More...

void	SCAL (const int N, const float ALPHA, float *X, const int INCX=1) const
	Epetra_BLAS vector scale function (SSCAL) More...

void	SCAL (const int N, const double ALPHA, double *X, const int INCX=1) const
	Epetra_BLAS vector scale function (DSCAL) More...

void	COPY (const int N, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector copy function (SCOPY) More...

void	COPY (const int N, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector scale function (DCOPY) More...

int	IAMAX (const int N, const float *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (ISAMAX) More...

int	IAMAX (const int N, const double *X, const int INCX=1) const
	Epetra_BLAS arg maximum of absolute value function (IDAMAX) More...

void	AXPY (const int N, const float ALPHA, const float X, float Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (SAXPY) More...

void	AXPY (const int N, const double ALPHA, const double X, double Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS vector update function (DAXPY) More...

void	GEMV (const char TRANS, const int M, const int N, const float ALPHA, const float A, const int LDA, const float X, const float BETA, float *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (SGEMV) More...

void	GEMV (const char TRANS, const int M, const int N, const double ALPHA, const double A, const int LDA, const double X, const double BETA, double *Y, const int INCX=1, const int INCY=1) const
	Epetra_BLAS matrix-vector multiply function (DGEMV) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (SGEMM) More...

void	GEMM (const char TRANSA, const char TRANSB, const int M, const int N, const int K, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DGEMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const float ALPHA, const float A, const int LDA, const float B, const int LDB, const float BETA, float *C, const int LDC) const
	Epetra_BLAS symmetric matrix-matrix multiply function (SSYMM) More...

void	SYMM (const char SIDE, const char UPLO, const int M, const int N, const double ALPHA, const double A, const int LDA, const double B, const int LDB, const double BETA, double *C, const int LDC) const
	Epetra_BLAS matrix-matrix multiply function (DSYMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const float ALPHA, const float A, const int LDA, float B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (STRMM) More...

void	TRMM (const char SIDE, const char UPLO, const char TRANSA, const char DIAG, const int M, const int N, const double ALPHA, const double A, const int LDA, double B, const int LDB) const
	Epetra_BLAS triangular matrix-matrix multiply function (DTRMM) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const float ALPHA, const float A, const int LDA, const float BETA, float C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (ssyrk) More...

void	SYRK (const char UPLO, const char TRANS, const int N, const int K, const double ALPHA, const double A, const int LDA, const double BETA, double C, const int LDC) const
	Eperta_BLAS symetric rank k funtion (dsyrk) More...

Public Member Functions inherited from Epetra_RowMatrix
virtual	~Epetra_RowMatrix ()
	Destructor. More...

Public Member Functions inherited from Epetra_Operator
virtual	~Epetra_Operator ()
	Destructor. More...

Static Public Member Functions inherited from Epetra_Object
static void	SetTracebackMode (int TracebackModeValue)
	Set the value of the Epetra_Object error traceback report mode. More...

static int	GetTracebackMode ()
	Get the value of the Epetra_Object error report mode. More...

static std::ostream &	GetTracebackStream ()
	Get the output stream for error reporting. More...

Static Public Attributes inherited from Epetra_Object
static int	TracebackMode

Detailed Description

Epetra_VbrMatrix: A class for the construction and use of real-valued double-precision variable block-row sparse matrices.

The Epetra_VbrMatrix class is a sparse variable block row matrix object. This matrix can be

used in a parallel setting, with data distribution described by Epetra_Map attributes. The structure or graph of the matrix is defined by an Epetra_CrsGraph attribute.

In addition to coefficient access, the primary operations provided by Epetra_VbrMatrix are matrix times vector and matrix times multi-vector multiplication.

Creating and filling Epetra_VbrMatrix objects

Constructing Epetra_VbrMatrix objects is a multi-step process. The basic steps are as follows:

Create Epetra_VbrMatrix instance via one of the constructors:
- Constructor that accepts one Epetra_Map object, a row-map defining the distribution of matrix rows.
- Constructor that accepts two Epetra_Map objects. (The second map is a column-map, and describes the set of column-indices that appear in each processor's portion of the matrix. Generally these are overlapping sets – column-indices may appear on more than one processor.)
- Constructor that accepts an Epetra_CrsGraph object, defining the non-zero structure of the matrix.
Input coefficient values (more detail on this below).
Complete construction by calling FillComplete.

Note that even after FillComplete() has been called, it is possible to update existing matrix entries but it is not possible to create new entries.

Using Epetra_VbrMatrix as an Epetra_RowMatrix

Although Epetra_VbrMatrix does inherit from Epetra_RowMatrix, a design flaw in the inheritance structure of Epetra prohibits the use of an Epetra_VbrMatrix object as an Epetra_RowMatrix in some important situations. Therefore we recommend the use of the Epetra_VbrRowMatrix class to wrap an Epetra_VbrMatrix object for use as an Epetra_RowMatrix. The Epetra_VbrRowMatrix object does not duplicate data in the Epetra_VbrMatrix object, but uses it to satisfy the Epetra_RowMatrix interface.

Epetra_Map attributes

Epetra_VbrMatrix objects have four Epetra_Map attributes, which are held by the Epetra_CrsGraph attribute.

The Epetra_Map attributes can be obtained via these accessor methods:

RowMap() Describes the numbering and distribution of the rows of the matrix. The row-map exists and is valid for the entire life of the matrix. The set of matrix rows is defined by the row-map and may not be changed. Rows may not be inserted or deleted by the user. The only change that may be made is that the user can replace the row-map with a compatible row-map (which is the same except for re-numbering) by calling the ReplaceRowMap() method.
ColMap() Describes the set of column-indices that appear in the rows in each processor's portion of the matrix. Unless provided by the user at construction time, a valid column-map doesn't exist until FillComplete() is called.
RangeMap() Describes the range of the matrix operator. e.g., for a matrix-vector product operation, the result vector's map must be compatible with the range-map of this matrix. The range-map is usually the same as the row-map. The range-map is set equal to the row-map at matrix creation time, but may be specified by the user when FillComplete() is called.
DomainMap() Describes the domain of the matrix operator. The domain-map can be specified by the user when FillComplete() is called. Until then, it is set equal to the row-map.

It is important to note that while the row-map and the range-map are often the same, the column-map and the domain-map are almost never the same. The set of entries in a distributed column-map almost always form overlapping sets, with entries being associated with more than one processor. A domain-map, on the other hand, must be a 1-to-1 map, with entries being associated with only a single processor.

Local versus Global Indices

Epetra_VbrMatrix has query functions IndicesAreLocal() and IndicesAreGlobal(), which are used to determine whether the underlying Epetra_CrsGraph attribute's column-indices have been transformed into a local index space or not. (This transformation occurs when the method Epetra_CrsGraph::FillComplete() is called, which happens when the method Epetra_VbrMatrix::FillComplete() is called.) The state of the indices in the graph determines the behavior of many Epetra_VbrMatrix methods. If an Epetra_VbrMatrix instance is constructed using one of the constructors that does not accept a pre-existing Epetra_CrsGraph object, then an Epetra_CrsGraph attribute is created internally and its indices remain untransformed (IndicesAreGlobal()==true) until Epetra_VbrMatrix::FillComplete() is called. The query function Epetra_VbrMatrix::Filled() returns true if Epetra_VbrMatrix::FillComplete() has been called.

Inputting coefficient values

The process for inputting block-entry coefficients is as follows:

Indicate that values for a specified row are about to be provided by calling one of these methods which specify a block-row and a list of block-column-indices:
Loop over the list of block-column-indices and pass each block-entry to the matrix using the method SubmitBlockEntry().
Complete the process for the specified block-row by calling the method EndSubmitEntries().

Note that the 'GlobalValues' methods have the precondition that IndicesAreGlobal() must be true, and the 'MyValues' methods have the precondition that IndicesAreLocal() must be true. Furthermore, the 'SumInto' and 'Replace' methods may only be used to update matrix entries which already exist, and the 'Insert' methods may only be used if IndicesAreContiguous() is false.

Counting Floating Point Operations

Each Epetra_VbrMatrix object keeps track of the number of serial floating point operations performed using the specified object as the this argument to the function. The Flops() function returns this number as a double precision number. Using this information, in conjunction with the Epetra_Time class, one can get accurate parallel performance numbers. The ResetFlops() function resets the floating point counter.

Definition at line 180 of file Epetra_VbrMatrix.h.

Constructor & Destructor Documentation

Epetra_VbrMatrix::Epetra_VbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		int *	NumBlockEntriesPerRow
	)

Epetra_VbrMatrix constuctor with variable number of indices per row.

Creates a Epetra_VbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - A Epetra_BlockMap listing the block rows that this processor will contribute to.
In	NumBlockEntriesPerRow - An integer array of length NumRows such that NumBlockEntriesPerRow[i] indicates the (approximate) number of Block entries in the ith row.

Definition at line 58 of file Epetra_VbrMatrix.cpp.

Epetra_VbrMatrix::Epetra_VbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		int	NumBlockEntriesPerRow
	)

Epetra_VbrMatrix constuctor with fixed number of indices per row.

Creates a Epetra_VbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - An Epetra_BlockMap listing the block rows that this processor will contribute to.
In	NumBlockEntriesPerRow - An integer that indicates the (approximate) number of Block entries in the each Block row. Note that it is possible to use 0 for this value and let fill occur during the insertion phase.

Definition at line 88 of file Epetra_VbrMatrix.cpp.

Epetra_VbrMatrix::Epetra_VbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		const Epetra_BlockMap &	ColMap,
		int *	NumBlockEntriesPerRow
	)

Epetra_VbrMatrix constuctor with variable number of indices per row.

Creates a Epetra_VbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - A Epetra_BlockMap listing the block rows that this processor will contribute to.
In	ColMap - A Epetra_BlockMap.
In	NumBlockEntriesPerRow - An integer array of length NumRows such that NumBlockEntriesPerRow[i] indicates the (approximate) number of Block entries in the ith row.

Definition at line 114 of file Epetra_VbrMatrix.cpp.

Epetra_VbrMatrix::Epetra_VbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_BlockMap &	RowMap,
		const Epetra_BlockMap &	ColMap,
		int	NumBlockEntriesPerRow
	)

Epetra_VbrMatrix constuctor with fixed number of indices per row.

Creates a Epetra_VbrMatrix object and allocates storage.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	RowMap - A Epetra_BlockMap listing the block rows that this processor will contribute to.
In	ColMap - An Epetra_BlockMap listing the block columns that this processor will contribute to.
In	NumBlockEntriesPerRow - An integer that indicates the (approximate) number of Block entries in the each Block row. Note that it is possible to use 0 for this value and let fill occur during the insertion phase.

Definition at line 142 of file Epetra_VbrMatrix.cpp.

Epetra_VbrMatrix::Epetra_VbrMatrix	(	Epetra_DataAccess	CV,
		const Epetra_CrsGraph &	Graph
	)

Construct a matrix using an existing Epetra_CrsGraph object.

Allows the nonzero structure from another matrix, or a structure that was constructed independently, to be used for this matrix.

Parameters

In	CV - A Epetra_DataAccess enumerated type set to Copy or View.
In	Graph - A Epetra_CrsGraph object, extracted from another Epetra matrix object or constructed directly from using the Epetra_CrsGraph constructors.

Definition at line 170 of file Epetra_VbrMatrix.cpp.

Epetra_VbrMatrix::Epetra_VbrMatrix ( const Epetra_VbrMatrix & Matrix )

Copy constructor.

Definition at line 197 of file Epetra_VbrMatrix.cpp.

Epetra_VbrMatrix::~Epetra_VbrMatrix ( )

virtual

Epetra_VbrMatrix Destructor.

Definition at line 407 of file Epetra_VbrMatrix.cpp.

Member Function Documentation

Epetra_VbrMatrix & Epetra_VbrMatrix::operator= ( const Epetra_VbrMatrix & src )

Definition at line 218 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::PutScalar ( double ScalarConstant )

Initialize all values in graph of the matrix with constant value.

Parameters

In	ScalarConstant - Value to use.

Returns: Integer error code, set to 0 if successful.

Definition at line 477 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::Scale ( double ScalarConstant )

Multiply all values in the matrix by a constant value (in place: A <- ScalarConstant * A).

Parameters

In	ScalarConstant - Value to use.

Returns: Integer error code, set to 0 if successful.

Definition at line 501 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::DirectSubmitBlockEntry	(	int	GlobalBlockRow,
		int	GlobalBlockCol,
		const double *	values,
		int	LDA,
		int	NumRows,
		int	NumCols,
		bool	sum_into
	)

Submit a block-entry directly into the matrix (without using a begin/end sequence)

Experimental method which allows submitting a block-entry without first calling BeginInsertGlobalValues. This method copies the input data directly into the matrix storage. The block-entry is specified by global block-row and block-col indices.

Definition at line 654 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginInsertGlobalValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate insertion of a list of elements in a given global row of the matrix, values are inserted via SubmitEntry().

Parameters

In	BlockRow - Block Row number (in global coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Global column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 522 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginInsertMyValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate insertion of a list of elements in a given local row of the matrix, values are inserted via SubmitEntry().

Parameters

In	BlockRow - Block Row number (in local coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Local column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 534 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginReplaceGlobalValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate replacement of current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry()

Parameters

In	Row - Block Row number (in global coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Global column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 568 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginReplaceMyValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate replacement of current values with this list of entries for a given local row of the matrix, values are replaced via SubmitEntry()

Parameters

In	Row - Block Row number (in local coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Local column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 577 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginSumIntoGlobalValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate summing into current values with this list of entries for a given global row of the matrix, values are replaced via SubmitEntry()

Parameters

In	Row - Block Row number (in global coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Global column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 600 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginSumIntoMyValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices
	)

Initiate summing into current values with this list of entries for a given local row of the matrix, values are replaced via SubmitEntry()

Parameters

In	Row - Block Row number (in local coordinates) to put elements.
In	NumBlockEntries - Number of entries.
In	Indices - Local column indices corresponding to values.

Returns: Integer error code, set to 0 if successful.

Definition at line 609 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::SubmitBlockEntry	(	double *	Values,
		int	LDA,
		int	NumRows,
		int	NumCols
	)

Submit a block entry to the indicated block row and column specified in the Begin routine.

Definition at line 682 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::SubmitBlockEntry ( Epetra_SerialDenseMatrix & Mat )

Submit a block entry to the indicated block row and column specified in the Begin routine.

Definition at line 699 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::EndSubmitEntries ( )

Completes processing of all data passed in for the current block row.

  This function completes the processing of all block entries submitted via SubmitBlockEntry().
  It also checks to make sure that SubmitBlockEntry was called the correct number of times as

specified by the Begin routine that initiated the entry process.

Definition at line 705 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ReplaceDiagonalValues ( const Epetra_Vector & Diagonal )

Replaces diagonal values of the with those in the user-provided vector.

  This routine is meant to allow replacement of \b existing diagonal values.
  If a diagonal value does not exist for a given row, the corresponding value in

the input Epetra_Vector will be ignored and the return code will be set to 1.

The Epetra_Map associated with the input Epetra_Vector must be compatible with the RowMap of the matrix.

Parameters

Diagonal (In) - New values to be placed in the main diagonal.

Returns: Integer error code, set to 0 if successful, 1 of one or more diagonal entries not present in matrix.

Definition at line 1414 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::FillComplete ( )

Signal that data entry is complete, perform transformations to local index space.

Definition at line 875 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::FillComplete	(	const Epetra_BlockMap &	DomainMap,
		const Epetra_BlockMap &	RangeMap
	)

Signal that data entry is complete, perform transformations to local index space.

Definition at line 882 of file Epetra_VbrMatrix.cpp.

bool Epetra_VbrMatrix::Filled ( ) const

inlinevirtual

If FillComplete() has been called, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 478 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::ExtractGlobalBlockRowPointers	(	int	BlockRow,
		int	MaxNumBlockEntries,
		int &	RowDim,
		int &	NumBlockEntries,
		int *	BlockIndices,
		Epetra_SerialDenseMatrix **&	Values
	)		const

Copy the block indices into user-provided array, set pointers for rest of data for specified global block row.

This function provides the lightest weight approach to accessing a global block row when the matrix may be be stored in local or global index space. In other words, this function will always work because the block indices are returned in user-provided space. All other array arguments are independent of whether or not indices are local or global. Other than the BlockIndices array, all other array argument are returned as pointers to internal data.

Parameters

In	BlockRow - Global block row to extract.
In	MaxNumBlockEntries - Length of user-provided BlockIndices array.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries actually extracted.
Out	BlockIndices - Extracted global column indices for the corresponding block entries.
Out	Values - Pointer to list of pointers to block entries. Note that the actual values are not copied.

Returns: Integer error code, set to 0 if successful.

Definition at line 1160 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractMyBlockRowPointers	(	int	BlockRow,
		int	MaxNumBlockEntries,
		int &	RowDim,
		int &	NumBlockEntries,
		int *	BlockIndices,
		Epetra_SerialDenseMatrix **&	Values
	)		const

Copy the block indices into user-provided array, set pointers for rest of data for specified local block row.

This function provides the lightest weight approach to accessing a local block row when the matrix may be be stored in local or global index space. In other words, this function will always work because the block indices are returned in user-provided space. All other array arguments are independent of whether or not indices are local or global. Other than the BlockIndices array, all other array argument are returned as pointers to internal data.

Parameters

In	BlockRow - Local block row to extract.
In	MaxNumBlockEntries - Length of user-provided BlockIndices array.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries actually extracted.
Out	BlockIndices - Extracted local column indices for the corresponding block entries.
Out	Values - Pointer to list of pointers to block entries. Note that the actual values are not copied.

Returns: Integer error code, set to 0 if successful.

Definition at line 1172 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractGlobalBlockRowCopy	(	int	BlockRow,
		int	MaxNumBlockEntries,
		int &	RowDim,
		int &	NumBlockEntries,
		int *	BlockIndices,
		int *	ColDims
	)		const

Initiates a copy of the specified global row in user-provided arrays.

Parameters

In	BlockRow - Global block row to extract.
In	MaxNumBlockEntries - Length of user-provided BlockIndices, ColDims, and LDAs arrays.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries actually extracted.
Out	BlockIndices - Extracted global column indices for the corresponding block entries.
Out	ColDim - List of column dimensions for each corresponding block entry that will be extracted.

Returns: Integer error code, set to 0 if successful.

Definition at line 1211 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractMyBlockRowCopy	(	int	BlockRow,
		int	MaxNumBlockEntries,
		int &	RowDim,
		int &	NumBlockEntries,
		int *	BlockIndices,
		int *	ColDims
	)		const

Initiates a copy of the specified local row in user-provided arrays.

Parameters

In	BlockRow - Local block row to extract.
In	MaxNumBlockEntries - Length of user-provided BlockIndices, ColDims, and LDAs arrays.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries actually extracted.
Out	BlockIndices - Extracted local column indices for the corresponding block entries.
Out	ColDim - List of column dimensions for each corresponding block entry that will be extracted.

Returns: Integer error code, set to 0 if successful.

Definition at line 1222 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractEntryCopy	(	int	SizeOfValues,
		double *	Values,
		int	LDA,
		bool	SumInto
	)		const

Extract a copy of an entry from the block row specified by one of the BeginExtract routines.

  Once BeginExtractGlobalBlockRowCopy() or BeginExtractMyBlockRowCopy() is called, you can extract
  the block entries of specified block row one-entry-at-a-time.  The entries will be extracted

in an order corresponding to the BlockIndices list that was returned by the BeginExtract routine.

Parameters

In	SizeOfValues - Amount of memory associated with Values. This must be at least as big as LDA*NumCol, where NumCol is the column dimension of the block entry being copied
InOut	Values - Starting location where the block entry will be copied.
In	LDA - Specifies the stride that will be used when copying columns into Values.
In	SumInto - If set to true, the block entry values will be summed into existing values.

Definition at line 1278 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractGlobalBlockRowView	(	int	BlockRow,
		int &	RowDim,
		int &	NumBlockEntries,
		int *&	BlockIndices
	)		const

Initiates a view of the specified global row, only works if matrix indices are in global mode.

Parameters

In	BlockRow - Global block row to view.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries to be viewed.
Out	BlockIndices - Pointer to global column indices for the corresponding block entries.

Returns: Integer error code, set to 0 if successful.

Definition at line 1314 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractMyBlockRowView	(	int	BlockRow,
		int &	RowDim,
		int &	NumBlockEntries,
		int *&	BlockIndices
	)		const

Initiates a view of the specified local row, only works if matrix indices are in local mode.

Parameters

In	BlockRow - Local block row to view.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries to be viewed.
Out	BlockIndices - Pointer to local column indices for the corresponding block entries.

Returns: Integer error code, set to 0 if successful.

Definition at line 1326 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractEntryView ( Epetra_SerialDenseMatrix *& entry ) const

Returns a pointer to the current block entry.

  After a call to BeginExtractGlobal() or BlockRowViewBeginExtractMyBlockRowView(),
  ExtractEntryView() can be called up to NumBlockEntries times to get each block entry in the

specified block row.

Parameters

InOut entry - A pointer that will be set to the current block entry.

Definition at line 1356 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractGlobalBlockRowView	(	int	BlockRow,
		int &	RowDim,
		int &	NumBlockEntries,
		int *&	BlockIndices,
		Epetra_SerialDenseMatrix **&	Values
	)		const

Initiates a view of the specified global row, only works if matrix indices are in global mode.

Parameters

In	BlockRow - Global block row to view.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries to be viewed.
Out	BlockIndices - Pointer to global column indices for the corresponding block entries.
Out	Values - Pointer to an array of pointers to the block entries in the specified block row.

Returns: Integer error code, set to 0 if successful.

Definition at line 1365 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractMyBlockRowView	(	int	BlockRow,
		int &	RowDim,
		int &	NumBlockEntries,
		int *&	BlockIndices,
		Epetra_SerialDenseMatrix **&	Values
	)		const

Initiates a view of the specified local row, only works if matrix indices are in local mode.

Parameters

In	BlockRow - Local block row to view.
Out	RowDim - Number of equations in the requested block row.
Out	NumBlockEntries - Number of nonzero entries to be viewed.
Out	BlockIndices - Pointer to local column indices for the corresponding block entries.
Out	Values - Pointer to an array of pointers to the block entries in the specified block row.

Returns: Integer error code, set to 0 if successful.

Definition at line 1379 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractDiagonalCopy ( Epetra_Vector & Diagonal ) const

virtual

Returns a copy of the main diagonal in a user-provided vector.

Parameters

Out	Diagonal - Extracted main diagonal.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 1392 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractBlockDiagonalCopy	(	int	MaxNumBlockDiagonalEntries,
		int &	NumBlockDiagonalEntries,
		int *	RowColDims
	)		const

Initiates a copy of the block diagonal entries to user-provided arrays.

Parameters

In	MaxNumBlockDiagonalEntries - Length of user-provided RowColDims array.
Out	NumBlockDiagonalEntries - Number of block diagonal entries that can actually be extracted.
Out	RowColDim - List of row and column dimension for corresponding block diagonal entries.

Returns: Integer error code, set to 0 if successful.

Definition at line 1444 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractBlockDiagonalEntryCopy	(	int	SizeOfValues,
		double *	Values,
		int	LDA,
		bool	SumInto
	)		const

Extract a copy of a block diagonal entry from the matrix.

  Once BeginExtractBlockDiagonalCopy() is called, you can extract
  the block diagonal entries one-entry-at-a-time.  The entries will be extracted

in ascending order.

Parameters

In	SizeOfValues - Amount of memory associated with Values. This must be at least as big as LDA*NumCol, where NumCol is the column dimension of the block entry being copied
InOut	Values - Starting location where the block entry will be copied.
In	LDA - Specifies the stride that will be used when copying columns into Values.
In	SumInto - If set to true, the block entry values will be summed into existing values.

Definition at line 1455 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractBlockDiagonalView	(	int &	NumBlockDiagonalEntries,
		int *&	RowColDims
	)		const

Initiates a view of the block diagonal entries.

Parameters

Out	NumBlockDiagonalEntries - Number of block diagonal entries that can be viewed.
Out	RowColDim - Pointer to list of row and column dimension for corresponding block diagonal entries.

Returns: Integer error code, set to 0 if successful.

Definition at line 1476 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractBlockDiagonalEntryView	(	double *&	Values,
		int &	LDA
	)		const

Extract a view of a block diagonal entry from the matrix.

  Once BeginExtractBlockDiagonalView() is called, you can extract a view of
  the block diagonal entries one-entry-at-a-time.  The views will be extracted

in ascending order.

Parameters

Out	Values - Pointer to internal copy of block entry.
Out	LDA - Column stride of Values.

Definition at line 1486 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::Multiply1	(	bool	TransA,
		const Epetra_Vector &	x,
		Epetra_Vector &	y
	)		const

Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_Vector x in y.

Parameters

In	TransA - If true, multiply by the transpose of matrix, otherwise just use matrix.
In	x - A Epetra_Vector to multiply by.
Out	y - A Epetra_Vector containing result.

Returns: Integer error code, set to 0 if successful.

Definition at line 1602 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::Multiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters

In	TransA -If true, multiply by the transpose of matrix, otherwise just use matrix.
In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectorscontaining result.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 3333 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::Solve	(	bool	Upper,
		bool	Trans,
		bool	UnitDiagonal,
		const Epetra_Vector &	x,
		Epetra_Vector &	y
	)		const

Returns the result of a solve using the Epetra_VbrMatrix on a Epetra_Vector x in y.

Parameters

In	Upper -If true, solve Ux = y, otherwise solve Lx = y.
In	Trans -If true, solve transpose problem.
In	UnitDiagonal -If true, assume diagonal is unit (whether it's stored or not).
In	x -A Epetra_Vector to solve for.
Out	y -A Epetra_Vector containing result.

Returns: Integer error code, set to 0 if successful.

int Epetra_VbrMatrix::Solve	(	bool	Upper,
		bool	Trans,
		bool	UnitDiagonal,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_VbrMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters

In	Upper -If true, solve Ux = y, otherwise solve Lx = y.
In	Trans -If true, solve transpose problem.
In	UnitDiagonal -If true, assume diagonal is unit (whether it's stored or not).
In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 3347 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::InvRowSums ( Epetra_Vector & x ) const

virtual

Computes the sum of absolute values of the rows of the Epetra_VbrMatrix, results returned in x.

  The vector x will return such that x[i] will contain the inverse of sum of the absolute values of the
  \e this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the global row number of A
  and j denotes the global column number of A.  Using the resulting vector from this function as input to LeftScale()

will make the infinity norm of the resulting matrix exactly 1.

Parameters

Out	x -A Epetra_Vector containing the row sums of the this matrix.

Warning: It is assumed that the distribution of x is the same as the rows of this.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 2479 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::LeftScale ( const Epetra_Vector & x )

virtual

Scales the Epetra_VbrMatrix on the left with a Epetra_Vector x.

The \e this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the row number of A
and j denotes the column number of A.

Parameters

In	x -A Epetra_Vector to solve for.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 2613 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::InvColSums ( Epetra_Vector & x ) const

virtual

Computes the sum of absolute values of the columns of the Epetra_VbrMatrix, results returned in x.

  The vector x will return such that x[j] will contain the inverse of sum of the absolute values of the
  \e this matrix will be sca such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A
  and j denotes the global column number of A.  Using the resulting vector from this function as input to

RighttScale() will make the one norm of the resulting matrix exactly 1.

Parameters

Out	x -A Epetra_Vector containing the column sums of the this matrix.

Warning: It is assumed that the distribution of x is the same as the rows of this.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 2488 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::RightScale ( const Epetra_Vector & x )

virtual

Scales the Epetra_VbrMatrix on the right with a Epetra_Vector x.

The \e this matrix will be scaled such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A
and j denotes the global column number of A.

Parameters

In	x -The Epetra_Vector used for scaling this.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 2622 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::OptimizeStorage ( )

Eliminates memory that is used for construction. Make consecutive row index sections contiguous.

Definition at line 1022 of file Epetra_VbrMatrix.cpp.

bool Epetra_VbrMatrix::StorageOptimized ( ) const

inline

If OptimizeStorage() has been called, this query returns true, otherwise it returns false.

Definition at line 866 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::IndicesAreGlobal ( ) const

inline

If matrix indices has not been transformed to local, this query returns true, otherwise it returns false.

Definition at line 869 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::IndicesAreLocal ( ) const

inline

If matrix indices has been transformed to local, this query returns true, otherwise it returns false.

Definition at line 872 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::IndicesAreContiguous ( ) const

inline

If matrix indices are packed into single array (done in OptimizeStorage()) return true, otherwise false.

Definition at line 875 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::LowerTriangular ( ) const

inlinevirtual

If matrix is lower triangular in local index space, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 878 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::UpperTriangular ( ) const

inlinevirtual

If matrix is upper triangular in local index space, this query returns true, otherwise it returns false.

Implements Epetra_RowMatrix.

Definition at line 881 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::NoDiagonal ( ) const

inline

If matrix has no diagonal entries based on global row/column index comparisons, this query returns true, otherwise it returns false.

Definition at line 884 of file Epetra_VbrMatrix.h.

double Epetra_VbrMatrix::NormInf ( void ) const

virtual

Returns the infinity norm of the global matrix.

Implements Epetra_RowMatrix.

Definition at line 2726 of file Epetra_VbrMatrix.cpp.

double Epetra_VbrMatrix::NormOne ( void ) const

virtual

Returns the one norm of the global matrix.

Implements Epetra_RowMatrix.

Definition at line 2785 of file Epetra_VbrMatrix.cpp.

double Epetra_VbrMatrix::NormFrobenius ( ) const

Returns the frobenius norm of the global matrix.

Definition at line 2840 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::MaxRowDim ( ) const

inline

Returns the maximum row dimension of all block entries on this processor.

Definition at line 914 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::MaxColDim ( ) const

inline

Returns the maximum column dimension of all block entries on this processor.

Definition at line 917 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GlobalMaxRowDim ( ) const

inline

Returns the maximum row dimension of all block entries across all processors.

Definition at line 920 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GlobalMaxColDim ( ) const

inline

Returns the maximum column dimension of all block entries across all processors.

Definition at line 923 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyRows ( ) const

inlinevirtual

Returns the number of matrix rows owned by the calling processor.

Implements Epetra_RowMatrix.

Definition at line 926 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyCols ( ) const

inlinevirtual

Returns the number of matrix columns owned by the calling processor.

Implements Epetra_RowMatrix.

Definition at line 928 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyNonzeros ( ) const

inlinevirtual

Returns the number of nonzero entriesowned by the calling processor .

Implements Epetra_RowMatrix.

Definition at line 931 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalRows ( ) const

inlinevirtual

Returns the number of global matrix rows.

Implements Epetra_RowMatrix.

Definition at line 935 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalRows64 ( ) const

inlinevirtual

Implements Epetra_RowMatrix.

Definition at line 937 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalCols ( ) const

inlinevirtual

Returns the number of global matrix columns.

Implements Epetra_RowMatrix.

Definition at line 941 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalCols64 ( ) const

inlinevirtual

Implements Epetra_RowMatrix.

Definition at line 943 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalNonzeros ( ) const

inlinevirtual

Returns the number of nonzero entries in the global matrix.

Implements Epetra_RowMatrix.

Definition at line 953 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalNonzeros64 ( ) const

inlinevirtual

Implements Epetra_RowMatrix.

Definition at line 955 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyBlockRows ( ) const

inline

Returns the number of Block matrix rows owned by the calling processor.

Definition at line 958 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyBlockCols ( ) const

inline

Returns the number of Block matrix columns owned by the calling processor.

Definition at line 961 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyBlockEntries ( ) const

inline

Returns the number of nonzero block entries in the calling processor's portion of the matrix.

Definition at line 964 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyBlockDiagonals ( ) const

inline

Returns the number of local nonzero block diagonal entries, based on global row/column index comparisons.

Definition at line 967 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyDiagonals ( ) const

inlinevirtual

Returns the number of local nonzero diagonal entries, based on global row/column index comparisons.

Implements Epetra_RowMatrix.

Definition at line 970 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalBlockRows ( ) const

inline

Returns the number of global Block matrix rows.

Definition at line 974 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalBlockRows64 ( ) const

inline

Definition at line 976 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalBlockCols ( ) const

inline

Returns the number of global Block matrix columns.

Definition at line 980 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalBlockCols64 ( ) const

inline

Definition at line 982 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalBlockEntries ( ) const

inline

Returns the number of nonzero block entries in the global matrix.

Definition at line 986 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalBlockEntries64 ( ) const

inline

Definition at line 988 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalBlockDiagonals ( ) const

inline

Returns the number of global nonzero block diagonal entries, based on global row/column index comparisions.

Definition at line 992 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalBlockDiagonals64 ( ) const

inline

Definition at line 994 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalDiagonals ( ) const

inlinevirtual

Returns the number of global nonzero diagonal entries, based on global row/column index comparisions.

Implements Epetra_RowMatrix.

Definition at line 998 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::NumGlobalDiagonals64 ( ) const

inlinevirtual

Implements Epetra_RowMatrix.

Definition at line 1000 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumGlobalBlockEntries ( int Row ) const

inline

Returns the current number of nonzero Block entries in specified global row on this processor.

Definition at line 1003 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumAllocatedGlobalBlockEntries ( int Row ) const

inline

Returns the allocated number of nonzero Block entries in specified global row on this processor.

Definition at line 1006 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::MaxNumBlockEntries ( ) const

inline

Returns the maximum number of nonzero entries across all rows on this processor.

Definition at line 1009 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GlobalMaxNumBlockEntries ( ) const

inline

Returns the maximum number of nonzero entries across all rows on this processor.

Definition at line 1012 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyBlockEntries ( int Row ) const

inline

Returns the current number of nonzero Block entries in specified local row on this processor.

Definition at line 1015 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumAllocatedMyBlockEntries ( int Row ) const

inline

Returns the allocated number of nonzero Block entries in specified local row on this processor.

Definition at line 1018 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::MaxNumNonzeros ( ) const

inline

Returns the maximum number of nonzero entries across all block rows on this processor.

  Let ki = the number of nonzero values in the ith block row of the VbrMatrix object.  For example,
  if the ith block row had 5 block entries and the size of each entry was 4-by-4, ki would be 80.

Then this function return the max over all ki for all row on this processor.

Definition at line 1025 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GlobalMaxNumNonzeros ( ) const

inline

Returns the maximum number of nonzero entries across all block rows on all processors.

This function returns the max over all processor of MaxNumNonzeros().

Definition at line 1030 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::IndexBase ( ) const

inline

Returns the index base for row and column indices for this graph.

Index base for this map.

Definition at line 1035 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::IndexBase64 ( ) const

inline

Definition at line 1041 of file Epetra_VbrMatrix.h.

const Epetra_CrsGraph& Epetra_VbrMatrix::Graph ( ) const

inline

Returns a pointer to the Epetra_CrsGraph object associated with this matrix.

Definition at line 1044 of file Epetra_VbrMatrix.h.

const Epetra_Import* Epetra_VbrMatrix::Importer ( ) const

inline

Returns the Epetra_Import object that contains the import operations for distributed operations.

Definition at line 1047 of file Epetra_VbrMatrix.h.

const Epetra_Export* Epetra_VbrMatrix::Exporter ( ) const

inline

Returns the Epetra_Export object that contains the export operations for distributed operations.

Definition at line 1050 of file Epetra_VbrMatrix.h.

const Epetra_BlockMap& Epetra_VbrMatrix::DomainMap ( ) const

inline

Returns the Epetra_BlockMap object associated with the domain of this matrix operator.

Definition at line 1053 of file Epetra_VbrMatrix.h.

const Epetra_BlockMap& Epetra_VbrMatrix::RangeMap ( ) const

inline

Returns the Epetra_BlockMap object associated with the range of this matrix operator.

Definition at line 1056 of file Epetra_VbrMatrix.h.

const Epetra_BlockMap& Epetra_VbrMatrix::RowMap ( ) const

inline

Returns the RowMap object as an Epetra_BlockMap (the Epetra_Map base class) needed for implementing Epetra_RowMatrix.

Definition at line 1059 of file Epetra_VbrMatrix.h.

const Epetra_BlockMap& Epetra_VbrMatrix::ColMap ( ) const

inline

Returns the ColMap as an Epetra_BlockMap (the Epetra_Map base class) needed for implementing Epetra_RowMatrix.

Definition at line 1062 of file Epetra_VbrMatrix.h.

const Epetra_Comm& Epetra_VbrMatrix::Comm ( ) const

inlinevirtual

Fills a matrix with rows from a source matrix based on the specified importer.

Returns a pointer to the Epetra_Comm communicator associated with this matrix.

Implements Epetra_Operator.

Definition at line 1067 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::LRID ( int GRID_in ) const

inline

Returns the local row index for given global row index, returns -1 if no local row for this global row.

Definition at line 1075 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::LRID ( long long GRID_in ) const

inline

Definition at line 1078 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GRID ( int LRID_in ) const

inline

Returns the global row index for give local row index, returns IndexBase-1 if we don't have this local row.

Definition at line 1083 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::GRID64 ( int LRID_in ) const

inline

Definition at line 1085 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::LCID ( int GCID_in ) const

inline

Returns the local column index for given global column index, returns -1 if no local column for this global column.

Definition at line 1089 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::LCID ( long long GCID_in ) const

inline

Definition at line 1092 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GCID ( int LCID_in ) const

inline

Returns the global column index for give local column index, returns IndexBase-1 if we don't have this local column.

Definition at line 1097 of file Epetra_VbrMatrix.h.

long long Epetra_VbrMatrix::GCID64 ( int LCID_in ) const

inline

Definition at line 1099 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyGRID ( int GRID_in ) const

inline

Returns true if the GRID passed in belongs to the calling processor in this map, otherwise returns false.

Definition at line 1103 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyGRID ( long long GRID_in ) const

inline

Definition at line 1106 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyLRID ( int LRID_in ) const

inline

Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false.

Definition at line 1110 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyGCID ( int GCID_in ) const

inline

Returns true if the GCID passed in belongs to the calling processor in this map, otherwise returns false.

Definition at line 1114 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyGCID ( long long GCID_in ) const

inline

Definition at line 1117 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyLCID ( int LCID_in ) const

inline

Returns true if the LRID passed in belongs to the calling processor in this map, otherwise returns false.

Definition at line 1121 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyGlobalBlockRow ( int GID ) const

inline

Returns true of GID is owned by the calling processor, otherwise it returns false.

Definition at line 1125 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::MyGlobalBlockRow ( long long GID ) const

inline

Definition at line 1128 of file Epetra_VbrMatrix.h.

void Epetra_VbrMatrix::Print ( std::ostream & os ) const

virtual

Print method.

Reimplemented from Epetra_DistObject.

Definition at line 3361 of file Epetra_VbrMatrix.cpp.

const char* Epetra_VbrMatrix::Label ( ) const

inlinevirtual

Returns a character string describing the operator.

Reimplemented from Epetra_Object.

Definition at line 1143 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::SetUseTranspose ( bool UseTranspose_in )

inlinevirtual

If set true, transpose of this operator will be applied.

  This flag allows the transpose of the given operator to be used implicitly.  Setting this flag
  affects only the Apply() and ApplyInverse() methods.  If the implementation of this interface

does not support transpose use, this method should return a value of -1.

Parameters

In	UseTranspose -If true, multiply by the transpose of operator, otherwise just use operator.

Returns: Always returns 0.

Implements Epetra_Operator.

Definition at line 1155 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::Apply	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_Operator applied to a Epetra_MultiVector X in Y.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_Operator.

Definition at line 3305 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ApplyInverse	(	const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

virtual

Returns the result of a Epetra_Operator inverse applied to an Epetra_MultiVector X in Y.

  In this implementation, we use several existing attributes to determine how virtual
  method ApplyInverse() should call the concrete method Solve().  We pass in the UpperTriangular(),

the Epetra_VbrMatrix::UseTranspose(), and NoDiagonal() methods. The most notable warning is that if a matrix has no diagonal values we assume that there is an implicit unit diagonal that should be accounted for when doing a triangular solve.

Parameters

In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_Operator.

Definition at line 3319 of file Epetra_VbrMatrix.cpp.

bool Epetra_VbrMatrix::HasNormInf ( ) const

inlinevirtual

Returns true because this class can compute an Inf-norm.

Implements Epetra_Operator.

Definition at line 1185 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::UseTranspose ( ) const

inlinevirtual

Returns the current UseTranspose setting.

Implements Epetra_Operator.

Definition at line 1188 of file Epetra_VbrMatrix.h.

const Epetra_Map& Epetra_VbrMatrix::OperatorDomainMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with the domain of this matrix operator.

Implements Epetra_Operator.

Definition at line 1191 of file Epetra_VbrMatrix.h.

const Epetra_Map& Epetra_VbrMatrix::OperatorRangeMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with the range of this matrix operator.

Implements Epetra_Operator.

Definition at line 1199 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::ExtractGlobalRowCopy	(	int	GlobalRow,
		int	Length,
		int &	NumEntries,
		double *	Values,
		int *	Indices
	)		const

Returns a copy of the specified global row in user-provided arrays.

Parameters

In	GlobalRow - Global row to extract.
In	Length - Length of Values and Indices.
Out	NumEntries - Number of nonzero entries extracted.
Out	Values - Extracted values for this row.
Out	Indices - Extracted global column indices for the corresponding values.

Returns: Integer error code, set to 0 if successful.

Definition at line 1145 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractMyRowCopy	(	int	MyRow,
		int	Length,
		int &	NumEntries,
		double *	Values,
		int *	Indices
	)		const

virtual

Returns a copy of the specified local row in user-provided arrays.

Parameters

In	MyRow - Local row to extract.
In	Length - Length of Values and Indices.
Out	NumEntries - Number of nonzero entries extracted.
Out	Values - Extracted values for this row.
Out	Indices - Extracted local column indices for the corresponding values.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 1559 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::NumMyRowEntries	(	int	MyRow,
		int &	NumEntries
	)		const

virtual

Return the current number of values stored for the specified local row.

Parameters

In	MyRow - Local row.
Out	NumEntries - Number of nonzero values.

Returns: Integer error code, set to 0 if successful.

Implements Epetra_RowMatrix.

Definition at line 1548 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::MaxNumEntries ( ) const

virtual

Returns the maximum of NumMyRowEntries() over all rows.

Implements Epetra_RowMatrix.

Definition at line 1535 of file Epetra_VbrMatrix.cpp.

const Epetra_BlockMap& Epetra_VbrMatrix::Map ( ) const

inlinevirtual

Map() method inherited from Epetra_DistObject.

Reimplemented from Epetra_DistObject.

Definition at line 1259 of file Epetra_VbrMatrix.h.

const Epetra_Map& Epetra_VbrMatrix::RowMatrixRowMap ( ) const

inlinevirtual

Returns the EpetraMap object associated with the rows of this matrix.

Implements Epetra_RowMatrix.

Definition at line 1262 of file Epetra_VbrMatrix.h.

const Epetra_Map& Epetra_VbrMatrix::RowMatrixColMap ( ) const

inlinevirtual

Returns the Epetra_Map object associated with columns of this matrix.

Implements Epetra_RowMatrix.

Definition at line 1266 of file Epetra_VbrMatrix.h.

const Epetra_Import* Epetra_VbrMatrix::RowMatrixImporter ( ) const

inlinevirtual

Returns the Epetra_Import object that contains the import operations for distributed operations.

Implements Epetra_RowMatrix.

Definition at line 1270 of file Epetra_VbrMatrix.h.

const Epetra_BlockMap& Epetra_VbrMatrix::BlockImportMap ( ) const

inline

Use BlockColMap() instead.

Definition at line 1279 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::TransformToLocal ( )

Use FillComplete() instead.

Definition at line 920 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::TransformToLocal	(	const Epetra_BlockMap *	DomainMap,
		const Epetra_BlockMap *	RangeMap
	)

Use FillComplete(const Epetra_BlockMap& DomainMap, const Epetra_BlockMap& RangeMap) instead.

Definition at line 926 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::DeleteMemory ( )

protected

Definition at line 413 of file Epetra_VbrMatrix.cpp.

bool Epetra_VbrMatrix::Allocated ( ) const

inlineprotected

Definition at line 1290 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::SetAllocated ( bool Flag )

inlineprotected

Definition at line 1291 of file Epetra_VbrMatrix.h.

Epetra_SerialDenseMatrix*** Epetra_VbrMatrix::Values ( ) const

inlineprotected

Definition at line 1292 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::DoMultiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

protected

Definition at line 1753 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::DoSolve	(	bool	Upper,
		bool	Trans,
		bool	UnitDiagonal,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

protected

Definition at line 2406 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::InitializeDefaults ( )

protected

Definition at line 317 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::Allocate ( )

protected

Definition at line 373 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginInsertValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices,
		bool	IndicesAreLocal
	)

protected

Definition at line 546 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginReplaceValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices,
		bool	IndicesAreLocal
	)

protected

Definition at line 587 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginSumIntoValues	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices,
		bool	IndicesAreLocal
	)

protected

Definition at line 617 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::SetupForSubmits	(	int	BlockRow,
		int	NumBlockEntries,
		int *	BlockIndices,
		bool	IndicesAreLocal,
		Epetra_CombineMode	SubmitMode
	)

protected

Definition at line 628 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::EndReplaceSumIntoValues ( )

protected

Definition at line 722 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::EndInsertValues ( )

protected

Definition at line 775 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::CopyMat	(	double *	A,
		int	LDA,
		int	NumRows,
		int	NumCols,
		double *	B,
		int	LDB,
		bool	SumInto
	)		const

protected

Definition at line 848 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractBlockRowCopy	(	int	BlockRow,
		int	MaxNumBlockEntries,
		int &	RowDim,
		int &	NumBlockEntries,
		int *	BlockIndices,
		int *	ColDims,
		bool	IndicesAreLocal
	)		const

protected

Definition at line 1233 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::SetupForExtracts	(	int	BlockRow,
		int &	RowDim,
		int	NumBlockEntries,
		bool	ExtractView,
		bool	IndicesAreLocal
	)		const

protected

Definition at line 1253 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractBlockDimsCopy	(	int	NumBlockEntries,
		int *	ColDims
	)		const

protected

Definition at line 1269 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ExtractBlockRowPointers	(	int	BlockRow,
		int	MaxNumBlockEntries,
		int &	RowDim,
		int &	NumBlockEntries,
		int *	BlockIndices,
		Epetra_SerialDenseMatrix **&	Values,
		bool	IndicesAreLocal
	)		const

protected

Definition at line 1184 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BeginExtractBlockRowView	(	int	BlockRow,
		int &	RowDim,
		int &	NumBlockEntries,
		int *&	BlockIndices,
		bool	IndicesAreLocal
	)		const

protected

Definition at line 1337 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::CopyMatDiag	(	double *	A,
		int	LDA,
		int	NumRows,
		int	NumCols,
		double *	Diagonal
	)		const

protected

Definition at line 1505 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::ReplaceMatDiag	(	double *	A,
		int	LDA,
		int	NumRows,
		int	NumCols,
		double *	Diagonal
	)

protected

Definition at line 1520 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::BlockRowMultiply	(	bool	TransA,
		int	RowDim,
		int	NumEntries,
		int *	BlockIndices,
		int	RowOff,
		int *	FirstPointInElementList,
		int *	ElementSizeList,
		double	Alpha,
		Epetra_SerialDenseMatrix **	As,
		double **	X,
		double	Beta,
		double **	Y,
		int	NumVectors
	)		const

protected

Definition at line 2079 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::BlockRowMultiply	(	bool	TransA,
		int	RowDim,
		int	NumEntries,
		int *	BlockIndices,
		int	RowOff,
		int *	FirstPointInElementList,
		int *	ElementSizeList,
		Epetra_SerialDenseMatrix **	As,
		double **	X,
		double **	Y,
		int	NumVectors
	)		const

protected

Definition at line 2291 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::FastBlockRowMultiply	(	bool	TransA,
		int	RowDim,
		int	NumEntries,
		int *	BlockIndices,
		int	RowOff,
		int *	FirstPointInElementList,
		int *	ElementSizeList,
		Epetra_SerialDenseMatrix **	As,
		double **	X,
		double **	Y,
		int	NumVectors
	)		const

protected

Definition at line 2132 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::InverseSums	(	bool	DoRows,
		Epetra_Vector &	x
	)		const

protected

Definition at line 2496 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::Scale	(	bool	DoRows,
		const Epetra_Vector &	x
	)

protected

Definition at line 2630 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::BlockRowNormInf	(	int	RowDim,
		int	NumEntries,
		Epetra_SerialDenseMatrix **	As,
		double *	Y
	)		const

protected

Definition at line 2766 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::BlockRowNormOne	(	int	RowDim,
		int	NumEntries,
		int *	BlockRowIndices,
		Epetra_SerialDenseMatrix **	As,
		int *	ColFirstPointInElementList,
		double *	x
	)		const

protected

Definition at line 2912 of file Epetra_VbrMatrix.cpp.

void Epetra_VbrMatrix::SetStaticGraph ( bool Flag )

inlineprotected

Definition at line 1368 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CheckSizes ( const Epetra_SrcDistObject & Source )

protectedvirtual

Allows the source and target (this) objects to be compared for compatibility, return nonzero if not.

Implements Epetra_DistObject.

Definition at line 2930 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::CopyAndPermute	(	const Epetra_SrcDistObject &	Source,
		int	NumSameIDs,
		int	NumPermuteIDs,
		int *	PermuteToLIDs,
		int *	PermuteFromLIDs,
		const Epetra_OffsetIndex *	Indexor,
		Epetra_CombineMode	CombineMode = `Zero`
	)

protectedvirtual

Perform ID copies and permutations that are on processor.

Implements Epetra_DistObject.

Definition at line 2936 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::PackAndPrepare	(	const Epetra_SrcDistObject &	Source,
		int	NumExportIDs,
		int *	ExportLIDs,
		int &	LenExports,
		char *&	Exports,
		int &	SizeOfPacket,
		int *	Sizes,
		bool &	VarSizes,
		Epetra_Distributor &	Distor
	)

protectedvirtual

Perform any packing or preparation required for call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 3033 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::UnpackAndCombine	(	const Epetra_SrcDistObject &	Source,
		int	NumImportIDs,
		int *	ImportLIDs,
		int	LenImports,
		char *	Imports,
		int &	SizeOfPacket,
		Epetra_Distributor &	Distor,
		Epetra_CombineMode	CombineMode,
		const Epetra_OffsetIndex *	Indexor
	)

protectedvirtual

Perform any unpacking and combining after call to DoTransfer().

Implements Epetra_DistObject.

Definition at line 3116 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::SortEntries ( )

protected

Sort column entries, row-by-row, in ascending order.

Definition at line 932 of file Epetra_VbrMatrix.cpp.

bool Epetra_VbrMatrix::Sorted ( ) const

inlineprotected

If SortEntries() has been called, this query returns true, otherwise it returns false.

Definition at line 1404 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::MergeRedundantEntries ( )

protected

Add entries that have the same column index. Remove redundant entries from list.

Definition at line 974 of file Epetra_VbrMatrix.cpp.

bool Epetra_VbrMatrix::NoRedundancies ( ) const

inlineprotected

If MergeRedundantEntries() has been called, this query returns true, otherwise it returns false.

Definition at line 1410 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::StaticGraph ( ) const

inlineprotected

Definition at line 1412 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::GeneratePointObjects ( ) const

protected

Definition at line 3212 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::BlockMap2PointMap	(	const Epetra_BlockMap &	BlockMap,
		Epetra_Map *&	PointMap
	)		const

protected

Definition at line 3255 of file Epetra_VbrMatrix.cpp.

int Epetra_VbrMatrix::UpdateOperatorXY	(	const Epetra_MultiVector &	X,
		const Epetra_MultiVector &	Y
	)		const

protected

Definition at line 3287 of file Epetra_VbrMatrix.cpp.

Member Data Documentation

Epetra_CrsGraph* Epetra_VbrMatrix::Graph_

protected

Definition at line 1418 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::Allocated_

protected

Definition at line 1419 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::StaticGraph_

protected

Definition at line 1420 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::UseTranspose_

protected

Definition at line 1421 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::constructedWithFilledGraph_

protected

Definition at line 1422 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::matrixFillCompleteCalled_

protected

Definition at line 1423 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::StorageOptimized_

protected

Definition at line 1424 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::NumMyBlockRows_

protected

Definition at line 1426 of file Epetra_VbrMatrix.h.

Epetra_DataAccess Epetra_VbrMatrix::CV_

protected

Definition at line 1428 of file Epetra_VbrMatrix.h.

int* Epetra_VbrMatrix::NumBlockEntriesPerRow_

protected

Definition at line 1431 of file Epetra_VbrMatrix.h.

int* Epetra_VbrMatrix::NumAllocatedBlockEntriesPerRow_

protected

Definition at line 1432 of file Epetra_VbrMatrix.h.

int** Epetra_VbrMatrix::Indices_

protected

Definition at line 1433 of file Epetra_VbrMatrix.h.

int* Epetra_VbrMatrix::ElementSizeList_

protected

Definition at line 1434 of file Epetra_VbrMatrix.h.

int* Epetra_VbrMatrix::FirstPointInElementList_

protected

Definition at line 1435 of file Epetra_VbrMatrix.h.

Epetra_SerialDenseMatrix*** Epetra_VbrMatrix::Entries_

protected

Definition at line 1437 of file Epetra_VbrMatrix.h.

double* Epetra_VbrMatrix::All_Values_Orig_

protected

Definition at line 1439 of file Epetra_VbrMatrix.h.

double* Epetra_VbrMatrix::All_Values_

protected

Definition at line 1440 of file Epetra_VbrMatrix.h.

double Epetra_VbrMatrix::NormInf_

mutableprotected

Definition at line 1442 of file Epetra_VbrMatrix.h.

double Epetra_VbrMatrix::NormOne_

mutableprotected

Definition at line 1443 of file Epetra_VbrMatrix.h.

double Epetra_VbrMatrix::NormFrob_

mutableprotected

Definition at line 1444 of file Epetra_VbrMatrix.h.

Epetra_MultiVector* Epetra_VbrMatrix::ImportVector_

mutableprotected

Definition at line 1446 of file Epetra_VbrMatrix.h.

Epetra_MultiVector* Epetra_VbrMatrix::ExportVector_

mutableprotected

Definition at line 1447 of file Epetra_VbrMatrix.h.

int* Epetra_VbrMatrix::TempRowDims_

mutableprotected

Definition at line 1450 of file Epetra_VbrMatrix.h.

Epetra_SerialDenseMatrix** Epetra_VbrMatrix::TempEntries_

mutableprotected

Definition at line 1451 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::LenTemps_

mutableprotected

Definition at line 1452 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurBlockRow_

mutableprotected

Definition at line 1453 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurNumBlockEntries_

mutableprotected

Definition at line 1454 of file Epetra_VbrMatrix.h.

int* Epetra_VbrMatrix::CurBlockIndices_

mutableprotected

Definition at line 1455 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurEntry_

mutableprotected

Definition at line 1456 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::CurIndicesAreLocal_

mutableprotected

Definition at line 1457 of file Epetra_VbrMatrix.h.

Epetra_CombineMode Epetra_VbrMatrix::CurSubmitMode_

mutableprotected

Definition at line 1458 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurExtractBlockRow_

mutableprotected

Definition at line 1461 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurExtractEntry_

mutableprotected

Definition at line 1462 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurExtractNumBlockEntries_

mutableprotected

Definition at line 1463 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::CurExtractIndicesAreLocal_

mutableprotected

Definition at line 1464 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::CurExtractView_

mutableprotected

Definition at line 1465 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurRowDim_

mutableprotected

Definition at line 1466 of file Epetra_VbrMatrix.h.

int Epetra_VbrMatrix::CurBlockDiag_

mutableprotected

Definition at line 1469 of file Epetra_VbrMatrix.h.

Epetra_Map* Epetra_VbrMatrix::RowMatrixRowMap_

mutableprotected

Definition at line 1472 of file Epetra_VbrMatrix.h.

Epetra_Map* Epetra_VbrMatrix::RowMatrixColMap_

mutableprotected

Definition at line 1473 of file Epetra_VbrMatrix.h.

Epetra_Import* Epetra_VbrMatrix::RowMatrixImporter_

mutableprotected

Definition at line 1474 of file Epetra_VbrMatrix.h.

Epetra_Map* Epetra_VbrMatrix::OperatorDomainMap_

mutableprotected

Definition at line 1477 of file Epetra_VbrMatrix.h.

Epetra_Map* Epetra_VbrMatrix::OperatorRangeMap_

mutableprotected

Definition at line 1478 of file Epetra_VbrMatrix.h.

Epetra_MultiVector* Epetra_VbrMatrix::OperatorX_

mutableprotected

Definition at line 1479 of file Epetra_VbrMatrix.h.

Epetra_MultiVector* Epetra_VbrMatrix::OperatorY_

mutableprotected

Definition at line 1480 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::HavePointObjects_

mutableprotected

Definition at line 1483 of file Epetra_VbrMatrix.h.

bool Epetra_VbrMatrix::squareFillCompleteCalled_

protected

Definition at line 1485 of file Epetra_VbrMatrix.h.

The documentation for this class was generated from the following files:

Protected Member Functions

Protected Attributes

Constructors/Destructor

Insertion/Replace/SumInto methods

Extraction methods

Computational methods

Matrix Properties Query Methods

Attribute access functions

Local/Global ID methods

I/O Methods

Additional methods required to support the Epetra_Operator interface

Additional methods required to implement RowMatrix interface

Deprecated methods: These methods still work, but will be removed in a future version

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
