Epetra_RowMatrix: A pure virtual class for using real-valued double-precision row matrices. More...

#include <Epetra_RowMatrix.h>

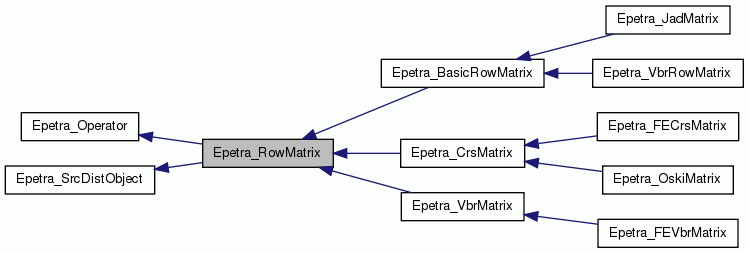

Inheritance diagram for Epetra_RowMatrix:

Destructor
virtual	~Epetra_RowMatrix ()
	Destructor. More...

Matrix data extraction routines
virtual int	NumMyRowEntries (int MyRow, int &NumEntries) const =0
	Returns the number of nonzero entries in MyRow. More...

virtual int	MaxNumEntries () const =0
	Returns the maximum of NumMyRowEntries() over all rows. More...

virtual int	ExtractMyRowCopy (int MyRow, int Length, int &NumEntries, double Values, int Indices) const =0
	Returns a copy of the specified local row in user-provided arrays. More...

virtual int	ExtractDiagonalCopy (Epetra_Vector &Diagonal) const =0
	Returns a copy of the main diagonal in a user-provided vector. More...

Mathematical functions
virtual int	Multiply (bool TransA, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const =0
	Returns the result of a Epetra_RowMatrix multiplied by a Epetra_MultiVector X in Y. More...

virtual int	Solve (bool Upper, bool Trans, bool UnitDiagonal, const Epetra_MultiVector &X, Epetra_MultiVector &Y) const =0
	Returns result of a local-only solve using a triangular Epetra_RowMatrix with Epetra_MultiVectors X and Y. More...

virtual int	InvRowSums (Epetra_Vector &x) const =0
	Computes the sum of absolute values of the rows of the Epetra_RowMatrix, results returned in x. More...

virtual int	LeftScale (const Epetra_Vector &x)=0
	Scales the Epetra_RowMatrix on the left with a Epetra_Vector x. More...

virtual int	InvColSums (Epetra_Vector &x) const =0
	Computes the sum of absolute values of the columns of the Epetra_RowMatrix, results returned in x. More...

virtual int	RightScale (const Epetra_Vector &x)=0
	Scales the Epetra_RowMatrix on the right with a Epetra_Vector x. More...

Attribute access functions
virtual bool	Filled () const =0
	If FillComplete() has been called, this query returns true, otherwise it returns false. More...

virtual double	NormInf () const =0
	Returns the infinity norm of the global matrix. More...

virtual double	NormOne () const =0
	Returns the one norm of the global matrix. More...

virtual int	NumGlobalNonzeros () const =0
	Returns the number of nonzero entries in the global matrix. More...

virtual long long	NumGlobalNonzeros64 () const =0

virtual int	NumGlobalRows () const =0
	Returns the number of global matrix rows. More...

virtual long long	NumGlobalRows64 () const =0

virtual int	NumGlobalCols () const =0
	Returns the number of global matrix columns. More...

virtual long long	NumGlobalCols64 () const =0

virtual int	NumGlobalDiagonals () const =0
	Returns the number of global nonzero diagonal entries, based on global row/column index comparisons. More...

virtual long long	NumGlobalDiagonals64 () const =0

virtual int	NumMyNonzeros () const =0
	Returns the number of nonzero entries in the calling processor's portion of the matrix. More...

virtual int	NumMyRows () const =0
	Returns the number of matrix rows owned by the calling processor. More...

virtual int	NumMyCols () const =0
	Returns the number of matrix columns owned by the calling processor. More...

virtual int	NumMyDiagonals () const =0
	Returns the number of local nonzero diagonal entries, based on global row/column index comparisons. More...

virtual bool	LowerTriangular () const =0
	If matrix is lower triangular in local index space, this query returns true, otherwise it returns false. More...

virtual bool	UpperTriangular () const =0
	If matrix is upper triangular in local index space, this query returns true, otherwise it returns false. More...

virtual const Epetra_Map &	RowMatrixRowMap () const =0
	Returns the Epetra_Map object associated with the rows of this matrix. More...

virtual const Epetra_Map &	RowMatrixColMap () const =0
	Returns the Epetra_Map object associated with the columns of this matrix. More...

virtual const Epetra_Import *	RowMatrixImporter () const =0
	Returns the Epetra_Import object that contains the import operations for distributed operations. More...

Detailed Description

Epetra_RowMatrix: A pure virtual class for using real-valued double-precision row matrices.

The Epetra_RowMatrix class is a pure virtual class (specifies interface only) that enable the use of real-valued double-precision sparse matrices where matrix entries are intended for row access. It is currently implemented by both the Epetra_CrsMatrix and Epetra_VbrMatrix classes.

Definition at line 76 of file Epetra_RowMatrix.h.

Constructor & Destructor Documentation

virtual Epetra_RowMatrix::~Epetra_RowMatrix ( )

inlinevirtual

Destructor.

Definition at line 82 of file Epetra_RowMatrix.h.

Member Function Documentation

virtual int Epetra_RowMatrix::NumMyRowEntries	(	int	MyRow,
		int &	NumEntries
	)		const

pure virtual

Returns the number of nonzero entries in MyRow.

Parameters

In	MyRow - Local row.
Out	NumEntries - Number of nonzero values present.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, Epetra_BasicRowMatrix, Epetra_VbrRowMatrix, and Epetra_JadMatrix.

virtual int Epetra_RowMatrix::MaxNumEntries ( ) const

pure virtual

Returns the maximum of NumMyRowEntries() over all rows.

Implemented in Epetra_VbrMatrix, Epetra_CrsMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::ExtractMyRowCopy	(	int	MyRow,
		int	Length,
		int &	NumEntries,
		double *	Values,
		int *	Indices
	)		const

pure virtual

Returns a copy of the specified local row in user-provided arrays.

Parameters

In	MyRow - Local row to extract.
In	Length - Length of Values and Indices.
Out	NumEntries - Number of nonzero entries extracted.
Out	Values - Extracted values for this row.
Out	Indices - Extracted local column indices for the corresponding values.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_VbrMatrix, Epetra_CrsMatrix, Epetra_BasicRowMatrix, Epetra_VbrRowMatrix, and Epetra_JadMatrix.

virtual int Epetra_RowMatrix::ExtractDiagonalCopy ( Epetra_Vector & Diagonal ) const

pure virtual

Returns a copy of the main diagonal in a user-provided vector.

Parameters

Out	Diagonal - Extracted main diagonal.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, Epetra_BasicRowMatrix, and Epetra_OskiMatrix.

virtual int Epetra_RowMatrix::Multiply	(	bool	TransA,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

pure virtual

Returns the result of a Epetra_RowMatrix multiplied by a Epetra_MultiVector X in Y.

Parameters

In	TransA -If true, multiply by the transpose of matrix, otherwise just use matrix.
In	X - A Epetra_MultiVector of dimension NumVectors to multiply with matrix.
Out	Y -A Epetra_MultiVector of dimension NumVectorscontaining result.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, Epetra_OskiMatrix, Epetra_BasicRowMatrix, Epetra_VbrRowMatrix, and Epetra_JadMatrix.

virtual int Epetra_RowMatrix::Solve	(	bool	Upper,
		bool	Trans,
		bool	UnitDiagonal,
		const Epetra_MultiVector &	X,
		Epetra_MultiVector &	Y
	)		const

pure virtual

Returns result of a local-only solve using a triangular Epetra_RowMatrix with Epetra_MultiVectors X and Y.

This method will perform a triangular solve independently on each processor of the parallel machine.
No communication is performed.

Parameters

In	Upper -If true, solve Ux = y, otherwise solve Lx = y.
In	Trans -If true, solve transpose problem.
In	UnitDiagonal -If true, assume diagonal is unit (whether it's stored or not).
In	X - A Epetra_MultiVector of dimension NumVectors to solve for.
Out	Y -A Epetra_MultiVector of dimension NumVectors containing result.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, Epetra_OskiMatrix, Epetra_BasicRowMatrix, Epetra_VbrRowMatrix, and Epetra_JadMatrix.

virtual int Epetra_RowMatrix::InvRowSums ( Epetra_Vector & x ) const

pure virtual

Computes the sum of absolute values of the rows of the Epetra_RowMatrix, results returned in x.

  The vector x will return such that x[i] will contain the inverse of sum of the absolute values of the
  \e this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the global row number of A
  and j denotes the global column number of A.  Using the resulting vector from this function as input to LeftScale()

will make the infinity norm of the resulting matrix exactly 1.

Parameters

Out	x -A Epetra_Vector containing the row sums of the this matrix.

Warning: It is assumed that the distribution of x is the same as the rows of this.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::LeftScale ( const Epetra_Vector & x )

pure virtual

Scales the Epetra_RowMatrix on the left with a Epetra_Vector x.

The \e this matrix will be scaled such that A(i,j) = x(i)*A(i,j) where i denotes the row number of A
and j denotes the column number of A.

Parameters

In	x -A Epetra_Vector to solve for.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, Epetra_BasicRowMatrix, and Epetra_VbrRowMatrix.

virtual int Epetra_RowMatrix::InvColSums ( Epetra_Vector & x ) const

pure virtual

Computes the sum of absolute values of the columns of the Epetra_RowMatrix, results returned in x.

  The vector x will return such that x[j] will contain the inverse of sum of the absolute values of the
  \e this matrix will be sca such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A
  and j denotes the global column number of A.  Using the resulting vector from this function as input to

RighttScale() will make the one norm of the resulting matrix exactly 1.

Parameters

Out	x -A Epetra_Vector containing the column sums of the this matrix.

Warning: It is assumed that the distribution of x is the same as the rows of this.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::RightScale ( const Epetra_Vector & x )

pure virtual

Scales the Epetra_RowMatrix on the right with a Epetra_Vector x.

The \e this matrix will be scaled such that A(i,j) = x(j)*A(i,j) where i denotes the global row number of A
and j denotes the global column number of A.

Parameters

In	x -The Epetra_Vector used for scaling this.

Returns: Integer error code, set to 0 if successful.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, Epetra_BasicRowMatrix, and Epetra_VbrRowMatrix.

virtual bool Epetra_RowMatrix::Filled ( ) const

pure virtual

If FillComplete() has been called, this query returns true, otherwise it returns false.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual double Epetra_RowMatrix::NormInf ( ) const

pure virtual

Returns the infinity norm of the global matrix.

Implements Epetra_Operator.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual double Epetra_RowMatrix::NormOne ( ) const

pure virtual

Returns the one norm of the global matrix.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumGlobalNonzeros ( ) const

pure virtual

Returns the number of nonzero entries in the global matrix.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual long long Epetra_RowMatrix::NumGlobalNonzeros64 ( ) const

pure virtual

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumGlobalRows ( ) const

pure virtual

Returns the number of global matrix rows.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual long long Epetra_RowMatrix::NumGlobalRows64 ( ) const

pure virtual

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumGlobalCols ( ) const

pure virtual

Returns the number of global matrix columns.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual long long Epetra_RowMatrix::NumGlobalCols64 ( ) const

pure virtual

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumGlobalDiagonals ( ) const

pure virtual

Returns the number of global nonzero diagonal entries, based on global row/column index comparisons.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual long long Epetra_RowMatrix::NumGlobalDiagonals64 ( ) const

pure virtual

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumMyNonzeros ( ) const

pure virtual

Returns the number of nonzero entries in the calling processor's portion of the matrix.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumMyRows ( ) const

pure virtual

Returns the number of matrix rows owned by the calling processor.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumMyCols ( ) const

pure virtual

Returns the number of matrix columns owned by the calling processor.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual int Epetra_RowMatrix::NumMyDiagonals ( ) const

pure virtual

Returns the number of local nonzero diagonal entries, based on global row/column index comparisons.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual bool Epetra_RowMatrix::LowerTriangular ( ) const

pure virtual

If matrix is lower triangular in local index space, this query returns true, otherwise it returns false.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual bool Epetra_RowMatrix::UpperTriangular ( ) const

pure virtual

If matrix is upper triangular in local index space, this query returns true, otherwise it returns false.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual const Epetra_Map& Epetra_RowMatrix::RowMatrixRowMap ( ) const

pure virtual

Returns the Epetra_Map object associated with the rows of this matrix.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual const Epetra_Map& Epetra_RowMatrix::RowMatrixColMap ( ) const

pure virtual

Returns the Epetra_Map object associated with the columns of this matrix.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

virtual const Epetra_Import* Epetra_RowMatrix::RowMatrixImporter ( ) const

pure virtual

Returns the Epetra_Import object that contains the import operations for distributed operations.

Implemented in Epetra_CrsMatrix, Epetra_VbrMatrix, and Epetra_BasicRowMatrix.

The documentation for this class was generated from the following file:

Epetra_RowMatrix.h

Destructor

Matrix data extraction routines

Mathematical functions

Attribute access functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
