Epetra_Distributor: The Epetra Gather/Scatter Setup Base Class. More...

#include <Epetra_Distributor.h>

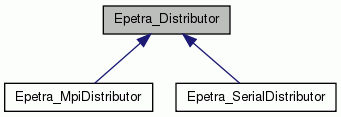

Inheritance diagram for Epetra_Distributor:

Constructor and Destructor
virtual Epetra_Distributor *	Clone ()=0
	Epetra_Distributor clone constructor. More...

virtual Epetra_Distributor *	ReverseClone ()=0
	Create and extract the reverse version of the distributor. More...

virtual	~Epetra_Distributor ()
	Epetra_Distributor Destructor. More...

Gather/Scatter Constructors
virtual int	CreateFromSends (const int &NumExportIDs, const int *ExportPIDs, bool Deterministic, int &NumRemoteIDs)=0
	Create Distributor object using list of process IDs to which we export. More...

virtual int	CreateFromRecvs (const int &NumRemoteIDs, const int RemoteGIDs, const int RemotePIDs, bool Deterministic, int &NumExportIDs, int &ExportGIDs, int &ExportPIDs)=0
	Create Distributor object using list of Remote global IDs and corresponding PIDs. More...

virtual int	CreateFromRecvs (const int &NumRemoteIDs, const long long RemoteGIDs, const int RemotePIDs, bool Deterministic, int &NumExportIDs, long long &ExportGIDs, int &ExportPIDs)=0

Execute Gather/Scatter Operations (Constant size objects)
virtual int	Do (char export_objs, int obj_size, int &len_import_objs, char &import_objs)=0
	Execute plan on buffer of export objects in a single step. More...

virtual int	DoReverse (char export_objs, int obj_size, int &len_import_objs, char &import_objs)=0
	Execute reverse of plan on buffer of export objects in a single step. More...

virtual int	DoPosts (char export_objs, int obj_size, int &len_import_objs, char &import_objs)=0
	Post buffer of export objects (can do other local work before executing Waits) More...

virtual int	DoWaits ()=0
	Wait on a set of posts. More...

virtual int	DoReversePosts (char export_objs, int obj_size, int &len_import_objs, char &import_objs)=0
	Do reverse post of buffer of export objects (can do other local work before executing Waits) More...

virtual int	DoReverseWaits ()=0
	Wait on a reverse set of posts. More...

Execute Gather/Scatter Operations (Non-constant size objects)
virtual int	Do (char export_objs, int obj_size, int &sizes, int &len_import_objs, char *&import_objs)=0
	Execute plan on buffer of export objects in a single step (object size may vary) More...

virtual int	DoReverse (char export_objs, int obj_size, int &sizes, int &len_import_objs, char *&import_objs)=0
	Execute reverse of plan on buffer of export objects in a single step (object size may vary) More...

virtual int	DoPosts (char export_objs, int obj_size, int &sizes, int &len_import_objs, char *&import_objs)=0
	Post buffer of export objects (can do other local work before executing Waits) More...

virtual int	DoReversePosts (char export_objs, int obj_size, int &sizes, int &len_import_objs, char *&import_objs)=0
	Do reverse post of buffer of export objects (can do other local work before executing Waits) More...

Print object to an output stream
virtual void	Print (std::ostream &os) const =0

Detailed Description

Epetra_Distributor: The Epetra Gather/Scatter Setup Base Class.

The Epetra_Distributor class is an interface that encapsulates the general information and services needed for other Epetra classes to perform gather/scatter operations on a parallel computer. An Epetra_Distributor object is actually produced by calling a method in the Epetra_Comm class.

Epetra_Distributor has default implementations, via Epetra_SerialDistributor and Epetra_MpiDistributor, for both serial execution and MPI distributed memory execution. It is meant to insulate the user from the specifics of communication that are not required for normal manipulation of linear algebra objects..

Definition at line 69 of file Epetra_Distributor.h.

Constructor & Destructor Documentation

virtual Epetra_Distributor::~Epetra_Distributor ( )

inlinevirtual

Epetra_Distributor Destructor.

Definition at line 84 of file Epetra_Distributor.h.

Member Function Documentation

virtual Epetra_Distributor* Epetra_Distributor::Clone ( )

pure virtual

Epetra_Distributor clone constructor.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual Epetra_Distributor* Epetra_Distributor::ReverseClone ( )

pure virtual

Create and extract the reverse version of the distributor.

This is not a const method since a reverse distributor might need to be created. This works like Clone, returning a new object the user must deallocate.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::CreateFromSends	(	const int &	NumExportIDs,
		const int *	ExportPIDs,
		bool	Deterministic,
		int &	NumRemoteIDs
	)

pure virtual

Create Distributor object using list of process IDs to which we export.

Take a list of Process IDs and construct a plan for efficiently scattering to these processes. Return the number of IDs being sent to me.

Parameters

NumExportIDs	In Number of IDs that need to be sent from this processor.
ExportPIDs	In List of processors that will get the exported IDs.
Deterministic	In No op.
NumRemoteIDs	Out Number of IDs this processor will be receiving.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::CreateFromRecvs	(	const int &	NumRemoteIDs,
		const int *	RemoteGIDs,
		const int *	RemotePIDs,
		bool	Deterministic,
		int &	NumExportIDs,
		int *&	ExportGIDs,
		int *&	ExportPIDs
	)

pure virtual

Create Distributor object using list of Remote global IDs and corresponding PIDs.

Take a list of global IDs and construct a plan for efficiently scattering to these processes. Return the number and list of IDs being sent by me.

Parameters

NumRemoteIDs	In Number of IDs this processor will be receiving.
RemoteGIDs	In List of IDs that this processor wants.
RemotePIDs	In List of processors that will send the remote IDs.
Deterministic	In No op.
NumExportIDs	Out Number of IDs that need to be sent from this processor.
ExportPIDs	Out List of processors that will get the exported IDs.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::CreateFromRecvs	(	const int &	NumRemoteIDs,
		const long long *	RemoteGIDs,
		const int *	RemotePIDs,
		bool	Deterministic,
		int &	NumExportIDs,
		long long *&	ExportGIDs,
		int *&	ExportPIDs
	)

pure virtual

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::Do	(	char *	export_objs,
		int	obj_size,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Execute plan on buffer of export objects in a single step.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoReverse	(	char *	export_objs,
		int	obj_size,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Execute reverse of plan on buffer of export objects in a single step.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoPosts	(	char *	export_objs,
		int	obj_size,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Post buffer of export objects (can do other local work before executing Waits)

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoWaits ( )

pure virtual

Wait on a set of posts.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoReversePosts	(	char *	export_objs,
		int	obj_size,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Do reverse post of buffer of export objects (can do other local work before executing Waits)

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoReverseWaits ( )

pure virtual

Wait on a reverse set of posts.

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::Do	(	char *	export_objs,
		int	obj_size,
		int *&	sizes,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Execute plan on buffer of export objects in a single step (object size may vary)

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoReverse	(	char *	export_objs,
		int	obj_size,
		int *&	sizes,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Execute reverse of plan on buffer of export objects in a single step (object size may vary)

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoPosts	(	char *	export_objs,
		int	obj_size,
		int *&	sizes,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Post buffer of export objects (can do other local work before executing Waits)

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual int Epetra_Distributor::DoReversePosts	(	char *	export_objs,
		int	obj_size,
		int *&	sizes,
		int &	len_import_objs,
		char *&	import_objs
	)

pure virtual

Do reverse post of buffer of export objects (can do other local work before executing Waits)

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

virtual void Epetra_Distributor::Print ( std::ostream & os ) const

pure virtual

Implemented in Epetra_MpiDistributor, and Epetra_SerialDistributor.

The documentation for this class was generated from the following file:

Epetra_Distributor.h
