Thyra::ScaledModelEvaluator< Scalar > Class Template Reference

This class decorates a ModelEvaluator and returns scaled residual and Jacobian values. More...

#include <Thyra_ScaledModelEvaluator_decl.hpp>

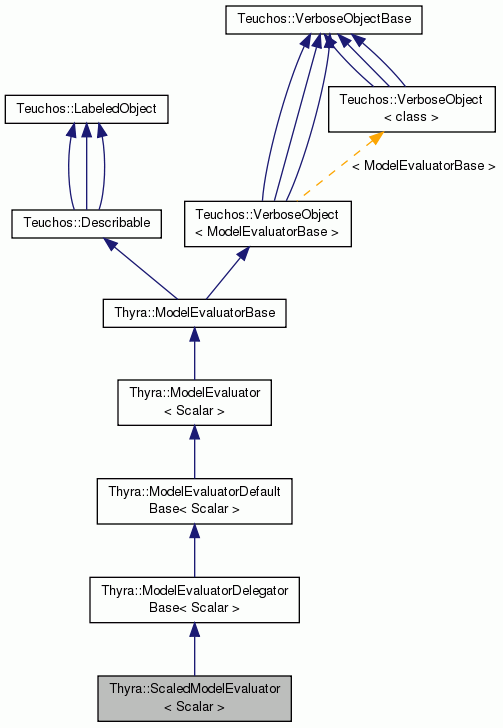

Inheritance diagram for Thyra::ScaledModelEvaluator< Scalar >:
Inheritance graph
[legend]

Public Member Functions

 ScaledModelEvaluator ()
 Constructs to uninitialized. More...

std::string description () const

void set_f_scaling (const RCP< const Thyra::VectorBase< Scalar > > &f_scaling)

- Public Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
 ModelEvaluatorDelegatorBase ()
 Constructs to uninitialized. More...

 ModelEvaluatorDelegatorBase (const RCP< ModelEvaluator< Scalar > > &model)
 Calls initialize(). More...

 ModelEvaluatorDelegatorBase (const RCP< const ModelEvaluator< Scalar > > &model)
 Calls initialize(). More...

void initialize (const RCP< ModelEvaluator< Scalar > > &model)
 Initialize given a non-const model evaluator. More...

void initialize (const RCP< const ModelEvaluator< Scalar > > &model)
 Initialize given a const model evaluator. More...

void uninitialize ()
 Uninitialize. More...

virtual bool isUnderlyingModelConst () const

virtual RCP< ModelEvaluator
< Scalar > >
getNonconstUnderlyingModel ()

virtual RCP< const
ModelEvaluator< Scalar > >
getUnderlyingModel () const

RCP< const VectorSpaceBase
< Scalar > >
get_x_space () const

RCP< const VectorSpaceBase
< Scalar > >
get_f_space () const

RCP< const VectorSpaceBase
< Scalar > >
get_p_space (int l) const

RCP< const Teuchos::Array
< std::string > >
get_p_names (int l) const

RCP< const VectorSpaceBase
< Scalar > >
get_g_space (int j) const

Teuchos::ArrayView< const
std::string >
get_g_names (int j) const

ModelEvaluatorBase::InArgs
< Scalar >
getNominalValues () const

ModelEvaluatorBase::InArgs
< Scalar >
getLowerBounds () const

ModelEvaluatorBase::InArgs
< Scalar >
getUpperBounds () const

RCP< LinearOpWithSolveBase
< Scalar > >
create_W () const

RCP< LinearOpBase< Scalar > > create_W_op () const

RCP< PreconditionerBase< Scalar > > create_W_prec () const

RCP< const
LinearOpWithSolveFactoryBase
< Scalar > >
get_W_factory () const

ModelEvaluatorBase::InArgs
< Scalar >
createInArgs () const

void reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

- Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
int Np () const

int Ng () const

RCP< LinearOpBase< Scalar > > create_DfDp_op (int l) const

RCP< LinearOpBase< Scalar > > create_DgDx_dot_op (int j) const

RCP< LinearOpBase< Scalar > > create_DgDx_op (int j) const

RCP< LinearOpBase< Scalar > > create_DgDp_op (int j, int l) const

ModelEvaluatorBase::OutArgs
< Scalar >
createOutArgs () const

void evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const

- Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
- Public Member Functions inherited from Thyra::ModelEvaluatorBase
 ModelEvaluatorBase ()
 constructor More...


Additional Inherited Members

- Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits
< Scalar >::magnitudeType
ScalarMag

- Public Types inherited from Thyra::ModelEvaluatorBase
enum  EInArgsMembers {
  IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly,
  IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t,
  IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size,
  IN_ARG_stage_number
}

enum  EInArgs_p_mp { IN_ARG_p_mp }

enum  EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
 The type of an evaluation. More...

enum  EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum  EDerivativeLinearOp { DERIV_LINEAR_OP }

enum  EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum  ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum  EOutArgsMembers {
  OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp,
  OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly
}

enum  EOutArgsDfDp { OUT_ARG_DfDp }

enum  EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum  EOutArgsDgDx { OUT_ARG_DgDx }

enum  EOutArgsDgDp { OUT_ARG_DgDp }

enum  EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum  EOutArgs_g_mp { OUT_ARG_g_mp }

enum  EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum  EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum  EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

- Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int NUM_E_IN_ARGS_MEMBERS =13

static const int NUM_E_OUT_ARGS_MEMBERS =7

- Protected Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
void setLocalVerbosityLevelValidatedParameter (ParameterList *paramList) const
 Set a valid parameter for reading the local verbosity level. More...

Teuchos::EVerbosityLevel readLocalVerbosityLevelValidatedParameter (ParameterList &paramList) const
 Read the local verbosity level parameter. More...

- Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
 ModelEvaluatorDefaultBase ()

void initializeDefaultBase ()
 Function called by subclasses to fully initialize this object on any important change. More...

void resetDefaultBase ()
 Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed. More...


Detailed Description

template<class Scalar>
class Thyra::ScaledModelEvaluator< Scalar >

This class decorates a ModelEvaluator and returns scaled residual and Jacobian values.

Given a scaling vector s, this object is treated as a diagonal scaling matrix and applied to x -> Sf(x) and x -> sW.

Definition at line 59 of file Thyra_ScaledModelEvaluator_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >
Thyra::ScaledModelEvaluator< Scalar >::ScaledModelEvaluator ( )

Constructs to uninitialized.

Definition at line 57 of file Thyra_ScaledModelEvaluator_def.hpp.

Member Function Documentation

template<class Scalar >
std::string Thyra::ScaledModelEvaluator< Scalar >::description ( ) const
virtual

Reimplemented from Teuchos::Describable.

Definition at line 65 of file Thyra_ScaledModelEvaluator_def.hpp.

template<class Scalar >
void Thyra::ScaledModelEvaluator< Scalar >::set_f_scaling ( const RCP< const Thyra::VectorBase< Scalar > > &  f_scaling)

Definition at line 83 of file Thyra_ScaledModelEvaluator_def.hpp.


The documentation for this class was generated from the following files:
