Thyra::ModelEvaluatorBase Class Reference

Base subclass for ModelEvaluator that defines some basic types. More...

#include <Thyra_ModelEvaluatorBase_decl.hpp>

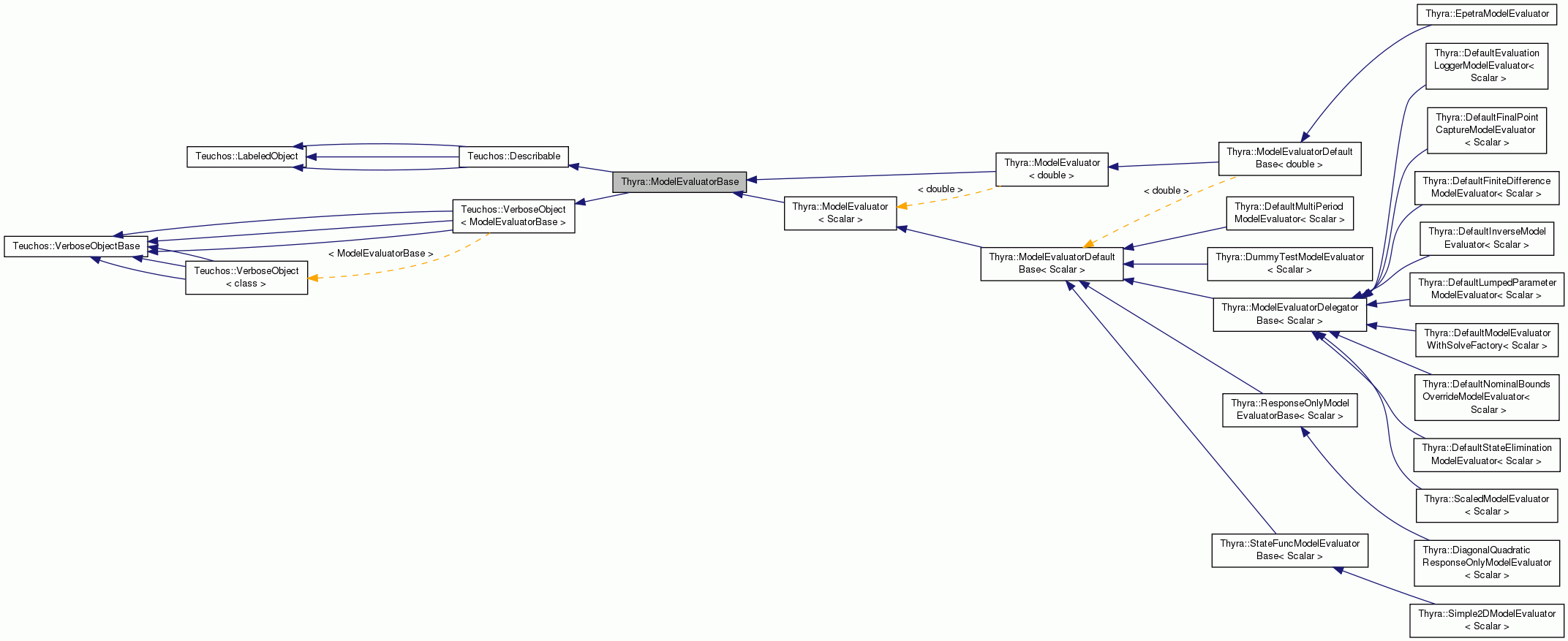

Inheritance diagram for Thyra::ModelEvaluatorBase:
Inheritance graph
[legend]

Classes

class  Derivative
 Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class  DerivativeMultiVector
 Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...

struct  DerivativeProperties
 Simple public strict containing properties of a derivative object. More...

class  DerivativeSupport
 Determines the forms of a general derivative that are supported. More...

class  Evaluation
 Type to embed evaluation accuracy with an RCP-managed object. More...

class  InArgs
 Concrete aggregate class for all input arguments computable by a ModelEvaluator subclass object. More...

class  InArgsSetup
 Protected subclass of InArgs that only ModelEvaluator subclasses can access to set up the selection of supported input arguments. More...

class  MPDerivative
 Simple aggregate class that stores a derivative object as a general linear operator or as a multi-vector. More...

class  MPDerivativeMultiVector
 Simple aggregate class for a derivative object represented as a column-wise multi-vector or its transpose as a row-wise multi-vector. More...

class  OutArgs
 Concrete aggregate class for all output arguments computable by a ModelEvaluator subclass object. More...

class  OutArgsSetup
 Protected subclass of OutArgs that only ModelEvaluator subclasses can access to set up the selection of supported input arguments. More...


Related Functions

(Note that these are not member functions.)

std::string toString (ModelEvaluatorBase::EInArgsMembers)

std::string toString (ModelEvaluatorBase::EOutArgsMembers)

std::string toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)


Public types

enum  EInArgsMembers {
  IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly,
  IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t,
  IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size,
  IN_ARG_stage_number
}

enum  EInArgs_p_mp { IN_ARG_p_mp }

enum  EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
 The type of an evaluation. More...

enum  EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum  EDerivativeLinearOp { DERIV_LINEAR_OP }

enum  EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum  ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum  EOutArgsMembers {
  OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp,
  OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly
}

enum  EOutArgsDfDp { OUT_ARG_DfDp }

enum  EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum  EOutArgsDgDx { OUT_ARG_DgDx }

enum  EOutArgsDgDp { OUT_ARG_DgDp }

enum  EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum  EOutArgs_g_mp { OUT_ARG_g_mp }

enum  EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum  EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum  EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

static const int NUM_E_IN_ARGS_MEMBERS =13

static const int NUM_E_OUT_ARGS_MEMBERS =7

 ModelEvaluatorBase ()
 constructor More...


Detailed Description

Base subclass for ModelEvaluator that defines some basic types.

This non-templated base class is used for two very important reasons.

First, a non-templated base class holding templated nested classes makes it easier for client to form the names of the nested classes. This also makes it easier to access non-tempated enum types and values as well. While most of these nested types could have been defined outside of a base class, by putting them in a base class, we get better namespace scoping and can therefore use shorter names.

Second, there are some protected nested classes (i.e. InArgsSetup and OutArgsSetup0 that only subclasses should be able to access. This makes the design very secure to help avoid bad usage of the nested classes.

Definition at line 83 of file Thyra_ModelEvaluatorBase_decl.hpp.

Member Enumeration Documentation

Enumerator
IN_ARG_x_dot_dot
IN_ARG_x_dot
IN_ARG_x
IN_ARG_x_dot_poly
IN_ARG_x_poly
IN_ARG_x_dot_mp
IN_ARG_x_mp
IN_ARG_t
IN_ARG_alpha
IN_ARG_beta
IN_ARG_W_x_dot_dot_coeff
IN_ARG_step_size
IN_ARG_stage_number

Definition at line 93 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
IN_ARG_p_mp

Definition at line 112 of file Thyra_ModelEvaluatorBase_decl.hpp.

The type of an evaluation.

Enumerator
EVAL_TYPE_APPROX_DERIV

Do an exact evaluation (default)

EVAL_TYPE_VERY_APPROX_DERIV

An approx. eval. for a F.D. deriv.

An approx. eval. for a F.D. prec.

Definition at line 317 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
DERIV_MV_JACOBIAN_FORM

Jacobian form DhDz (nz columns of h_space vectors)

DERIV_MV_GRADIENT_FORM

Gradient form DhDz^T (nh columns of z_space vectors)

DERIV_MV_BY_COL

Deprecated!

DERIV_TRANS_MV_BY_ROW

Deprecated!

Definition at line 353 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
DERIV_LINEAR_OP

Definition at line 361 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
DERIV_LINEARITY_UNKNOWN
DERIV_LINEARITY_CONST
DERIV_LINEARITY_NONCONST

Definition at line 430 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
DERIV_RANK_UNKNOWN
DERIV_RANK_FULL
DERIV_RANK_DEFICIENT

Definition at line 437 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_f
OUT_ARG_W
OUT_ARG_f_mp
OUT_ARG_W_mp
OUT_ARG_W_op
OUT_ARG_W_prec
OUT_ARG_f_poly

Definition at line 677 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DfDp

Definition at line 690 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DgDx_dot

Definition at line 695 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DgDx

Definition at line 700 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DgDp

Definition at line 705 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DfDp_mp

Definition at line 710 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_g_mp

Definition at line 715 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DgDx_dot_mp

Definition at line 720 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DgDx_mp

Definition at line 725 of file Thyra_ModelEvaluatorBase_decl.hpp.

Enumerator
OUT_ARG_DgDp_mp

Definition at line 730 of file Thyra_ModelEvaluatorBase_decl.hpp.

Constructor & Destructor Documentation

Thyra::ModelEvaluatorBase::ModelEvaluatorBase ( )

constructor

Definition at line 50 of file Thyra_ModelEvaluatorBase.cpp.

Friends And Related Function Documentation

std::string toString ( ModelEvaluatorBase::EInArgsMembers  )
related
std::string toString ( ModelEvaluatorBase::EOutArgsMembers  )
related
std::string toString ( ModelEvaluatorBase::EDerivativeMultiVectorOrientation  orientation)
related

Member Data Documentation

const int Thyra::ModelEvaluatorBase::NUM_E_IN_ARGS_MEMBERS =13
static

Definition at line 109 of file Thyra_ModelEvaluatorBase_decl.hpp.

const int Thyra::ModelEvaluatorBase::NUM_E_OUT_ARGS_MEMBERS =7
static

Definition at line 687 of file Thyra_ModelEvaluatorBase_decl.hpp.


The documentation for this class was generated from the following files:
