Concrete aggregate class for all input arguments computable by a ModelEvaluator subclass object. More...

#include <Thyra_ModelEvaluatorBase_decl.hpp>

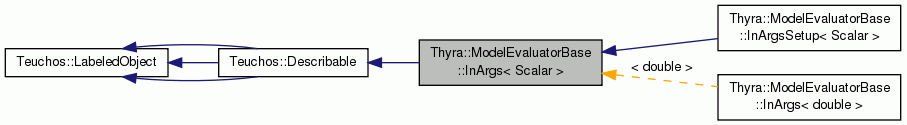

Inheritance diagram for Thyra::ModelEvaluatorBase::InArgs< Scalar >:

Public Types
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Public Member Functions
	InArgs ()

int	Np () const
	Return the number of parameter subvectors `p(l)` supported (`Np >= 0`). More...

bool	supports (EInArgsMembers arg) const
	Determines if an input argument is supported or not. More...

void	set_x_dot_dot (const RCP< const VectorBase< Scalar > > &x_dot_dot)
	Precondition: `supports(IN_ARG_x_dot_dot)==true`. More...

RCP< const VectorBase< Scalar > >	get_x_dot_dot () const
	Precondition: `supports(IN_ARG_x_dot_dot)==true`. More...

void	set_x_dot (const RCP< const VectorBase< Scalar > > &x_dot)
	Precondition: `supports(IN_ARG_x_dot)==true`. More...

RCP< const VectorBase< Scalar > >	get_x_dot () const
	Precondition: `supports(IN_ARG_x_dot)==true`. More...

void	set_x (const RCP< const VectorBase< Scalar > > &x)
	Precondition: `supports(IN_ARG_x)==true`. More...

RCP< const VectorBase< Scalar > >	get_x () const
	Precondition: `supports(IN_ARG_x)==true`. More...

template<typename ObjectType >
bool	supports () const
	Determines if an extended input argument of type `ObjectType` is supported. More...

template<typename ObjectType >
void	set (const RCP< const ObjectType > &uo)
	Set an extended input object of type `ObjectType` in the InArgs. Precondition: `supports()==true`. More...

template<typename ObjectType >
RCP< const ObjectType >	get () const
	Get an extended input object of type `ObjectType>/tt> from the InArgs. Precondition: supports()==true.` More...

void	set_p (int l, const RCP< const VectorBase< Scalar > > &p_l)
	Set `p(l)` where `0 <= l && l < this->Np()`. More...

RCP< const VectorBase< Scalar > >	get_p (int l) const
	Get `p(l)` where `0 <= l && l < this->Np()`. More...

void	set_x_dot_mp (const RCP< const Stokhos::ProductEpetraVector > &x_dot_mp)
	Precondition: `supports(IN_ARG_x_dot_mp)==true`. More...

RCP< const Stokhos::ProductEpetraVector >	get_x_dot_mp () const
	Precondition: `supports(IN_ARG_x_dotmp)==true`. More...

void	set_x_mp (const RCP< const Stokhos::ProductEpetraVector > &x_mp)
	Precondition: `supports(IN_ARG_x_mp)==true`. More...

RCP< const Stokhos::ProductEpetraVector >	get_x_mp () const
	Precondition: `supports(IN_ARG_x_mp)==true`. More...

bool	supports (EInArgs_p_mp arg, int l) const

void	set_t (ScalarMag t)
	Precondition: `supports(IN_ARG_t)==true`. More...

ScalarMag	get_t () const
	.Precondition: `supports(IN_ARG_t)==true` More...

void	set_alpha (Scalar alpha)
	Precondition: `supports(IN_ARG_alpha)==true`. More...

Scalar	get_alpha () const
	Precondition: `supports(IN_ARG_alpha)==true`. More...

void	set_beta (Scalar beta)
	Precondition: `supports(IN_ARG_beta)==true`. More...

Scalar	get_beta () const
	Precondition: `supports(IN_ARG_beta)==true`. More...

void	set_W_x_dot_dot_coeff (Scalar W_x_dot_dot_coeff)
	Precondition: `supports(IN_ARG_W_x_dot_dot_coeff)==true`. More...

Scalar	get_W_x_dot_dot_coeff () const
	Precondition: `supports(IN_ARG_W_x_dot_dot_coeff)==true`. More...

void	set_step_size (Scalar step_size)
	Precondition: `supports(IN_ARG_step_size)==true`. More...

Scalar	get_step_size () const
	Precondition: `supports(IN_ARG_step_size)==true`. More...

void	set_stage_number (Scalar stage_number)
	Precondition: `supports(IN_ARG_stage_number)==true`. More...

Scalar	get_stage_number () const
	Precondition: `supports(IN_ARG_stage_number)==true`. More...

void	setArgs (const InArgs< Scalar > &inArgs, bool ignoreUnsupported=false, bool cloneObjects=false)
	Set non-null arguments (does not overwrite non-NULLs with NULLs) . More...

void	assertSameSupport (const InArgs< Scalar > &inArgs) const
	Assert that two InArgs objects have the same support. More...

std::string	modelEvalDescription () const

std::string	description () const

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const
	Create a more detailed description along about this object and the ModelEvaluator that created it. More...

Protected Member Functions
void	_setModelEvalDescription (const std::string &modelEvalDescription)

void	_set_Np (int Np)

void	_setSupports (EInArgsMembers arg, bool supports)

void	_setSupports (EInArgs_p_mp arg, int l, bool supports)

void	_setSupports (const InArgs< Scalar > &inputInArgs, const int Np)

template<typename ObjectType >
void	_setSupports (const bool supports)

void	_setUnsupportsAndRelated (EInArgsMembers arg)

Detailed Description

template<class Scalar>
class Thyra::ModelEvaluatorBase::InArgs< Scalar >

Concrete aggregate class for all input arguments computable by a ModelEvaluator subclass object.

The set of supported objects is returned from the supports() function.

A client can not directly set what input arguments are supported or not supported. Only a subclass of ModelEvaluator can do that (through the InArgsSetup subclass).

Extended types: The methods for supports(), set() and get() that are templated on the ObjectType are used to support what are called extended types. This functionality allows developers to inject new objects into the ModelEvaluator evaluations. This can be used for expermenting with new capabilities that require adding new/special arguments to the inArgs. This also can be used to reduce the clutter and complexity of the model evaluator inArgs object. For example, users could create their own inArgs for a stochastic computation:

struct StochasticInArgs {
  StochLib::MultiVector<Scalar> stochastic_x;
  ...
};

This object could then be used in a model evaluator without changing the base classes in Thyra:

auto inArgs = model->createInArgs();
assert(inArgs.template supports<StochasticInArgs<Scalar>>());
RCP<StochasticInArgs> stochInArgs = rcp(new StochasticInArgs<Scalar>);
stochInArgs->stochastic_x = ... // create and set objects
...
inArgs.set(stochInArgs);

Definition at line 159 of file Thyra_ModelEvaluatorBase_decl.hpp.

Member Typedef Documentation

template<class Scalar>

typedef Teuchos::ScalarTraits<Scalar>::magnitudeType Thyra::ModelEvaluatorBase::InArgs< Scalar >::ScalarMag

Definition at line 162 of file Thyra_ModelEvaluatorBase_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::ModelEvaluatorBase::InArgs< Scalar >::InArgs ( )

Definition at line 96 of file Thyra_ModelEvaluatorBase_def.hpp.

Member Function Documentation

template<class Scalar >

int Thyra::ModelEvaluatorBase::InArgs< Scalar >::Np ( ) const

Return the number of parameter subvectors p(l) supported (Np >= 0).

Definition at line 111 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

bool Thyra::ModelEvaluatorBase::InArgs< Scalar >::supports ( EInArgsMembers arg ) const

Determines if an input argument is supported or not.

Definition at line 115 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_x_dot_dot ( const RCP< const VectorBase< Scalar > > & x_dot_dot )

Precondition: supports(IN_ARG_x_dot_dot)==true.

Definition at line 133 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

RCP< const VectorBase< Scalar > > Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_x_dot_dot ( ) const

Precondition: supports(IN_ARG_x_dot_dot)==true.

Definition at line 140 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_x_dot ( const RCP< const VectorBase< Scalar > > & x_dot )

Precondition: supports(IN_ARG_x_dot)==true.

Definition at line 144 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

RCP< const VectorBase< Scalar > > Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_x_dot ( ) const

Precondition: supports(IN_ARG_x_dot)==true.

Definition at line 152 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_x ( const RCP< const VectorBase< Scalar > > & x )

Precondition: supports(IN_ARG_x)==true.

Definition at line 157 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

RCP< const VectorBase< Scalar > > Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_x ( ) const

Precondition: supports(IN_ARG_x)==true.

Definition at line 165 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

template<typename ObjectType >

bool Thyra::ModelEvaluatorBase::InArgs< Scalar >::supports ( ) const

Determines if an extended input argument of type ObjectType is supported.

Definition at line 1239 of file Thyra_ModelEvaluatorBase_decl.hpp.

template<class Scalar >

template<typename ObjectType >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set ( const RCP< const ObjectType > & uo )

Set an extended input object of type ObjectType in the InArgs. Precondition: supports()==true.

Definition at line 1252 of file Thyra_ModelEvaluatorBase_decl.hpp.

template<class Scalar>

template<typename ObjectType >

RCP<const ObjectType> Thyra::ModelEvaluatorBase::InArgs< Scalar >::get ( ) const

Get an extended input object of type ObjectType>/tt> from the InArgs. Precondition: supports()==true.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_p	(	int	l,
		const RCP< const VectorBase< Scalar > > &	p_l
	)

Set p(l) where 0 <= l && l < this->Np().

Definition at line 226 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

RCP< const VectorBase< Scalar > > Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_p ( int l ) const

Get p(l) where 0 <= l && l < this->Np().

Definition at line 234 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_x_dot_mp ( const RCP< const Stokhos::ProductEpetraVector > & x_dot_mp )

Precondition: supports(IN_ARG_x_dot_mp)==true.

Definition at line 170 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

RCP< const Stokhos::ProductEpetraVector > Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_x_dot_mp ( ) const

Precondition: supports(IN_ARG_x_dotmp)==true.

Definition at line 178 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_x_mp ( const RCP< const Stokhos::ProductEpetraVector > & x_mp )

Precondition: supports(IN_ARG_x_mp)==true.

Definition at line 183 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

RCP< const Stokhos::ProductEpetraVector > Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_x_mp ( ) const

Precondition: supports(IN_ARG_x_mp)==true.

Definition at line 191 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

bool Thyra::ModelEvaluatorBase::InArgs< Scalar >::supports	(	EInArgs_p_mp	arg,
		int	l
	)		const

Whether p_mp is supported for parameter vector l

Definition at line 126 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_t ( ScalarMag t )

Precondition: supports(IN_ARG_t)==true.

Definition at line 251 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar >::ScalarMag Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_t ( ) const

.Precondition: supports(IN_ARG_t)==true

Definition at line 257 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_alpha ( Scalar alpha )

Precondition: supports(IN_ARG_alpha)==true.

Definition at line 262 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

Scalar Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_alpha ( ) const

Precondition: supports(IN_ARG_alpha)==true.

Definition at line 267 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_beta ( Scalar beta )

Precondition: supports(IN_ARG_beta)==true.

Definition at line 272 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

Scalar Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_beta ( ) const

Precondition: supports(IN_ARG_beta)==true.

Definition at line 277 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_W_x_dot_dot_coeff ( Scalar W_x_dot_dot_coeff )

Precondition: supports(IN_ARG_W_x_dot_dot_coeff)==true.

Definition at line 281 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

Scalar Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_W_x_dot_dot_coeff ( ) const

Precondition: supports(IN_ARG_W_x_dot_dot_coeff)==true.

Definition at line 286 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_step_size ( Scalar step_size )

Precondition: supports(IN_ARG_step_size)==true.

Definition at line 290 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

Scalar Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_step_size ( ) const

Precondition: supports(IN_ARG_step_size)==true.

Definition at line 294 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::set_stage_number ( Scalar stage_number )

Precondition: supports(IN_ARG_stage_number)==true.

Definition at line 303 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

Scalar Thyra::ModelEvaluatorBase::InArgs< Scalar >::get_stage_number ( ) const

Precondition: supports(IN_ARG_stage_number)==true.

Definition at line 298 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::setArgs	(	const InArgs< Scalar > &	inArgs,
		bool	ignoreUnsupported = `false`,
		bool	cloneObjects = `false`
	)

Set non-null arguments (does not overwrite non-NULLs with NULLs) .

Definition at line 308 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::assertSameSupport ( const InArgs< Scalar > & inArgs ) const

Assert that two InArgs objects have the same support.

Definition at line 395 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

std::string Thyra::ModelEvaluatorBase::InArgs< Scalar >::modelEvalDescription ( ) const

Definition at line 418 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

std::string Thyra::ModelEvaluatorBase::InArgs< Scalar >::description ( ) const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 425 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel
	)		const

virtual

Create a more detailed description along about this object and the ModelEvaluator that created it.

Reimplemented from Teuchos::Describable.

Definition at line 440 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_setModelEvalDescription ( const std::string & modelEvalDescription )

protected

Definition at line 529 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_set_Np ( int Np )

protected

Definition at line 538 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_setSupports	(	EInArgsMembers	arg,
		bool	supports
	)

protected

Definition at line 547 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_setSupports	(	EInArgs_p_mp	arg,
		int	l,
		bool	supports
	)

protected

Definition at line 559 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar>

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_setSupports	(	const InArgs< Scalar > &	inputInArgs,
		const int	Np
	)

protected

Definition at line 569 of file Thyra_ModelEvaluatorBase_def.hpp.

template<class Scalar >

template<class ObjectType >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_setSupports ( const bool supports )

protected

Definition at line 1288 of file Thyra_ModelEvaluatorBase_decl.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorBase::InArgs< Scalar >::_setUnsupportsAndRelated ( EInArgsMembers arg )

protected

Definition at line 581 of file Thyra_ModelEvaluatorBase_def.hpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

template<class Scalar> class Thyra::ModelEvaluatorBase::InArgs< Scalar >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<class Scalar>
class Thyra::ModelEvaluatorBase::InArgs< Scalar >
