This is a base class that delegetes almost all function to a wrapped model evaluator object. More...

#include <Thyra_ModelEvaluatorDelegatorBase.hpp>

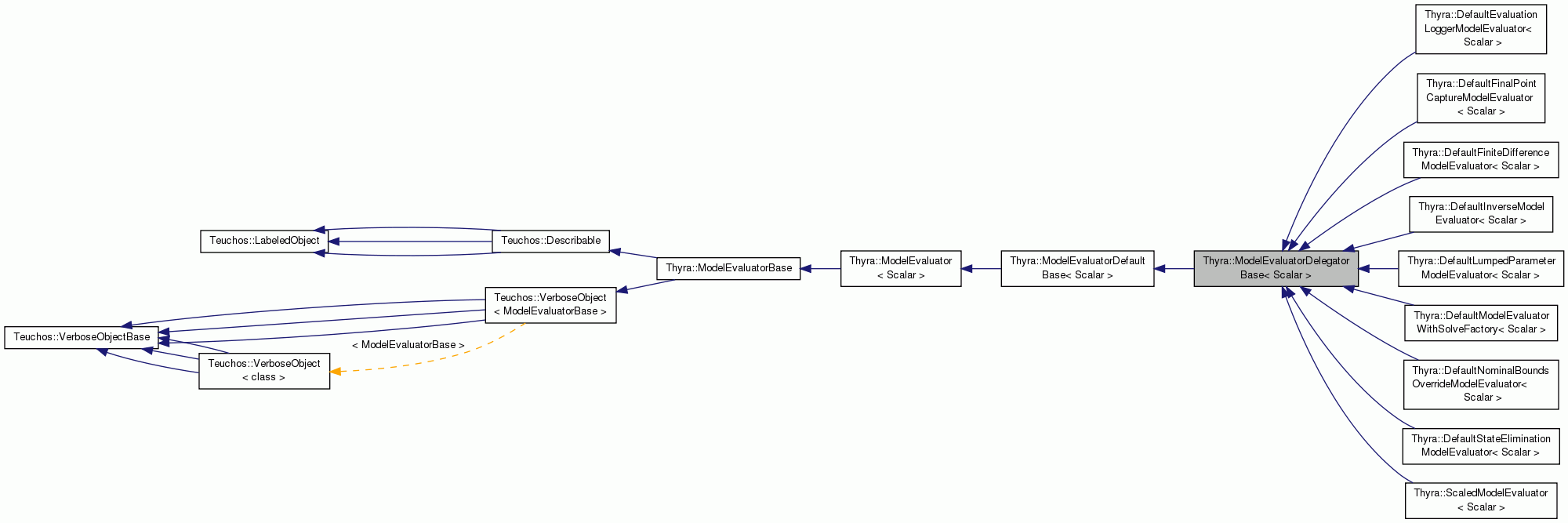

Inheritance diagram for Thyra::ModelEvaluatorDelegatorBase< Scalar >:

Constructors/initializers
	ModelEvaluatorDelegatorBase ()
	Constructs to uninitialized. More...

	ModelEvaluatorDelegatorBase (const RCP< ModelEvaluator< Scalar > > &model)
	Calls `initialize()`. More...

	ModelEvaluatorDelegatorBase (const RCP< const ModelEvaluator< Scalar > > &model)
	Calls `initialize()`. More...

void	initialize (const RCP< ModelEvaluator< Scalar > > &model)
	Initialize given a non-const model evaluator. More...

void	initialize (const RCP< const ModelEvaluator< Scalar > > &model)
	Initialize given a const model evaluator. More...

void	uninitialize ()
	Uninitialize. More...

Virtual functions that can overridden
virtual bool	isUnderlyingModelConst () const

virtual RCP< ModelEvaluator < Scalar > >	getNonconstUnderlyingModel ()

virtual RCP< const ModelEvaluator< Scalar > >	getUnderlyingModel () const

Public functions overridden from ModelEvaulator.
RCP< const VectorSpaceBase < Scalar > >	get_x_space () const

RCP< const VectorSpaceBase < Scalar > >	get_f_space () const

RCP< const VectorSpaceBase < Scalar > >	get_p_space (int l) const

RCP< const Teuchos::Array < std::string > >	get_p_names (int l) const

RCP< const VectorSpaceBase < Scalar > >	get_g_space (int j) const

Teuchos::ArrayView< const std::string >	get_g_names (int j) const

ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const

ModelEvaluatorBase::InArgs < Scalar >	getLowerBounds () const

ModelEvaluatorBase::InArgs < Scalar >	getUpperBounds () const

RCP< LinearOpWithSolveBase < Scalar > >	create_W () const

RCP< LinearOpBase< Scalar > >	create_W_op () const

RCP< PreconditionerBase< Scalar > >	create_W_prec () const

RCP< const LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const

ModelEvaluatorBase::InArgs < Scalar >	createInArgs () const

void	reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

Producted utility functions to be called by subclasses
void	setLocalVerbosityLevelValidatedParameter (ParameterList *paramList) const
	Set a valid parameter for reading the local verbosity level. More...

Teuchos::EVerbosityLevel	readLocalVerbosityLevelValidatedParameter (ParameterList &paramList) const
	Read the local verbosity level parameter. More...

Additional Inherited Members
Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Public Types inherited from Thyra::ModelEvaluatorBase
enum	EInArgsMembers { IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly, IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t, IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size, IN_ARG_stage_number }

enum	EInArgs_p_mp { IN_ARG_p_mp }

enum	EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
	The type of an evaluation. More...

enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp, OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly }

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
int	Np () const

int	Ng () const

RCP< LinearOpBase< Scalar > >	create_DfDp_op (int l) const

RCP< LinearOpBase< Scalar > >	create_DgDx_dot_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDx_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDp_op (int j, int l) const

ModelEvaluatorBase::OutArgs < Scalar >	createOutArgs () const

void	evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const

Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
Public Member Functions inherited from Thyra::ModelEvaluatorBase
	ModelEvaluatorBase ()
	constructor More...

Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int	NUM_E_IN_ARGS_MEMBERS =13

static const int	NUM_E_OUT_ARGS_MEMBERS =7

Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
	ModelEvaluatorDefaultBase ()

void	initializeDefaultBase ()
	Function called by subclasses to fully initialize this object on any important change. More...

void	resetDefaultBase ()
	Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed. More...

Related Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
template<class Scalar >
RCP < ModelEvaluatorBase::InArgs < Scalar > >	clone (const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Create a clone of an InArgs object. More...

template<class Scalar >
ModelEvaluatorBase::Derivative < Scalar >	derivativeGradient (const RCP< MultiVectorBase< Scalar > > &grad)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DfDp_mv (const ModelEvaluator< Scalar > &model, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_dot_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDp_mv (const ModelEvaluator< Scalar > &model, int j, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	get_dmv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName)

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	get_mv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
void	assertDerivSpaces (const std::string &modelEvalDescription, const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &deriv_name, const VectorSpaceBase< Scalar > &fnc_space, const std::string &fnc_space_name, const VectorSpaceBase< Scalar > &var_space, const std::string &var_space_name)
	Assert that that Thyra objects imbedded in a Derivative object matches its function and variable spaces. More...

template<class Scalar >
void	assertInArgsOutArgsSetup (const std::string &modelEvalDescription, const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs)
	Assert that an InArgs and OutArgs object are setup consistently. More...

template<class Scalar >
void	assertInArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Assert that the objects in an InArgs object match a given model. More...

template<class Scalar >
void	assertOutArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const ModelEvaluatorBase::InArgs< Scalar > *inArgs=0)
	Assert that the objects in an OutArgs object match a given model. More...

Related Functions inherited from Thyra::ModelEvaluatorBase
std::string	toString (ModelEvaluatorBase::EInArgsMembers)

std::string	toString (ModelEvaluatorBase::EOutArgsMembers)

std::string	toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation	getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

Detailed Description

template<class Scalar>
class Thyra::ModelEvaluatorDelegatorBase< Scalar >

This is a base class that delegetes almost all function to a wrapped model evaluator object.

This class makes it easy to write many different types of decorator subclasses by only requiring those subclasses to override just the behavior that they need to overide and leave the rest alone. Note that whenever the definition of ModelEvaluator changes, this class will have to be updated. However, the decorator subclasses that derive from this base class might be able to remain unchanged. Note that changes in only the ModelEvaluatorBase::InArgs and ModelEvaluatorBase::OutArgs classes should not require any changes here.

The only functions that a client must override in order to create a concrete subcalss is the evalModel() function. All other functions have implementations here that simply delegate to the model evaluator object returned from getUnderlyingModel(). However, most decorator classes will need to override at least one other function.

This class provides a default implemntation of the machinary to store and access the wrapped model evaluator object. A subclass can choose to ignore this and override the functions isUnderlyingModelConst(), getConstUnderlyingModel(), and getUnderlyingModel().

Definition at line 82 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::ModelEvaluatorDelegatorBase< Scalar >::ModelEvaluatorDelegatorBase ( )

Constructs to uninitialized.

Definition at line 321 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

Thyra::ModelEvaluatorDelegatorBase< Scalar >::ModelEvaluatorDelegatorBase ( const RCP< ModelEvaluator< Scalar > > & model )

Calls initialize().

Definition at line 326 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

Thyra::ModelEvaluatorDelegatorBase< Scalar >::ModelEvaluatorDelegatorBase ( const RCP< const ModelEvaluator< Scalar > > & model )

Calls initialize().

Definition at line 335 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

Member Function Documentation

template<class Scalar >

void Thyra::ModelEvaluatorDelegatorBase< Scalar >::initialize ( const RCP< ModelEvaluator< Scalar > > & model )

Initialize given a non-const model evaluator.

Definition at line 344 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorDelegatorBase< Scalar >::initialize ( const RCP< const ModelEvaluator< Scalar > > & model )

Initialize given a const model evaluator.

Definition at line 353 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorDelegatorBase< Scalar >::uninitialize ( )

Uninitialize.

Definition at line 362 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

bool Thyra::ModelEvaluatorDelegatorBase< Scalar >::isUnderlyingModelConst ( ) const

virtual

Definition at line 372 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< ModelEvaluator< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::getNonconstUnderlyingModel ( )

virtual

Definition at line 380 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const ModelEvaluator< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::getUnderlyingModel ( ) const

virtual

Definition at line 388 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_x_space ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 399 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_f_space ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 407 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_p_space ( int l ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 415 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const Teuchos::Array< std::string > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_p_names ( int l ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 423 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_g_space ( int j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 431 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

Teuchos::ArrayView< const std::string > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_g_names ( int j ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 439 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::ModelEvaluatorDelegatorBase< Scalar >::getNominalValues ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 447 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::ModelEvaluatorDelegatorBase< Scalar >::getLowerBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 455 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::ModelEvaluatorDelegatorBase< Scalar >::getUpperBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 463 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< LinearOpWithSolveBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::create_W ( ) const

virtual

Reimplemented from Thyra::ModelEvaluatorDefaultBase< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 471 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< LinearOpBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::create_W_op ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 479 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< PreconditionerBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::create_W_prec ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 487 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

RCP< const LinearOpWithSolveFactoryBase< Scalar > > Thyra::ModelEvaluatorDelegatorBase< Scalar >::get_W_factory ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 495 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::ModelEvaluatorDelegatorBase< Scalar >::createInArgs ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Reimplemented in Thyra::DefaultStateEliminationModelEvaluator< Scalar >.

Definition at line 503 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorDelegatorBase< Scalar >::reportFinalPoint	(	const ModelEvaluatorBase::InArgs< Scalar > &	finalPoint,
		const bool	wasSolved
	)

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 512 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

void Thyra::ModelEvaluatorDelegatorBase< Scalar >::setLocalVerbosityLevelValidatedParameter ( ParameterList * paramList ) const

protected

Set a valid parameter for reading the local verbosity level.

Definition at line 528 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

template<class Scalar >

Teuchos::EVerbosityLevel Thyra::ModelEvaluatorDelegatorBase< Scalar >::readLocalVerbosityLevelValidatedParameter ( ParameterList & paramList ) const

protected

Read the local verbosity level parameter.

Definition at line 551 of file Thyra_ModelEvaluatorDelegatorBase.hpp.

The documentation for this class was generated from the following file:

Thyra_ModelEvaluatorDelegatorBase.hpp

Constructors/initializers

Virtual functions that can overridden

Public functions overridden from ModelEvaulator.

Producted utility functions to be called by subclasses

Additional Inherited Members

Detailed Description

template<class Scalar> class Thyra::ModelEvaluatorDelegatorBase< Scalar >

Constructor & Destructor Documentation

Member Function Documentation

template<class Scalar>
class Thyra::ModelEvaluatorDelegatorBase< Scalar >
