This class wraps any ModelEvaluator object and allows the client to overide the state contained in the nominal values and the upper and lower bounds. More...

#include <Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp>

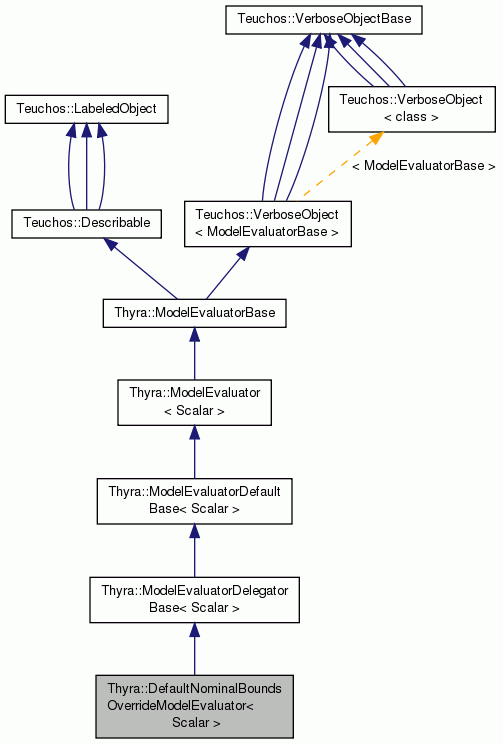

Inheritance diagram for Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >:

[legend]

Public Types
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Public Types inherited from Thyra::ModelEvaluator< Scalar >
typedef Teuchos::ScalarTraits < Scalar >::magnitudeType	ScalarMag

Public Types inherited from Thyra::ModelEvaluatorBase
enum	EInArgsMembers { IN_ARG_x_dot_dot, IN_ARG_x_dot, IN_ARG_x, IN_ARG_x_dot_poly, IN_ARG_x_poly, IN_ARG_x_dot_mp, IN_ARG_x_mp, IN_ARG_t, IN_ARG_alpha, IN_ARG_beta, IN_ARG_W_x_dot_dot_coeff, IN_ARG_step_size, IN_ARG_stage_number }

enum	EInArgs_p_mp { IN_ARG_p_mp }

enum	EEvalType { , EVAL_TYPE_APPROX_DERIV, EVAL_TYPE_VERY_APPROX_DERIV }
	The type of an evaluation. More...

enum	EDerivativeMultiVectorOrientation { DERIV_MV_JACOBIAN_FORM, DERIV_MV_GRADIENT_FORM, DERIV_MV_BY_COL = DERIV_MV_JACOBIAN_FORM, DERIV_TRANS_MV_BY_ROW = DERIV_MV_GRADIENT_FORM }

enum	EDerivativeLinearOp { DERIV_LINEAR_OP }

enum	EDerivativeLinearity { DERIV_LINEARITY_UNKNOWN, DERIV_LINEARITY_CONST, DERIV_LINEARITY_NONCONST }

enum	ERankStatus { DERIV_RANK_UNKNOWN, DERIV_RANK_FULL, DERIV_RANK_DEFICIENT }

enum	EOutArgsMembers { OUT_ARG_f, OUT_ARG_W, OUT_ARG_f_mp, OUT_ARG_W_mp, OUT_ARG_W_op, OUT_ARG_W_prec, OUT_ARG_f_poly }

enum	EOutArgsDfDp { OUT_ARG_DfDp }

enum	EOutArgsDgDx_dot { OUT_ARG_DgDx_dot }

enum	EOutArgsDgDx { OUT_ARG_DgDx }

enum	EOutArgsDgDp { OUT_ARG_DgDp }

enum	EOutArgsDfDp_mp { OUT_ARG_DfDp_mp }

enum	EOutArgs_g_mp { OUT_ARG_g_mp }

enum	EOutArgsDgDx_dot_mp { OUT_ARG_DgDx_dot_mp }

enum	EOutArgsDgDx_mp { OUT_ARG_DgDx_mp }

enum	EOutArgsDgDp_mp { OUT_ARG_DgDp_mp }

Constructors/initializers/accessors/utilities.
	DefaultNominalBoundsOverrideModelEvaluator ()

	DefaultNominalBoundsOverrideModelEvaluator (const RCP< ModelEvaluator< Scalar > > &thyraModel, const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &nominalValues, const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &lowerBounds=Teuchos::null, const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &upperBounds=Teuchos::null)

void	initialize (const RCP< ModelEvaluator< Scalar > > &thyraModel, const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &nominalValues, const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &lowerBounds=Teuchos::null, const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &upperBounds=Teuchos::null)
	Initalize. More...

void	setNominalValues (const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &nominalValues)
	Set only nominal values. More...

void	setLowerBounds (const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &lowerBounds)
	Set only lower bounds. More...

void	setUpperBounds (const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &upperBounds)
	Set only upper bounds. More...

Public functions overridden from Teuchos::Describable.
std::string	description () const

Public functions overridden from ModelEvaulator.
ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const

ModelEvaluatorBase::InArgs < Scalar >	getLowerBounds () const

ModelEvaluatorBase::InArgs < Scalar >	getUpperBounds () const

Additional Inherited Members
Public Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
	ModelEvaluatorDelegatorBase ()
	Constructs to uninitialized. More...

	ModelEvaluatorDelegatorBase (const RCP< ModelEvaluator< Scalar > > &model)
	Calls `initialize()`. More...

	ModelEvaluatorDelegatorBase (const RCP< const ModelEvaluator< Scalar > > &model)
	Calls `initialize()`. More...

void	initialize (const RCP< ModelEvaluator< Scalar > > &model)
	Initialize given a non-const model evaluator. More...

void	initialize (const RCP< const ModelEvaluator< Scalar > > &model)
	Initialize given a const model evaluator. More...

void	uninitialize ()
	Uninitialize. More...

virtual bool	isUnderlyingModelConst () const

virtual RCP< ModelEvaluator < Scalar > >	getNonconstUnderlyingModel ()

virtual RCP< const ModelEvaluator< Scalar > >	getUnderlyingModel () const

RCP< const VectorSpaceBase < Scalar > >	get_x_space () const

RCP< const VectorSpaceBase < Scalar > >	get_f_space () const

RCP< const VectorSpaceBase < Scalar > >	get_p_space (int l) const

RCP< const Teuchos::Array < std::string > >	get_p_names (int l) const

RCP< const VectorSpaceBase < Scalar > >	get_g_space (int j) const

Teuchos::ArrayView< const std::string >	get_g_names (int j) const

ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const

ModelEvaluatorBase::InArgs < Scalar >	getLowerBounds () const

ModelEvaluatorBase::InArgs < Scalar >	getUpperBounds () const

RCP< LinearOpWithSolveBase < Scalar > >	create_W () const

RCP< LinearOpBase< Scalar > >	create_W_op () const

RCP< PreconditionerBase< Scalar > >	create_W_prec () const

RCP< const LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const

ModelEvaluatorBase::InArgs < Scalar >	createInArgs () const

void	reportFinalPoint (const ModelEvaluatorBase::InArgs< Scalar > &finalPoint, const bool wasSolved)

Public Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
int	Np () const

int	Ng () const

RCP< LinearOpBase< Scalar > >	create_DfDp_op (int l) const

RCP< LinearOpBase< Scalar > >	create_DgDx_dot_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDx_op (int j) const

RCP< LinearOpBase< Scalar > >	create_DgDp_op (int j, int l) const

ModelEvaluatorBase::OutArgs < Scalar >	createOutArgs () const

void	evalModel (const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs) const

Public Member Functions inherited from Thyra::ModelEvaluator< Scalar >
Public Member Functions inherited from Thyra::ModelEvaluatorBase
	ModelEvaluatorBase ()
	constructor More...

Static Public Attributes inherited from Thyra::ModelEvaluatorBase
static const int	NUM_E_IN_ARGS_MEMBERS =13

static const int	NUM_E_OUT_ARGS_MEMBERS =7

Protected Member Functions inherited from Thyra::ModelEvaluatorDelegatorBase< Scalar >
void	setLocalVerbosityLevelValidatedParameter (ParameterList *paramList) const
	Set a valid parameter for reading the local verbosity level. More...

Teuchos::EVerbosityLevel	readLocalVerbosityLevelValidatedParameter (ParameterList &paramList) const
	Read the local verbosity level parameter. More...

Protected Member Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
	ModelEvaluatorDefaultBase ()

void	initializeDefaultBase ()
	Function called by subclasses to fully initialize this object on any important change. More...

void	resetDefaultBase ()
	Sets the the DefaultBase to an uninitialized state, forcing lazy initialization when needed. More...

Related Functions inherited from Thyra::ModelEvaluatorDefaultBase< Scalar >
template<class Scalar >
RCP < ModelEvaluatorBase::InArgs < Scalar > >	clone (const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Create a clone of an InArgs object. More...

template<class Scalar >
ModelEvaluatorBase::Derivative < Scalar >	derivativeGradient (const RCP< MultiVectorBase< Scalar > > &grad)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DfDp_mv (const ModelEvaluator< Scalar > &model, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_dot_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDx_mv (const ModelEvaluator< Scalar > &model, int j, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	create_DgDp_mv (const ModelEvaluator< Scalar > &model, int j, int l, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
ModelEvaluatorBase::DerivativeMultiVector < Scalar >	get_dmv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName)

template<class Scalar >
RCP< MultiVectorBase< Scalar > >	get_mv (const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &derivName, ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

template<class Scalar >
void	assertDerivSpaces (const std::string &modelEvalDescription, const ModelEvaluatorBase::Derivative< Scalar > &deriv, const std::string &deriv_name, const VectorSpaceBase< Scalar > &fnc_space, const std::string &fnc_space_name, const VectorSpaceBase< Scalar > &var_space, const std::string &var_space_name)
	Assert that that Thyra objects imbedded in a Derivative object matches its function and variable spaces. More...

template<class Scalar >
void	assertInArgsOutArgsSetup (const std::string &modelEvalDescription, const ModelEvaluatorBase::InArgs< Scalar > &inArgs, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs)
	Assert that an InArgs and OutArgs object are setup consistently. More...

template<class Scalar >
void	assertInArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::InArgs< Scalar > &inArgs)
	Assert that the objects in an InArgs object match a given model. More...

template<class Scalar >
void	assertOutArgsEvalObjects (const ModelEvaluator< Scalar > &model, const ModelEvaluatorBase::OutArgs< Scalar > &outArgs, const ModelEvaluatorBase::InArgs< Scalar > *inArgs=0)
	Assert that the objects in an OutArgs object match a given model. More...

Related Functions inherited from Thyra::ModelEvaluatorBase
std::string	toString (ModelEvaluatorBase::EInArgsMembers)

std::string	toString (ModelEvaluatorBase::EOutArgsMembers)

std::string	toString (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

ModelEvaluatorBase::EDerivativeMultiVectorOrientation	getOtherDerivativeMultiVectorOrientation (ModelEvaluatorBase::EDerivativeMultiVectorOrientation orientation)

Detailed Description

template<class Scalar>
class Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >

This class wraps any ModelEvaluator object and allows the client to overide the state contained in the nominal values and the upper and lower bounds.

To only override selected nominal values and bounds, do the following:

template<class Scalar>
RCP<DefaultNominalBoundsOverrideModelEvaluator<Scalar> >
override(
  const RCP<ModelEvaluator<Scalar> >   &thyraModel
  ...
  )
{
  using Teuchos::rcp;
  typedef Thyra::ModelEvaluatorBase MEB;
  // Get the defaults
  RCP<MEB::InArgs<Scalar> >
    nominalValues = clone(thyraModel->getNominalValues()),
    lowerBounds = clone(thyraModel->getLowerBounds()),
    upperBounds = clone(thyraModel->getUpperBounds());
  // Override selected components ...
  ...
  // Initialize the overridden state
  RCP<DefaultNominalBoundsOverrideModelEvaluator<Scalar> >
    defaultOverridder = rcp(
      new DefaultNominalBoundsOverrideModelEvaluator<Scalar>(thyraModel));
  defaultOverridder->setNominalValues(nominalValues);
  defaultOverridder->setLowerBounds(lowerBounds);
  defaultOverridder->setUpperBounds(upperBounds);

  return defaultOverridder;
}

ToDo: Finish documentation!

Definition at line 101 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

Member Typedef Documentation

template<class Scalar >

typedef Teuchos::ScalarTraits<Scalar>::magnitudeType Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::ScalarMag

Definition at line 107 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::DefaultNominalBoundsOverrideModelEvaluator ( )

Definition at line 223 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::DefaultNominalBoundsOverrideModelEvaluator	(	const RCP< ModelEvaluator< Scalar > > &	thyraModel,
		const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &	nominalValues,
		const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &	lowerBounds = `Teuchos::null`,
		const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &	upperBounds = `Teuchos::null`
	)

Definition at line 228 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

Member Function Documentation

template<class Scalar >

void Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::initialize	(	const RCP< ModelEvaluator< Scalar > > &	thyraModel,
		const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &	nominalValues,
		const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &	lowerBounds = `Teuchos::null`,
		const RCP< const ModelEvaluatorBase::InArgs< Scalar > > &	upperBounds = `Teuchos::null`
	)

Initalize.

Parameters

thyraModel	[in] Model being wrapped.
nominalValues	[in] Completely overrides thyraModel->getNominalValues()
lowerBounds	[in] If non-null, completely overrides thyraModel->getLowerBounds()
upperBounds	[in] If non-null, completely overrides thyraModel->getUpperBounds()

Preconditions:

thyraModel.get()!=NULL

Postconditions:

this->getUnderlyingModel.get() == thyraModel.get()
[nominalValues.get()] this->getNominalValues() returns *nominalValues
[lowerBounds.get()] this->getLowerBounds() returns *lowerBounds
[upperBounds.get()] this->getUpperBounds() returns *upperBounds

Definition at line 240 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

void Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::setNominalValues ( const RCP< const ModelEvaluatorBase::InArgs< Scalar > > & nominalValues )

Set only nominal values.

Definition at line 255 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

void Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::setLowerBounds ( const RCP< const ModelEvaluatorBase::InArgs< Scalar > > & lowerBounds )

Set only lower bounds.

Definition at line 264 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

void Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::setUpperBounds ( const RCP< const ModelEvaluatorBase::InArgs< Scalar > > & upperBounds )

Set only upper bounds.

Definition at line 273 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

std::string Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::description ( ) const

virtual

Reimplemented from Teuchos::Describable.

Definition at line 285 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::getNominalValues ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 306 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::getLowerBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 316 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

template<class Scalar >

ModelEvaluatorBase::InArgs< Scalar > Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >::getUpperBounds ( ) const

virtual

Implements Thyra::ModelEvaluator< Scalar >.

Definition at line 326 of file Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp.

The documentation for this class was generated from the following file:

Thyra_DefaultNominalBoundsOverrideModelEvaluator.hpp

Public Types

Constructors/initializers/accessors/utilities.

Public functions overridden from Teuchos::Describable.

Public functions overridden from ModelEvaulator.

Additional Inherited Members

Detailed Description

template<class Scalar> class Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<class Scalar>
class Thyra::DefaultNominalBoundsOverrideModelEvaluator< Scalar >
