Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE > Class Template Reference

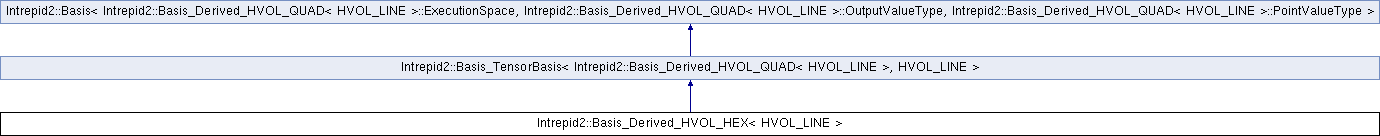

Inheritance diagram for Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE >:
Intrepid2::Basis_TensorBasis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >, HVOL_LINE > Intrepid2::Basis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >

Public Types

using ExecutionSpace = typename HVOL_LINE::ExecutionSpace

using OutputValueType = typename HVOL_LINE::OutputValueType

using PointValueType = typename HVOL_LINE::PointValueType

using OutputViewType = typename HVOL_LINE::OutputViewType

using PointViewType = typename HVOL_LINE::PointViewType

using ScalarViewType = typename HVOL_LINE::ScalarViewType

using LineBasis = HVOL_LINE

using QuadBasis = Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >

using TensorBasis = Basis_TensorBasis< QuadBasis, LineBasis >

- Public Types inherited from Intrepid2::Basis_TensorBasis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >, HVOL_LINE >
using BasisSuper = ::Intrepid2::Basis< typename Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, typename Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, typename Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >

using ExecutionSpace = typename BasisSuper::ExecutionSpace

using OutputValueType = typename BasisSuper::OutputValueType

using PointValueType = typename BasisSuper::PointValueType

using OrdinalTypeArray1DHost = typename BasisSuper::OrdinalTypeArray1DHost

using OrdinalTypeArray2DHost = typename BasisSuper::OrdinalTypeArray2DHost

using OutputViewType = typename BasisSuper::OutputViewType

using PointViewType = typename BasisSuper::PointViewType

- Public Types inherited from Intrepid2::Basis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >
using ExecutionSpace = Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace
 (Kokkos) Execution space for basis.

using OutputValueType = Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType
 Output value type for basis; default is double.

using PointValueType = Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType
 Point value type for basis; default is double.

using OrdinalViewType = Kokkos::View< ordinal_type, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for ordinal.

using EBasisViewType = Kokkos::View< EBasis, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View for basis type.

using ECoordinatesViewType = Kokkos::View< ECoordinates, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View for coordinate system type.

using OrdinalTypeArray1DHost = Kokkos::View< ordinal_type *, typename Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace::array_layout, Kokkos::HostSpace >
 View type for 1d host array.

using OrdinalTypeArray2DHost = Kokkos::View< ordinal_type **, typename Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace::array_layout, Kokkos::HostSpace >
 View type for 2d host array.

using OrdinalTypeArray3DHost = Kokkos::View< ordinal_type ***, typename Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace::array_layout, Kokkos::HostSpace >
 View type for 3d host array.

using OrdinalTypeArrayStride1DHost = Kokkos::View< ordinal_type *, Kokkos::LayoutStride, Kokkos::HostSpace >
 View type for 1d host array.

using OrdinalTypeArray1D = Kokkos::View< ordinal_type *, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for 1d device array.

using OrdinalTypeArray2D = Kokkos::View< ordinal_type **, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for 2d device array.

using OrdinalTypeArray3D = Kokkos::View< ordinal_type ***, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for 3d device array.

using OrdinalTypeArrayStride1D = Kokkos::View< ordinal_type *, Kokkos::LayoutStride, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for 1d device array.

typedef ScalarTraits
< Intrepid2::Basis_Derived_HVOL_QUAD
< HVOL_LINE >::PointValueType >
::scalar_type
scalarType
 Scalar type for point values.

using OutputViewType = Kokkos::DynRankView< OutputValueType, Kokkos::LayoutStride, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for basis value output.

using PointViewType = Kokkos::DynRankView< PointValueType, Kokkos::LayoutStride, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for input points.

using ScalarViewType = Kokkos::DynRankView< scalarType, Kokkos::LayoutStride, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace >
 View type for scalars.


Public Member Functions

 Basis_Derived_HVOL_HEX (int polyOrder_x, int polyOrder_y, int polyOrder_z)
 Constructor. More...

 Basis_Derived_HVOL_HEX (int polyOrder)
 Constructor. More...

virtual const char * getName () const
 Returns basis name. More...

virtual bool requireOrientation () const
 True if orientation is required.

virtual void getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const override
 multi-component getValues() method (required/called by TensorBasis) More...

- Public Member Functions inherited from Intrepid2::Basis_TensorBasis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >, HVOL_LINE >
 Basis_TensorBasis (Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >basis1, HVOL_LINEbasis2)
 Constructor. More...

void getComponentPoints (const PointViewType inputPoints, const bool attemptTensorDecomposition, PointViewType &inputPoints1, PointViewType &inputPoints2, bool &tensorDecompositionSucceeded) const
 Method to extract component points from composite points. More...

virtual void getDofCoords (typename BasisSuper::ScalarViewType dofCoords) const override
 Fills in spatial locations (coordinates) of degrees of freedom (nodes) on the reference cell. More...

ordinal_type getTensorDkEnumeration (ordinal_type dkEnum1, ordinal_type operatorOrder1, ordinal_type dkEnum2, ordinal_type operatorOrder2) const
 Given "Dk" enumeration indices for the component bases, returns a Dk enumeration index for the composite basis. More...

void getValues (OutputViewType outputValues, const PointViewType inputPoints, const EOperator operatorType=OPERATOR_VALUE) const override
 Evaluation of a FEM basis on a reference cell. More...

virtual void getValues (OutputViewType outputValues, const EOperator operatorType, const PointViewType inputPoints1, const PointViewType inputPoints2, bool tensorPoints) const
 Evaluation of a tensor FEM basis on a reference cell; subclasses should override this. More...

void getValues (OutputViewType outputValues, const PointViewType inputPoints1, const EOperator operatorType1, const PointViewType inputPoints2, const EOperator operatorType2, bool tensorPoints, double weight=1.0) const
 Evaluation of a tensor FEM basis on a reference cell. More...

- Public Member Functions inherited from Intrepid2::Basis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >
OutputValueType getDummyOutputValue ()
 Dummy array to receive input arguments.

PointValueType getDummyPointValue ()
 Dummy array to receive input arguments.

virtual void getValues (OutputViewType, const PointViewType, const PointViewType, const EOperator=OPERATOR_VALUE) const
 Evaluation of an FVD basis evaluation on a physical cell. More...

virtual void getDofCoords (ScalarViewType) const
 Returns spatial locations (coordinates) of degrees of freedom on the reference cell.

virtual void getDofCoeffs (ScalarViewType) const
 Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords(i)) dofCoeffs(i) are the nodal coefficients associated to basis function i. More...

OrdinalTypeArray1DHost getFieldOrdinalsForDegree (OrdinalTypeArray1DHost &degrees) const
 For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

std::vector< int > getFieldOrdinalsForDegree (std::vector< int > &degrees) const
 For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

OrdinalTypeArray1DHost getPolynomialDegreeOfField (int fieldOrdinal) const
 For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

std::vector< int > getPolynomialDegreeOfFieldAsVector (int fieldOrdinal) const
 For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

int getPolynomialDegreeLength () const
 For hierarchical bases, returns the number of entries required to specify the polynomial degree of a basis function.

ordinal_type getCardinality () const
 Returns cardinality of the basis. More...

ordinal_type getDegree () const
 Returns the degree of the basis. More...

EFunctionSpace getFunctionSpace () const
 Returns the function space for the basis. More...

shards::CellTopology getBaseCellTopology () const
 Returns the base cell topology for which the basis is defined. See Shards documentation https://trilinos.org/packages/shards for definition of base cell topology. More...

EBasis getBasisType () const
 Returns the basis type. More...

ECoordinates getCoordinateSystem () const
 Returns the type of coordinate system for which the basis is defined. More...

ordinal_type getDofCount (const ordinal_type subcDim, const ordinal_type subcOrd) const
 DoF count for specified subcell. More...

ordinal_type getDofOrdinal (const ordinal_type subcDim, const ordinal_type subcOrd, const ordinal_type subcDofOrd) const
 DoF tag to ordinal lookup. More...

const OrdinalTypeArray3DHost getAllDofOrdinal () const
 DoF tag to ordinal data structure.

const OrdinalTypeArrayStride1DHost getDofTag (const ordinal_type dofOrd) const
 DoF ordinal to DoF tag lookup. More...

const OrdinalTypeArray2DHost getAllDofTags () const
 Retrieves all DoF tags. More...


Additional Inherited Members

- Protected Member Functions inherited from Intrepid2::Basis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >
void setOrdinalTagData (OrdinalTypeView3D &tagToOrdinal, OrdinalTypeView2D &ordinalToTag, const OrdinalTypeView1D tags, const ordinal_type basisCard, const ordinal_type tagSize, const ordinal_type posScDim, const ordinal_type posScOrd, const ordinal_type posDfOrd)
 Fills ordinalToTag_ and tagToOrdinal_ by basis-specific tag data. More...

- Protected Attributes inherited from Intrepid2::Basis_TensorBasis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >, HVOL_LINE >
Intrepid2::Basis_Derived_HVOL_QUAD
< HVOL_LINE >
basis1_

HVOL_LINE basis2_

std::string name_

- Protected Attributes inherited from Intrepid2::Basis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >
ordinal_type basisCardinality_
 Cardinality of the basis, i.e., the number of basis functions/degrees-of-freedom.

ordinal_type basisDegree_
 Degree of the largest complete polynomial space that can be represented by the basis.

shards::CellTopology basisCellTopology_
 Base topology of the cells for which the basis is defined. See the Shards package for definition of base cell topology.

EBasis basisType_
 Type of the basis.

ECoordinates basisCoordinates_
 The coordinate system for which the basis is defined.

EFunctionSpace functionSpace_
 The function space in which the basis is defined.

OrdinalTypeArray2DHost ordinalToTag_
 "true" if tagToOrdinal_ and ordinalToTag_ have been initialized More...

OrdinalTypeArray3DHost tagToOrdinal_
 DoF tag to ordinal lookup table. More...

Kokkos::DynRankView
< scalarType,
Intrepid2::Basis_Derived_HVOL_QUAD
< HVOL_LINE >::ExecutionSpace
dofCoords_
 Coordinates of degrees-of-freedom for basis functions defined in physical space.

Kokkos::DynRankView
< scalarType,
Intrepid2::Basis_Derived_HVOL_QUAD
< HVOL_LINE >::ExecutionSpace
dofCoeffs_
 Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords_(i)) dofCoeffs_(i) are the nodal coefficients associated to basis functions i. More...

OrdinalTypeArray2DHost fieldOrdinalPolynomialDegree_
 Polynomial degree for each degree of freedom. Only defined for hierarchical bases right now. The number of entries per degree of freedom in this table depends on the basis type. For hypercubes, this will be the spatial dimension. We have not yet determined what this will be for simplices beyond 1D; there are not yet hierarchical simplicial bases beyond 1D in Intrepid2. More...


Detailed Description

template<class HVOL_LINE>
class Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE >

Definition at line 66 of file Intrepid2_DerivedBasis_HVOL_HEX.hpp.

Constructor & Destructor Documentation

template<class HVOL_LINE >
Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE >::Basis_Derived_HVOL_HEX ( int  polyOrder_x,
int  polyOrder_y,
int  polyOrder_z
)
inline

Constructor.

Parameters
[in]polyOrder_x- the polynomial order in the x dimension.
[in]polyOrder_y- the polynomial order in the y dimension.
[in]polyOrder_z- the polynomial order in the z dimension.

Definition at line 90 of file Intrepid2_DerivedBasis_HVOL_HEX.hpp.

References Intrepid2::Basis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::ExecutionSpace, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::OutputValueType, Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >::PointValueType >::functionSpace_.

template<class HVOL_LINE >
Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE >::Basis_Derived_HVOL_HEX ( int  polyOrder)
inline

Constructor.

Parameters
[in]polyOrder- the polynomial order to use in all dimensions.

Definition at line 101 of file Intrepid2_DerivedBasis_HVOL_HEX.hpp.

Member Function Documentation

template<class HVOL_LINE >
virtual const char* Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE >::getName ( ) const
inlinevirtual

Returns basis name.

Returns
the name of the basis

Reimplemented from Intrepid2::Basis_TensorBasis< Intrepid2::Basis_Derived_HVOL_QUAD< HVOL_LINE >, HVOL_LINE >.

Definition at line 109 of file Intrepid2_DerivedBasis_HVOL_HEX.hpp.

template<class HVOL_LINE >
virtual void Intrepid2::Basis_Derived_HVOL_HEX< HVOL_LINE >::getValues ( OutputViewType  outputValues,
const EOperator  operatorType,
const PointViewType  inputPoints1,
const PointViewType  inputPoints2,
bool  tensorPoints
) const
inlineoverridevirtual

multi-component getValues() method (required/called by TensorBasis)

Parameters
[out]outputValues- the view into which to place the output values
[in]operatorType- the operator on the basis
[in]inputPoints1- input points in the x,y dimensions
[in]inputPoints2- input points in the z dimension
[in]tensorPoints- if true, inputPoints1 and inputPoints2 should be understood as tensorial components of the points in outputValues (i.e., the evaluation points are the tensor product of inputPoints1 and inputPoints2). If false, inputPoints1 and inputPoints2 should correspond elementwise to the evaluation points.

Definition at line 128 of file Intrepid2_DerivedBasis_HVOL_HEX.hpp.

References Intrepid2::Basis_TensorBasis< Basis1, Basis2 >::getValues().


The documentation for this class was generated from the following file:
