An abstract base class that defines interface for concrete basis implementations for Finite Element (FEM) and Finite Volume/Finite Difference (FVD) discrete spaces. More...

#include <Intrepid2_Basis.hpp>

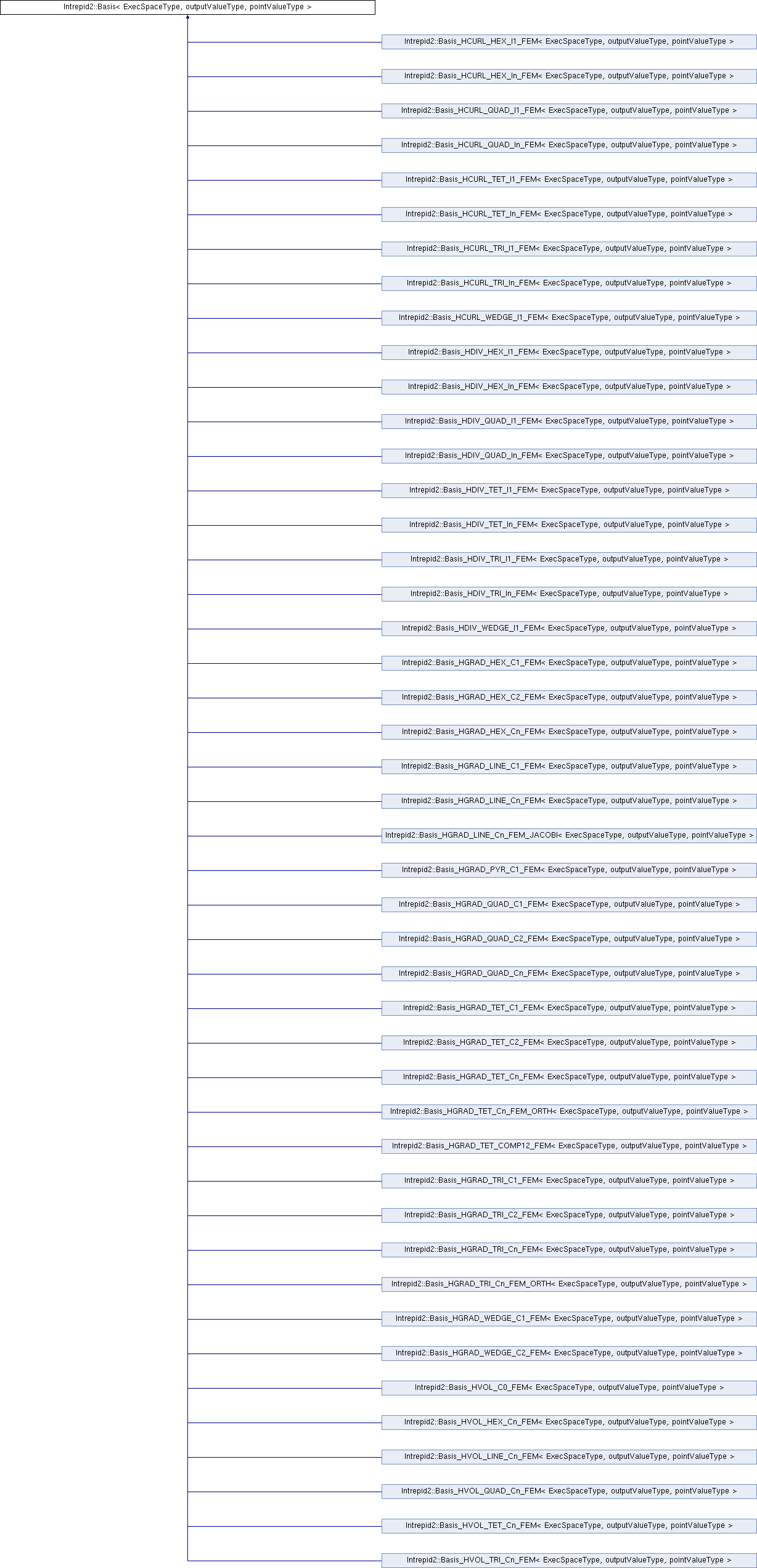

Inheritance diagram for Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >:

Public Types
using	ExecutionSpace = ExecSpaceType
	(Kokkos) Execution space for basis.

using	OutputValueType = outputValueType
	Output value type for basis; default is double.

using	PointValueType = pointValueType
	Point value type for basis; default is double.

using	OrdinalViewType = Kokkos::View< ordinal_type, ExecSpaceType >
	View type for ordinal.

using	EBasisViewType = Kokkos::View< EBasis, ExecSpaceType >
	View for basis type.

using	ECoordinatesViewType = Kokkos::View< ECoordinates, ExecSpaceType >
	View for coordinate system type.

using	OrdinalTypeArray1DHost = Kokkos::View< ordinal_type *, typename ExecSpaceType::array_layout, Kokkos::HostSpace >
	View type for 1d host array.

using	OrdinalTypeArray2DHost = Kokkos::View< ordinal_type **, typename ExecSpaceType::array_layout, Kokkos::HostSpace >
	View type for 2d host array.

using	OrdinalTypeArray3DHost = Kokkos::View< ordinal_type ***, typename ExecSpaceType::array_layout, Kokkos::HostSpace >
	View type for 3d host array.

using	OrdinalTypeArrayStride1DHost = Kokkos::View< ordinal_type *, Kokkos::LayoutStride, Kokkos::HostSpace >
	View type for 1d host array.

using	OrdinalTypeArray1D = Kokkos::View< ordinal_type *, ExecSpaceType >
	View type for 1d device array.

using	OrdinalTypeArray2D = Kokkos::View< ordinal_type **, ExecSpaceType >
	View type for 2d device array.

using	OrdinalTypeArray3D = Kokkos::View< ordinal_type ***, ExecSpaceType >
	View type for 3d device array.

using	OrdinalTypeArrayStride1D = Kokkos::View< ordinal_type *, Kokkos::LayoutStride, ExecSpaceType >
	View type for 1d device array.

typedef ScalarTraits < pointValueType > ::scalar_type	scalarType
	Scalar type for point values.

using	OutputViewType = Kokkos::DynRankView< OutputValueType, Kokkos::LayoutStride, ExecSpaceType >
	View type for basis value output.

using	PointViewType = Kokkos::DynRankView< PointValueType, Kokkos::LayoutStride, ExecSpaceType >
	View type for input points.

using	ScalarViewType = Kokkos::DynRankView< scalarType, Kokkos::LayoutStride, ExecSpaceType >
	View type for scalars.

Public Member Functions
OutputValueType	getDummyOutputValue ()
	Dummy array to receive input arguments.

PointValueType	getDummyPointValue ()
	Dummy array to receive input arguments.

virtual void	getValues (OutputViewType, const PointViewType, const EOperator=OPERATOR_VALUE) const
	Evaluation of a FEM basis on a reference cell. More...

virtual void	getValues (OutputViewType, const PointViewType, const PointViewType, const EOperator=OPERATOR_VALUE) const
	Evaluation of an FVD basis evaluation on a physical cell. More...

virtual void	getDofCoords (ScalarViewType) const
	Returns spatial locations (coordinates) of degrees of freedom on the reference cell.

virtual void	getDofCoeffs (ScalarViewType) const
	Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords(i)) dofCoeffs(i) are the nodal coefficients associated to basis function i. More...

OrdinalTypeArray1DHost	getFieldOrdinalsForDegree (OrdinalTypeArray1DHost &degrees) const
	For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

std::vector< int >	getFieldOrdinalsForDegree (std::vector< int > &degrees) const
	For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees. More...

OrdinalTypeArray1DHost	getPolynomialDegreeOfField (int fieldOrdinal) const
	For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

std::vector< int >	getPolynomialDegreeOfFieldAsVector (int fieldOrdinal) const
	For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array. More...

int	getPolynomialDegreeLength () const
	For hierarchical bases, returns the number of entries required to specify the polynomial degree of a basis function.

virtual const char *	getName () const
	Returns basis name. More...

virtual bool	requireOrientation () const
	True if orientation is required.

ordinal_type	getCardinality () const
	Returns cardinality of the basis. More...

ordinal_type	getDegree () const
	Returns the degree of the basis. More...

EFunctionSpace	getFunctionSpace () const
	Returns the function space for the basis. More...

shards::CellTopology	getBaseCellTopology () const
	Returns the base cell topology for which the basis is defined. See Shards documentation https://trilinos.org/packages/shards for definition of base cell topology. More...

EBasis	getBasisType () const
	Returns the basis type. More...

ECoordinates	getCoordinateSystem () const
	Returns the type of coordinate system for which the basis is defined. More...

ordinal_type	getDofCount (const ordinal_type subcDim, const ordinal_type subcOrd) const
	DoF count for specified subcell. More...

ordinal_type	getDofOrdinal (const ordinal_type subcDim, const ordinal_type subcOrd, const ordinal_type subcDofOrd) const
	DoF tag to ordinal lookup. More...

const OrdinalTypeArray3DHost	getAllDofOrdinal () const
	DoF tag to ordinal data structure.

const OrdinalTypeArrayStride1DHost	getDofTag (const ordinal_type dofOrd) const
	DoF ordinal to DoF tag lookup. More...

const OrdinalTypeArray2DHost	getAllDofTags () const
	Retrieves all DoF tags. More...

Protected Member Functions
template<typename OrdinalTypeView3D , typename OrdinalTypeView2D , typename OrdinalTypeView1D >
void	setOrdinalTagData (OrdinalTypeView3D &tagToOrdinal, OrdinalTypeView2D &ordinalToTag, const OrdinalTypeView1D tags, const ordinal_type basisCard, const ordinal_type tagSize, const ordinal_type posScDim, const ordinal_type posScOrd, const ordinal_type posDfOrd)
	Fills ordinalToTag_ and tagToOrdinal_ by basis-specific tag data. More...

Protected Attributes
ordinal_type	basisCardinality_
	Cardinality of the basis, i.e., the number of basis functions/degrees-of-freedom.

ordinal_type	basisDegree_
	Degree of the largest complete polynomial space that can be represented by the basis.

shards::CellTopology	basisCellTopology_
	Base topology of the cells for which the basis is defined. See the Shards package for definition of base cell topology.

EBasis	basisType_
	Type of the basis.

ECoordinates	basisCoordinates_
	The coordinate system for which the basis is defined.

EFunctionSpace	functionSpace_ = FUNCTION_SPACE_MAX
	The function space in which the basis is defined.

OrdinalTypeArray2DHost	ordinalToTag_
	"true" if tagToOrdinal_ and ordinalToTag_ have been initialized More...

OrdinalTypeArray3DHost	tagToOrdinal_
	DoF tag to ordinal lookup table. More...

Kokkos::DynRankView < scalarType, ExecSpaceType >	dofCoords_
	Coordinates of degrees-of-freedom for basis functions defined in physical space.

Kokkos::DynRankView < scalarType, ExecSpaceType >	dofCoeffs_
	Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords_(i)) dofCoeffs_(i) are the nodal coefficients associated to basis functions i. More...

OrdinalTypeArray2DHost	fieldOrdinalPolynomialDegree_
	Polynomial degree for each degree of freedom. Only defined for hierarchical bases right now. The number of entries per degree of freedom in this table depends on the basis type. For hypercubes, this will be the spatial dimension. We have not yet determined what this will be for simplices beyond 1D; there are not yet hierarchical simplicial bases beyond 1D in Intrepid2. More...

Detailed Description

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>
class Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >

An abstract base class that defines interface for concrete basis implementations for Finite Element (FEM) and Finite Volume/Finite Difference (FVD) discrete spaces.

A FEM basis spans a discrete space whose type can be either COMPLETE or INCOMPLETE.
FEM basis functions are always defined on a reference cell and are dual to a unisolvent
set of degrees-of-freedom (DoF). FEM basis requires cell topology with a reference cell.

An FVD basis spans a discrete space whose type is typically BROKEN. The basis functions
are defined directly on the physical cell and are dual to a set of DoFs on that cell.
As a result, FVD bases require the vertex coordinates of the physical cell but the cell
itself is not required to have a reference cell.

Every DoF and its corresponding basis function from a given FEM or FVD basis set is
assigned an ordinal number which which specifies its numerical position in the DoF set,
and a 4-field DoF tag whose first 3 fields establish association between the DoF and a
subcell of particular dimension, and the last field gives the total number of basis
functions associated with that subcell; see Section \ref basis_dof_tag_ord_sec for details.

Note the use of Kokkos::LayoutStride as the layout for various View definitions (including the
argument for \ref getValues() ). A method expecting a LayoutStride view can accept, thanks to
some conversion mechanisms defined elsewhere, a LayoutLeft view (the default for Cuda views in
Kokkos) or a LayoutRight view (the default on most other platforms). This does introduce some
additional complexity when Views need to be allocated for temporary storage; see the method
\ref getMatchingViewWithLabel() provided in \ref Intrepid_Utils.hpp.

Remarks: To limit memory use by factory-type objects (basis factories will be included in future releases of Intrepid2), tag data is not initialized by basis ctors, instead, whenever a function that requires tag data is invoked for a first time, it calls initializeTags() to fill ordinalToTag_ and tagToOrdinal_. Because tag data is basis-specific, every concrete basis class requires its own implementation of initializeTags().

Todo:: restore test for inclusion of reference points in their resective reference cells in getValues_HGRAD_Args, getValues_CURL_Args, getValues_DIV_Args

Definition at line 104 of file Intrepid2_Basis.hpp.

Member Function Documentation

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

const OrdinalTypeArray2DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getAllDofTags ( ) const

inline

Retrieves all DoF tags.

Returns

reference to a vector of vectors with dimensions (basisCardinality_, 4) such that

element [DofOrd][0] = tag field 0 for the DoF with the specified ordinal
element [DofOrd][1] = tag field 1 for the DoF with the specified ordinal
element [DofOrd][2] = tag field 2 for the DoF with the specified ordinal
element [DofOrd][3] = tag field 3 for the DoF with the specified ordinal

Definition at line 703 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

shards::CellTopology Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getBaseCellTopology ( ) const

inline

Returns the base cell topology for which the basis is defined. See Shards documentation https://trilinos.org/packages/shards for definition of base cell topology.

Returns: Base cell topology

Definition at line 585 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

EBasis Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getBasisType ( ) const

inline

Returns the basis type.

Returns: Basis type

Definition at line 595 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

ordinal_type Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getCardinality ( ) const

inline

Returns cardinality of the basis.

Returns: the number of basis functions in the basis

Definition at line 556 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

ECoordinates Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getCoordinateSystem ( ) const

inline

Returns the type of coordinate system for which the basis is defined.

Returns: Type of the coordinate system (Cartesian, polar, R-Z, etc.).

Definition at line 605 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

ordinal_type Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getDegree ( ) const

inline

Returns the degree of the basis.

Returns: max. degree of the complete polynomials that can be represented by the basis.

Definition at line 566 of file Intrepid2_Basis.hpp.

Referenced by Intrepid2::Basis_HGRAD_TET_Cn_FEM_ORTH< ExecSpaceType, outputValueType, pointValueType >::getValues(), Intrepid2::Basis_HGRAD_TRI_Cn_FEM_ORTH< ExecSpaceType, outputValueType, pointValueType >::getValues(), and Intrepid2::Basis_HGRAD_LINE_Cn_FEM_JACOBI< ExecSpaceType, outputValueType, pointValueType >::getValues().

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

virtual void Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getDofCoeffs ( ScalarViewType ) const

inlinevirtual

Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords(i)) dofCoeffs(i) are the nodal coefficients associated to basis function i.

Rank-1 array for scalar basis with dimension (cardinality) Rank-2 array for vector basis with dimensions (cardinality, cell dimension)

Definition at line 415 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

ordinal_type Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getDofCount	(	const ordinal_type	subcDim,
		const ordinal_type	subcOrd
	)		const

inline

DoF count for specified subcell.

Parameters

subcDim	[in] - tag field 0: dimension of the subcell associated with the DoFs
subcOrd	[in] - tag field 1: ordinal of the subcell defined by cell topology

Returns: the number of DoFs associated with the specified subcell.

Definition at line 617 of file Intrepid2_Basis.hpp.

Referenced by Intrepid2::Experimental::ProjectionStruct< SpT, ValueType >::createHDivProjectionStruct().

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

ordinal_type Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getDofOrdinal	(	const ordinal_type	subcDim,
		const ordinal_type	subcOrd,
		const ordinal_type	subcDofOrd
	)		const

inline

DoF tag to ordinal lookup.

Parameters

subcDim	[in] - tag field 0: dimension of the subcell associated with the DoF
subcOrd	[in] - tag field 1: ordinal of the subcell defined by cell topology
subcDofOrd	[in] - tag field 2: ordinal of the DoF relative to the subcell.

Returns: the DoF ordinal corresponding to the specified DoF tag data.

Definition at line 643 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

const OrdinalTypeArrayStride1DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getDofTag ( const ordinal_type dofOrd ) const

inline

DoF ordinal to DoF tag lookup.

Parameters

dofOrd [in] - ordinal of the DoF whose tag is being retrieved

Returns

reference to a vector with dimension (4) such that

element [0] = tag field 0 -> dim. of the subcell associated with the specified DoF
element [1] = tag field 1 -> ordinal of the subcell defined by cell topology
element [2] = tag field 2 -> ordinal of the specified DoF relative to the subcell
element [3] = tag field 3 -> total number of DoFs associated with the subcell

Definition at line 685 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

OrdinalTypeArray1DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getFieldOrdinalsForDegree ( OrdinalTypeArray1DHost & degrees ) const

inline

For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees.

Parameters

degrees [in] - 1D host ordinal array of length specified by getPolynomialDegreeLength(), indicating what the maximum degree in each dimension should be

Returns: a 1D host ordinal array containing the ordinals of matching basis functions

Definition at line 427 of file Intrepid2_Basis.hpp.

Referenced by Intrepid2::Basis< Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::ExecutionSpace, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::OutputValueType, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::PointValueType >::getFieldOrdinalsForDegree().

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

std::vector<int> Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getFieldOrdinalsForDegree ( std::vector< int > & degrees ) const

inline

For hierarchical bases, returns the field ordinals that have at most the specified degree in each dimension. Assuming that these are less than or equal to the polynomial orders provided at Basis construction, the corresponding polynomials will form a superset of the Basis of the same type constructed with polynomial orders corresponding to the specified degrees.

This variant takes a std::vector of polynomial degrees and returns a std::vector of field ordinals. It calls the other variant, which uses Kokkos Views on the host.

Parameters

degrees [in] - std::vector<int> of length specified by getPolynomialDegreeLength(), indicating what the maximum degree in each dimension should be

Returns: a std::vector<int> containing the ordinals of matching basis functions

Definition at line 463 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

EFunctionSpace Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getFunctionSpace ( ) const

inline

Returns the function space for the basis.

Returns: the function space.

Definition at line 575 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

virtual const char* Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getName ( ) const

inlinevirtual

Returns basis name.

Returns: the name of the basis

Definition at line 539 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

OrdinalTypeArray1DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getPolynomialDegreeOfField ( int fieldOrdinal ) const

inline

For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array.

Parameters

fieldOrdinal [in] - ordinal of the basis function whose polynomial degree is requested.

Returns: a 1D host array of length matching getPolynomialDegreeLength(), with the polynomial degree of the basis function in each dimension.

Definition at line 487 of file Intrepid2_Basis.hpp.

Referenced by Intrepid2::Basis< Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::ExecutionSpace, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::OutputValueType, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::PointValueType >::getPolynomialDegreeOfFieldAsVector().

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

std::vector<int> Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getPolynomialDegreeOfFieldAsVector ( int fieldOrdinal ) const

inline

For hierarchical bases, returns the polynomial degree (which may have multiple values in higher spatial dimensions) for the specified basis ordinal as a host array.

Parameters

fieldOrdinal [in] - ordinal of the basis function whose polynomial degree is requested.

Returns: a std::vector<int> of length matching getPolynomialDegreeLength(), with the polynomial degree of the basis function in each dimension.

Definition at line 510 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

virtual void Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getValues	(	OutputViewType	,
		const PointViewType	,
		const EOperator	= `OPERATOR_VALUE`
	)		const

inlinevirtual

Evaluation of a FEM basis on a reference cell.

Returns values of operatorType acting on FEM basis functions for a set of points in the reference cell for which the basis is defined.

Parameters

outputValues	[out] - variable rank array with the basis values
inputPoints	[in] - rank-2 array (P,D) with the evaluation points
operatorType	[in] - the operator acting on the basis functions

Remarks: For rank and dimension specifications of the output array see Section MD array template arguments for basis methods. Dimensions of ArrayScalar arguments are checked at runtime if HAVE_INTREPID2_DEBUG is defined.; A FEM basis spans a COMPLETE or INCOMPLETE polynomial space on the reference cell which is a smooth function space. Thus, all operator types that are meaningful for the approximated function space are admissible. When the order of the operator exceeds the degree of the basis, the output array is filled with the appropriate number of zeros.

Definition at line 358 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

virtual void Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::getValues	(	OutputViewType	,
		const PointViewType	,
		const PointViewType	,
		const EOperator	= `OPERATOR_VALUE`
	)		const

inlinevirtual

Evaluation of an FVD basis evaluation on a physical cell.

Returns values of operatorType acting on FVD basis functions for a set of points in the physical cell for which the FVD basis is defined.

Parameters

outputValues	[out] - variable rank array with the basis values
inputPoints	[in] - rank-2 array (P,D) with the evaluation points
cellVertices	[in] - rank-2 array (V,D) with the vertices of the physical cell
operatorType	[in] - the operator acting on the basis functions

Remarks: For rank and dimension specifications of the output array see Section MD array template arguments for basis methods. Dimensions of ArrayScalar arguments are checked at runtime if HAVE_INTREPID2_DEBUG is defined.; A typical FVD basis spans a BROKEN discrete space which is only piecewise smooth. For example, it could be a piecewise constant space defined with respect to a partition of the cell into simplices. Because differential operators are not meaningful for such spaces, the default operator type in this method is set to OPERATOR_VALUE.

Definition at line 386 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

template<typename OrdinalTypeView3D , typename OrdinalTypeView2D , typename OrdinalTypeView1D >

void Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::setOrdinalTagData	(	OrdinalTypeView3D &	tagToOrdinal,
		OrdinalTypeView2D &	ordinalToTag,
		const OrdinalTypeView1D	tags,
		const ordinal_type	basisCard,
		const ordinal_type	tagSize,
		const ordinal_type	posScDim,
		const ordinal_type	posScOrd,
		const ordinal_type	posDfOrd
	)

inlineprotected

Fills ordinalToTag_ and tagToOrdinal_ by basis-specific tag data.

Parameters

tagToOrdinal	[out] - Lookup table for the DoF's ordinal by its tag
ordinalToTag	[out] - Lookup table for the DoF's tag by its ordinal
tags	[in] - a set of basis-dependent tags in flat (rank-1) array format.
basisCard	[in] - cardinality of the basis
tagSize	[in] - number of fields in a DoF tag
posScDim	[in] - position in the tag, counting from 0, of the subcell dim
posScOrd	[in] - position in the tag, counting from 0, of the subcell ordinal
posDfOrd	[in] - position in the tag, counting from 0, of DoF ordinal relative to the subcell

Definition at line 240 of file Intrepid2_Basis.hpp.

Member Data Documentation

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

Kokkos::DynRankView<scalarType,ExecSpaceType> Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::dofCoeffs_

protected

Coefficients for computing degrees of freedom for Lagrangian basis If P is an element of the space spanned by the basis, := P(dofCoords_(i)) dofCoeffs_(i) are the nodal coefficients associated to basis functions i.

Rank-1 array for scalar basis with dimension (cardinality) Rank-2 array for vector basis with dimensions (cardinality, cell dimension)

Definition at line 302 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

OrdinalTypeArray2DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::fieldOrdinalPolynomialDegree_

protected

Polynomial degree for each degree of freedom. Only defined for hierarchical bases right now. The number of entries per degree of freedom in this table depends on the basis type. For hypercubes, this will be the spatial dimension. We have not yet determined what this will be for simplices beyond 1D; there are not yet hierarchical simplicial bases beyond 1D in Intrepid2.

Rank-2 array with dimensions (cardinality, cell dimension)

Definition at line 311 of file Intrepid2_Basis.hpp.

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

OrdinalTypeArray2DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::ordinalToTag_

protected

"true" if tagToOrdinal_ and ordinalToTag_ have been initialized

DoF ordinal to tag lookup table.

Rank-2 array with dimensions (basisCardinality_, 4) containing the DoF tags. This array is left empty at instantiation and filled by initializeTags() only when tag data is requested.

ordinalToTag_[DofOrd][0] = dim. of the subcell associated with the specified DoF
ordinalToTag_[DofOrd][1] = ordinal of the subcell defined in the cell topology
ordinalToTag_[DodOrd][2] = ordinal of the specified DoF relative to the subcell
ordinalToTag_[DofOrd][3] = total number of DoFs associated with the subcell

Definition at line 211 of file Intrepid2_Basis.hpp.

Referenced by Intrepid2::Basis< Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::ExecutionSpace, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::OutputValueType, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::PointValueType >::getAllDofTags(), and Intrepid2::Basis< Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::ExecutionSpace, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::OutputValueType, Basis_TensorBasis< HVOL_LINE, HVOL_LINE >::PointValueType >::getDofTag().

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>

OrdinalTypeArray3DHost Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >::tagToOrdinal_

protected

DoF tag to ordinal lookup table.

Rank-3 array with dimensions (maxScDim + 1, maxScOrd + 1, maxDfOrd + 1), i.e., the columnwise maximums of the 1st three columns in the DoF tag table for the basis plus 1. For every triple (subscDim, subcOrd, subcDofOrd) that is valid DoF tag data this array stores the corresponding DoF ordinal. If the triple does not correspond to tag data, the array stores -1. This array is left empty at instantiation and filled by initializeTags() only when tag data is requested.

tagToOrdinal_[subcDim][subcOrd][subcDofOrd] = Degree-of-freedom ordinal

Definition at line 224 of file Intrepid2_Basis.hpp.

The documentation for this class was generated from the following file:

http://docs.trilinos.org/r13.0/packages/intrepid2/src/Discretization/Basis/Intrepid2_Basis.hpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double> class Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >

Member Function Documentation

Member Data Documentation

template<typename ExecSpaceType = void, typename outputValueType = double, typename pointValueType = double>
class Intrepid2::Basis< ExecSpaceType, outputValueType, pointValueType >
