Provides access for Zoltan2 to Tpetra::RowGraph data. More...

#include <Zoltan2_TpetraRowGraphAdapter.hpp>

Inheritance diagram for Zoltan2::TpetraRowGraphAdapter< User, UserCoord >:

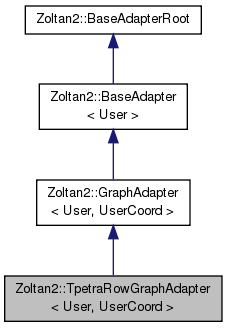

Collaboration diagram for Zoltan2::TpetraRowGraphAdapter< User, UserCoord >:

Public Member Functions
	TpetraRowGraphAdapter (const RCP< const User > &ingraph, int nVtxWeights=0, int nEdgeWeights=0)
	Constructor for graph with no weights or coordinates. More...

void	setWeights (const scalar_t *val, int stride, int idx)
	Provide a pointer to weights for the primary entity type. More...

void	setWeightsDevice (typename Base::ConstWeightsDeviceView1D val, int idx)
	Provide a device view of weights for the primary entity type. More...

void	setWeightsHost (typename Base::ConstWeightsHostView1D val, int idx)
	Provide a host view of weights for the primary entity type. More...

void	setVertexWeights (const scalar_t *val, int stride, int idx)
	Provide a pointer to vertex weights. More...

void	setVertexWeightsDevice (typename Base::ConstWeightsDeviceView1D val, int idx)
	Provide a device view to vertex weights. More...

void	setVertexWeightsHost (typename Base::ConstWeightsHostView1D val, int idx)
	Provide a host view to vertex weights. More...

void	setWeightIsDegree (int idx)
	Specify an index for which the weight should be the degree of the entity. More...

void	setVertexWeightIsDegree (int idx)
	Specify an index for which the vertex weight should be the degree of the vertex. More...

void	setEdgeWeights (const scalar_t *val, int stride, int idx)
	Provide a pointer to edge weights. More...

void	setEdgeWeightsDevice (typename Base::ConstWeightsDeviceView1D val, int idx)
	Provide a device view to edge weights. More...

void	setEdgeWeightsHost (typename Base::ConstWeightsHostView1D val, int idx)
	Provide a host view to edge weights. More...

size_t	getLocalNumVertices () const override
	Returns the number of vertices on this process. More...

void	getVertexIDsView (const gno_t *&ids) const override
	Sets pointers to this process' graph entries. More...

void	getVertexIDsDeviceView (typename Base::ConstIdsDeviceView &ids) const override
	Sets pointers to this process' graph entries. More...

void	getVertexIDsHostView (typename Base::ConstIdsHostView &ids) const override
	Sets pointers to this process' graph entries. More...

size_t	getLocalNumEdges () const override
	Returns the number of edges on this process. More...

void	getEdgesView (const offset_t &offsets, const gno_t &adjIds) const override
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

void	getEdgesDeviceView (typename Base::ConstOffsetsDeviceView &offsets, typename Base::ConstIdsDeviceView &adjIds) const override
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

void	getEdgesHostView (typename Base::ConstOffsetsHostView &offsets, typename Base::ConstIdsHostView &adjIds) const override
	Gets adjacency lists for all vertices in a compressed sparse row (CSR) format. More...

int	getNumWeightsPerVertex () const override
	Returns the number (0 or greater) of weights per vertex. More...

void	getVertexWeightsView (const scalar_t *&weights, int &stride, int idx) const override
	Provide a pointer to the vertex weights, if any. More...

void	getVertexWeightsDeviceView (typename Base::WeightsDeviceView1D &weights, int idx=0) const override
	Provide a device view of the vertex weights, if any. More...

void	getVertexWeightsDeviceView (typename Base::WeightsDeviceView &weights) const override
	Provide a device view of the vertex weights, if any. More...

void	getVertexWeightsHostView (typename Base::WeightsHostView1D &weights, int idx=0) const override
	Provide a host view of the vertex weights, if any. More...

void	getVertexWeightsHostView (typename Base::WeightsHostView &weights) const override
	Provide a host view of the vertex weights, if any. More...

bool	useDegreeAsVertexWeight (int idx) const override
	Indicate whether vertex weight with index idx should be the global degree of the vertex. More...

int	getNumWeightsPerEdge () const override
	Returns the number (0 or greater) of edge weights. More...

void	getEdgeWeightsView (const scalar_t *&weights, int &stride, int idx) const override
	Provide a pointer to the edge weights, if any. More...

void	getEdgeWeightsDeviceView (typename Base::WeightsDeviceView1D &weights, int idx=0) const override
	Provide a device view of the edge weights, if any. More...

void	getEdgeWeightsDeviceView (typename Base::WeightsDeviceView &weights) const override
	Provide a device view of the edge weights, if any. More...

void	getEdgeWeightsHostView (typename Base::WeightsHostView1D &weights, int idx=0) const override
	Provide a host view of the edge weights, if any. More...

void	getEdgeWeightsHostView (typename Base::WeightsHostView &weights) const override
	Provide a host view of the edge weights, if any. More...

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, RCP< User > &out, const PartitioningSolution< Adapter > &solution) const

Public Member Functions inherited from Zoltan2::GraphAdapter< User, UserCoord >
enum BaseAdapterType	adapterType () const override
	Returns the type of adapter. More...

void	setCoordinateInput (VectorAdapter< UserCoord > *coordData) override
	Allow user to provide additional data that contains coordinate info associated with the MatrixAdapter's primaryEntityType_. Associated data must have the same parallel distribution and ordering of entries as the primaryEntityType_. More...

bool	coordinatesAvailable () const
	Indicate whether coordinate information has been set for this MatrixAdapter. More...

VectorAdapter< UserCoord > *	getCoordinateInput () const override
	Obtain the coordinate data registered by the user. More...

enum GraphEntityType	getPrimaryEntityType () const
	Returns the entity to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE. More...

void	setPrimaryEntityType (const std::string &typestr)
	Sets the primary entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to adjacencyEntityType_ to something reasonable: opposite of primaryEntityType_. More...

enum GraphEntityType	getAdjacencyEntityType () const
	Returns the entity that describes adjacencies between the entities to be partitioned, ordered, colored, etc. Valid values are GRAPH_VERTEX or GRAPH_EDGE. More...

void	setAdjacencyEntityType (const std::string &typestr)
	Sets the adjacency entity type. Called by algorithm based on parameter value in parameter list from application. Also sets to primaryEntityType_ to something reasonable: opposite of adjacencyEntityType_. More...

size_t	getLocalNumIDs () const override
	Returns the number of objects on this process. More...

void	getIDsView (const gno_t *&Ids) const override
	Provide a pointer to this process' identifiers. More...

void	getIDsDeviceView (typename Base::ConstIdsDeviceView &Ids) const override

void	getIDsHostView (typename Base::ConstIdsHostView &Ids) const override

int	getNumWeightsPerID () const override
	Returns the number of weights per object. Number of weights per object should be zero or greater. If zero, then it is assumed that all objects are equally weighted. Default is zero weights per ID. More...

void	getWeightsView (const scalar_t *&wgt, int &stride, int idx=0) const override
	Provide pointer to a weight array with stride. More...

void	getWeightsHostView (typename Base::WeightsHostView1D &hostWgts, int idx=0) const override

void	getWeightsHostView (typename Base::WeightsHostView &hostWgts) const override

void	getWeightsDeviceView (typename Base::WeightsDeviceView1D &deviceWgts, int idx=0) const override

void	getWeightsDeviceView (typename Base::WeightsDeviceView &deviceWgts) const override

bool	useDegreeAsWeight (int idx) const

Public Member Functions inherited from Zoltan2::BaseAdapter< User >
virtual void	getIDsKokkosView (ConstIdsDeviceView &ids) const
	Provide a Kokkos view to this process' identifiers. More...

virtual void	getIDsHostView (ConstIdsHostView &hostIds) const
	Provide a Kokkos view (Host side) to this process' identifiers. More...

virtual void	getIDsDeviceView (ConstIdsDeviceView &deviceIds) const
	Provide a Kokkos view (Device side) to this process' identifiers. More...

virtual void	getWeightsKokkosView (Kokkos::View< scalar_t **, device_t > &wgt) const
	Provide kokkos view of weights. More...

virtual void	getWeightsHostView (WeightsHostView1D &hostWgts, int idx=0) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsHostView (WeightsHostView &hostWgts) const
	Provide a Kokkos view (Host side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView1D &deviceWgts, int idx=0) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getWeightsDeviceView (WeightsDeviceView &deviceWgts) const
	Provide a Kokkos view (Device side) of the weights. More...

virtual void	getPartsView (const part_t *&inputPart) const
	Provide pointer to an array containing the input part assignment for each ID. The input part information may be used for re-partitioning to reduce data movement, or for mapping parts to processes. Adapters may return NULL for this pointer (the default behavior); if NULL is returned, algorithms will assume the rank. More...

virtual void	getPartsHostView (Kokkos::View< part_t *, host_t > &inputPart) const

virtual void	getPartsDeviceView (Kokkos::View< part_t *, device_t > &inputPart) const

template<typename Adapter >
void	applyPartitioningSolution (const User &in, User *&out, const PartitioningSolution< Adapter > &solution) const
	Apply a PartitioningSolution to an input. More...

Public Member Functions inherited from Zoltan2::BaseAdapterRoot
virtual	~BaseAdapterRoot ()=default

Protected Member Functions
	TpetraRowGraphAdapter (int nVtxWgts, int nEdgeWgts, const RCP< const User > &graph)

virtual RCP< User >	doMigration (const User &from, size_t numLocalRows, const gno_t *myNewRows) const

Protected Member Functions inherited from Zoltan2::BaseAdapter< User >
void	generateWeightFileOnly (const char *fileprefix, const Teuchos::Comm< int > &comm) const

Protected Attributes
RCP< const User >	graph_

Base::ConstOffsetsHostView	offsHost_

Base::ConstIdsHostView	adjIdsHost_

Base::ConstIdsDeviceView	adjIdsDevice_

Base::ConstOffsetsDeviceView	offsDevice_

int	nWeightsPerVertex_

ArrayRCP< StridedData< lno_t, scalar_t > >	vertexWeights_

Base::WeightsDeviceView	vertexWeightsDevice_

Base::VtxDegreeHostView	vertexDegreeWeightsHost_

int	nWeightsPerEdge_

ArrayRCP< StridedData< lno_t, scalar_t > >	edgeWeights_

Base::WeightsDeviceView	edgeWeightsDevice_

Additional Inherited Members
Public Types inherited from Zoltan2::BaseAdapter< User >
using	lno_t = typename InputTraits< User >::lno_t

using	gno_t = typename InputTraits< User >::gno_t

using	scalar_t = typename InputTraits< User >::scalar_t

using	node_t = typename InputTraits< User >::node_t

using	part_t = typename InputTraits< User >::part_t

using	offset_t = typename InputTraits< User >::offset_t

using	host_t = typename Kokkos::HostSpace::memory_space

using	device_t = typename node_t::device_type

using	ConstIdsDeviceView = Kokkos::View< const gno_t *, device_t >

using	ConstIdsHostView = typename ConstIdsDeviceView::HostMirror

using	IdsDeviceView = Kokkos::View< gno_t *, device_t >

using	IdsHostView = typename IdsDeviceView::HostMirror

using	ConstOffsetsDeviceView = Kokkos::View< const offset_t *, device_t >

using	ConstOffsetsHostView = typename ConstOffsetsDeviceView::HostMirror

using	OffsetsDeviceView = Kokkos::View< offset_t *, device_t >

using	OffsetsHostView = typename OffsetsDeviceView::HostMirror

using	ConstScalarsDeviceView = Kokkos::View< const scalar_t *, device_t >

using	ConstScalarsHostView = typename ConstScalarsDeviceView::HostMirror

using	ScalarsDeviceView = Kokkos::View< scalar_t *, device_t >

using	ScalarsHostView = typename ScalarsDeviceView::HostMirror

using	ConstWeightsDeviceView1D = Kokkos::View< const scalar_t *, device_t >

using	ConstWeightsHostView1D = typename ConstWeightsDeviceView1D::HostMirror

using	WeightsDeviceView1D = Kokkos::View< scalar_t *, device_t >

using	WeightsHostView1D = typename WeightsDeviceView1D::HostMirror

using	ConstWeightsDeviceView = Kokkos::View< const scalar_t **, device_t >

using	ConstWeightsHostView = typename ConstWeightsDeviceView::HostMirror

using	WeightsDeviceView = Kokkos::View< scalar_t **, device_t >

using	WeightsHostView = typename WeightsDeviceView::HostMirror

Detailed Description

template<typename User, typename UserCoord = User>
class Zoltan2::TpetraRowGraphAdapter< User, UserCoord >

Provides access for Zoltan2 to Tpetra::RowGraph data.

Todo:

test for memory alloc failure when we resize a vector

we assume FillComplete has been called. Should we support objects that are not FillCompleted.

The template parameter is the user's input object:

Tpetra::CrsGraph
Tpetra::RowGraph
Epetra_CrsGraph

The scalar_t type, representing use data such as matrix values, is used by Zoltan2 for weights, coordinates, part sizes and quality metrics. Some User types (like Tpetra::CrsMatrix) have an inherent scalar type, and some (like Tpetra::CrsGraph) do not. For such objects, the scalar type is set by Zoltan2 to float. If you wish to change it to double, set the second template parameter to double.

Definition at line 49 of file Zoltan2_TpetraRowGraphAdapter.hpp.

Constructor & Destructor Documentation

template<typename User , typename UserCoord >

Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::TpetraRowGraphAdapter	(	const RCP< const User > &	ingraph,
		int	nVtxWeights = `0`,
		int	nEdgeWeights = `0`
	)

Constructor for graph with no weights or coordinates.

Parameters

ingraph	the Tpetra::RowGraph
numVtxWeights	the number of weights per vertex (default = 0)
numEdgeWeights	the number of weights per edge (default = 0)

Most adapters do not have RCPs in their interface. This one does because the user is obviously a Trilinos user.

Definition at line 315 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::TpetraRowGraphAdapter	(	int	nVtxWgts,
		int	nEdgeWgts,
		const RCP< const User > &	graph
	)

inlineprotected

Definition at line 284 of file Zoltan2_TpetraRowGraphAdapter.hpp.

Member Function Documentation

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setWeights	(	const scalar_t *	val,
		int	stride,
		int	idx
	)

Provide a pointer to weights for the primary entity type.

Parameters

val	A pointer to the weights for index `idx`.
stride	A stride for the `val` array. If is `k`, then val[n * k] is the weight for the `n` th entity for index .
idx	A number from 0 to one less than weight idx specified in the constructor.

The order of the weights should match the order that entities appear in the input data structure.

Definition at line 378 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setWeightsDevice	(	typename Base::ConstWeightsDeviceView1D	val,
		int	idx
	)

Provide a device view of weights for the primary entity type.

Parameters

val	A view to the weights for index `idx`.
idx	A number from 0 to one less than weight idx specified in the constructor.

The order of the weights should match the order that entities appear in the input data structure.

Definition at line 388 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setWeightsHost	(	typename Base::ConstWeightsHostView1D	val,
		int	idx
	)

Provide a host view of weights for the primary entity type.

Parameters

val	A view to the weights for index `idx`.
idx	A number from 0 to one less than weight idx specified in the constructor.

The order of the weights should match the order that entities appear in the input data structure.

Definition at line 398 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setVertexWeights	(	const scalar_t *	val,
		int	stride,
		int	idx
	)

Provide a pointer to vertex weights.

Parameters

val	A pointer to the weights for index `idx`.
stride	A stride for the `val` array. If is `k`, then val[n * k] is the weight for the `n` th vertex for index .
idx	A number from 0 to one less than number of vertex weights specified in the constructor.

The order of the vertex weights should match the order that vertices appear in the input data structure.

TheGraph->getRowMap()->getLocalElementList()

Definition at line 408 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setVertexWeightsDevice	(	typename Base::ConstWeightsDeviceView1D	val,
		int	idx
	)

Provide a device view to vertex weights.

Parameters

val	A pointer to the weights for index `idx`.
idx	A number from 0 to one less than number of vertex weights specified in the constructor.

The order of the vertex weights should match the order that vertices appear in the input data structure.

TheGraph->getRowMap()->getLocalElementList()

Definition at line 420 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setVertexWeightsHost	(	typename Base::ConstWeightsHostView1D	val,
		int	idx
	)

Provide a host view to vertex weights.

Parameters

val	A pointer to the weights for index `idx`.
idx	A number from 0 to one less than number of vertex weights specified in the constructor.

The order of the vertex weights should match the order that vertices appear in the input data structure.

TheGraph->getRowMap()->getLocalElementList()

Definition at line 439 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setWeightIsDegree ( int idx )

Specify an index for which the weight should be the degree of the entity.

Parameters

idx	Zoltan2 will use the entity's degree as the entity weight for index `idx`.

Definition at line 452 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setVertexWeightIsDegree ( int idx )

Specify an index for which the vertex weight should be the degree of the vertex.

Parameters

idx	Zoltan2 will use the vertex's degree as the vertex weight for index `idx`.

Definition at line 461 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setEdgeWeights	(	const scalar_t *	val,
		int	stride,
		int	idx
	)

Provide a pointer to edge weights.

Parameters

val	A pointer to the weights for index `idx`.
stride	A stride for the `val` array. If is `k`, then val[n * k] is the weight for the `n` th edge for index .
dim	A number from 0 to one less than the number of edge weights specified in the constructor.

The order of the edge weights should follow the order that the the vertices and edges appear in the input data structure.

By vertex:

TheGraph->getRowMap()->getLocalElementList()

Then by vertex neighbor:

TheGraph->getLocalRowView(vertexNum, neighborList);

Definition at line 470 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setEdgeWeightsDevice	(	typename Base::ConstWeightsDeviceView1D	val,
		int	idx
	)

Provide a device view to edge weights.

Parameters

val	A pointer to the weights for index `idx`.
idx	A number from 0 to one less than the number of edge weights specified in the constructor.

Definition at line 484 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::setEdgeWeightsHost	(	typename Base::ConstWeightsHostView1D	val,
		int	idx
	)

Provide a host view to edge weights.

Parameters

val	A pointer to the weights for index `idx`.
idx	A number from 0 to one less than the number of edge weights specified in the constructor.

Definition at line 502 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

size_t Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getLocalNumVertices ( ) const

overridevirtual

Returns the number of vertices on this process.

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 515 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexIDsView ( const gno_t *& vertexIds ) const

overridevirtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a pointer to vertex global Ids

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 521 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexIDsDeviceView ( typename Base::ConstIdsDeviceView & vertexIds ) const

overridevirtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a device Kokkos::View with vertex global Ids

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 530 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexIDsHostView ( typename Base::ConstIdsHostView & vertexIds ) const

overridevirtual

Sets pointers to this process' graph entries.

Parameters

vertexIds will on return a host Kokkos::View with vertex global Ids

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 545 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

size_t Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getLocalNumEdges ( ) const

overridevirtual

Returns the number of edges on this process.

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 559 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgesView	(	const offset_t *&	offsets,
		const gno_t *&	adjIds
	)		const

overridevirtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is an array of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	on return will point to the array of adjacent vertices for for each vertex.

Implements Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 565 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgesDeviceView	(	typename Base::ConstOffsetsDeviceView &	offsets,
		typename Base::ConstIdsDeviceView &	adjIds
	)		const

overridevirtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is device Kokkos::View of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	Device Kokkos::View of adjacent vertices for for each vertex.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 573 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgesHostView	(	typename Base::ConstOffsetsHostView &	offsets,
		typename Base::ConstIdsHostView &	adjIds
	)		const

overridevirtual

Gets adjacency lists for all vertices in a compressed sparse row (CSR) format.

Parameters

offsets	is host Kokkos::View of size getLocalNumVertices() + 1. The neighboring vertices for vertexId[i] begin at adjIds[offsets[i]]. The last element of offsets is the size of the adjIds array.
adjIds	Host Kokkos::View of adjacent vertices for for each vertex.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 583 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

int Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getNumWeightsPerVertex ( ) const

overridevirtual

Returns the number (0 or greater) of weights per vertex.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 598 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int
	)		const

overridevirtual

Provide a pointer to the vertex weights, if any.

Parameters

weights	is the list of weights of the given index for the vertices returned in getVertexIDsView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerVertex().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 604 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexWeightsDeviceView	(	typename Base::WeightsDeviceView1D &	weights,
		int	= `0`
	)		const

overridevirtual

Provide a device view of the vertex weights, if any.

Parameters

weights	is the list of weights of the given index for the vertices returned in getVertexIDsView().
idx	ranges from zero to one less than getNumWeightsPerVertex().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 616 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexWeightsDeviceView ( typename Base::WeightsDeviceView & weights ) const

overridevirtual

Provide a device view of the vertex weights, if any.

Parameters

weights is the view of all the weights for the vertices returned in getVertexIDsView().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 634 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexWeightsHostView	(	typename Base::WeightsHostView1D &	weights,
		int	= `0`
	)		const

overridevirtual

Provide a host view of the vertex weights, if any.

Parameters

weights	is the list of weights of the given index for the vertices returned in getVertexIDsView().
idx	ranges from zero to one less than getNumWeightsPerVertex().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 642 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getVertexWeightsHostView ( typename Base::WeightsHostView & weights ) const

overridevirtual

Provide a host view of the vertex weights, if any.

Parameters

weights is the list of all the weights for the vertices returned in getVertexIDsView()

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 657 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

bool Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::useDegreeAsVertexWeight ( int ) const

overridevirtual

Indicate whether vertex weight with index idx should be the global degree of the vertex.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 666 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

int Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getNumWeightsPerEdge ( ) const

overridevirtual

Returns the number (0 or greater) of edge weights.

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 673 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgeWeightsView	(	const scalar_t *&	weights,
		int &	stride,
		int
	)		const

overridevirtual

Provide a pointer to the edge weights, if any.

Parameters

weights	is the list of weights of the given index for the edges returned in getEdgeView().
stride	The k'th weight is located at weights[stride*k]
idx	ranges from zero to one less than getNumWeightsPerEdge().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 679 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgeWeightsDeviceView	(	typename Base::WeightsDeviceView1D &	weights,
		int	= `0`
	)		const

overridevirtual

Provide a device view of the edge weights, if any.

Parameters

weights	is the list of weights of the given index for the edges returned in getEdgeView().
idx	ranges from zero to one less than getNumWeightsPerEdge().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 690 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgeWeightsDeviceView ( typename Base::WeightsDeviceView & weights ) const

overridevirtual

Provide a device view of the edge weights, if any.

Parameters

weights is the list of weights for the edges returned in getEdgeView().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 698 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgeWeightsHostView	(	typename Base::WeightsHostView1D &	weights,
		int	= `0`
	)		const

overridevirtual

Provide a host view of the edge weights, if any.

Parameters

weights	is the list of weights of the given index for the edges returned in getEdgeView().
idx	ranges from zero to one less than getNumWeightsPerEdge().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 706 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::getEdgeWeightsHostView ( typename Base::WeightsHostView & weights ) const

overridevirtual

Provide a host view of the edge weights, if any.

Parameters

weights is the list of weights for the edges returned in getEdgeView().

Reimplemented from Zoltan2::GraphAdapter< User, UserCoord >.

Definition at line 716 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

template<typename Adapter >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::applyPartitioningSolution	(	const User &	in,
		User *&	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 726 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

template<typename Adapter >

void Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::applyPartitioningSolution	(	const User &	in,
		RCP< User > &	out,
		const PartitioningSolution< Adapter > &	solution
	)		const

Definition at line 748 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User , typename UserCoord >

RCP< User > Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::doMigration	(	const User &	from,
		size_t	numLocalRows,
		const gno_t *	myNewRows
	)		const

protectedvirtual

Definition at line 767 of file Zoltan2_TpetraRowGraphAdapter.hpp.

Member Data Documentation

template<typename User, typename UserCoord = User>

RCP<const User> Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::graph_

protected

Definition at line 289 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::ConstOffsetsHostView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::offsHost_

protected

Definition at line 291 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::ConstIdsHostView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::adjIdsHost_

protected

Definition at line 292 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::ConstIdsDeviceView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::adjIdsDevice_

protected

Definition at line 294 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::ConstOffsetsDeviceView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::offsDevice_

protected

Definition at line 295 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

int Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::nWeightsPerVertex_

protected

Definition at line 297 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

ArrayRCP<StridedData<lno_t, scalar_t> > Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::vertexWeights_

protected

Definition at line 298 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::WeightsDeviceView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::vertexWeightsDevice_

protected

Definition at line 299 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::VtxDegreeHostView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::vertexDegreeWeightsHost_

protected

Definition at line 300 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

int Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::nWeightsPerEdge_

protected

Definition at line 302 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

ArrayRCP<StridedData<lno_t, scalar_t> > Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::edgeWeights_

protected

Definition at line 303 of file Zoltan2_TpetraRowGraphAdapter.hpp.

template<typename User, typename UserCoord = User>

Base::WeightsDeviceView Zoltan2::TpetraRowGraphAdapter< User, UserCoord >::edgeWeightsDevice_

protected

Definition at line 304 of file Zoltan2_TpetraRowGraphAdapter.hpp.

The documentation for this class was generated from the following file:

Zoltan2_TpetraRowGraphAdapter.hpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

template<typename User, typename UserCoord = User> class Zoltan2::TpetraRowGraphAdapter< User, UserCoord >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename User, typename UserCoord = User>
class Zoltan2::TpetraRowGraphAdapter< User, UserCoord >
