Thyra::ProductMultiVectorBase< Scalar > Class Template Reference

Base interface for product multi-vectors. More...

#include <Thyra_ProductMultiVectorBase.hpp>

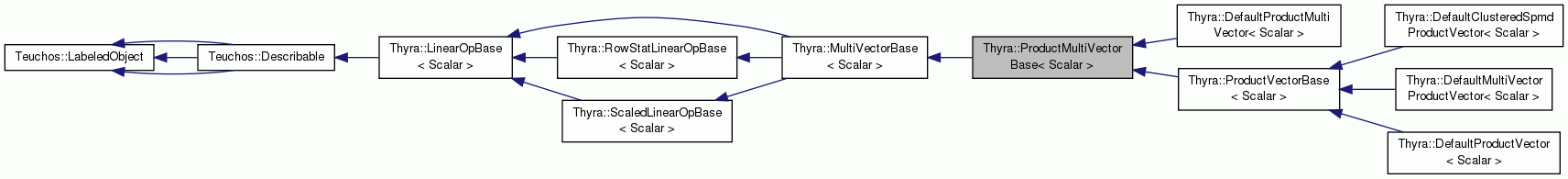

Inheritance diagram for Thyra::ProductMultiVectorBase< Scalar >:

Public Member Functions
virtual Teuchos::RCP< const ProductVectorSpaceBase< Scalar > >	productSpace () const =0
	Returns the associated product vector space that represents the range. More...
virtual bool	blockIsConst (const int k) const =0
	Return if the kth multi-vector block is const-only. More...
virtual Teuchos::RCP < MultiVectorBase< Scalar > >	getNonconstMultiVectorBlock (const int k)=0
	Returns a non-persisting non-const view of the zero-based kth block multi-vector. More...
virtual Teuchos::RCP< const MultiVectorBase< Scalar > >	getMultiVectorBlock (const int k) const =0
	Returns a non-persisting const view of the (zero-based) kth block multi-vector. More...
Public Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	assign (Scalar alpha)
	V = alpha. More...
void	assign (const MultiVectorBase< Scalar > &mv)
	V = mv. More...
void	scale (Scalar alpha)
void	update (Scalar alpha, const MultiVectorBase< Scalar > &mv)
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)
	Y.col(j)(i) = beta*Y.col(j)(i) + sum( alpha[k]*X[k].col(j)(i), More...
void	dots (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const
	Column-wise Euclidean dot product. More...
void	norms_1 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 1-norms. More...
void	norms_2 (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise 2-norms. More...
void	norms_inf (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const
	Column-wise infinity-norms. More...
RCP< const VectorBase< Scalar > >	col (Ordinal j) const
	Calls colImpl(). More...
RCP< VectorBase< Scalar > >	col (Ordinal j)
	Calls nonconstColImpl(). More...
RCP< const MultiVectorBase < Scalar > >	subView (const Range1D &colRng) const
	Calls contigSubViewImpl(). More...
RCP< MultiVectorBase< Scalar > >	subView (const Range1D &colRng)
	Calls nonconstContigSubViewImpl(). More...
RCP< const MultiVectorBase < Scalar > >	subView (const ArrayView< const int > &cols) const
	nonContigSubViewImpl(). More...
RCP< MultiVectorBase< Scalar > >	subView (const ArrayView< const int > &cols)
	nonconstNonContigSubViewImpl(). More...
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const
	Calls mvMultiReductApplyOpImpl(). More...
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const
	mvSingleReductApplyOpImpl(). More...
void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls acquireDetachedMultiVectorViewImpl(). More...
void	releaseDetachedView (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const
	Calls releaseDetachedMultiVectorViewImpl(). More...
void	acquireDetachedView (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls acquireNonconstDetachedMultiVectorViewImpl(). More...
void	commitDetachedView (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)
	Calls commitNonconstDetachedMultiVectorViewImpl(). More...
virtual RCP< MultiVectorBase < Scalar > >	clone_mv () const =0
	Clone the multi-vector object (if supported). More...
RCP< const LinearOpBase< Scalar > >	clone () const
	This function is simply overridden to return this->clone_mv(). More...
Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual RCP< const VectorSpaceBase< Scalar > >	range () const =0
	Return a smart pointer for the range space for this operator. More...
virtual RCP< const VectorSpaceBase< Scalar > >	domain () const =0
	Return a smart pointer for the domain space for this operator. More...
bool	opSupported (EOpTransp M_trans) const
	Return if the M_trans operation of apply() is supported or not. More...
void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : Y = alpha*op(M)*X + beta*Y. More...
Public Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
bool	rowStatIsSupported (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
	Determine if a given row stat is supported. More...
void	getRowStat (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
	Get some statistics about a supported row. More...
Public Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
bool	supportsScaleLeft () const
	Determines if this objects supports left scaling. More...
bool	supportsScaleRight () const
	Determines if this objects supports right scaling. More...
void	scaleLeft (const VectorBase< Scalar > &row_scaling)
	Left scales operator with diagonal scaling operator. More...
void	scaleRight (const VectorBase< Scalar > &col_scaling)
	Right scales operator with diagonal scaling operator. More...

Additional Inherited Members
Protected Member Functions inherited from Thyra::MultiVectorBase< Scalar >
void	absRowSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const
void	absColSum (const Teuchos::Ptr< Thyra::VectorBase< Scalar > > &output) const
virtual void	assignImpl (Scalar alpha)=0
	Virtual implementation for NVI assign(Scalar). More...
virtual void	assignMultiVecImpl (const MultiVectorBase< Scalar > &mv)=0
	Virtual implementation for NVI assign(MV). More...
virtual void	scaleImpl (Scalar alpha)=0
	Virtual implementation for NVI scale(). More...
virtual void	updateImpl (Scalar alpha, const MultiVectorBase< Scalar > &mv)=0
	Virtual implementation for NVI update(). More...
virtual void	linearCombinationImpl (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &mv, const Scalar &beta)=0
	Virtual implementation for NVI linear_combination(). More...
virtual void	dotsImpl (const MultiVectorBase< Scalar > &mv, const ArrayView< Scalar > &prods) const =0
	Virtual implementation for NVI dots(). More...
virtual void	norms1Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const =0
	Virtual implementation for NVI norms_1(). More...
virtual void	norms2Impl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const =0
	Virtual implementation for NVI norms_2(). More...
virtual void	normsInfImpl (const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms) const =0
	Virtual implementation for NVI norms_inf(). More...
virtual RCP< const VectorBase < Scalar > >	colImpl (Ordinal j) const
	Return a non-changeable view of a constituent column vector. More...
virtual RCP< VectorBase< Scalar > >	nonconstColImpl (Ordinal j)=0
	Return a changeable view of a constituent column vector. More...
virtual RCP< const MultiVectorBase< Scalar > >	contigSubViewImpl (const Range1D &colRng) const =0
	Return a non-changeable sub-view of a contiguous set of columns of the this multi-vector. More...
virtual RCP< MultiVectorBase < Scalar > >	nonconstContigSubViewImpl (const Range1D &colRng)=0
	Return a changeable sub-view of a contiguous set of columns of the this multi-vector. More...
virtual RCP< const MultiVectorBase< Scalar > >	nonContigSubViewImpl (const ArrayView< const int > &cols) const =0
	Return a non-changeable sub-view of a non-contiguous set of columns of this multi-vector. More...
virtual RCP< MultiVectorBase < Scalar > >	nonconstNonContigSubViewImpl (const ArrayView< const int > &cols)=0
	Return a changeable sub-view of a non-contiguous set of columns of this multi-vector. More...
virtual void	mvMultiReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset) const =0
	Apply a reduction/transformation operator column by column and return an array of the reduction objects. More...
virtual void	mvSingleReductApplyOpImpl (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset) const =0
	Apply a reduction/transformation operator column by column and reduce the intermediate reduction objects into a single reduction object. More...
virtual void	acquireDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const =0
	Get a non-changeable explicit view of a sub-multi-vector. More...
virtual void	releaseDetachedMultiVectorViewImpl (RTOpPack::ConstSubMultiVectorView< Scalar > *sub_mv) const =0
	Free a non-changeable explicit view of a sub-multi-vector. More...
virtual void	acquireNonconstDetachedMultiVectorViewImpl (const Range1D &rowRng, const Range1D &colRng, RTOpPack::SubMultiVectorView< Scalar > *sub_mv)=0
	Get a changeable explicit view of a sub-multi-vector. More...
virtual void	commitNonconstDetachedMultiVectorViewImpl (RTOpPack::SubMultiVectorView< Scalar > *sub_mv)=0
	Commit changes for a changeable explicit view of a sub-multi-vector. More...
virtual bool	rowStatIsSupportedImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat) const
virtual void	getRowStatImpl (const RowStatLinearOpBaseUtils::ERowStat rowStat, const Ptr< VectorBase< Scalar > > &rowStatVec) const
virtual bool	supportsScaleLeftImpl () const
virtual bool	supportsScaleRightImpl () const
virtual void	scaleLeftImpl (const VectorBase< Scalar > &row_scaling)
virtual void	scaleRightImpl (const VectorBase< Scalar > &col_scaling)
Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual bool	opSupportedImpl (EOpTransp M_trans) const =0
	Override in subclass. More...
virtual void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
	Override in subclass. More...
Protected Member Functions inherited from Thyra::RowStatLinearOpBase< Scalar >
Protected Member Functions inherited from Thyra::ScaledLinearOpBase< Scalar >
Related Functions inherited from Thyra::MultiVectorBase< Scalar >
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const ArrayView< const Ptr< RTOpPack::ReductTarget > > &reduct_objs, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and return an array of the reduction objects. More...
template<class Scalar >
void	applyOp (const RTOpPack::RTOpT< Scalar > &primary_op, const RTOpPack::RTOpT< Scalar > &secondary_op, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &multi_vecs, const ArrayView< const Ptr< MultiVectorBase< Scalar > > > &targ_multi_vecs, const Ptr< RTOpPack::ReductTarget > &reduct_obj, const Ordinal primary_global_offset=0)
	Apply a reduction/transformation operator column by column and reduce the intermediate reduction objects into one reduction object. More...
template<class Scalar >
void	norms (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector natural norm. More...
template<class Scalar , class NormOp >
void	reductions (const MultiVectorBase< Scalar > &V, const NormOp &op, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector reductions. More...
template<class Scalar >
void	norms_1 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector one norm. More...
template<class Scalar >
void	norms_2 (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector 2 (Euclidean) norm. More...
template<class Scalar >
void	norms_inf (const MultiVectorBase< Scalar > &V, const ArrayView< typename ScalarTraits< Scalar >::magnitudeType > &norms)
	Column-wise multi-vector infinity norm. More...
template<class Scalar >
Array< typename ScalarTraits < Scalar >::magnitudeType >	norms_inf (const MultiVectorBase< Scalar > &V)
	Column-wise multi-vector infinity norm. More...
template<class Scalar >
void	dots (const MultiVectorBase< Scalar > &V1, const MultiVectorBase< Scalar > &V2, const ArrayView< Scalar > &dots)
	Multi-vector dot product. More...
template<class Scalar >
void	sums (const MultiVectorBase< Scalar > &V, const ArrayView< Scalar > &sums)
	Multi-vector column sum. More...
template<class Scalar >
ScalarTraits< Scalar > ::magnitudeType	norm_1 (const MultiVectorBase< Scalar > &V)
	Take the induced matrix one norm of a multi-vector. More...
template<class Scalar >
void	scale (Scalar alpha, const Ptr< MultiVectorBase< Scalar > > &V)
	V = alpha*V. More...
template<class Scalar >
void	scaleUpdate (const VectorBase< Scalar > &a, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	A*U + V -> V (where A is a diagonal matrix with diagonal a). More...
template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, Scalar alpha)
	V = alpha. More...
template<class Scalar >
void	assign (const Ptr< MultiVectorBase< Scalar > > &V, const MultiVectorBase< Scalar > &U)
	V = U. More...
template<class Scalar >
void	update (Scalar alpha, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha*U + V -> V. More...
template<class Scalar >
void	update (const ArrayView< const Scalar > &alpha, Scalar beta, const MultiVectorBase< Scalar > &U, const Ptr< MultiVectorBase< Scalar > > &V)
	alpha[j]*beta*U(j) + V(j) - > V(j), for j = 0 ,,, More...
template<class Scalar >
void	update (const MultiVectorBase< Scalar > &U, const ArrayView< const Scalar > &alpha, Scalar beta, const Ptr< MultiVectorBase< Scalar > > &V)
	U(j) + alpha[j]*beta*V(j) - > V(j), for j = 0 ,,, U.domain()->dim()-1. More...
template<class Scalar >
void	linear_combination (const ArrayView< const Scalar > &alpha, const ArrayView< const Ptr< const MultiVectorBase< Scalar > > > &X, const Scalar &beta, const Ptr< MultiVectorBase< Scalar > > &Y)
	Y.col(j)(i) = beta*Y.col(j)(i) + sum( alpha[k]*X[k].col(j)(i), k=0...m-1 ), for i = 0...Y->range()->dim()-1, j = 0...Y->domain()->dim()-1. More...
template<class Scalar >
void	randomize (Scalar l, Scalar u, const Ptr< MultiVectorBase< Scalar > > &V)
	Generate a random multi-vector with elements uniformly distributed elements. More...
template<class Scalar >
void	Vt_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	Z(i,j) *= alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1. More...
template<class Scalar >
void	Vp_S (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha)
	Z(i,j) += alpha, i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1. More...
template<class Scalar >
void	Vp_V (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X)
	Z(i,j) += X(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1. More...
template<class Scalar >
void	V_VpV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	Z(i,j) = X(i,j) + Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1. More...
template<class Scalar >
void	V_VmV (const Ptr< MultiVectorBase< Scalar > > &Z, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	Z(i,j) = X(i,j) - Y(i,j), i = 0...Z->range()->dim()-1, j = 0...Z->domain()->dim()-1. More...
template<class Scalar >
void	V_StVpV (const Ptr< MultiVectorBase< Scalar > > &Z, const Scalar &alpha, const MultiVectorBase< Scalar > &X, const MultiVectorBase< Scalar > &Y)
	Z(i,j) = alpha*X(i,j) + Y(i), i = 0...z->space()->dim()-1, , j = 0...Z->domain()->dim()-1. More...
Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...
template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...
template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...
template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...
template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for M.apply(...). More...
void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls apply<double>(...). More...

Detailed Description

template<class Scalar>
class Thyra::ProductMultiVectorBase< Scalar >

Base interface for product multi-vectors.

This class defines an abstract interface for a multi-vector that is built out of the one or more other multi-vectors to form a product multi-vector. This class is only an interface. A standard implementation of this interface that should be sufficient for 99% or so of use cases is provided in the concrete subclass DefaultProductMultiVector.

ToDo: Finish documentation!

Definition at line 34 of file Thyra_ProductMultiVectorBase.hpp.

Member Function Documentation

template<class Scalar>

virtual Teuchos::RCP<const ProductVectorSpaceBase<Scalar> > Thyra::ProductMultiVectorBase< Scalar >::productSpace ( ) const

pure virtual

Returns the associated product vector space that represents the range.

If *this is uninitialized then return.get()==NULL.

Implemented in Thyra::DefaultProductVector< Scalar >, Thyra::DefaultMultiVectorProductVector< Scalar >, Thyra::DefaultProductMultiVector< Scalar >, and Thyra::DefaultClusteredSpmdProductVector< Scalar >.

template<class Scalar>

virtual bool Thyra::ProductMultiVectorBase< Scalar >::blockIsConst ( const int  k ) const

pure virtual

Return if the kth multi-vector block is const-only.

Parameters

k	[in] The (zero-based) kth block index specifying which multi-vector block to access.

Preconditions:

• productSpace().get()!=NULL
• 0 <= k && k < productSpace()->numBlocks()

Implemented in Thyra::DefaultProductVector< Scalar >, Thyra::DefaultMultiVectorProductVector< Scalar >, Thyra::DefaultProductMultiVector< Scalar >, and Thyra::DefaultClusteredSpmdProductVector< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<MultiVectorBase<Scalar> > Thyra::ProductMultiVectorBase< Scalar >::getNonconstMultiVectorBlock ( const int  k )

pure virtual

Returns a non-persisting non-const view of the zero-based kth block multi-vector.

Parameters

k	[in] The (zero-based) kth block index specifying which multi-vector block to access.

Preconditions:

• productSpace().get()!=NULL
• 0 <= k && k < productSpace()->numBlocks()

Note that *this is not guaranteed to be modified until the smart pointer returned from this function, as well as any other smart pointers created from this smart pointer, are destroyed. This requirement allows more flexibility in how this function is implemented.

Also note that no further interactions with *this should be performed until the view returned from this function is released as described above.

Implemented in Thyra::DefaultProductVector< Scalar >, Thyra::DefaultMultiVectorProductVector< Scalar >, Thyra::DefaultProductMultiVector< Scalar >, and Thyra::DefaultClusteredSpmdProductVector< Scalar >.

template<class Scalar>

virtual Teuchos::RCP<const MultiVectorBase<Scalar> > Thyra::ProductMultiVectorBase< Scalar >::getMultiVectorBlock ( const int  k ) const

pure virtual

Returns a non-persisting const view of the (zero-based) kth block multi-vector.

Parameters

k	[in] The (zero-based) kth block index specifying which multi-vector block to access.

Preconditions:

• productSpace().get()!=NULL
• 0 <= k && k < productSpace()->numBlocks()

Implemented in Thyra::DefaultProductVector< Scalar >, Thyra::DefaultMultiVectorProductVector< Scalar >, Thyra::DefaultProductMultiVector< Scalar >, and Thyra::DefaultClusteredSpmdProductVector< Scalar >.

---

The documentation for this class was generated from the following file:

• Thyra_ProductMultiVectorBase.hpp
