Thyra::DiagonalLinearOpBase< Scalar > Class Template Reference

Interface class for for diagonal linear operators. More...

#include <Thyra_DiagonalLinearOpBase.hpp>

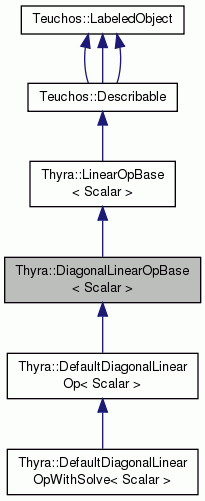

Inheritance diagram for Thyra::DiagonalLinearOpBase< Scalar >:

Pure virtual functions that must be overridden in subclass
virtual bool	isDiagConst () const =0
	Returns true if the diagonal vector is const-only. More...
virtual Teuchos::RCP < VectorBase< Scalar > >	getNonconstDiag ()=0
	Returns the non-const diagonal vector diag. More...
virtual Teuchos::RCP< const VectorBase< Scalar > >	getDiag () const =0
	Returns the const diagonal vector diag. More...

Additional Inherited Members
Public Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual RCP< const VectorSpaceBase< Scalar > >	range () const =0
	Return a smart pointer for the range space for this operator. More...
virtual RCP< const VectorSpaceBase< Scalar > >	domain () const =0
	Return a smart pointer for the domain space for this operator. More...
bool	opSupported (EOpTransp M_trans) const
	Return if the M_trans operation of apply() is supported or not. More...
void	apply (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const
	Apply the linear operator to a multi-vector : Y = alpha*op(M)*X + beta*Y. More...
virtual RCP< const LinearOpBase< Scalar > >	clone () const
	Clone the linear operator object (if supported). More...
Protected Member Functions inherited from Thyra::LinearOpBase< Scalar >
virtual bool	opSupportedImpl (EOpTransp M_trans) const =0
	Override in subclass. More...
virtual void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const =0
	Override in subclass. More...
Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...
template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...
template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...
template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...
template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for M.apply(...). More...
void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls apply<double>(...). More...

Detailed Description

template<class Scalar>
class Thyra::DiagonalLinearOpBase< Scalar >

Interface class for for diagonal linear operators.

This interface represents a diagonal linear operator M of the form:

M = diag(diag)

where diag is a VectorBase object.

The operator subclass must implement apply() as follows:

y = alpha*op(M)*x + beta*y

=>

y(i) = alpha*diag(i)*x(i) + beta*y(i), for i = 0 ... n-1

where n = this->domain()->dim().

Definition at line 43 of file Thyra_DiagonalLinearOpBase.hpp.

Member Function Documentation

template<class Scalar >

virtual bool Thyra::DiagonalLinearOpBase< Scalar >::isDiagConst ( ) const

pure virtual

Returns true if the diagonal vector is const-only.

Implemented in Thyra::DefaultDiagonalLinearOp< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<VectorBase<Scalar> > Thyra::DiagonalLinearOpBase< Scalar >::getNonconstDiag ( )

pure virtual

Returns the non-const diagonal vector diag.

Preconditions:

• [getDiag().get()!=NULL] isDiagConst()==false

Note that *this is not guaranteed to be fully modified until the RCP returned is deleted.

A return value of return.get()==NULL indicates that this is not fully initialized.

Implemented in Thyra::DefaultDiagonalLinearOp< Scalar >.

template<class Scalar >

virtual Teuchos::RCP<const VectorBase<Scalar> > Thyra::DiagonalLinearOpBase< Scalar >::getDiag ( ) const

pure virtual

Returns the const diagonal vector diag.

A return value of return.get()==NULL indicates that this is not fully initialized.

Implemented in Thyra::DefaultDiagonalLinearOp< Scalar >.

---

The documentation for this class was generated from the following file:

• Thyra_DiagonalLinearOpBase.hpp
