Default concrete LinearOpBase subclass for diagonal linear operators. More...

#include <Thyra_DefaultDiagonalLinearOp_decl.hpp>

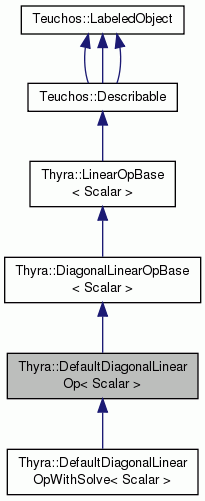

Inheritance diagram for Thyra::DefaultDiagonalLinearOp< Scalar >:

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP< const LinearOpBase< Scalar > >	diagonal (const RCP< VectorBase< Scalar > > &diag, const std::string &label="")
	Nonmember constructor function. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Constructors/initializers/accessors
	DefaultDiagonalLinearOp ()
	Constructs to uninitialized. More...

	DefaultDiagonalLinearOp (const RCP< const VectorSpaceBase< Scalar > > &space)
	Calls `initialize()` to construct given a vector space. More...

	DefaultDiagonalLinearOp (const RCP< VectorBase< Scalar > > &diag)
	Calls `initialize()` to construct for a non-const diagonal vector. More...

	DefaultDiagonalLinearOp (const RCP< const VectorBase< Scalar > > &diag)
	Calls `initialize()` to construct for a const diagonal vector. More...

void	initialize (const RCP< const VectorSpaceBase< Scalar > > &space)
	Initialize given a vector space which allocates a vector internally. More...

void	initialize (const RCP< VectorBase< Scalar > > &diag)
	Initialize given a non-const diagonal vector. More...

void	initialize (const RCP< const VectorBase< Scalar > > &diag)
	Initialize given a const diagonal vector. More...

void	uninitialize ()
	Uninitialize. More...

Overridden from DiagonalLinearOpBase
bool	isDiagConst () const

RCP< VectorBase< Scalar > >	getNonconstDiag ()

RCP< const VectorBase< Scalar > >	getDiag () const

Overridden from LinearOpBase
RCP< const VectorSpaceBase < Scalar > >	range () const
	Returns `this->getDiag()->space()`. More...

RCP< const VectorSpaceBase < Scalar > >	domain () const
	Returns `this->getDiag()->space()`. More...

RCP< const LinearOpBase< Scalar > >	clone () const

Protected functions overridden from LinearOpBase
bool	opSupportedImpl (EOpTransp M_trans) const

void	applyImpl (const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha, const Scalar beta) const

Detailed Description

template<class Scalar>
class Thyra::DefaultDiagonalLinearOp< Scalar >

Default concrete LinearOpBase subclass for diagonal linear operators.

This class represents a diagonal linear operator M of the form:

M = diag(diag)

where diag is a VectorBase object.

The defined operator implements this->apply() as follows:

y = alpha*op(M)*x + beta*y

=>

y(i) = alpha*diag(i)*x(i) + beta*y(i), for i = 0 ... n-1

where n = this->domain()->dim().

Definition at line 50 of file Thyra_DefaultDiagonalLinearOp_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultDiagonalLinearOp< Scalar >::DefaultDiagonalLinearOp ( )

Constructs to uninitialized.

Postconditions:

this->getDiag().get()==NULL

Definition at line 28 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

Thyra::DefaultDiagonalLinearOp< Scalar >::DefaultDiagonalLinearOp ( const RCP< const VectorSpaceBase< Scalar > > & space )

Calls initialize() to construct given a vector space.

Definition at line 33 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

Thyra::DefaultDiagonalLinearOp< Scalar >::DefaultDiagonalLinearOp ( const RCP< VectorBase< Scalar > > & diag )

Calls initialize() to construct for a non-const diagonal vector.

Definition at line 42 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

Thyra::DefaultDiagonalLinearOp< Scalar >::DefaultDiagonalLinearOp ( const RCP< const VectorBase< Scalar > > & diag )

Calls initialize() to construct for a const diagonal vector.

Definition at line 51 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

Member Function Documentation

template<class Scalar >

void Thyra::DefaultDiagonalLinearOp< Scalar >::initialize ( const RCP< const VectorSpaceBase< Scalar > > & space )

Initialize given a vector space which allocates a vector internally.

Parameters

space [in] Smart pointer to vector space

Preconditions:

space.get()!=NULL

Postconditions:

this->getNonconstDiag()->space()->isCompatible(*space)==true
this->getDiag()->space()->isCompatible(*space)==true
this->this->domain().get() == space.get()
this->this->range().get() == space.get()

Definition at line 60 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultDiagonalLinearOp< Scalar >::initialize ( const RCP< VectorBase< Scalar > > & diag )

Initialize given a non-const diagonal vector.

Parameters

diag	[in] Smart pointer to diagonal vector.

Preconditions:

diag.get()!=NULL

Postconditions:

this->getNonconstDiag().get()==diag.get()
this->getDiag().get()==diag.get()
this->this->domain().get() == diag->space().get()
this->this->range().get() == diag->space().get()

Definition at line 72 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultDiagonalLinearOp< Scalar >::initialize ( const RCP< const VectorBase< Scalar > > & diag )

Initialize given a const diagonal vector.

Parameters

diag	[in] Smart pointer to diagonal vector.

Preconditions:

diag.get()!=NULL

Postconditions:

this->getNonconstDiag() with throw an exception if called
this->getDiag().get()==diag.get()
this->this->domain().get() == diag->space().get()
this->this->range().get() == diag->space().get()

Definition at line 81 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultDiagonalLinearOp< Scalar >::uninitialize ( )

Uninitialize.

Postconditions:

this->getNonconstDiag().get()==NULL
this->getDiag().get()==NULL
this->this->domain().get()==NULL
this->this->range().get()==NULL

Note: If the client wants to hold on to the underlying wrapped diagonal vector then they had better grab it using this->getDiag() or this->getNonconstDiag() before calling this function!

Definition at line 90 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

bool Thyra::DefaultDiagonalLinearOp< Scalar >::isDiagConst ( ) const

virtual

Implements Thyra::DiagonalLinearOpBase< Scalar >.

Definition at line 100 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

RCP< VectorBase< Scalar > > Thyra::DefaultDiagonalLinearOp< Scalar >::getNonconstDiag ( )

virtual

Implements Thyra::DiagonalLinearOpBase< Scalar >.

Definition at line 108 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

RCP< const VectorBase< Scalar > > Thyra::DefaultDiagonalLinearOp< Scalar >::getDiag ( ) const

virtual

Implements Thyra::DiagonalLinearOpBase< Scalar >.

Definition at line 116 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultDiagonalLinearOp< Scalar >::range ( ) const

virtual

Returns this->getDiag()->space().

Preconditions:

this->getDiag().get()!=NULL

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 127 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

RCP< const VectorSpaceBase< Scalar > > Thyra::DefaultDiagonalLinearOp< Scalar >::domain ( ) const

virtual

Returns this->getDiag()->space().

Preconditions:

this->getDiag().get()!=NULL

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 135 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

RCP< const LinearOpBase< Scalar > > Thyra::DefaultDiagonalLinearOp< Scalar >::clone ( ) const

virtual

Reimplemented from Thyra::LinearOpBase< Scalar >.

Definition at line 143 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

bool Thyra::DefaultDiagonalLinearOp< Scalar >::opSupportedImpl ( EOpTransp M_trans ) const

protectedvirtual

Implements Thyra::LinearOpBase< Scalar >.

Definition at line 156 of file Thyra_DefaultDiagonalLinearOp_def.hpp.

template<class Scalar >

void Thyra::DefaultDiagonalLinearOp< Scalar >::applyImpl	(	const EOpTransp	M_trans,
		const MultiVectorBase< Scalar > &	X,
		const Ptr< MultiVectorBase< Scalar > > &	Y,
		const Scalar	alpha,
		const Scalar	beta
	)		const
