Concrete LinearOpWithSolveBase subclass for diagonal linear operators. More...

#include <Thyra_DefaultDiagonalLinearOpWithSolve_decl.hpp>

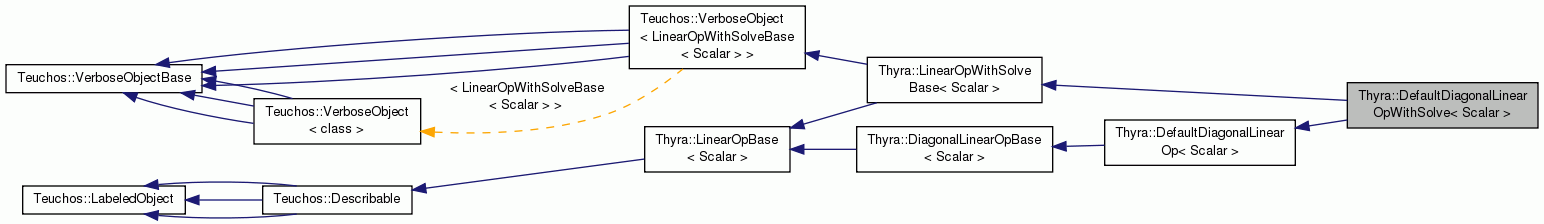

Inheritance diagram for Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >:

Related Functions
(Note that these are not member functions.)
template<class Scalar >
RCP < DefaultDiagonalLinearOpWithSolve < Scalar > >	defaultDiagonalLinearOpWithSolve ()
	Nonmember constructor. More...

template<class Scalar >
RCP < DefaultDiagonalLinearOpWithSolve < Scalar > >	defaultDiagonalLinearOpWithSolve (const RCP< const VectorBase< Scalar > > &diag)
	Nonmember constructor. More...

Related Functions inherited from Thyra::DefaultDiagonalLinearOp< Scalar >
template<class Scalar >
RCP< const LinearOpBase< Scalar > >	diagonal (const RCP< VectorBase< Scalar > > &diag, const std::string &label="")
	Nonmember constructor function. More...

Related Functions inherited from Thyra::LinearOpBase< Scalar >
template<class Scalar >
bool	isFullyUninitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Uninitialized" state or not. More...

template<class Scalar >
bool	isPartiallyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Partially Initialized" state or not. More...

template<class Scalar >
bool	isFullyInitialized (const LinearOpBase< Scalar > &M)
	Determines if a linear operator is in the "Fully Initialized" state or not. More...

template<class Scalar >
bool	opSupported (const LinearOpBase< Scalar > &M, EOpTransp M_trans)
	Determines if an operation is supported for a single scalar type. More...

template<class Scalar >
void	apply (const LinearOpBase< Scalar > &M, const EOpTransp M_trans, const MultiVectorBase< Scalar > &X, const Ptr< MultiVectorBase< Scalar > > &Y, const Scalar alpha=static_cast< Scalar >(1.0), const Scalar beta=static_cast< Scalar >(0.0))
	Non-member function call for `M.apply(...)`. More...

void	apply (const LinearOpBase< double > &M, const EOpTransp M_trans, const MultiVectorBase< double > &X, const Ptr< MultiVectorBase< double > > &Y, const double alpha=1.0, const double beta=0.0)
	Calls `apply<double>(...)`. More...

Related Functions inherited from Thyra::LinearOpWithSolveBase< Scalar >
template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp)
	Call `solveSupports()` as a non-member function. More...

template<class Scalar >
bool	solveSupports (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const Ptr< const SolveCriteria< Scalar > > solveCriteria)
	Call `solveSupports()` as a non-member function. More...

template<class Scalar >
bool	solveSupportsSolveMeasureType (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp transp, const SolveMeasureType &solveMeasureType)
	Call `solveSupportsSolveMeasureType()` as a non-member function. More...

template<class Scalar >
SolveStatus< Scalar >	solve (const LinearOpWithSolveBase< Scalar > &A, const EOpTransp A_trans, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Call `solve()` as a non-member function. More...

template<class Scalar >
void	assertSolveSupports (const LinearOpWithSolveBase< Scalar > &lows, const EOpTransp M_trans, const Ptr< const SolveCriteria< Scalar > > solveCriteria=Teuchos::null)
	Assert that a LOWSB object supports a particular solve type. More...

Constructors/initializers/accessors
	DefaultDiagonalLinearOpWithSolve ()
	Constructs to uninitialized. More...

	DefaultDiagonalLinearOpWithSolve (const RCP< const VectorBase< Scalar > > &diag)
	Calls `initialize()` More...

Overridden from LinearOpWithSolveBase
bool	solveSupportsImpl (EOpTransp M_trans) const

bool	solveSupportsSolveMeasureTypeImpl (EOpTransp M_trans, const SolveMeasureType &solveMeasureType) const

SolveStatus< Scalar >	solveImpl (const EOpTransp transp, const MultiVectorBase< Scalar > &B, const Ptr< MultiVectorBase< Scalar > > &X, const Ptr< const SolveCriteria< Scalar > > solveCriteria) const

Detailed Description

template<class Scalar>
class Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >

Concrete LinearOpWithSolveBase subclass for diagonal linear operators.

This class represents a diagonal linear operator M of the form:

M = diag(diag)

where diag is a VectorBase object.

The defined operator implements this->apply() as follows:

y = alpha*op(M)*x + beta*y

=>

y(i) = alpha*diag(i)*x(i) + beta*y(i), for i = 0 ... n-1

where n = this->domain()->dim().

The defined operator implements this->solve() as follows:

x = inv(op(M))*b

=>

x(i) = b(i)/diag(i), for i = 0 ... n-1

where n = this->domain()->dim().

That is all there is to this subclass.

Definition at line 60 of file Thyra_DefaultDiagonalLinearOpWithSolve_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >::DefaultDiagonalLinearOpWithSolve ( )

Constructs to uninitialized.

Postconditions:

this->getDiag().get()==NULL

Definition at line 28 of file Thyra_DefaultDiagonalLinearOpWithSolve_def.hpp.

template<class Scalar >

Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >::DefaultDiagonalLinearOpWithSolve ( const RCP< const VectorBase< Scalar > > & diag )

Calls initialize()

Definition at line 33 of file Thyra_DefaultDiagonalLinearOpWithSolve_def.hpp.

Member Function Documentation

template<class Scalar >

bool Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >::solveSupportsImpl ( EOpTransp M_trans ) const

protectedvirtual

Reimplemented from Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 49 of file Thyra_DefaultDiagonalLinearOpWithSolve_def.hpp.

template<class Scalar >

bool Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >::solveSupportsSolveMeasureTypeImpl	(	EOpTransp	M_trans,
		const SolveMeasureType &	solveMeasureType
	)		const

protectedvirtual

Reimplemented from Thyra::LinearOpWithSolveBase< Scalar >.

Definition at line 59 of file Thyra_DefaultDiagonalLinearOpWithSolve_def.hpp.

template<class Scalar >

SolveStatus< Scalar > Thyra::DefaultDiagonalLinearOpWithSolve< Scalar >::solveImpl	(	const EOpTransp	transp,
		const MultiVectorBase< Scalar > &	B,
		const Ptr< MultiVectorBase< Scalar > > &	X,
		const Ptr< const SolveCriteria< Scalar > >	solveCriteria
	)		const
