Abstract class which block preconditioner factories in Teko should be based on. More...

#include <Teko_PreconditionerFactory.hpp>

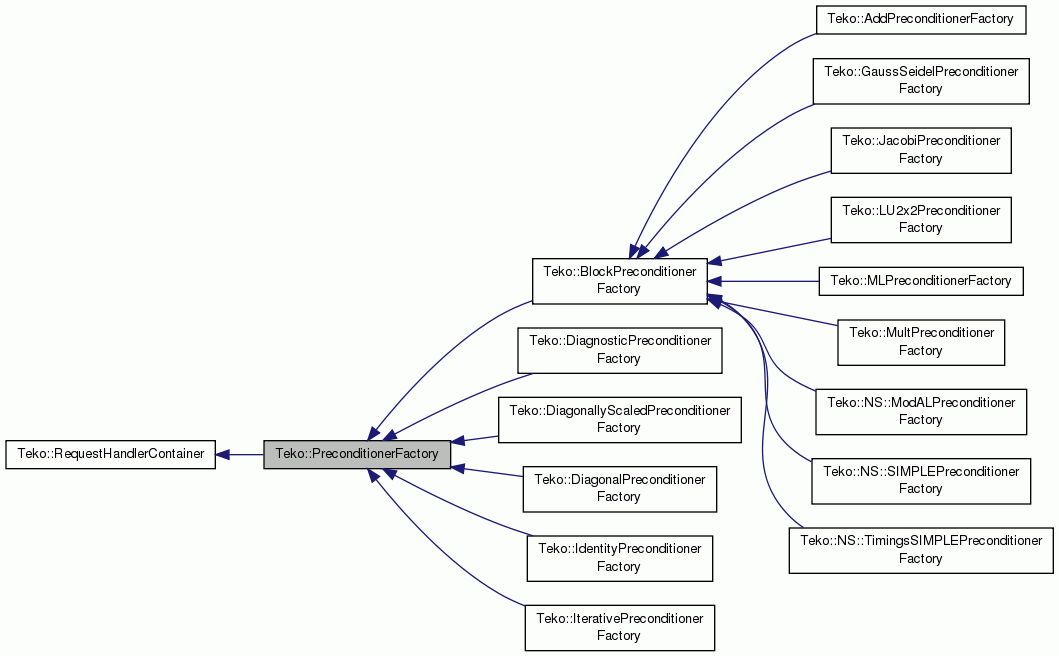

Inheritance diagram for Teko::PreconditionerFactory:

Public Member Functions
virtual LinearOp	buildPreconditionerOperator (LinearOp &lo, PreconditionerState &state) const =0
	Function that is called to build the preconditioner for the linear operator that is passed in. More...

virtual Teuchos::RCP < PreconditionerState >	buildPreconditionerState () const
	Function that permits the construction of an arbitrary PreconditionerState object. More...

void	setInverseLibrary (const Teuchos::RCP< const InverseLibrary > &il)
	Set the inverse library used by this preconditioner factory. More...

Teuchos::RCP< const InverseLibrary >	getInverseLibrary () const
	Get the inverse library used by this preconditioner factory. More...

void	setRequestHandler (const Teuchos::RCP< RequestHandler > &rh)
	Set the request handler with pointers to the appropriate callbacks. More...

Teuchos::RCP< RequestHandler >	getRequestHandler () const
	Get the request handler with pointers to the appropriate callbacks. More...

Methods for construction from a parameter list entry
virtual void	initializeFromParameterList (const Teuchos::ParameterList &)
	This function builds the internals of the preconditioner factory from a parameter list. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getRequestedParameters () const
	Request the additional parameters this preconditioner factory needs. More...

virtual bool	updateRequestedParameters (const Teuchos::ParameterList &)
	Update this object with the fields from a parameter list. More...

Methods inherited from Thyra::PreconditionerFactoryBase
bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Teuchos::RCP < Thyra::PreconditionerBase < double > >	createPrec () const
	create an instance of the preconditioner More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, const Teuchos::RCP< const Thyra::MultiVectorBase< double > > &solnVec, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	uninitializePrec (Thyra::PreconditionerBase< double > prec, Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > fwdOpSrc, Thyra::ESupportSolveUse *supportSolveUse) const
	wipe clean a already initialized preconditioner object More...

Methods inherited from Teuchos::ParameterListAcceptor
void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
	Set parameters from a parameter list and return with default values. More...

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	Get the parameter list that was set using setParameterList(). More...

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	Unset the parameter list that was set using setParameterList(). More...

Static Public Member Functions
static Teuchos::RCP < PreconditionerFactory >	buildPreconditionerFactory (const std::string &name, const Teuchos::ParameterList &settings, const Teuchos::RCP< const InverseLibrary > &invLib=Teuchos::null)
	Builder function for creating preconditioner factories (yes this is a factory factory). More...

static void	addPreconditionerFactory (const std::string &name, const Teuchos::RCP< Cloneable > &clone)
	Add a preconditioner factory to the builder. This is done using the clone pattern. More...

static void	getPreconditionerFactoryNames (std::vector< std::string > &names)
	Get the names of the block preconditioner factories. More...

Protected Attributes
Teuchos::RCP < Teuchos::ParameterList >	paramList_
	for ParameterListAcceptor More...

Teuchos::RCP< RequestHandler >	callbackHandler_
	For handling requests and send requests back to the user. More...

Detailed Description

Abstract class which block preconditioner factories in Teko should be based on.

Abstract class which block preconditioner factories in Teko should be based on. All that is needed is the implementation of "buildPreconditionerOperator". This class also uses the RequestHandler concrete interface. This is useful for extracting information from the user in an unobtrusive and modular way.

Definition at line 45 of file Teko_PreconditionerFactory.hpp.

Member Function Documentation

virtual LinearOp Teko::PreconditionerFactory::buildPreconditionerOperator	(	LinearOp &	lo,
		PreconditionerState &	state
	)		const

pure virtual

Function that is called to build the preconditioner for the linear operator that is passed in.

This function builds a preconditioner based on the passed in LinearOp.

Parameters

[in]	lo	Source linear operator that is to be preconditioned.
[in]	state	An object associated with this operator to store the preconditioner state.

Returns: The preconditioner as a linear operator (i.e. to perform a matrix-vector operation simply call "apply").

Implemented in Teko::BlockPreconditionerFactory, Teko::IterativePreconditionerFactory, Teko::DiagnosticPreconditionerFactory, Teko::DiagonalPreconditionerFactory, Teko::DiagonallyScaledPreconditionerFactory, and Teko::IdentityPreconditionerFactory.

virtual Teuchos::RCP<PreconditionerState> Teko::PreconditionerFactory::buildPreconditionerState ( ) const

inlinevirtual

Function that permits the construction of an arbitrary PreconditionerState object.

Function that permits the construction of an arbitrary PreconditionerState object. If the basic state object, which takes a parameter list, is sufficient the default behavior does precisely what is needed. Otherwise, an author of a PreconditionerFactory would need to reimplement this method to return a new state object.

Returns: A state object associated with this factory.

Reimplemented in Teko::NS::ModALPreconditionerFactory, Teko::MultPreconditionerFactory, Teko::BlockPreconditionerFactory, Teko::MLPreconditionerFactory, Teko::DiagonalPreconditionerFactory, and Teko::AddPreconditionerFactory.

Definition at line 75 of file Teko_PreconditionerFactory.hpp.

virtual void Teko::PreconditionerFactory::initializeFromParameterList ( const Teuchos::ParameterList & )

inlinevirtual

This function builds the internals of the preconditioner factory from a parameter list.

This function builds the internals of the preconditioner factory from a parameter list. Furthermore, it allows a preconditioner factory developer to easily add a factory to the build system. This function is required for building a preconditioner from a parameter list.

Parameters

[in] settings Parmaeter list to use as the internal settings

Note: The default implementation does nothing.

Definition at line 94 of file Teko_PreconditionerFactory.hpp.

virtual Teuchos::RCP<Teuchos::ParameterList> Teko::PreconditionerFactory::getRequestedParameters ( ) const

inlinevirtual

Request the additional parameters this preconditioner factory needs.

Request the additonal parameters needed by this preconditioner factory. The parameter list will have a set of fields that can be filled with the requested values. These fields include all requirements, even those of the sub-solvers if there are any. Once correctly filled the object can be updated by calling the updateRequestedParameters with the filled parameter list.

Returns: A parameter list with the requested parameters.

Note: The default implementation returns Teuchos::null.

Reimplemented in Teko::LU2x2PreconditionerFactory, Teko::IterativePreconditionerFactory, Teko::DiagnosticPreconditionerFactory, Teko::NS::TimingsSIMPLEPreconditionerFactory, and Teko::NS::SIMPLEPreconditionerFactory.

Definition at line 110 of file Teko_PreconditionerFactory.hpp.

virtual bool Teko::PreconditionerFactory::updateRequestedParameters ( const Teuchos::ParameterList & )

inlinevirtual

Update this object with the fields from a parameter list.

Update the requested fields using a parameter list. This method is expected to pair with the getRequestedParameters method (i.e. the fields requested are going to be update using this method).

Parameters

[in] pl Parameter list containing the requested parameters.

Returns: If the method succeeded (found all its required parameters) this method returns true, otherwise it returns false.

Note: The default implementation returns true (it does nothing!).

Reimplemented in Teko::LU2x2PreconditionerFactory, Teko::IterativePreconditionerFactory, Teko::DiagnosticPreconditionerFactory, Teko::NS::TimingsSIMPLEPreconditionerFactory, and Teko::NS::SIMPLEPreconditionerFactory.

Definition at line 127 of file Teko_PreconditionerFactory.hpp.

void Teko::PreconditionerFactory::setInverseLibrary ( const Teuchos::RCP< const InverseLibrary > & il )

Set the inverse library used by this preconditioner factory.

Definition at line 130 of file Teko_PreconditionerFactory.cpp.

RCP< const InverseLibrary > Teko::PreconditionerFactory::getInverseLibrary ( ) const

Get the inverse library used by this preconditioner factory.

Definition at line 135 of file Teko_PreconditionerFactory.cpp.

bool Teko::PreconditionerFactory::isCompatible ( const Thyra::LinearOpSourceBase< double > & fwdOpSrc ) const

is this operator compatiable with the preconditioner factory?

Definition at line 49 of file Teko_PreconditionerFactory.cpp.

RCP< Thyra::PreconditionerBase< double > > Teko::PreconditionerFactory::createPrec ( ) const

create an instance of the preconditioner

Definition at line 55 of file Teko_PreconditionerFactory.cpp.

void Teko::PreconditionerFactory::initializePrec	(	const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &	fwdOpSrc,
		const Teuchos::RCP< const Thyra::MultiVectorBase< double > > &	solnVec,
		Thyra::PreconditionerBase< double > *	precOp,
		const Thyra::ESupportSolveUse	supportSolveUse
	)		const

initialize a newly created preconditioner object

Initialize a newly created preconditioner object. For use with nonlinear solvers.

Parameters

[in]	fwdOpSrc	Forward operator to be preconditioned
[in]	solnVec	Vector associated with this linear operator.
[in,out]	precOp	Return location for the preconditioner
[in]	supportSolveUse	Thyra information (?)

void Teko::PreconditionerFactory::initializePrec	(	const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &	fwdOpSrc,
		Thyra::PreconditionerBase< double > *	precOp,
		const Thyra::ESupportSolveUse	supportSolveUse
	)		const

initialize a newly created preconditioner object

void Teko::PreconditionerFactory::uninitializePrec	(	Thyra::PreconditionerBase< double > *	prec,
		Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > *	fwdOpSrc,
		Thyra::ESupportSolveUse *	supportSolveUse
	)		const

wipe clean a already initialized preconditioner object

Definition at line 101 of file Teko_PreconditionerFactory.cpp.

void Teko::PreconditionerFactory::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & paramList )

Set parameters from a parameter list and return with default values.

Definition at line 115 of file Teko_PreconditionerFactory.cpp.

RCP< Teuchos::ParameterList > Teko::PreconditionerFactory::getNonconstParameterList ( )

Get the parameter list that was set using setParameterList().

Definition at line 120 of file Teko_PreconditionerFactory.cpp.

RCP< Teuchos::ParameterList > Teko::PreconditionerFactory::unsetParameterList ( )

Unset the parameter list that was set using setParameterList().

Definition at line 123 of file Teko_PreconditionerFactory.cpp.

void Teko::PreconditionerFactory::setRequestHandler ( const Teuchos::RCP< RequestHandler > & rh )

inlinevirtual

Set the request handler with pointers to the appropriate callbacks.

Implements Teko::RequestHandlerContainer.

Definition at line 186 of file Teko_PreconditionerFactory.hpp.

Teuchos::RCP<RequestHandler> Teko::PreconditionerFactory::getRequestHandler ( ) const

inlinevirtual

Get the request handler with pointers to the appropriate callbacks.

Implements Teko::RequestHandlerContainer.

Definition at line 189 of file Teko_PreconditionerFactory.hpp.

RCP< PreconditionerFactory > Teko::PreconditionerFactory::buildPreconditionerFactory	(	const std::string &	name,
		const Teuchos::ParameterList &	settings,
		const Teuchos::RCP< const InverseLibrary > &	invLib = `Teuchos::null`
	)

static

Builder function for creating preconditioner factories (yes this is a factory factory).

Builder function for creating preconditioner factories (yes this is a factory factory.

Builder function for creating preconditioner factories (yes this is a factory factory).

Parameters

[in]	name	String name of factory to build
[in]	settings	Parameter list describing the parameters for the factory to build
[in]	invLib	Inverse library for the factory to use.

Returns: If the name is associated with a preconditioner a pointer is returned, otherwise Teuchos::null is returned.

Builder function for creating preconditioner factories (yes this is a factory factory.

Parameters

[in]	name	String name of factory to build
[in]	settings	Parameter list describing the parameters for the factory to build
[in]	invLib	Inverse library for the factory to use.

Returns: If the name is associated with a preconditioner a pointer is returned, otherwise Teuchos::null is returned.

Definition at line 178 of file Teko_PreconditionerFactory.cpp.

void Teko::PreconditionerFactory::addPreconditionerFactory	(	const std::string &	name,
		const Teuchos::RCP< Cloneable > &	clone
	)

static

Add a preconditioner factory to the builder. This is done using the clone pattern.

Add a preconditioner factory to the builder. This is done using the clone pattern. If your class does not support the Cloneable interface then you can use the AutoClone class to construct your object.
