Abstract class which block preconditioner factories in Teko should be based on. More...

#include <Teko_BlockPreconditionerFactory.hpp>

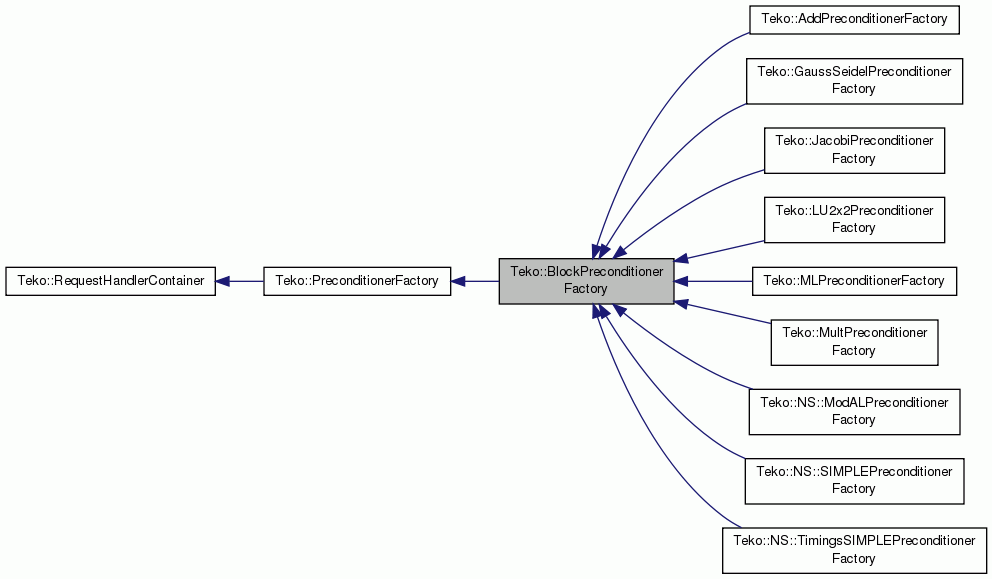

Inheritance diagram for Teko::BlockPreconditionerFactory:

Public Member Functions
virtual LinearOp	buildPreconditionerOperator (BlockedLinearOp &blo, BlockPreconditionerState &state) const =0
	Function that is called to build the preconditioner for the linear operator that is passed in. More...

virtual RCP< PreconditionerState >	buildPreconditionerState () const
	Function that permits the construction of an arbitrary BlockPreconditionerState object. More...

RCP< BlockPreconditionerState >	buildBlockPreconditionerState () const
	Function that constructs a BlockPreconditionerState object. More...

virtual LinearOp	buildPreconditionerOperator (LinearOp &blo, PreconditionerState &state) const
	Function that is called to build the preconditioner for the linear operator that is passed in. More...

bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Public Member Functions inherited from Teko::PreconditionerFactory
void	setInverseLibrary (const Teuchos::RCP< const InverseLibrary > &il)
	Set the inverse library used by this preconditioner factory. More...

Teuchos::RCP< const InverseLibrary >	getInverseLibrary () const
	Get the inverse library used by this preconditioner factory. More...

void	setRequestHandler (const Teuchos::RCP< RequestHandler > &rh)
	Set the request handler with pointers to the appropriate callbacks. More...

Teuchos::RCP< RequestHandler >	getRequestHandler () const
	Get the request handler with pointers to the appropriate callbacks. More...

virtual void	initializeFromParameterList (const Teuchos::ParameterList &)
	This function builds the internals of the preconditioner factory from a parameter list. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getRequestedParameters () const
	Request the additional parameters this preconditioner factory needs. More...

virtual bool	updateRequestedParameters (const Teuchos::ParameterList &)
	Update this object with the fields from a parameter list. More...

bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Teuchos::RCP < Thyra::PreconditionerBase < double > >	createPrec () const
	create an instance of the preconditioner More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, const Teuchos::RCP< const Thyra::MultiVectorBase< double > > &solnVec, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	uninitializePrec (Thyra::PreconditionerBase< double > prec, Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > fwdOpSrc, Thyra::ESupportSolveUse *supportSolveUse) const
	wipe clean a already initialized preconditioner object More...

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
	Set parameters from a parameter list and return with default values. More...

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	Get the parameter list that was set using setParameterList(). More...

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	Unset the parameter list that was set using setParameterList(). More...

Additional Inherited Members
Static Public Member Functions inherited from Teko::PreconditionerFactory
static Teuchos::RCP < PreconditionerFactory >	buildPreconditionerFactory (const std::string &name, const Teuchos::ParameterList &settings, const Teuchos::RCP< const InverseLibrary > &invLib=Teuchos::null)
	Builder function for creating preconditioner factories (yes this is a factory factory). More...

static void	addPreconditionerFactory (const std::string &name, const Teuchos::RCP< Cloneable > &clone)
	Add a preconditioner factory to the builder. This is done using the clone pattern. More...

static void	getPreconditionerFactoryNames (std::vector< std::string > &names)
	Get the names of the block preconditioner factories. More...

Protected Attributes inherited from Teko::PreconditionerFactory
Teuchos::RCP < Teuchos::ParameterList >	paramList_
	for ParameterListAcceptor More...

Teuchos::RCP< RequestHandler >	callbackHandler_
	For handling requests and send requests back to the user. More...

Detailed Description

Abstract class which block preconditioner factories in Teko should be based on.

Abstract class which block preconditioner factories in Teko should be based on. All that is needed is the implementation of "buildPreconditionerOperator".

Definition at line 100 of file Teko_BlockPreconditionerFactory.hpp.

Member Function Documentation

virtual LinearOp Teko::BlockPreconditionerFactory::buildPreconditionerOperator	(	BlockedLinearOp &	blo,
		BlockPreconditionerState &	state
	)		const

pure virtual

Function that is called to build the preconditioner for the linear operator that is passed in.

This function builds a preconditioner based on the passed in BlockedLinearOp.

Parameters

[in]	blo	Source linear operator that is to be preconditioned.
[in]	state	An object associated with this operator to store the preconditioner state.

Returns: The preconditioner as a linear operator (i.e. to perform a matrix-vector operation simply call "apply").

Implemented in Teko::LU2x2PreconditionerFactory, Teko::NS::ModALPreconditionerFactory, Teko::GaussSeidelPreconditionerFactory, Teko::MultPreconditionerFactory, Teko::JacobiPreconditionerFactory, Teko::NS::TimingsSIMPLEPreconditionerFactory, Teko::NS::SIMPLEPreconditionerFactory, Teko::AddPreconditionerFactory, and Teko::MLPreconditionerFactory.

virtual RCP<PreconditionerState> Teko::BlockPreconditionerFactory::buildPreconditionerState ( ) const

inlinevirtual

Function that permits the construction of an arbitrary BlockPreconditionerState object.

Function that permits the construction of an arbitrary BlockPreconditionerState object. If the basic state object, which takes a parameter list, is sufficient the default behavior does precisely what is needed. Otherwise, an author of a PreconditionerFactory would need to reimplement this method to return a new state object.

Returns: A state object associated with this factory.

Reimplemented from Teko::PreconditionerFactory.

Reimplemented in Teko::NS::ModALPreconditionerFactory, Teko::MultPreconditionerFactory, Teko::AddPreconditionerFactory, and Teko::MLPreconditionerFactory.

Definition at line 130 of file Teko_BlockPreconditionerFactory.hpp.

RCP<BlockPreconditionerState> Teko::BlockPreconditionerFactory::buildBlockPreconditionerState ( ) const

inline

Function that constructs a BlockPreconditionerState object.

This function is simply included for convenience. Its implementation just call "buildPreconditionerState" and returns a dynamically casted BlockPreconditionState poniter.

Definition at line 140 of file Teko_BlockPreconditionerFactory.hpp.

LinearOp Teko::BlockPreconditionerFactory::buildPreconditionerOperator	(	LinearOp &	lo,
		PreconditionerState &	state
	)		const

virtual

Function that is called to build the preconditioner for the linear operator that is passed in.

This function builds a preconditioner based on the passed in LinearOp.

Parameters

[in]	lo	Source linear operator that is to be preconditioned.
[in]	state	An object associated with this operator to store the preconditioner state.

Returns: The preconditioner as a linear operator (i.e. to perform a matrix-vector operation simply call "apply").

Implements Teko::PreconditionerFactory.

Definition at line 60 of file Teko_BlockPreconditionerFactory.cpp.

bool Teko::BlockPreconditionerFactory::isCompatible ( const Thyra::LinearOpSourceBase< double > & fwdOpSrc ) const

is this operator compatiable with the preconditioner factory?

Definition at line 72 of file Teko_BlockPreconditionerFactory.cpp.

The documentation for this class was generated from the following files:
