Teko::NS::TimingsSIMPLEPreconditionerFactory Class Reference

#include <Teko_TimingsSIMPLEPreconditionerFactory.hpp>

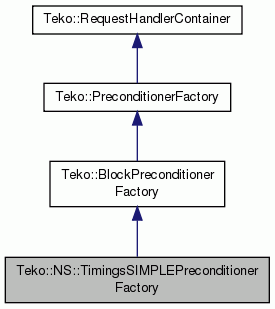

Inheritance diagram for Teko::NS::TimingsSIMPLEPreconditionerFactory:
Inheritance graph
[legend]

Public Member Functions

 TimingsSIMPLEPreconditionerFactory ()
 Default constructor. More...

virtual ~TimingsSIMPLEPreconditionerFactory ()
 Destructor that outputs construction timings. More...

LinearOp buildPreconditionerOperator (BlockedLinearOp &blo, BlockPreconditionerState &state) const
 Function that is called to build the preconditioner for the linear operator that is passed in. More...

virtual void setMassMatrix (Teko::LinearOp &mass)
 Set the mass matrix for this factory. More...

virtual Teuchos::RCP
< Teuchos::ParameterList >
getRequestedParameters () const
 For assisting in construction of the preconditioner. More...

virtual bool updateRequestedParameters (const Teuchos::ParameterList &pl)
 For assisting in construction of the preconditioner. More...

virtual void initializeFromParameterList (const Teuchos::ParameterList &pl)
 Initialize from a parameter list. More...

- Public Member Functions inherited from Teko::BlockPreconditionerFactory
virtual RCP< PreconditionerStatebuildPreconditionerState () const
 Function that permits the construction of an arbitrary BlockPreconditionerState object. More...

RCP< BlockPreconditionerStatebuildBlockPreconditionerState () const
 Function that constructs a BlockPreconditionerState object. More...

virtual LinearOp buildPreconditionerOperator (LinearOp &blo, PreconditionerState &state) const
 Function that is called to build the preconditioner for the linear operator that is passed in. More...

bool isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
 is this operator compatiable with the preconditioner factory? More...

- Public Member Functions inherited from Teko::PreconditionerFactory
void setInverseLibrary (const Teuchos::RCP< const InverseLibrary > &il)
 Set the inverse library used by this preconditioner factory. More...

Teuchos::RCP< const
InverseLibrary >
getInverseLibrary () const
 Get the inverse library used by this preconditioner factory. More...

void setRequestHandler (const Teuchos::RCP< RequestHandler > &rh)
 Set the request handler with pointers to the appropriate callbacks. More...

Teuchos::RCP< RequestHandlergetRequestHandler () const
 Get the request handler with pointers to the appropriate callbacks. More...

bool isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
 is this operator compatiable with the preconditioner factory? More...

Teuchos::RCP
< Thyra::PreconditionerBase
< double > >
createPrec () const
 create an instance of the preconditioner More...

void initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, const Teuchos::RCP< const Thyra::MultiVectorBase< double > > &solnVec, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
 initialize a newly created preconditioner object More...

void initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
 initialize a newly created preconditioner object More...

void uninitializePrec (Thyra::PreconditionerBase< double > *prec, Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > *fwdOpSrc, Thyra::ESupportSolveUse *supportSolveUse) const
 wipe clean a already initialized preconditioner object More...

void setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
 Set parameters from a parameter list and return with default values. More...

Teuchos::RCP
< Teuchos::ParameterList >
getNonconstParameterList ()
 Get the parameter list that was set using setParameterList(). More...

Teuchos::RCP
< Teuchos::ParameterList >
unsetParameterList ()
 Unset the parameter list that was set using setParameterList(). More...


Additional Inherited Members

- Static Public Member Functions inherited from Teko::PreconditionerFactory
static Teuchos::RCP
< PreconditionerFactory
buildPreconditionerFactory (const std::string &name, const Teuchos::ParameterList &settings, const Teuchos::RCP< const InverseLibrary > &invLib=Teuchos::null)
 Builder function for creating preconditioner factories (yes this is a factory factory). More...

static void addPreconditionerFactory (const std::string &name, const Teuchos::RCP< Cloneable > &clone)
 Add a preconditioner factory to the builder. This is done using the clone pattern. More...

static void getPreconditionerFactoryNames (std::vector< std::string > &names)
 Get the names of the block preconditioner factories. More...

- Protected Attributes inherited from Teko::PreconditionerFactory
Teuchos::RCP
< Teuchos::ParameterList >
paramList_
 for ParameterListAcceptor More...

Teuchos::RCP< RequestHandlercallbackHandler_
 For handling requests and send requests back to the user. More...


Detailed Description

The basic XML parameter list for SIMPLE looks like.

<ParameterList name="SIMPLEC">
<Parameter name="Type" type="string" value="NS SIMPLE-Timed"/>
<!-- Inverse operations to use -->
<Parameter name="Inverse Velocity Type" type="string" value="ML_GS-Velocity"/>
<Parameter name="Inverse Pressure Type" type="string" value="ML_GS-Pressure"/>
<Parameter name="Explicit Velocity Inverse Type" type="string" value="AbsRowSum"/>
<Parameter name="Alpha" type="double" value="0.9"/>
</ParameterList>

Definition at line 76 of file Teko_TimingsSIMPLEPreconditionerFactory.hpp.

Constructor & Destructor Documentation

Teko::NS::TimingsSIMPLEPreconditionerFactory::TimingsSIMPLEPreconditionerFactory ( )

Default constructor.

Definition at line 87 of file Teko_TimingsSIMPLEPreconditionerFactory.cpp.

Teko::NS::TimingsSIMPLEPreconditionerFactory::~TimingsSIMPLEPreconditionerFactory ( )
virtual

Destructor that outputs construction timings.

Definition at line 95 of file Teko_TimingsSIMPLEPreconditionerFactory.cpp.

Member Function Documentation

LinearOp Teko::NS::TimingsSIMPLEPreconditionerFactory::buildPreconditionerOperator ( BlockedLinearOp &  blo,
BlockPreconditionerState state
) const
virtual

Function that is called to build the preconditioner for the linear operator that is passed in.

This function builds a preconditioner based on the passed in BlockedLinearOp.

Parameters
[in]bloSource linear operator that is to be preconditioned.
[in]stateAn object associated with this operator to store the preconditioner state.
Returns
The preconditioner as a linear operator (i.e. to perform a matrix-vector operation simply call "apply").

Implements Teko::BlockPreconditionerFactory.

Definition at line 113 of file Teko_TimingsSIMPLEPreconditionerFactory.cpp.

virtual void Teko::NS::TimingsSIMPLEPreconditionerFactory::setMassMatrix ( Teko::LinearOp &  mass)
inlinevirtual

Set the mass matrix for this factory.

Definition at line 96 of file Teko_TimingsSIMPLEPreconditionerFactory.hpp.

Teuchos::RCP< Teuchos::ParameterList > Teko::NS::TimingsSIMPLEPreconditionerFactory::getRequestedParameters ( ) const
virtual

For assisting in construction of the preconditioner.

For assiting in construction of the preconditioner.

Reimplemented from Teko::PreconditionerFactory.

Definition at line 365 of file Teko_TimingsSIMPLEPreconditionerFactory.cpp.

bool Teko::NS::TimingsSIMPLEPreconditionerFactory::updateRequestedParameters ( const Teuchos::ParameterList &  pl)
virtual

For assisting in construction of the preconditioner.

For assiting in construction of the preconditioner.

Reimplemented from Teko::PreconditionerFactory.

Definition at line 400 of file Teko_TimingsSIMPLEPreconditionerFactory.cpp.

void Teko::NS::TimingsSIMPLEPreconditionerFactory::initializeFromParameterList ( const Teuchos::ParameterList &  pl)
virtual

Initialize from a parameter list.

Reimplemented from Teko::PreconditionerFactory.

Definition at line 295 of file Teko_TimingsSIMPLEPreconditionerFactory.cpp.


The documentation for this class was generated from the following files:
