A factory that creates a block Gauss Seidel preconditioner. The user must specify the solvers (or preconditioners) to use to approximately invert the diagonal operators. More...

#include <Teko_GaussSeidelPreconditionerFactory.hpp>

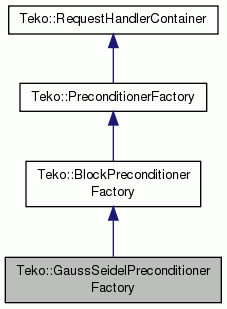

Inheritance diagram for Teko::GaussSeidelPreconditionerFactory:

[legend]

Public Member Functions
LinearOp	buildPreconditionerOperator (BlockedLinearOp &blo, BlockPreconditionerState &state) const
	Create the Gauss-Seidel preconditioner operator. More...

Constructors.
	GaussSeidelPreconditionerFactory (TriSolveType solveType, const LinearOp &invD0, const LinearOp &invD1)

	GaussSeidelPreconditionerFactory (TriSolveType solveType, const RCP< const BlockInvDiagonalStrategy > &strategy)

	GaussSeidelPreconditionerFactory ()

Public Member Functions inherited from Teko::BlockPreconditionerFactory
virtual RCP< PreconditionerState >	buildPreconditionerState () const
	Function that permits the construction of an arbitrary BlockPreconditionerState object. More...

RCP< BlockPreconditionerState >	buildBlockPreconditionerState () const
	Function that constructs a BlockPreconditionerState object. More...

virtual LinearOp	buildPreconditionerOperator (LinearOp &blo, PreconditionerState &state) const
	Function that is called to build the preconditioner for the linear operator that is passed in. More...

bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Public Member Functions inherited from Teko::PreconditionerFactory
void	setInverseLibrary (const Teuchos::RCP< const InverseLibrary > &il)
	Set the inverse library used by this preconditioner factory. More...

Teuchos::RCP< const InverseLibrary >	getInverseLibrary () const
	Get the inverse library used by this preconditioner factory. More...

void	setRequestHandler (const Teuchos::RCP< RequestHandler > &rh)
	Set the request handler with pointers to the appropriate callbacks. More...

Teuchos::RCP< RequestHandler >	getRequestHandler () const
	Get the request handler with pointers to the appropriate callbacks. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getRequestedParameters () const
	Request the additional parameters this preconditioner factory needs. More...

virtual bool	updateRequestedParameters (const Teuchos::ParameterList &)
	Update this object with the fields from a parameter list. More...

bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Teuchos::RCP < Thyra::PreconditionerBase < double > >	createPrec () const
	create an instance of the preconditioner More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, const Teuchos::RCP< const Thyra::MultiVectorBase< double > > &solnVec, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	uninitializePrec (Thyra::PreconditionerBase< double > prec, Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > fwdOpSrc, Thyra::ESupportSolveUse *supportSolveUse) const
	wipe clean a already initialized preconditioner object More...

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
	Set parameters from a parameter list and return with default values. More...

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	Get the parameter list that was set using setParameterList(). More...

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	Unset the parameter list that was set using setParameterList(). More...

Protected Member Functions
virtual void	initializeFromParameterList (const Teuchos::ParameterList &pl)
	Initialize from a parameter list. More...

Protected Attributes
Teuchos::RCP< const BlockInvDiagonalStrategy >	invOpsStrategy_
	some members More...

Protected Attributes inherited from Teko::PreconditionerFactory
Teuchos::RCP < Teuchos::ParameterList >	paramList_
	for ParameterListAcceptor More...

Teuchos::RCP< RequestHandler >	callbackHandler_
	For handling requests and send requests back to the user. More...

Additional Inherited Members
Static Public Member Functions inherited from Teko::PreconditionerFactory
static Teuchos::RCP < PreconditionerFactory >	buildPreconditionerFactory (const std::string &name, const Teuchos::ParameterList &settings, const Teuchos::RCP< const InverseLibrary > &invLib=Teuchos::null)
	Builder function for creating preconditioner factories (yes this is a factory factory). More...

static void	addPreconditionerFactory (const std::string &name, const Teuchos::RCP< Cloneable > &clone)
	Add a preconditioner factory to the builder. This is done using the clone pattern. More...

static void	getPreconditionerFactoryNames (std::vector< std::string > &names)
	Get the names of the block preconditioner factories. More...

Detailed Description

A factory that creates a block Gauss Seidel preconditioner. The user must specify the solvers (or preconditioners) to use to approximately invert the diagonal operators.

To invoke this preconditioner using the XML file a diagonal inverse needs to be specified. For example the following XML code creates a Gauss-Seidel preconditioner called "GS-Outer" using Amesos (a direct solver) to invert the diagonal blocks. This will invert the lower triangular portion of the matrix.

<ParameterList name="GS-Outer">
   <Parameter name="Type" type="string" value="Block Gauss-Seidel"/>
   <Parameter name="Use Upper Triangle" type="bool" value="false"/>
   <Parameter name="Inverse Type" type="string" value="Amesos"/>
</ParameterList>

Or if you want to specify a different inverse factory for a particular diagonal you can use

<ParameterList name="GS-Outer">
   <Parameter name="Type" type="string" value="Block Gauss-Seidel"/>
   <Parameter name="Use Upper Triangle" type="bool" value="false"/>
   <Parameter name="Inverse Type" type="string" value="DefaultInverse"/>
   <Parameter name="Inverse Type 1" type="string" value="InverseOfFirstDigonalEntry"/>
   <Parameter name="Inverse Type 3" type="string" value="InverseOfThirdDigonalEntry"/>
</ParameterList>

Notice that the "Inverse Type" parameter is now a default, and that you can specify each diagonal inverse on its own. The diagonal entries run from 1...N where N is the number of block rows. So the solver "InverseOfFirstDiagonalEntry" will be used for the first diagonal block, for the second "DefaultInverse" will be used, for the third "InverseOfThirdDigonalEntry" will be used, and for any further diagonal blocks "DefaultInverse" will be used.

Definition at line 102 of file Teko_GaussSeidelPreconditionerFactory.hpp.

Constructor & Destructor Documentation

Teko::GaussSeidelPreconditionerFactory::GaussSeidelPreconditionerFactory	(	TriSolveType	solveType,
		const LinearOp &	invD0,
		const LinearOp &	invD1
	)

Construct a PreconditionerFactory assuming a specific block $2\times2$ matrix. This case is a simple one.

Definition at line 57 of file Teko_GaussSeidelPreconditionerFactory.cpp.

Teko::GaussSeidelPreconditionerFactory::GaussSeidelPreconditionerFactory	(	TriSolveType	solveType,
		const RCP< const BlockInvDiagonalStrategy > &	strategy
	)

The most flexible JacobiPreconditionerFactory constructor. Pass in a generally defined BlockInvDiagonalStrategy to use the full generality of this class.

Definition at line 62 of file Teko_GaussSeidelPreconditionerFactory.cpp.

Teko::GaussSeidelPreconditionerFactory::GaussSeidelPreconditionerFactory ( )

Build an empty Gauss-Seidel preconditioner factory

Definition at line 66 of file Teko_GaussSeidelPreconditionerFactory.cpp.

Member Function Documentation

LinearOp Teko::GaussSeidelPreconditionerFactory::buildPreconditionerOperator	(	BlockedLinearOp &	blo,
		BlockPreconditionerState &	state
	)		const

virtual

Create the Gauss-Seidel preconditioner operator.

This method breaks apart the BlockLinearOp and builds a block diagonal preconditioner. The inverse of the diagonals are specified by the BlockInvDiagonalStrategy object.

Implements Teko::BlockPreconditionerFactory.

Definition at line 69 of file Teko_GaussSeidelPreconditionerFactory.cpp.

void Teko::GaussSeidelPreconditionerFactory::initializeFromParameterList ( const Teuchos::ParameterList & pl )

protectedvirtual

Initialize from a parameter list.

Reimplemented from Teko::PreconditionerFactory.

Definition at line 97 of file Teko_GaussSeidelPreconditionerFactory.cpp.
