#include <Teko_JacobiPreconditionerFactory.hpp>

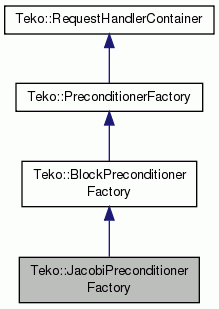

Inheritance diagram for Teko::JacobiPreconditionerFactory:

Public Member Functions
LinearOp	buildPreconditionerOperator (BlockedLinearOp &blo, BlockPreconditionerState &state) const
	Create the Jacobi preconditioner operator. More...

Teuchos::RCP< const BlockInvDiagonalStrategy >	getInvDiagStrategy () const
	Get inv diagonal strategy. More...

Constructors.
	JacobiPreconditionerFactory (const LinearOp &invD0, const LinearOp &invD1)

	JacobiPreconditionerFactory (const RCP< const BlockInvDiagonalStrategy > &strategy)

	JacobiPreconditionerFactory ()

Public Member Functions inherited from Teko::BlockPreconditionerFactory
virtual RCP< PreconditionerState >	buildPreconditionerState () const
	Function that permits the construction of an arbitrary BlockPreconditionerState object. More...

RCP< BlockPreconditionerState >	buildBlockPreconditionerState () const
	Function that constructs a BlockPreconditionerState object. More...

virtual LinearOp	buildPreconditionerOperator (LinearOp &blo, PreconditionerState &state) const
	Function that is called to build the preconditioner for the linear operator that is passed in. More...

bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Public Member Functions inherited from Teko::PreconditionerFactory
void	setInverseLibrary (const Teuchos::RCP< const InverseLibrary > &il)
	Set the inverse library used by this preconditioner factory. More...

Teuchos::RCP< const InverseLibrary >	getInverseLibrary () const
	Get the inverse library used by this preconditioner factory. More...

void	setRequestHandler (const Teuchos::RCP< RequestHandler > &rh)
	Set the request handler with pointers to the appropriate callbacks. More...

Teuchos::RCP< RequestHandler >	getRequestHandler () const
	Get the request handler with pointers to the appropriate callbacks. More...

virtual Teuchos::RCP < Teuchos::ParameterList >	getRequestedParameters () const
	Request the additional parameters this preconditioner factory needs. More...

virtual bool	updateRequestedParameters (const Teuchos::ParameterList &)
	Update this object with the fields from a parameter list. More...

bool	isCompatible (const Thyra::LinearOpSourceBase< double > &fwdOpSrc) const
	is this operator compatiable with the preconditioner factory? More...

Teuchos::RCP < Thyra::PreconditionerBase < double > >	createPrec () const
	create an instance of the preconditioner More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, const Teuchos::RCP< const Thyra::MultiVectorBase< double > > &solnVec, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	initializePrec (const Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > &fwdOpSrc, Thyra::PreconditionerBase< double > *precOp, const Thyra::ESupportSolveUse supportSolveUse) const
	initialize a newly created preconditioner object More...

void	uninitializePrec (Thyra::PreconditionerBase< double > prec, Teuchos::RCP< const Thyra::LinearOpSourceBase< double > > fwdOpSrc, Thyra::ESupportSolveUse *supportSolveUse) const
	wipe clean a already initialized preconditioner object More...

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
	Set parameters from a parameter list and return with default values. More...

Teuchos::RCP < Teuchos::ParameterList >	getNonconstParameterList ()
	Get the parameter list that was set using setParameterList(). More...

Teuchos::RCP < Teuchos::ParameterList >	unsetParameterList ()
	Unset the parameter list that was set using setParameterList(). More...

Protected Member Functions
virtual void	initializeFromParameterList (const Teuchos::ParameterList &pl)
	Initialize from a parameter list. More...

Protected Attributes
Teuchos::RCP< const BlockInvDiagonalStrategy >	invOpsStrategy_
	some members More...

Protected Attributes inherited from Teko::PreconditionerFactory
Teuchos::RCP < Teuchos::ParameterList >	paramList_
	for ParameterListAcceptor More...

Teuchos::RCP< RequestHandler >	callbackHandler_
	For handling requests and send requests back to the user. More...

Additional Inherited Members
Static Public Member Functions inherited from Teko::PreconditionerFactory
static Teuchos::RCP < PreconditionerFactory >	buildPreconditionerFactory (const std::string &name, const Teuchos::ParameterList &settings, const Teuchos::RCP< const InverseLibrary > &invLib=Teuchos::null)
	Builder function for creating preconditioner factories (yes this is a factory factory). More...

static void	addPreconditionerFactory (const std::string &name, const Teuchos::RCP< Cloneable > &clone)
	Add a preconditioner factory to the builder. This is done using the clone pattern. More...

static void	getPreconditionerFactoryNames (std::vector< std::string > &names)
	Get the names of the block preconditioner factories. More...

Detailed Description

A block diagonal preconditioner.

The use must specify an iverse for each diagonal. If a specific integer is not specified, then the default "Inverse Type" is used.

<Parameter name="Type" type="string" value="Block Jacobi"/>
<Parameter name="Inverse Type" type="string" value="<Some Inverse Factory>"/>
<Parameter name="Inverse Type 1" type="string" value="<Some Inverse Factory>"/>
<Parameter name="Inverse Type 2" type="string" value="<Some Inverse Factory>"/>
<Parameter name="Inverse Type 3" type="string" value="<Some Inverse Factory>"/>
<Parameter name="Inverse Type 4" type="string" value="<Some Inverse Factory>"/>
<Parameter name="Inverse Type 5" type="string" value="<Some Inverse Factory>"/>

Definition at line 35 of file Teko_JacobiPreconditionerFactory.hpp.

Constructor & Destructor Documentation

Teko::JacobiPreconditionerFactory::JacobiPreconditionerFactory	(	const LinearOp &	invD0,
		const LinearOp &	invD1
	)

Construct a PreconditionerFactory assuming a specific block $2\times2$ matrix. This case is a simple one.

Definition at line 17 of file Teko_JacobiPreconditionerFactory.cpp.

Teko::JacobiPreconditionerFactory::JacobiPreconditionerFactory ( const RCP< const BlockInvDiagonalStrategy > & strategy )

The most flexible JacobiPreconditionerFactory constructor. Pass in a generally defined BlockInvDiagonalStrategy to use the full generality of this class.

Definition at line 21 of file Teko_JacobiPreconditionerFactory.cpp.

Teko::JacobiPreconditionerFactory::JacobiPreconditionerFactory ( )

Build an empty Jacobi preconditioner factory.

Build a Jacobi preconditioner factory from a parameter list

Definition at line 27 of file Teko_JacobiPreconditionerFactory.cpp.

Member Function Documentation

LinearOp Teko::JacobiPreconditionerFactory::buildPreconditionerOperator	(	BlockedLinearOp &	blo,
		BlockPreconditionerState &	state
	)		const

virtual

Create the Jacobi preconditioner operator.

This method breaks apart the BlockLinearOp and builds a block diagonal preconditioner. The inverse of the diagonals are specified by the BlockInvDiagonalStrategy object.

Implements Teko::BlockPreconditionerFactory.

Definition at line 29 of file Teko_JacobiPreconditionerFactory.cpp.

Teuchos::RCP<const BlockInvDiagonalStrategy> Teko::JacobiPreconditionerFactory::getInvDiagStrategy ( ) const

inline

Get inv diagonal strategy.

Definition at line 66 of file Teko_JacobiPreconditionerFactory.hpp.

void Teko::JacobiPreconditionerFactory::initializeFromParameterList ( const Teuchos::ParameterList & pl )

protectedvirtual

Initialize from a parameter list.

Reimplemented from Teko::PreconditionerFactory.

Definition at line 45 of file Teko_JacobiPreconditionerFactory.cpp.
